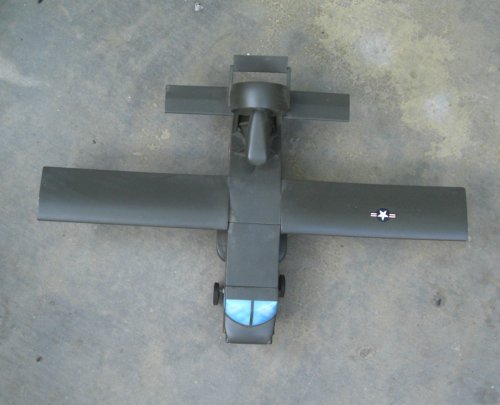

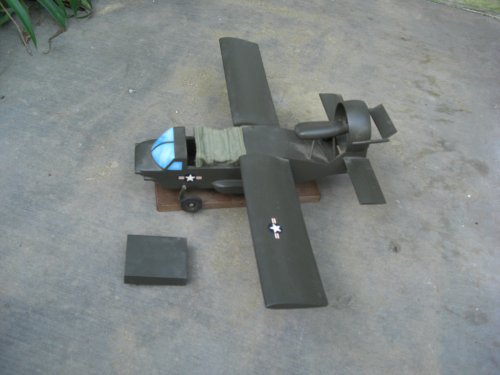

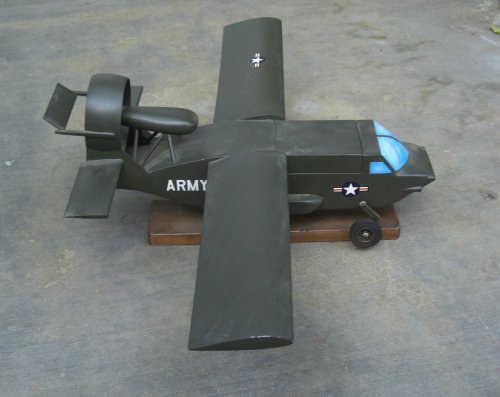

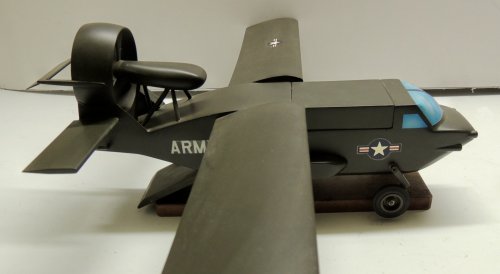

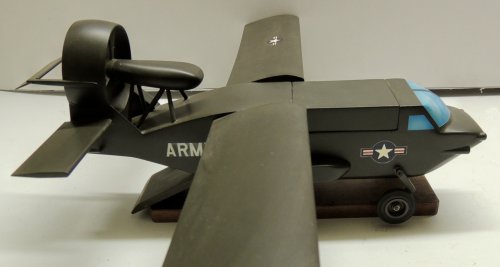

Attached are photos of a TAB factory proposal model (TAB = Truck-Airplane-Boat) from Northrop Corp. in Hawthorne, California.

An article on this project was published some time ago by Northrop's Tony Chong, and I hope some SPF members have more details on this cleverly utilitarian, roadable, amphibian aircraft.


Attachments

  • Northrop TAB Truck:Airplane:Boat 01.jpg
    Northrop TAB Truck:Airplane:Boat 01.jpg
    420.5 KB · Views: 940
  • Northrop TAB Truck:Airplane:Boat 02.jpg
    Northrop TAB Truck:Airplane:Boat 02.jpg
    413.5 KB · Views: 854
  • Northrop TAB Truck:Airplane:Boat 03.jpg
    Northrop TAB Truck:Airplane:Boat 03.jpg
    395.8 KB · Views: 749
  • Northrop TAB Truck:Airplane:Boat 04.jpg
    Northrop TAB Truck:Airplane:Boat 04.jpg
    471.7 KB · Views: 700
  • Northrop TAB Truck:Airplane:Boat 05.jpg
    Northrop TAB Truck:Airplane:Boat 05.jpg
    541.1 KB · Views: 668
Orionblamblam said:
circle-5 said:
An article on this project was published some time ago by Northrop's Tony Chong,

Don't leave us hanging. Published where?

I think it was in a Northrop company newsletter -- as opposed to a commercially available publication. I will see if I can obtain the article, unless somebody beats me to it and posts a scan of it, right here on SPF!

Truly fascinating. Only thing that's missing to make my joy complete is a model designation...

It also seems like an eminently viable project...

http://www.ebay.com/itm/Airplane-Concept-Prototype-Desk-Model-Northrup-Amphibious-US-Army-1960-Rare-/181219424737?pt=LH_DefaultDomain_0&hash=item2a3184f9e1

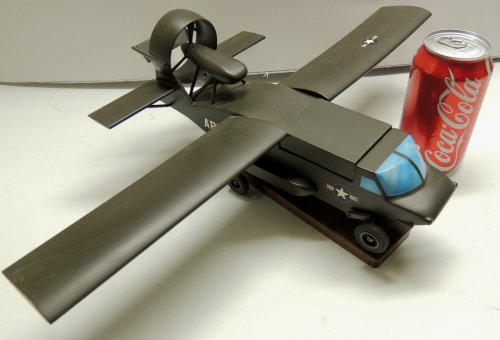

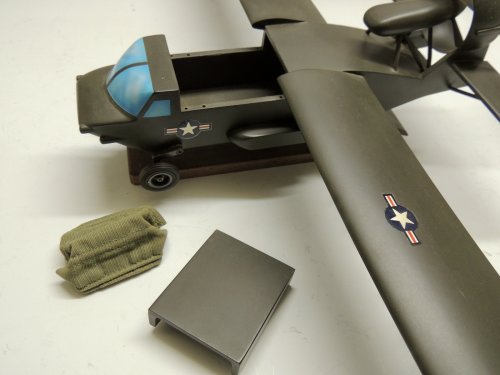

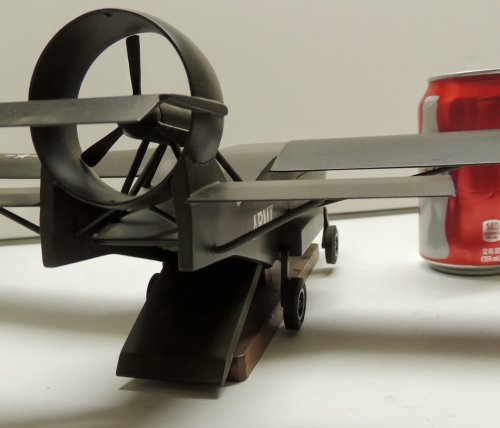

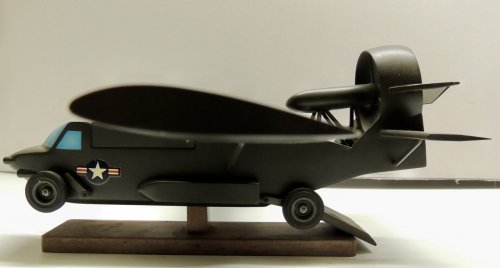

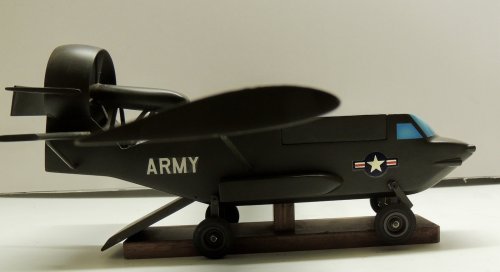

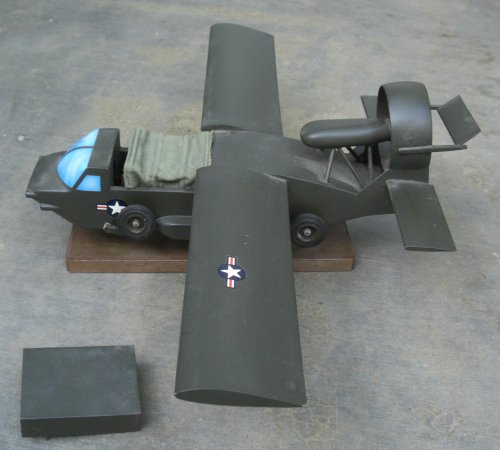

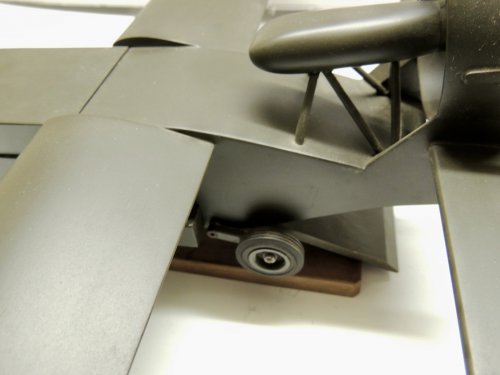

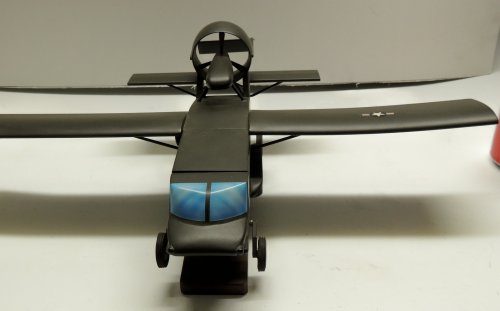

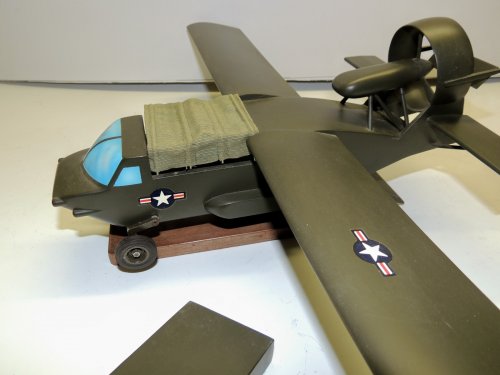

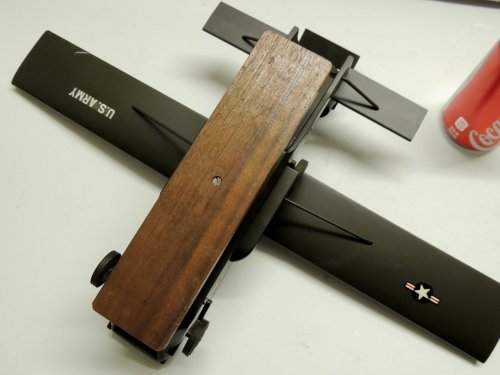

We offer for auction a very unusual prototype model. This is an amphibious cargo aircraft, I was told this was built by Northrup, but I do not know for sure. I have no idea if it went into service, anyone who recognizes this model please let me know. It is I believe made from painted wood & may have some metal parts. I cannot tell because there is little paint wear. The wheels are wood, there some chips to the black tire paint & the cargo door has paint wear at the sides so the wood can be seen. Also the left wing has slight warping so I am pretty sure most of the model is made from wood. The wingspan measures 18" & it is 12" long. The roof behind the cockpit is removable & can be replaced with a canvas roof that is stored inside the model. The wheels retract, although over time a couple have become a little loose & will not stay up. The same with the cargo door at the rear, I guess the metal posts holding these in place can be tightened but I do not know how to. The model is mounted on a nice wooden base. There is no damage to the model, it is close to mint except for the paint chips on the wheels & maybe one 'ARMY' decal is missing on the left rear side. This is a very well made aviaton factory prototype model, not something mass produced in Asia. The propeller does not spin, but the aileron behind it does move up & down.


Attachments

  • $T2eC16JHJHUFFfhDpWd3BSOMK-!wz!~~60_57 (1).jpg
    $T2eC16JHJHUFFfhDpWd3BSOMK-!wz!~~60_57 (1).jpg
    269.4 KB · Views: 26
  • $T2eC16VHJIIFHIuqcGR+BSOMJPsorw~~60_57.jpg
    260.7 KB · Views: 24
  • $(KGrHqVHJE!FIiUDcJGHBSOMLPidU!~~60_57.jpg
    169.6 KB · Views: 24
  • $(KGrHqZ,!oQFIrli9M7zBSOMKrRDoQ~~60_57.jpg
    263.7 KB · Views: 87
  • $(KGrHqVHJEIFIiMIjpJeBSOMKc5fJw~~60_57.jpg
    169.3 KB · Views: 91
  • $(KGrHqN,!nsFItNGZHN+BSOML-L3WQ~~60_57.jpg
    248.8 KB · Views: 94
  • $T2eC16FHJGoFFvz)YVo-BSOML4fuIQ~~60_57.jpg
    176.4 KB · Views: 97
  • $T2eC16dHJH4FHd,bQ2cPBSOMNHdq5!~~60_57.jpg
    216.6 KB · Views: 104
.


Attachments

  • $(KGrHqN,!lMFIy3Fuq-oBSOMImlN-Q~~60_57.jpg
    164.8 KB · Views: 25
  • $(KGrHqFHJFIFIuG9F9!4BSOMJChS5g~~60_57.jpg
    174.4 KB · Views: 25
  • $(KGrHqJ,!lQFIetijf,KBSOMH-mfH!~~60_57.JPG
    225.6 KB · Views: 30
i saw this aircraft as drawing in this forum.
dam, i have to look deep in, to find it.

Michel Van said:
i saw this aircraft as drawing in this forum.
dam, i have to look deep in, to find it.


Anyway, Great find my dear Paul,it's new for me.
