One of the things I uncovered in the Miller archive was an odd and poorly documented design for a flying wing naval aircraft. No designation, performance or date. All I can say is:
1: Was found in a binder of Northrop design projects
2: Was created on a CAD system
3: Isn't actually an A-6 intruder, but does kinda look like one, and seems to fullfill a simialr role.

Given all that, I'm *speculating* that this is a Northrop-Grumman design, *possibly* an early design for the A-12. There are some stealthy aspects to the design, but also some unstealthy aspects (you can see straight in the inlet to the turbines, frex).


Attachments

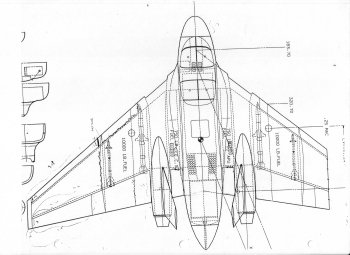

  • unk1.jpg
    51.4 KB · Views: 1,187
Yes, a NOC design from the late 80's from Aircraft Division. An alternate had unducted fans.

Not an A-12 effort but a S-3 replacement - MMA, I think. Multi-role Maritime Aircraft?

HTH.

"Isn't actually an A-6 intruder"

Don't think so, too, just quite a superficial resemblance.


Attachments

  • split.GIF
    58.4 KB · Views: 899
Looks like it seats four. Perhaps a study of a follow on for the EA-6 series?

hard to tell, I think, but you may be right. I supposed

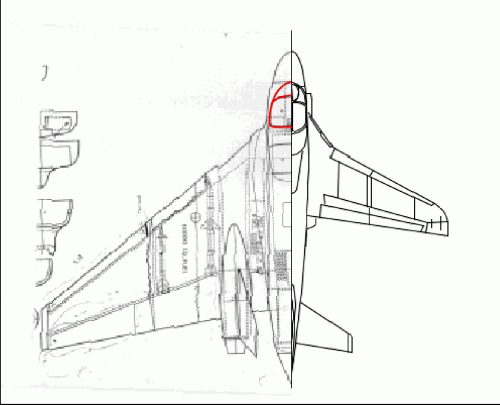

the cockpit, or better the canopy, to be the red outlined part.


Attachments

  • split1.GIF
    122.8 KB · Views: 813
Interesting to note that CAD design means mid-80s timeframe or even later, but in the same time no radikal signs of Northrop's stealth family heritage is seen. It was already a time when Cashen/Waaland knew much of all-aspect stealth. I could be wrong, though.

I take it those are Harpoons, HARM's, and Sparrows in the drawing? :eek: Woulda been nice to see this one fly.

Well, the pics are quite small, but I think there are several sonobuoys launchers at the rear so, it could be a combination A-6 / S-3 sustitute.
Regards from Seville

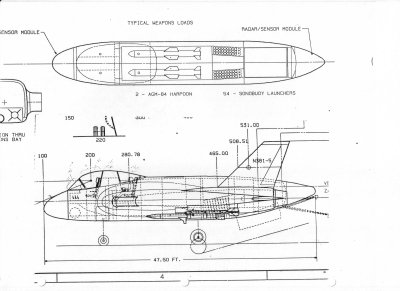

Reading "Radar/Sensor Module" on the last plans Scott posted suggests there's a switching of sensors depending on the mission. An all-in-one wonder plane, perchance?

Starviking

Courtesy Tony Buttler, some *actual* information on this design:
I am pretty sure that will be the N-381 Manta, a naval strike aircraft design from the early 1980s
Click to expand...


Attachments

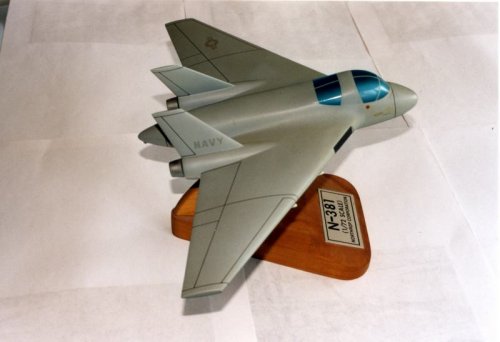

  • Northrop Manta N-381-1 a.jpg
    Northrop Manta N-381-1 a.jpg
    37.7 KB · Views: 949

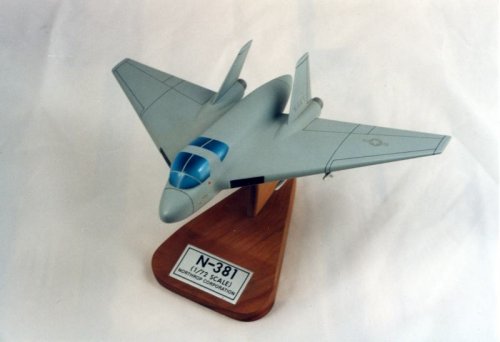

  • Northrop Manta N-381-3 a.jpg
    Northrop Manta N-381-3 a.jpg
    33 KB · Views: 3,913
Thanks Tony Buttler (and Orion for posting it)! :)

Then it's a Northrop, not a Grumman design.

Interesting design!
Some how I missed this forum :'(
Thanks!


It does look like a four-seat design – forward fuselage very Prowler.
I agree looks like possible sonar tubes.
Would be very cleaver and daring of Northrop, who has not had a carrier compatible design since I can’t remember (well technically speaking the F/A-18 Hornet. But do not tell that to McDonnell Douglas/Boeing!!!) to come out with such a multi-role aircraft to replace the likes of the A-6, EA-6B and S-3 Viking.

Would be very interesting to see specifications of this N-381 Mantra

Hopefully under the Obama new reforms, we may yet see a return of the US Navy’s true carrier strike capability to replace the long missed and neglected Medium Attack capability.

Well I can hope and dream cant I?

Regards
Pioneer

Pioneer said:
It does look like a four-seat design
Click to expand...

...Part of the Navy's plans to produce an attack aircraft you could take the family along with you when going on a mission.

"Allright! You kids settle down back there, or I'm pulling your D-rings!"

:D

There is a post by AM stating that N381 was a multi role carrier based flying wing aircraft and I can confirm that.

I was digging through a box and found a bunch of old Northrop company travel expense reports; before I tossed them I thought I would make a list to help with the chronology of the various projects. Attached to one of them was a piece of paper listing what we had done on the AMSS program (Advanced Multi-Sensor System). Apparently the bean counters wanted to track costs and it was attached to the report for a trip to Fokker in the Netherlands. We coordinated with them on the Fokker 100 COD (Carrier On-Board Delivery) version.

This apparently is what we did with the program:

Fokker F100 COD Aircraft / ASW / EW
3 NAD AD Configurations Target weight 60,000 lb
Skewed wing, Aft engines - too heavy (Jim W.)
Straight wing, aft engines - too heavy (Dave B.)
Lifting body, twin engined, high tail - OK but politically/legally No (John B.)

AD N381 config through - 13 versions. Tail less all wing design, LE wing Inlets, 4 seats, 2 verticals
subsonic 0.8M EW/ASW/A6 missions/COD Version (John B.)

Clearly the N381 is the only design that received a designation and judging by the number of versions, John worked on it for a while.

Unfortunately I have no drawings of it which is why I posted here.

BillRo

Way cool! Any approximate date? I would guess circa 1988-89, but it would be best to have a confirmation.

This was designed by John B. in 1985 as part of the Northrop white world Advanced Design group for a program called AMSS (Advanced Multi- Sensor System). It had four seats, a design speed of M= 0.8 and was to be fitted with EW, ASW avionics and used for A-6 missions. A COD version was also considered. I was not aware of this thread since I searched for N381 rather than N-381 - we did not use the dash in our designations during my tenure but it is often used. During this timeframe we helped Fokker with the F100 COD design for the same mission.
