NORD 4300

[ivran]

Hello again, does somebody have better pictures or drawing of this airplane, it VSTOL, with Bristol Pegasus engine and plus two more.
Second aircraft is Nord N.4210 with like Hawker Harrier engine.

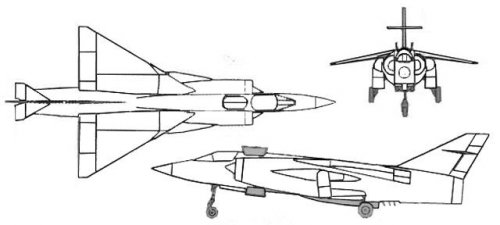

J found only this small pictures
Great regarding for all,and thanks in advance



[ivran]

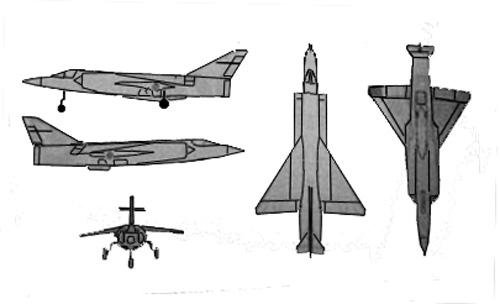

sorry second pictures



[Jemiba]

Hello again, does somebody have better pictures or drawing of this airplane...

Yes, me !

If I'm not totally wrong, they are downsized and somehow coloured version of those drawings,
I made some years ago for Mirage 4000's Le Fana article about the Nord VTOL/VSTOL designs.
Don't have they at hand in the moment, but will post them this evening.



[Jemiba]

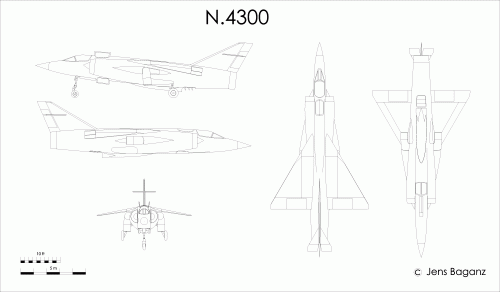

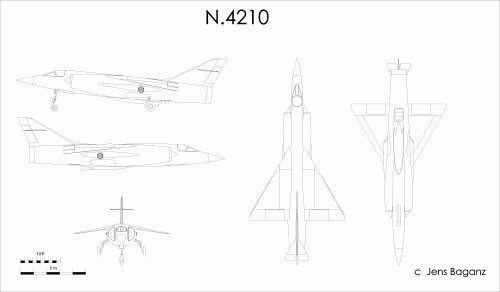

As promised the drawings from Alexis Rocher article in Le Fana. Was a great surprise, when I
got the basic drawings back then, many thanks again !



[ivran]

thank you very much, you are the best on the world



[c460]

Thread on a scratch model kit under construction by "gaët la bëte" at master194.com:
http://www.master194.com/forum/viewtopic.php?f=4&t=76480



[hesham]

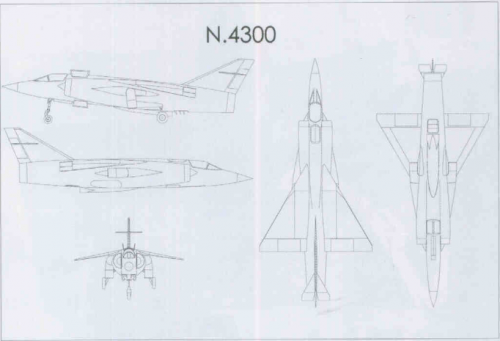

And from Le FANA.



[Stargazer]

And from Le FANA.

? ? ?

This is the work of our own Jemiba, a.k.a. Jens Baganz...



[hesham]

And from Le FANA.

? ? ?

This is the work of our own Jemiba, a.k.a. Jens Baganz...

Oh yes,


I meant this is a clearer one,of course I know the work of my dear Jemiba.
