Hi,

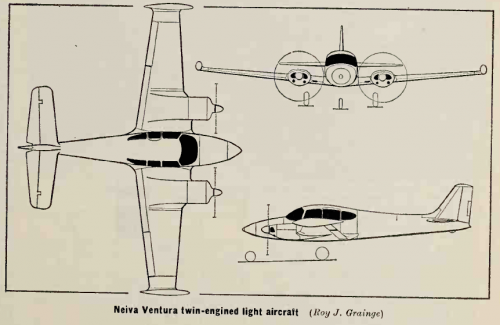

the Brazilian company Neiva designed the Ventura,it was six-seat low-
wing light aircraft Project of early 1970s,powered by two 300 hp Lycoming
IO-540 engine.

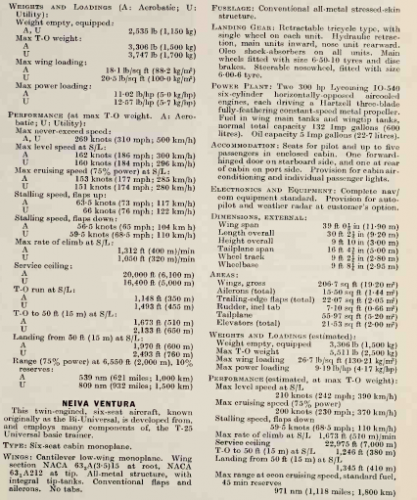

Jane's All the World's Aircraft 1974-1975


Attachments

  • Ventura.png
    124.6 KB · Views: 232
  • data.png
    199.1 KB · Views: 201
Last edited:
From, Historia da Construcao Aeronautica no Brasil,

here is some Neiva Projects;

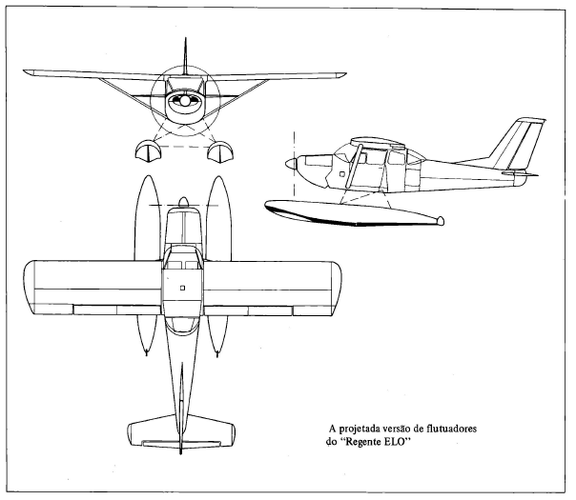

- the Regente with floats

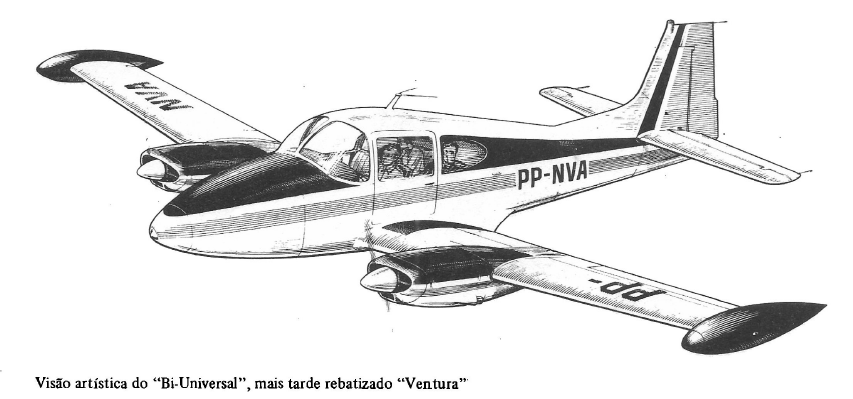

- Bi-Universal (Ventura)

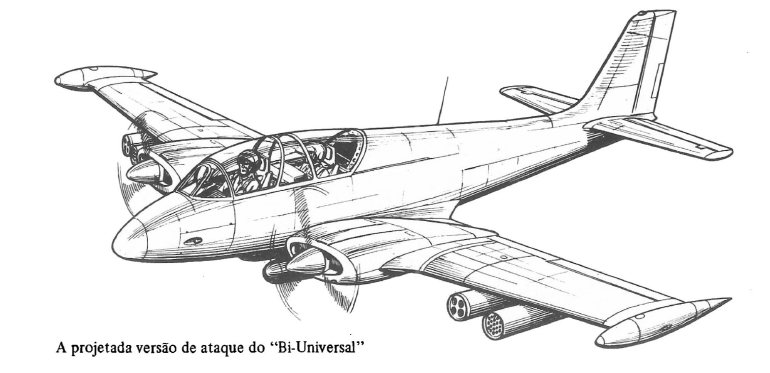

- Bi-Universal Attack version

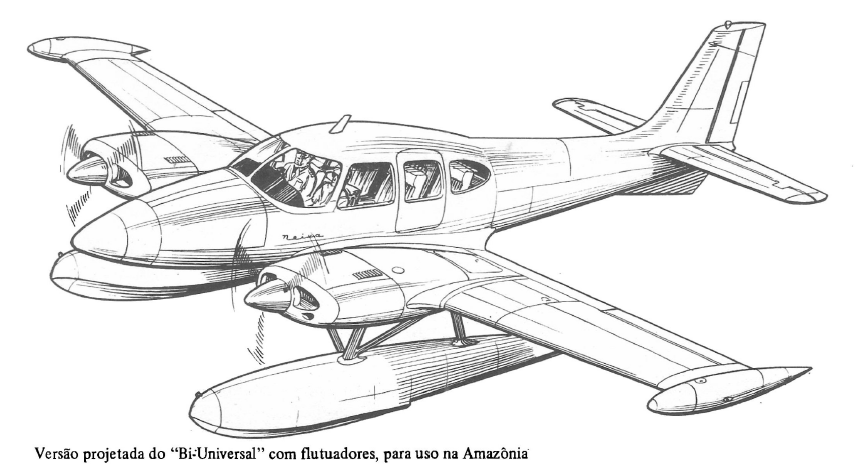

- Bi-Universal with floats

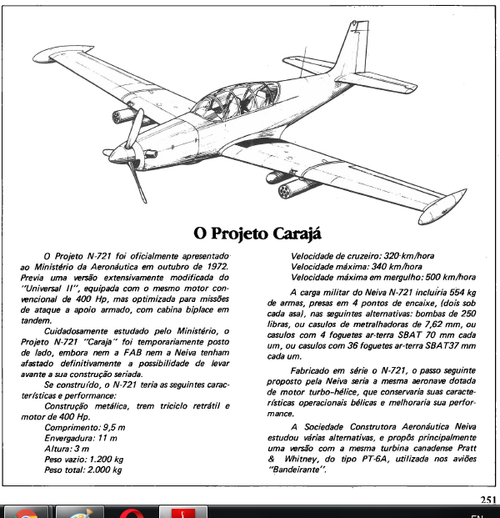

- N-721 Caraja


Attachments

  • N-1.png
    51.1 KB · Views: 47
  • N-2.png
    137.8 KB · Views: 61
  • N-3.png
    117.8 KB · Views: 64
  • N-4.png
    177.5 KB · Views: 64
  • N-721.png
    144 KB · Views: 67
