Need Help identifying an old (WWI) Fokker

[Tomac]

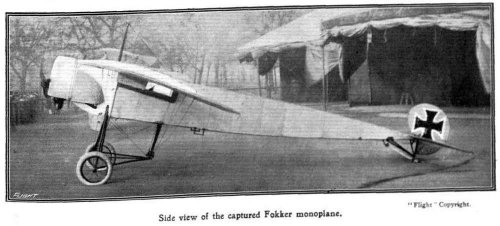

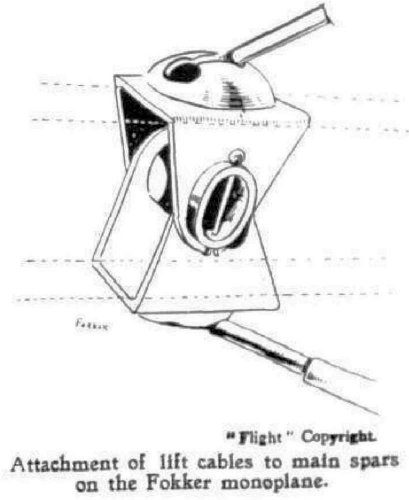

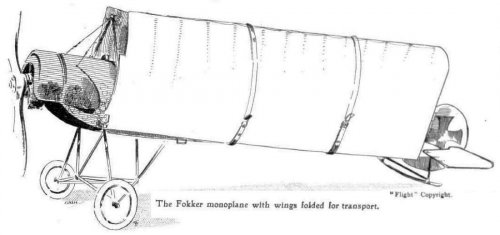

Hi all - Recently I came across this photo and these drawings. They are of a captured Fokker fighter but don't quite look like the E.I through E.IV series. As seen in the photo, the wing is a shoulder-mount and there are cutouts beneath it, both of which are lacking in the photos and drawings of the E-series that I've seen to date. It rather looks like an M-8, but I've never seen a photo of one with national markings.

Any help would be appreciated.

Regards,
John Braungart



[hesham]

Hi Tomac,


maybe that's help;


http://flyingmachines.ru/Site2/Crafts/Craft30234.htm



[Tomac]

That's it! An M.8, a.k.a. A.I observation. THanks for your help.
Regards, John Braungart
