NASA FRC Hypersonic Research Aircraft (1975)

[flateric]

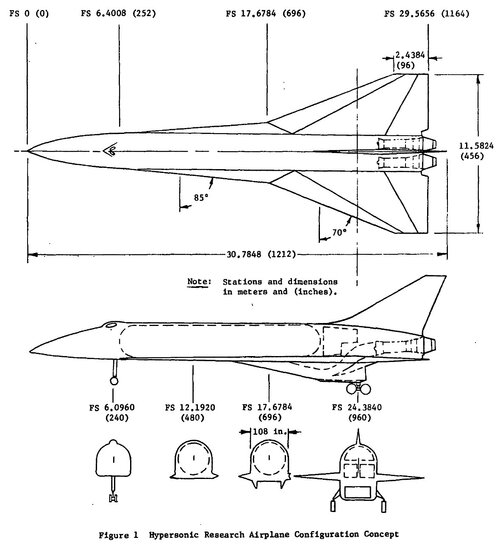

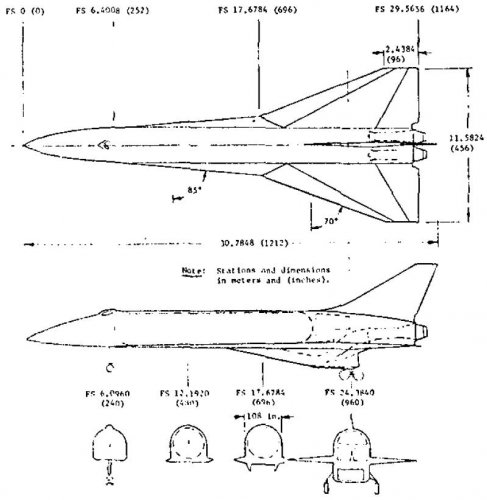

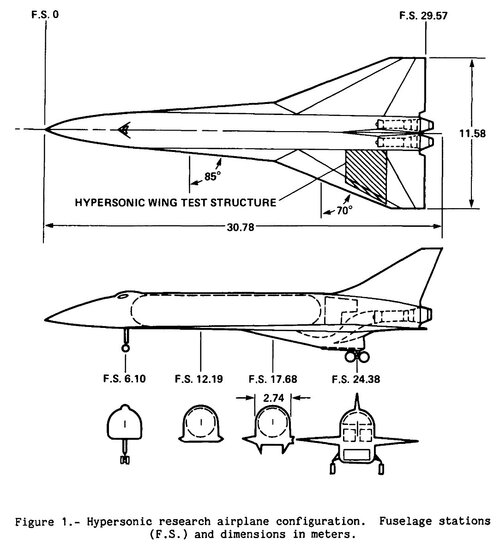

NASA Flight Research Center Hypersonic Research Aircraft (1975)
Estimated TOW 72,582 lb

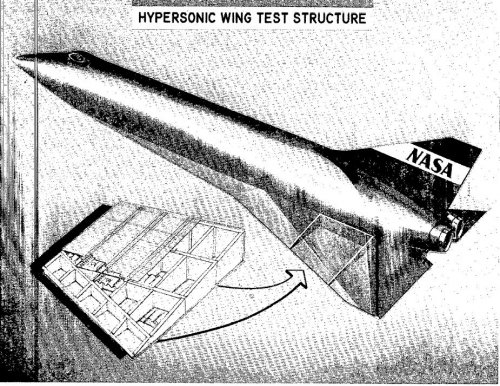

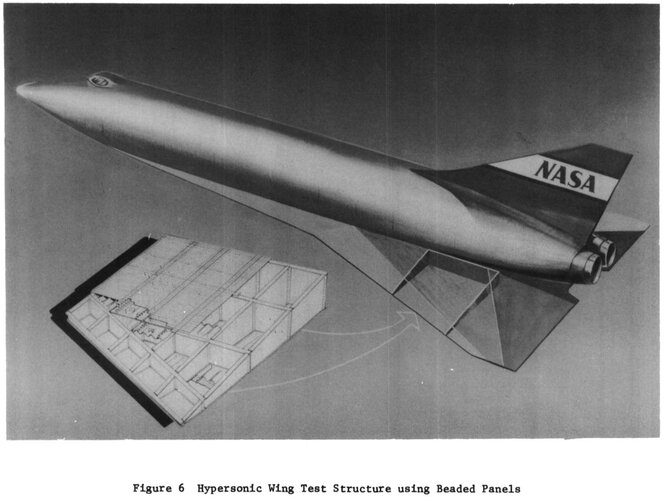

Martin Marietta has built full-scale wing structure test article for this bird.



[Dew]

"Unkown X-plane - Martin Marietta NASA" from Drew Granston's excellent Lifting Body Aircraft Flickr album (check it out if you haven't seen it before).



[Archibald]

I rarely say that about hypersonic designs, but that one... ugh. Ugly as frack.



[Dew]

Oh, she's a beaut !







from:

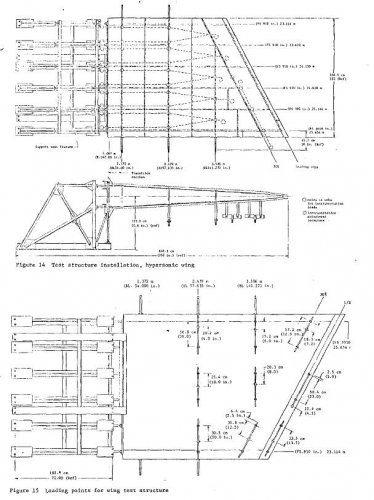

Hypersonic wing test structure design, analysis, and fabrication & Comparison of measured and calculated temperatures for a Mach 8 hypersonic wing test structure
