Napier Forward Projects Office

[Schneiderman]

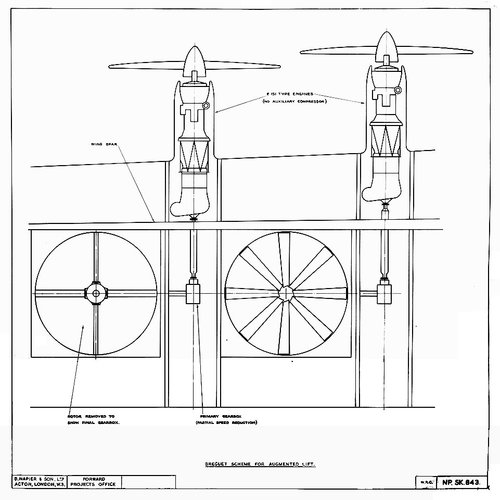

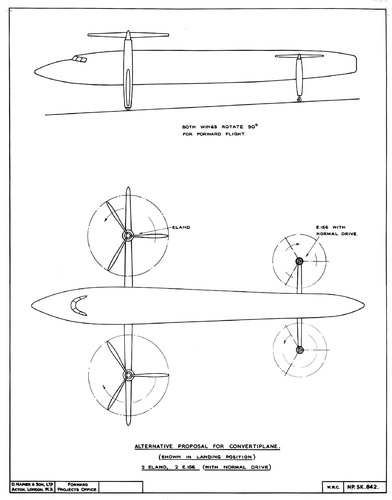

Two undated drawings of conceptual VTOL installations for the Eland



[Schneiderman]

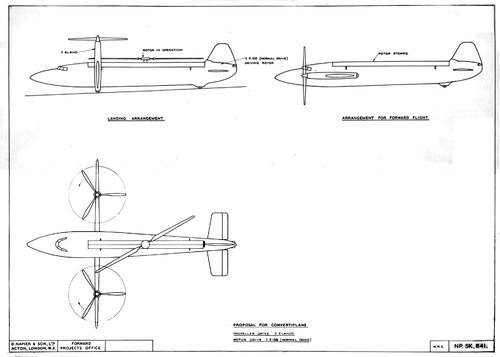

and another one



[GTX]

Interesting



[Grey Havoc]

Pre- late 1960 do you think? Almost certainly pre-1961, when production of the Eland was prematurely ended after the formation of the Napier Aero Engines Limited joint venture (in theory at least) with Rolls-Royce.



[TsrJoe]

and another one
View attachment 618073

different, are there any drawings showing the wing platform in 'cruise' configuration ?

cheers, Joe
