Mystery unbuilt sub design identity?

[covert_shores]

found at http://bbs.stardestroyer.net/viewtopic.php?style=4&f=45&t=120954&start=950



[Jemiba]

From what I found on that site, the design principally is a "What If", but is said to be based on an
actual design, shown in a document from the "Conference on Peaceful Uses of Atomic Energy"
(short "Atoms for Peace" ?). No year given, maybe 1955 or 1958 ? The ship shown above that
sub on that site somehow reminds me of the NS Savannah and has the same "source", perhaps
this limits the timeframe ?



[TomS]

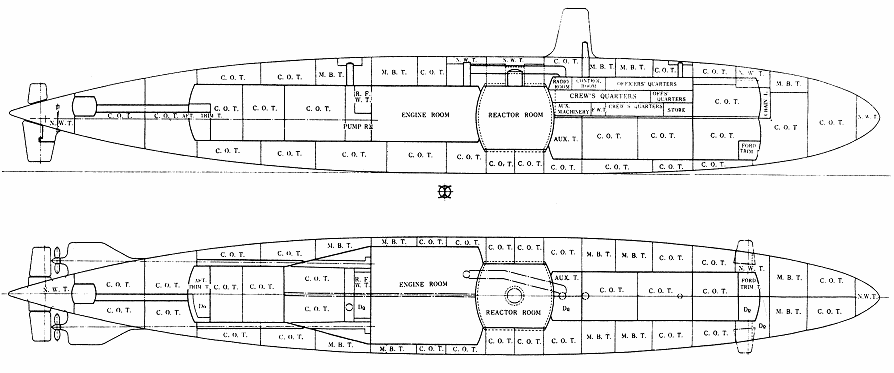

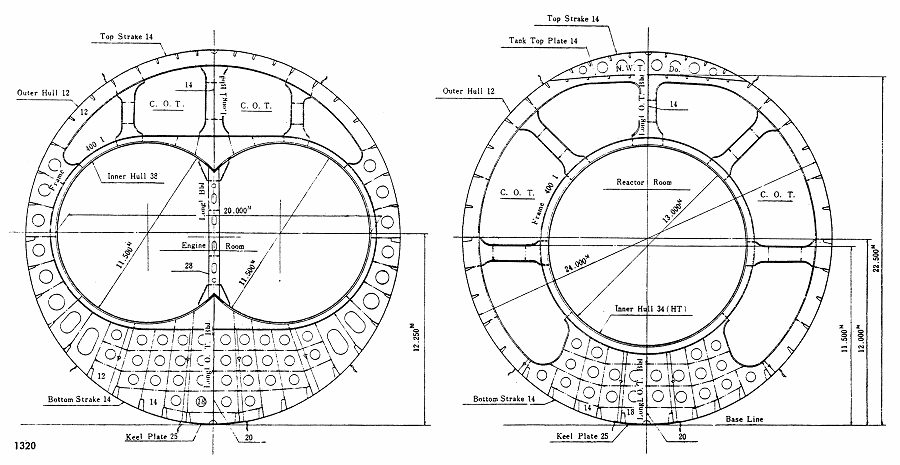

The marking "c.o.t." in the drawing means "cargo oil tank." This is a nuclear powered submarine tanker.

Edit: Probably the Japanese Mitsubishi design referred to in this 1957 article:

https://books.google.com/books?id=8t68yowaIoQC&lpg=PA35&ots=YG1ab3v1Oy&dq=nuclear%20submarine%20tanker&pg=PA35#v=onepage&q=nuclear%20submarine%20tanker&f=false



[Michel Van]

end of 1960s were study made for Transport of Oil from Alaska fields to USA main land

One was Nuclear power Icebraker oil tanker.
Second was Nuclear Submarine oil tanker.
Third was to build pipeline true Alaska.

option three was taken



[covert_shores]

Interesting design particularly the twin engine rooms - like I-400



[Grey Havoc]

Japanese Mitsubishi nuclear submarine oil tanker design dating 1957-1958

Displacement 48,200 tons, deadweight 30,000 tons and as dimensions 590 (lenght) x 78.6 (diameter) x 55.7 (draught) feet. Nulear propulsion 1...

warshipsresearch.blogspot.com



[Justo Miranda]

Hi



[Justo Miranda]

Post-2
