Mystery ramjet thing.

sferrin

ACCESS: USAP
Senior Member
Joined
3 June 2011
Messages
17,887
Reaction score
10,949
I've asked about this in the past (did a search here and couldn't find it though) and with the new members since I last asked I thought I'd put it up again. I've asked on several forums over the years with no luck. I originally got it off either the Wright Propulsion site or the Arnold Engineering site several years ago. It was taken in 1969 (judging by the file name) but I don't recall there being anything specific in the description of it. Does anybody here know what this thing is or what other forum I might try? I don't even know if it's suppose to be a missile, a launch vehicle, or some generic propulsion test item.


Attachments

  • 1969_04155L.jpg
    13.9 KB · Views: 165
http://www.archive.org/details/C-1969-4155

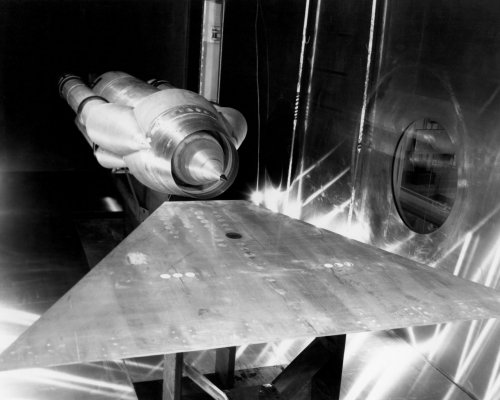

60-40 SHOCK STABILITY MODEL IN THE 10X10 FOOT WIND TUNNEL (12/22/1969)
Creator: NASA/Glenn Research Center

thee are some others wonder things there
http://www.archive.org/search.php?query=SHOCK%20STABILITY%20MODEL

I guess that these side tubes are only used for engine (J-85?) and inlet tests at certain regimes


Attachments

  • 1970_00295sm.jpg
    138.2 KB · Views: 144
  • 1969_03873sm.jpg
    136.6 KB · Views: 146
  • 1969_03872sm.jpg
    205 KB · Views: 125

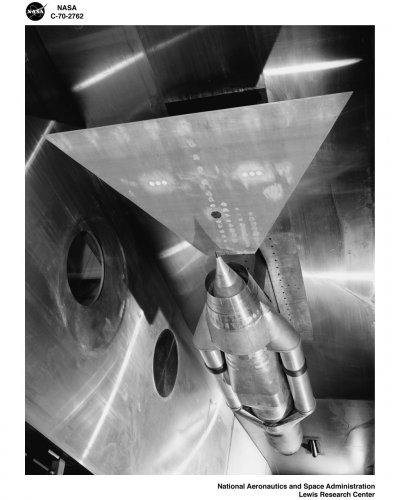

  • 1970_02762sm.jpg
    132.5 KB · Views: 135
Damn, you must be a 10th degree black belt in Google Fu. :) I wonder if, given the time frame and those extra pictures, it might even be possible to identify the program they're associated with. (No, that's not a request. :) Just thinking out loud as it were.)

this is NOT a missile, this is engine inlet test rig
engine inlet shock stability model

I expect the parts can all be changed to play with
different conditions.

Looks like a very flexible fixture.

On some of the pictured configs:

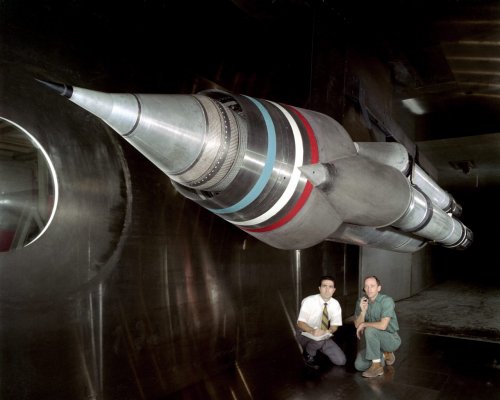

Note translating inlet spike.

Note shape of inlet spike.

Spike is probably changeable.

Looks like 2 external cone shocks used on the one pictured.

Note external cowl angle versus spike angle. Spike
angle will close in on cowl angle if internal angles
match external appearance. Flow will be restricted
so internal shocks will form.

Center tube can probably hold a turbine cycle, or not.
In fact the center tube looks changeable as different
center tubes seem to be installed in several pix.

Looks like cowl can be changed as well. Note the cowl
appears longer (fore-aft) in some pictures. Hard to
tell for sure. I would expect something like this though
to play with that parameter and shock on lip for different
spikes, etc. Plus they could play with different
flow separation control devices too.

Note what looks like different spike bleeds
(before throat, at throat, past throat (subsonic diffuser)
on the spike itself. Certainly programmable. Probably
dumps to one of the side tubes.

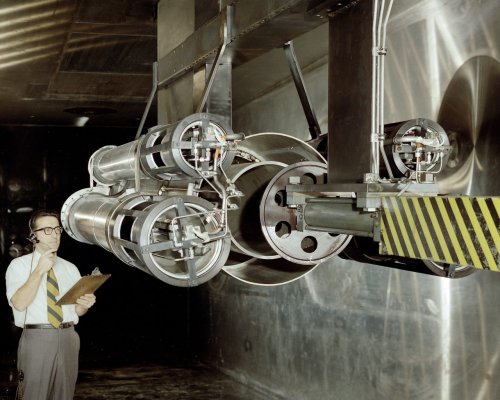

Note side tubes, they seem to tap into flow at different
places and hard to tell, but seem to rejoin flow downstream.
Some side tubes don't have extensions but some seem to have
extensions that look a little like nozzles (maybe).

Look at the largest side tubes and where they are when the
spike is fully retracted. Looks like they are over the
throat and maybe even have upstream and downstream ways
to tap into that flow (would have to see inside to confirm).
for playing with bleeding the flow near the throat.

Smaller side tubes seem to be attached to subsonic diffuser
downstream of throat or even near compressor face if a such
a cycle is installed in the center case. Could also dump
spike bleed.

Cool test fixture !

Of course would need to motorize some of it.

Every supersonic inlet freak should have one!

It's like an SR nacelle only a lot easier to test with.
