Here is the P-51 forward swept wing concept that I have just finished this past week. I only had two pictures of the factory model and a low irresolution image of the factory drawing to work with, and that is about it. As usual the tires and nav lights are photo manipulated, as is the gunsight. I was able to "borrow" the seat and prop from my P-51H drawing. This should be the same scale as my FTB Mustang and my P-51H. Edit: Line drawing by Chuck Davis

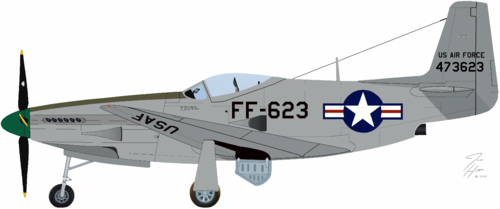

![Mustang-FSW-color-side-landed-done.png Mustang-FSW-color-side-landed-done.png](https://www.secretprojects.co.uk/data/attachments/170/170539-4b5806d265cfa40a714b408e8f34121a.jpg)

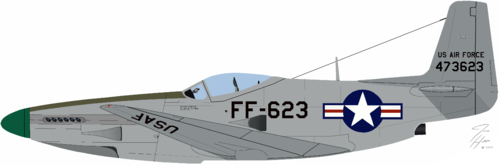

![Mustang-FSW-color-side-done.png Mustang-FSW-color-side-done.png](https://www.secretprojects.co.uk/data/attachments/170/170540-db8ee15e39eb53c2299d79a82448a55f.jpg)

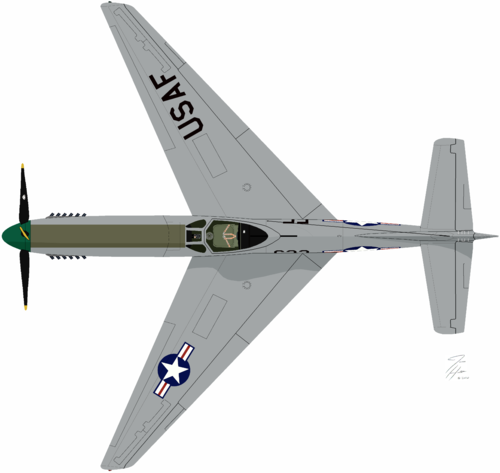

![Mustang-FSW- color-top-landed-done.png Mustang-FSW- color-top-landed-done.png](https://www.secretprojects.co.uk/data/attachments/170/170541-42be1eb8ff90f9536b6337ea30f300b1.jpg)
![Mustang-FSW-color-top-done.png Mustang-FSW-color-top-done.png](https://www.secretprojects.co.uk/data/attachments/170/170542-ff4bfe1e875255c262e92bdd0ba2bce0.jpg)

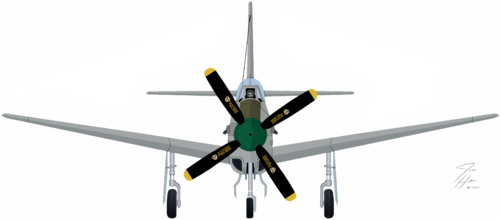

![Mustang-FSW-line-front-landed-done.png Mustang-FSW-line-front-landed-done.png](https://www.secretprojects.co.uk/data/attachments/170/170543-51edcc04ea4fe614e97f0889f1cbc7ac.jpg)

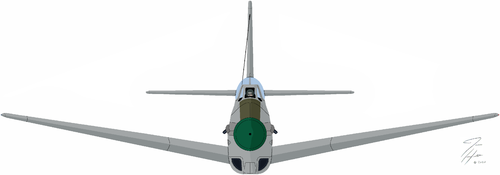

![Mustang-FSW-line-front-done.png Mustang-FSW-line-front-done.png](https://www.secretprojects.co.uk/data/attachments/170/170544-310a6c7bbdae13b270cddbb6a98ae1ee.jpg)
