Molyneux XM-1000 Twin Rotor Helicopter & Its Derivatives

[hesham]

Hi,

The Molyneux XM-1000 twin rotor helicopter
project.



[TinWing]

Hi,

The Molyneux XM-1000 twin rotor helicopter
project.

Isn't that an unbuilt Australian project?

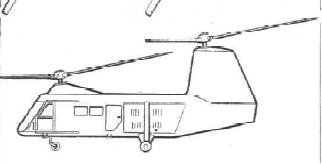

I think I saw an article and side view drawing in the Flightglobal archive?



[Jemiba]

"does anyone out there know if the Molyneux XM-1000 twin rotor helicopter an actual projected design or a what-if concept?"

Sorry, a bit late ... : :

Janes 1956-57 said, that the XM-1000 was designed to be powered by a 550 hp P & W Wasp
engine and should have a range of 350 miles with a MOW of 1850 kg. Development of the
XM-1000 was started in conjunction with the "Aeronautical Research Laboratories of the
Australian Department of Supply". So it seems to have been a real project , not just a "What-If" .



[Vahe Demirjian]

Hi,

The Molyneux XM-1000 twin rotor helicopter
project.

Isn't that an unbuilt Australian project?

I think I saw an article and side view drawing in the Flightglobal archive?

Molyneux XM-1000 was clearly an Aussie helicopter project. More info and specs are available at the following links:

aeropedia

Molyneux XM-1000 helicopter - development history, photos, technical data

www.aviastar.org

Google Sites: Sign-in

Access Google Sites with a personal Google account or Google Workspace account (for business use).

sites.google.com



[TsrJoe]

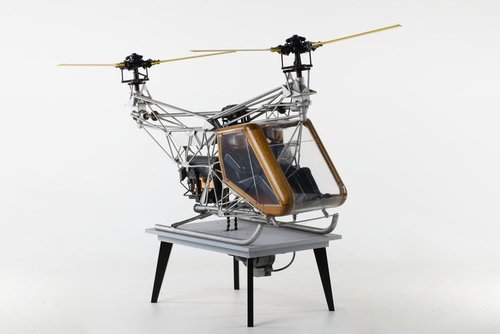

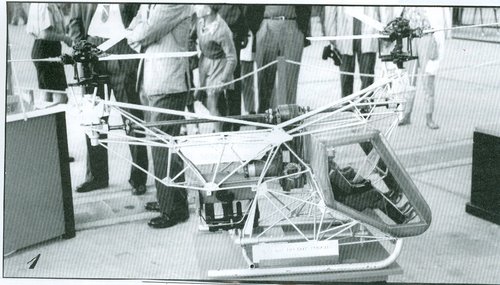

Molyneux XM.2000 test model ...

Helicopter Model - G.C. Molyneux, XM2001 Twin Rotor, 1953-54

Model of a twin-rotor helicopter designed by Grevor Chilton 'Bing' Molyneux. The model has a small stand incorporating an electric motor to drive the rotor blades for wind tunnel testing. The mock-up engine is a 130 hp Gipsy Major. This model was subjected to wind tunnel tests at the...

collections.museumvictoria.com.au



[TsrJoe]

Molyneux XM.1000 design project ...

aeropedia



[TsrJoe]

Molyneux XM.2000 test model ... http://atsconsultancy.com.au/demo/Aeropidia_info/molyneux-xm-2000/



[hesham]

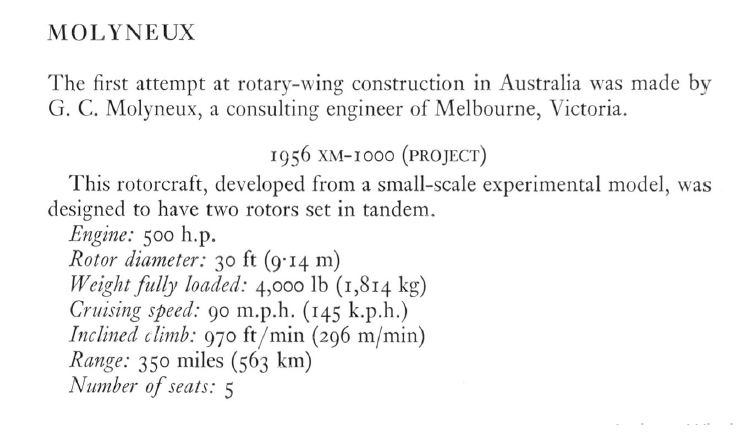

From, Helicopters & Autogyros of the World.



[hesham]

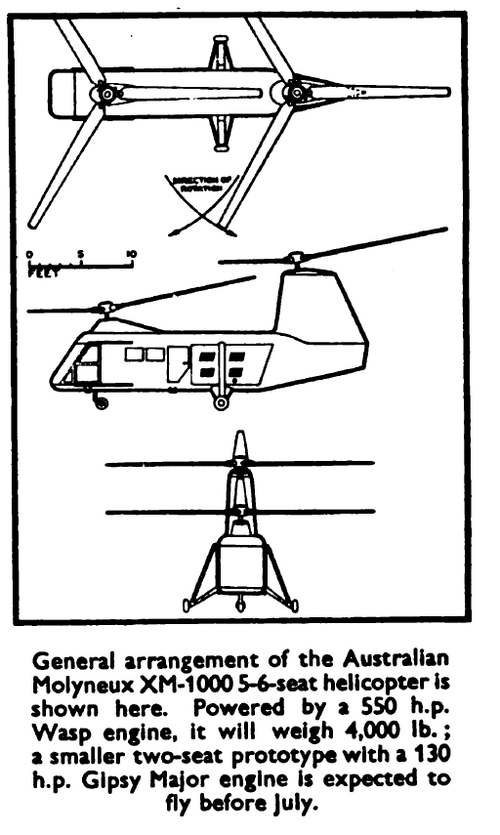

From Aeroplane 1956,

there was another smaller version,had a two-seat,powered by one 130 hp Gipsy Major engine,maybe
called XM-3000 ?.



[TsrJoe]

Search Museums Victoria's collections

Search a database of over 1.15 million records of zoology, geology, palaeontology, history, First Peoples and technology from Museums Victoria's collections.

collections.museumsvictoria.com.au



[TsrJoe]

US2827777A - Constant velocity drive means - Google Patents

Australia may soon be building - Helicopters - The Courier-Mail (Brisbane, Qld. : 1933 - 1954) - 15 Jan 1954

MELBOURNE—Late this month we should have an idea about the worth of the first Australian-built helicopter. ...

trove.nla.gov.au



[Petrus]

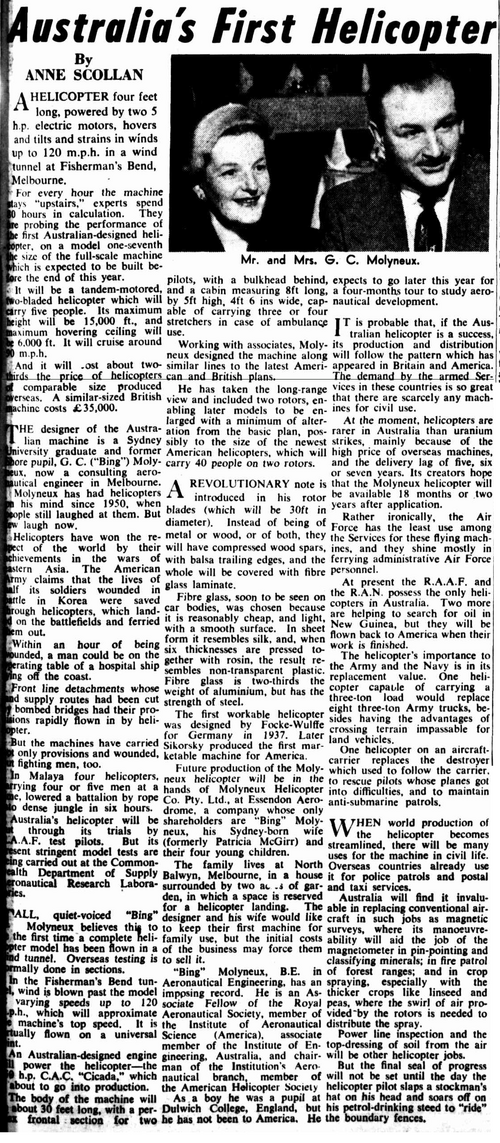

An excellent article from The Sydney Morning Herald of 4 June 1954: https://trove.nla.gov.au/newspaper/article/27517647#

It contains a description of the Molyneux helicopter, including the dimensions of its cabin. Also it says that the helicopter would be powered by 450 hp Australian-built CAC Cicada engine (http://www.enginehistory.org/Piston/CAC/cac.shtml).

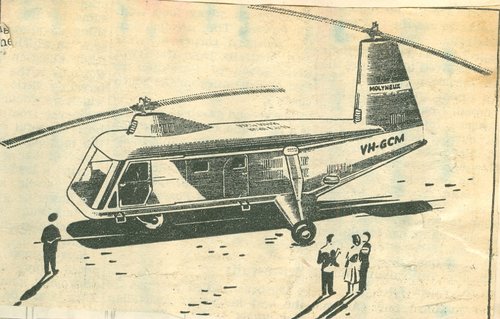

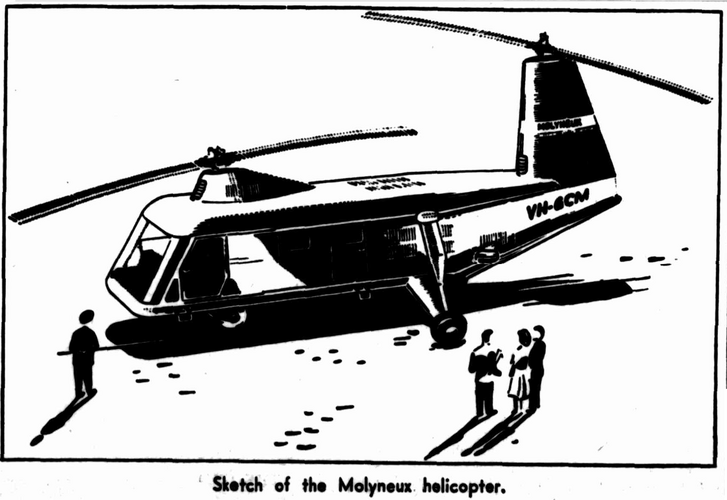

Below you'll find the article's photocopy along with a rather blurry drawing (we have its better quality version posted in https://www.secretprojects.co.uk/th...helicopter-its-derivatives.15196/#post-371451).
