Messerschmitt Me 261

[Pepe Rezende]

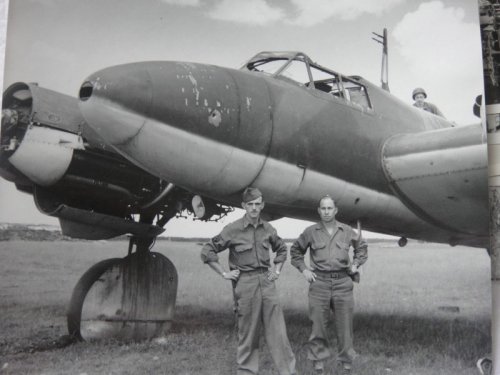

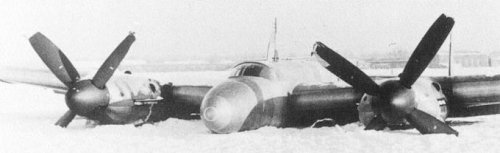

I'm looking for Me 261 interior photos and/or a cutaway. Are they available?

Cheers

Pepe



[hesham]

Hi,

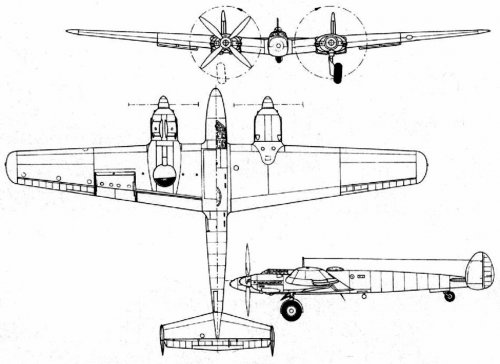

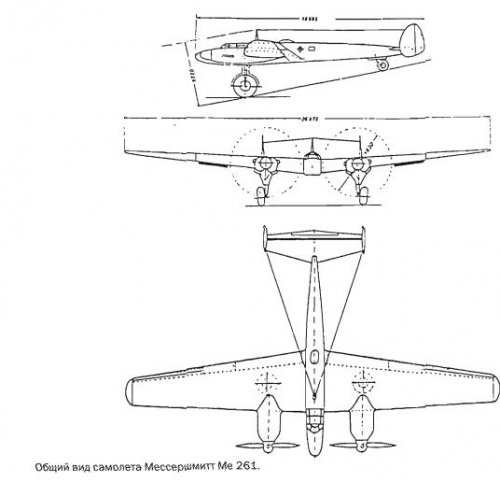

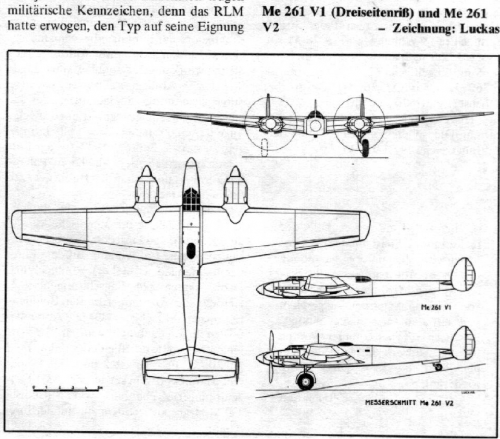

here is the Messerschmitt Me.261 V.1 and V.2 drawings.



[blackkite]

This radiator arrangement increase lift?

http://histaviation.com/me_261.html

http://warfiles.ru/show-115383-messerschmitt-me-261-v1-adolfine-i-dalniy-razvedchik-me-261-v3-germaniya.html



[Jemiba]

cut-away of the Me 261 here
https://www.secretprojects.co.uk/forum/index.php/topic,29902.msg242181.html#msg242181



[Johnbr]

Cockpit mockup. got it here.
http://histaviation.com/me_261.html



[hesham]

So Weird,

Mr. Manfred Griehl said,this aircraft would be powered from
two engines up to Eight Engines ?.



[newsdeskdan]

So Weird,

Mr. Manfred Griehl said,this aircraft would be powered from
two engines up to Eight Engines ?.

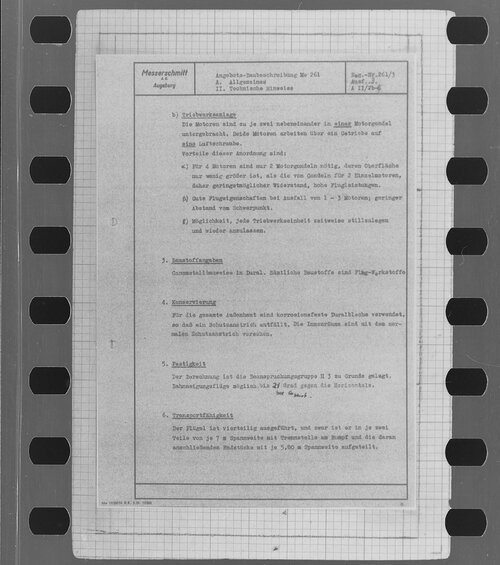

No evidence for that. The construction description from August 1940 says two DB 606 A-Bs, which is really four engines (see attached, which shows that two linked engines were specified).
I suppose if there was going to be a version with four engine nacelles (4 x DB 606) this would technically have eight engines. But even as the P 1062 I've never heard of plans to do that and fitting four DB 606s would be unnecessary - you wouldn't get much additional speed and you would need double the fuel, adding weight and reducing range. And the whole point of the Me 261 was its 11,000km maximum range.
