Merlin smart mortar round

F

Firefly 2

ACCESS: Secret
Joined
30 June 2009
Messages
460
Reaction score
50
I haven't found a lot of info regarding this project. It first intrigued when I read about in BSP4.

So I started browsing the web.

Global Defence had this to say:

The British Royal Ordnance 81mm Merlin millimetric radar guided round was one of the first- generation smart mortar rounds. It was developed at considerable expense by the UK Ministry of Defence (MoD) but a production order was never placed because of the high cost of the weapon.
Click to expand...

So it was a guided mortar round useable with a bog standard mortar ( thus, probably with any 81 mm mortar). Great idea. Unlike the Russian ( Soviet) laser-guided 240mm 1K113 Smelchak and 120mm Kitolov-2M this Merlin round would have been a fire and forget anti-tank round. This made total sense back in the days when Armageddon would have looked like huge formations of Soviet tanks and APC's cruising through Germany.

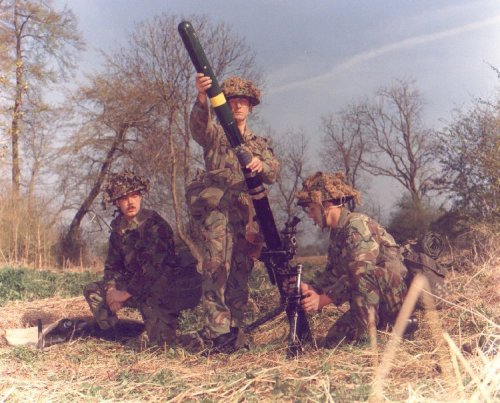

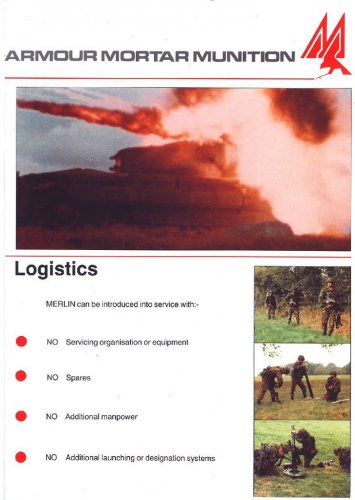

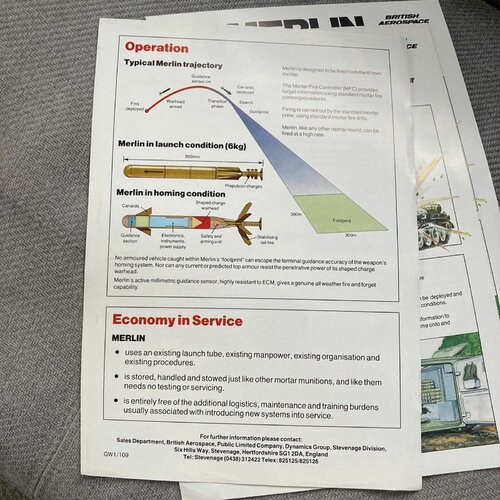

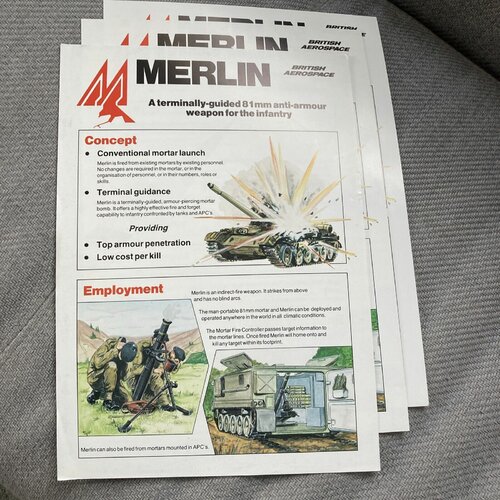

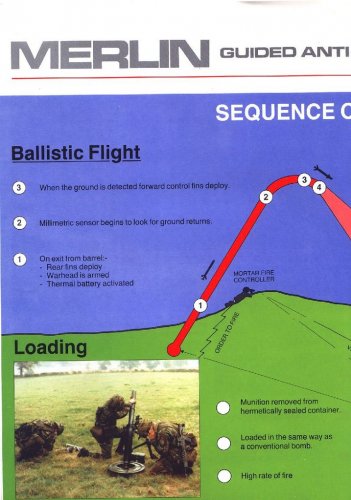

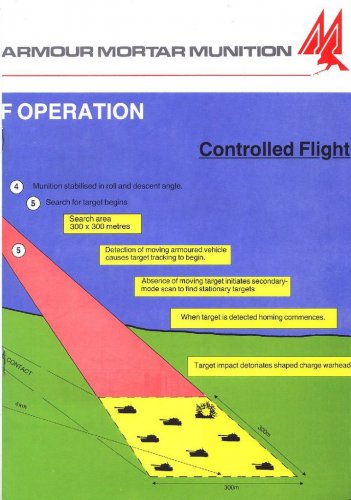

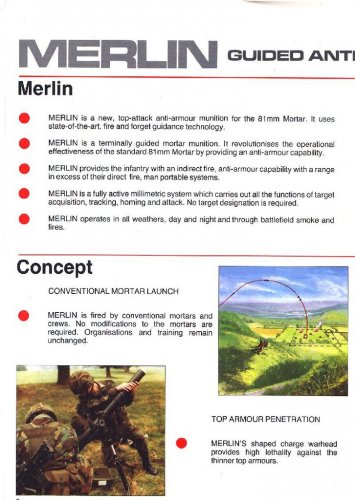

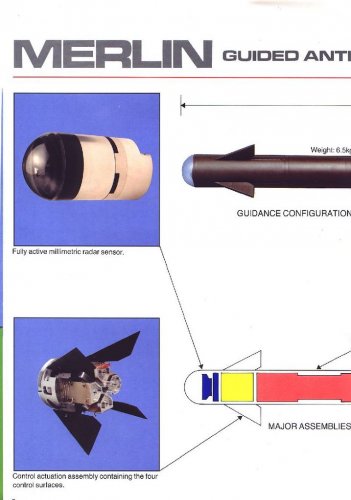

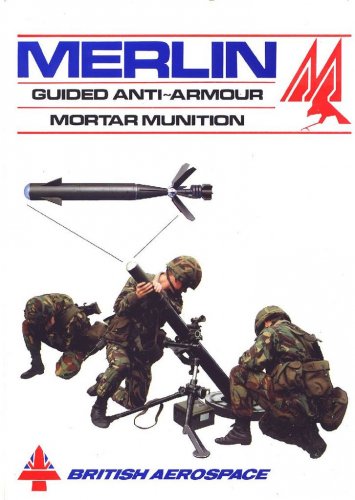

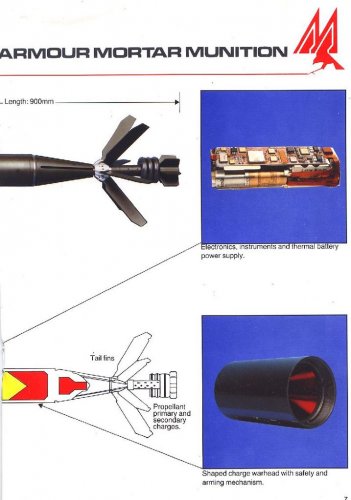

I then came upon this folder ( attachments) and the following image:


Given the fact that a search revealed no thread regarding Merlin, I thought I'd share this with y'all. Does anybody have an idea of the range of the Merlin round?


Attachments

  • MERLIN1.jpg
    110.6 KB · Views: 264
  • MERLIN8.jpg
    83.4 KB · Views: 313
  • MERLIN7.jpg
    72.7 KB · Views: 316
  • MERLIN6.jpg
    112 KB · Views: 309
  • MERLIN5.jpg
    118.3 KB · Views: 296
  • MERLIN4.jpg
    95 KB · Views: 290
  • MERLIN3.jpg
    134.7 KB · Views: 323
  • MERLIN2.jpg
    97.3 KB · Views: 303
Thanks Firefly

I always thought it a great pity that the Merlin round was never fielded.
I did time (2-years) as a mortarman, before moving on to be an Assault Pioneer!
During that time as a mortarman, we were told that the Australian Army was interested in the capability of the Merlin round!
It would have made for a great bunker-buster!
Hell, if the Merlin was able to deliver on what it promised, it would have possibly meant fewer rounds to man-pack and prep, for given targets engaged.

I wonder if they could perfect it, with the technology we now have.
Make it a more multi-role round!
Give it a laser-guided seeker head, which will allow targets to be illuminated by infantry in the field and in contact with an enemy!!!

P.S. Do you know What the given reason for the cancellation of the Merlin program?
When was the program cancelled?
Do you know of any footage of Merlin being fired and target impact?


Regards
Pioneer

I understand the reason why the Merlin was cancelled was because of economy. It was a round designed specifically to counter tanks. I can't see how it would have worked against bunkers, with its millimetre guidance system. Because it was designed primarily for the defensive battle against attacking WarPac hordes of tanks, when the Cold War ended, it was felt that its utility against other targets was too limited and so its development was discontinued.

Apparently, Merlin had a range of 4km. Guidance was by millimetric radar, seeking its' own target within a 330 x 330 yard (300m x 300m) area at the top of the trajectory. Service entry was projected 'in the 1990s'.

Source: Missile Systems, Philip Birtles and Paul Beaver (Ian Allan Ltd, 1985)

Pioneer said:
Thanks Firefly

I always thought it a great pity that the Merlin round was never fielded.
I did time (2-years) as a mortarman, before moving on to be an Assault Pioneer!
During that time as a mortarman, we were told that the Australian Army was interested in the capability of the Merlin round!
It would have made for a great bunker-buster!
Hell, if the Merlin was able to deliver on what it promised, it would have possibly meant fewer rounds to man-pack and prep, for given targets engaged.

I wonder if they could perfect it, with the technology we now have.
Make it a more multi-role round!
Give it a laser-guided seeker head, which will allow targets to be illuminated by infantry in the field and in contact with an enemy!!!

P.S. Do you know What the given reason for the cancellation of the Merlin program?
When was the program cancelled?
Do you know of any footage of Merlin being fired and target impact?


Regards
Pioneer
Click to expand...

Thank you :)

As I understand it there where severe problems in reducing the size of the millimetric radar components to a sufficient level for use in a round that has a max diameter of 81mm, it was feasable but costly and of course would delay the programme for a considerable while.
It was basicly cancelled the day the Berlin wall came down.
I still wonder if the research done for this project wasn't used for the Brimstone seeker.

BAeD had an agreement with Thomson-Brandt to extend the Merlin technology to 120mm mortars. If the system could have been made to work with the Royal Ordnance AMS mounted on a Warrior, combined with the MSTAR equipped FV514, it would have made an interesting contribution to the wider anti-tank effort.

Last edited:

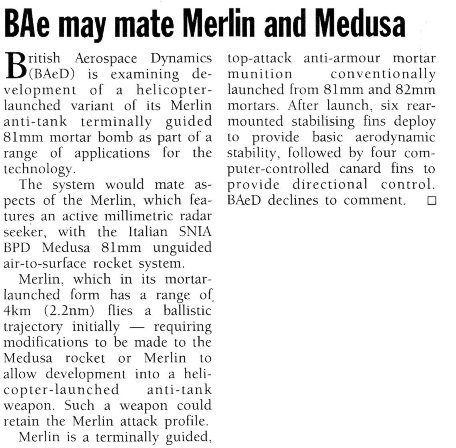

81 mm rocket with Merlin seeker concept
source: Flight Interantional 30 October - 5 November 1991


Attachments

  • Medusa + Merlin.jpg
    Medusa + Merlin.jpg
    94.3 KB · Views: 205
I read that it was considered "pointless" by some in high places as it didnt have the weight necessary to penetrate reinforced buildings and 81mm was too small and because the UK didnt field the 120mm calibre for mortars, it was not going to be taken up.

I vaguely remember a 2 page article on MERLIN about 30 years ago. And I remember it talking a laser designated seeker, not a millimeter-wave guidance system. I wonder when they changed course.

Stovepipe said:
I read that it was considered "pointless" by some in high places as it didnt have the weight necessary to penetrate reinforced buildings and 81mm was too small and because the UK didnt field the 120mm calibre for mortars, it was not going to be taken up.
Click to expand...
You can launch a longer and heavier shell out of an 81mm tube - but then you lose a lot of range.

yes, but it doesnt have the penetrative weight to go thru reinforced concrete floor slabs. 81mm is too small, as the average 81mm bomb is only about 7 lbs weight and less than half of that is explosive. A 120mm bomb is at least 14 lbs and will burst concrete slabs and devastate the interior.

Stovepipe said:
I read that it was considered "pointless" by some in high places as it didnt have the weight necessary to penetrate reinforced buildings and 81mm was too small and because the UK didnt field the 120mm calibre for mortars, it was not going to be taken up.
Click to expand...
Given its use was as an anti-armour munition against legions of Soviet tanks in the open the need to penetrate a building was not really necessary...

True but soldiers will inevitably fire at other targets. Javelins have been routinely used to break into Afghan compounds.

Stovepipe said:
True but soldiers will inevitably fire at other targets. Javelins have been routinely used to break into Afghan compounds.
Click to expand...
Only because they had no other options available.

Big Army very quickly dug the old M67 90mm recoilless rifles out of the depths of the depots and found some dinosaurs to teach the kids how to use them, then replaced the M67 with Carl Gustav 84mm a few years later.

I'm hoping I can snag one of the M67s as surplus for fun. Buy some training projectiles from the Koreans, they still use the M67. Probably have to buy the projectiles disassembled, stupid US laws...
