McDonnell XF3H and F3H Demon photos

[bercr]

Well, plenty of prototypes of Demon Hi-HI-HI Res photos welcome here !

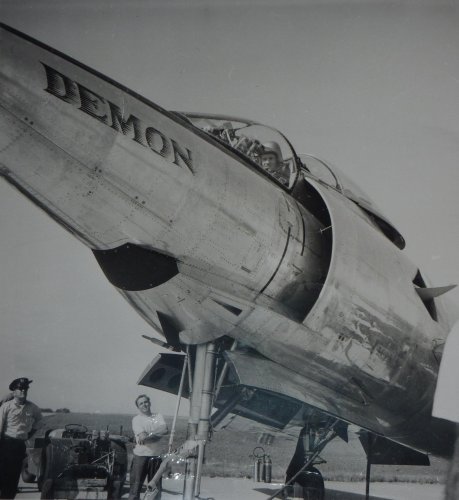

And the first of them :



[Stargazer]

My contribution:



[bercr]

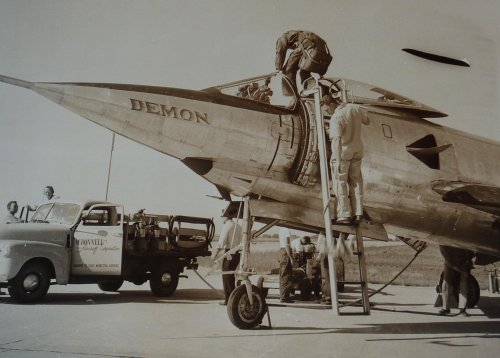

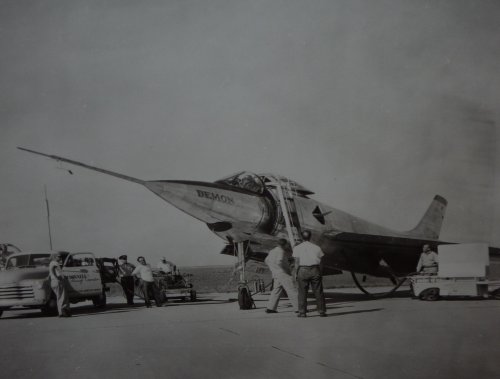

Other photos of XF3H-1 Demon



[overscan (PaulMM)]

114 photos of F3H


http://postimg.org/gallery/bpqawd0k/


Source: http://aviationarchives.blogspot.com/



[Pavel_P]

Is there any scheme of XF3H-1?



[hesham]

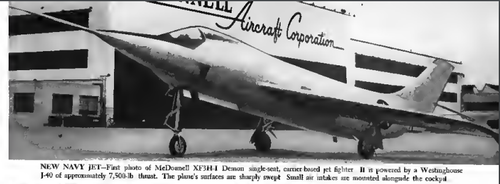

From Aviation Week 1951.



[fightingirish]

XF3H-1 Demon Wind Tunnel Photos
A number of photos of one of the McDonnell F3H Demon models from NACA Low Speed Wind Tunnel ltest #98 LAL 64232. This was a 1/10 scale model of the XF3H-1 in clean condition with some outboard stall vanes. From 1950? Credit: NASA

Download here or here or here or here or here (3.5 Megs).

Source: http://aviationarchives.blogspot.com/2020/12/xf3h-1-demon-wind-tunnel-photos.html



[TomcatViP]

Carrier Landing XFH-3

View: https://youtu.be/nBbO1MXXFbw



[BlackBat242]

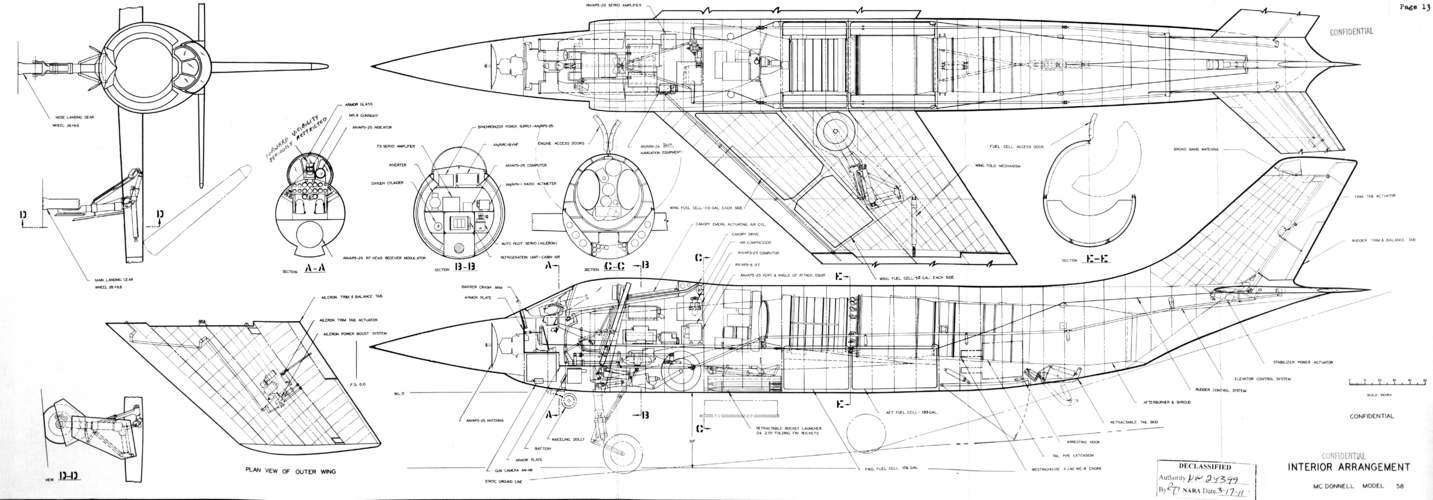

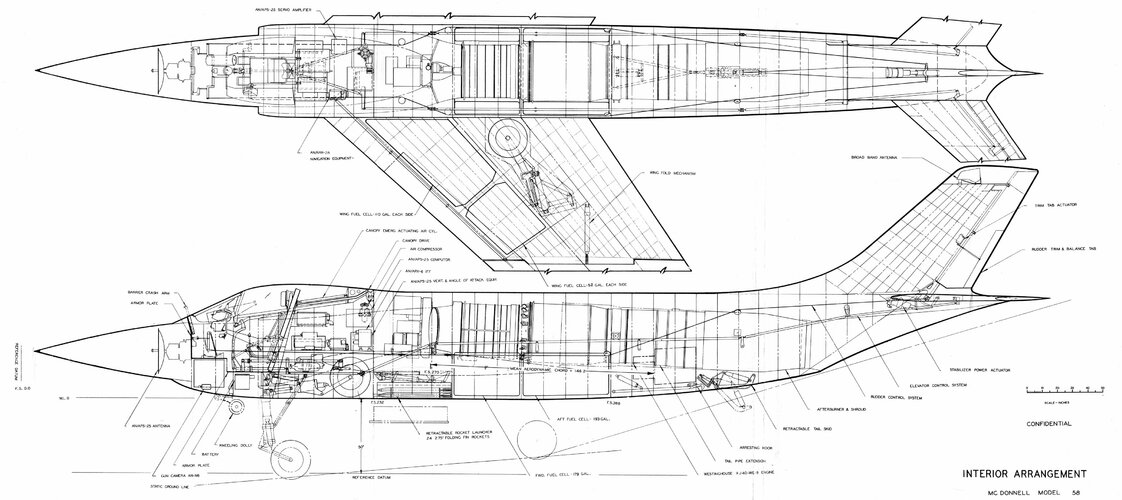

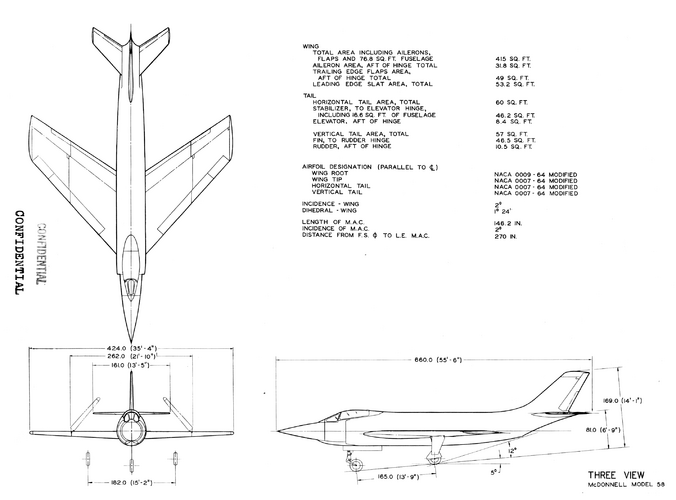

Is there any scheme of XF3H-1?

A bit late but...



[NUSNA_Moebius]

Prototype and even the production versions were pretty slick looking planes but clearly the lack of area ruling and the gun pack fairing probably didn't help transonic aerodynamics. Any details on Vne? Other notable detail is the lack of boundary later splitter plates. Was this because of the very far forward intake being along the curvature of the nose? Almost like the DSI-ish effect of the XF8U-3



[TomcatViP]

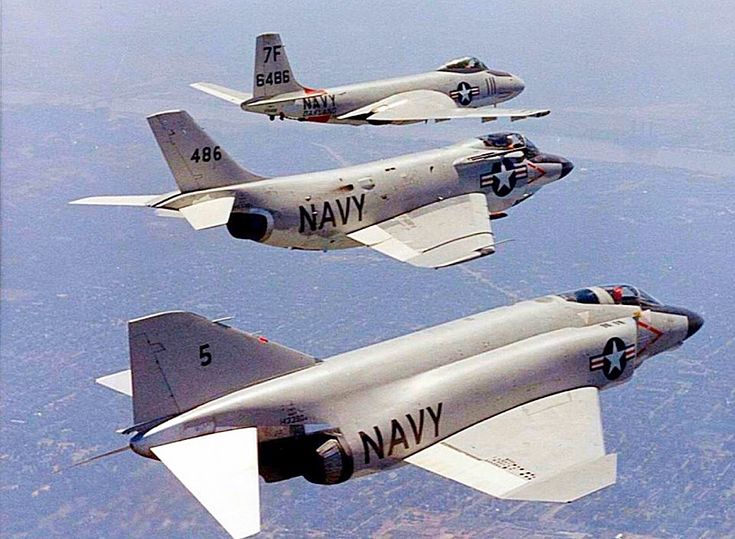

Just a nice (family) picture::



[TomcatViP]

Prototype and even the production versions were pretty slick looking planes but clearly the lack of area ruling and the gun pack fairing probably didn't help transonic aerodynamics. Any details on Vne? Other notable detail is the lack of boundary later splitter plates. Was this because of the very far forward intake being along the curvature of the nose? Almost like the DSI-ish effect of the XF8U-3

Demons weren´t ever scarred of snorting an entire Skyraider. Don´t bother with the Boundary Layer (there is a constant positive pressure on the inbound stream due to the V-shaped upstream geometry - you are right).
