McDonnell F2H Banshee detailing

flateric

ACCESS: USAP
Staff member
Top Contributor
Senior Member
Joined
1 April 2006
Messages
11,032
Reaction score
8,373

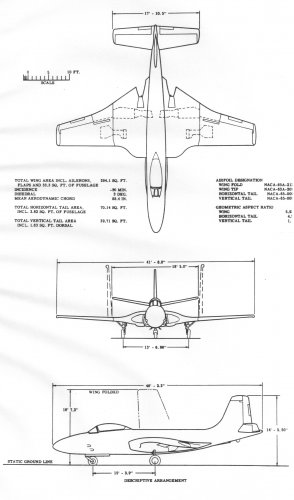

Can you advice or help with F2H Banshee detailed scale drawings and anything that would be handy for modelling?
In Action and Naval Fighters series books are on hands, and all the web searched carefully.
Need more details, especially those of intakes.

Thank you in advance!

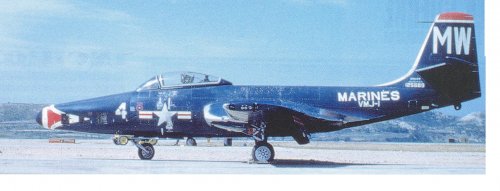

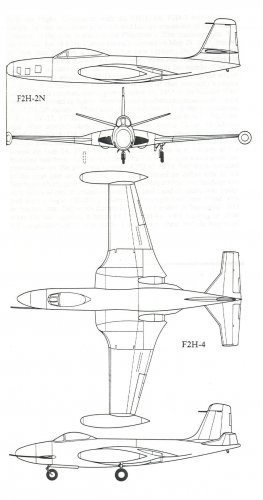

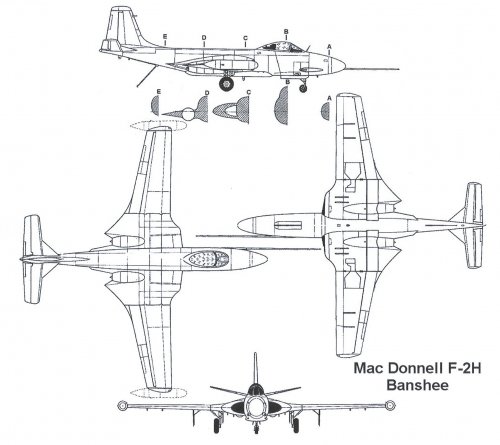

Banshee available info-post- 1
From
-Le fanatique de l'aviation hors de seri-Wings,unknown issue
-Airpower Nov.1979
-Unknown source

Please see also
http://wp.scn.ru/en/ww3/f/813/94/0

http://wp.scn.ru/en/ww3/f/813/3/0

http://wp.scn.ru/en/ww3/f/813/3/1

http://wp.scn.ru/en/ww3/f/813/3/2

http://wp.scn.ru/en/ww3/f/813/3/3

http://wp.scn.ru/en/ww3/f/813/3/4


Attachments

  • Escanear0001.jpg
    217.8 KB · Views: 199
  • Escanear0002.jpg
    111.5 KB · Views: 150
  • Escanear0003.jpg
    984.4 KB · Views: 133
  • Escanear0004.jpg
    226.4 KB · Views: 113
  • Escanear0005.jpg
    645.3 KB · Views: 129

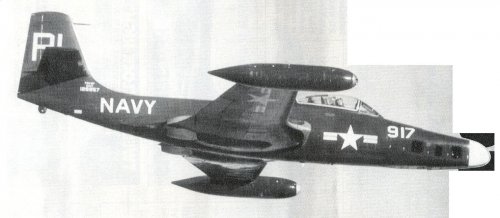

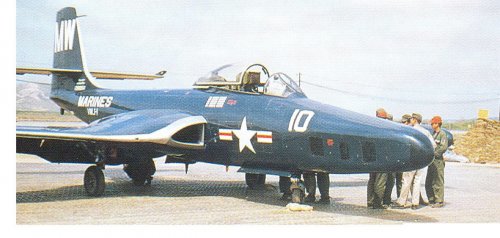

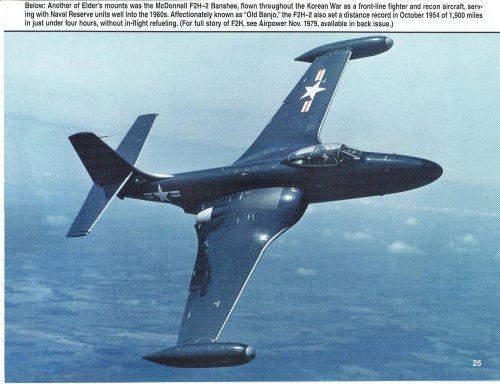

Banshee available info-post- 1
From
-Le fanatique de l'aviation hors de seri-Wings,unknown issue
-Airpower Nov.1979
-Unknown source


Attachments

  • Escanear0009.jpg
    212.5 KB · Views: 78
  • Escanear0008.jpg
    185.5 KB · Views: 52
  • Escanear0007.jpg
    196.7 KB · Views: 42
  • Escanear0006.jpg
    398.3 KB · Views: 57
Justo, sincere thanks!

The F2H-3 drawing supplied is incorrect. The fuselage length is measured with the boom and it should not. I learned the hard way. I made 8 Banshees using those darwings and found out the fuselage dimention was off. Here is a picture of the two. The one on the left is the correct size.

http://smm.solidmodelmemories.net/Gallery/displayimage.php?album=164&pos=11



Lou aka lastvautour

Some odds and ends

http://tailspintopics.blogspot.com/2009/11/nuclear-banshees.html

http://tailspintopics.blogspot.com/2009/12/f2h-banshee-modeling-notes.html

zillion thanks to Justo, Mark and Tommy for help from me and my modelling nut fellow!

The F2H-3 does not exist in 1/144 scale so if one wants, one one must make one , or two, or three.

The old adage of measure twice cut once is clear. In this case I failed to ensure the drawing (still on Wings 2 site) was accurate. The scrap pile below shows that well.



Lou

Three decades ago, I bought an MPC kit of the Banshee in 1/72. I don't know, but this kit might have originally been Airfix. At the time I lived near a Florida playground that featured a very retired F2H-2P (the photo nose version), parked on its belly in the sandbox. Canopy gone, cockpit just a hole, and the intakes plugged with cement. I didn't trust the kit to be accurate, so I went out to the sandbox one day with a tape measure and took some measurements off the hulk. The MPC kit checked out quite reasonably in dimensional accuracy. Otherwise, pretty basic, even for 1980.

Epilog: in the mid-90s, I visited the Naval Aviation museum in Pensacola. There in the exhibit hall I beheld a spiffy blue F2H-2P. As I pondered the fact that the two Banshees I'd seen were both photo-nose models, a docent walked up with a tour group in tow. He gestured at the Banshee: "We found this bird down in Vero Beach, stuck in a playground, and you have no idea how much work we had to put in to get it in condition to put on display..." Well, I did, anyway.

As I didn't really know where to put this link, I figured this was as good as anything.

There is a rare original Toppings desktop model of the F2H-1 Banshee for sale on eBay, and it will be over in 11 hours.
I figured that some people on this forum might want to seize that great opportunity. I know that if shipping to Europe wasn't to be added, I might have given it a try...

Anyway, here's the link: http://cgi.ebay.com/TOPPING-NAVY-F2H-1-BANSHEE-DESK-DISPLAY-MODEL-AIRPLANE-/230589798551?pt=LH_DefaultDomain_0&hash=item35b0391897

And here are two in a set of 24 great photos showing the excellent condition of the model. Only one problem here: the wooden stand is not original and previously belonged to a T-2C Buckeye model.





If anyone buys it, let me know in this thread. I'm always happy to make others happy!
