Max Holste H-20 P.1 twin boom glider

[hesham]

Hi,

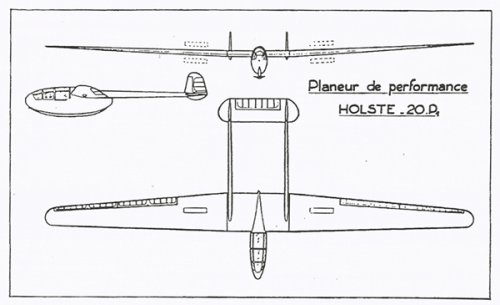

here is the Max Holste H-20 P.1 twin boom shoulder high wing glider,
I think one was built.

RETROPLANE.net ::

Forum Retroplane.net - Le site des maquettes planeurs retro, plans, astuces de construction, documentations, photos, videos, et la rencontre annuelle VDP RETROPLANE

www.retroplane.net



[c460]

Re: Max Holste H.20 PE1 and P1 gliders

Hi Hesham,
The above extracts were taken from the book Les avions Max Holste by Delarue. Text from this book is also quoted in the above link.
According to this book, the H.20 PE1 and H.20 P1 were two different projects:
- The H.20 PE1 was a performance training glider with aerobatic capabilities, designed in 1940 with 15 m wingspan and 15 sqm wing. It is described by Charles Claveau in Trait d'Union no.215, and has a classical configuration. It remained a project only. (PE1 means "Planeur d'Entraînement" = Training Glider, single seat)
- The H.20 P1 (or MH.20 P1 as shown on the wing) was a later design, whose construction started in 1941. It is the twin boom model illustrated above. It was finished in 1943 but did not fly, and was destroyed in the Max Holste factory by an aerial bombing in 1944. (P1 means "Planeur" = Glider, single seat.)
Adrien
PS: Maybe we should fix the thread title accordingly.



[c460]

Re: Max Holste H-20 PE1 and P1 gliders

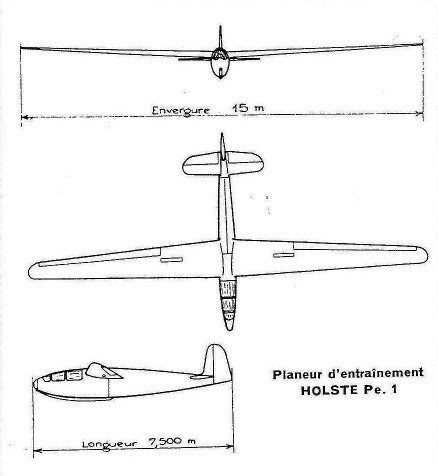

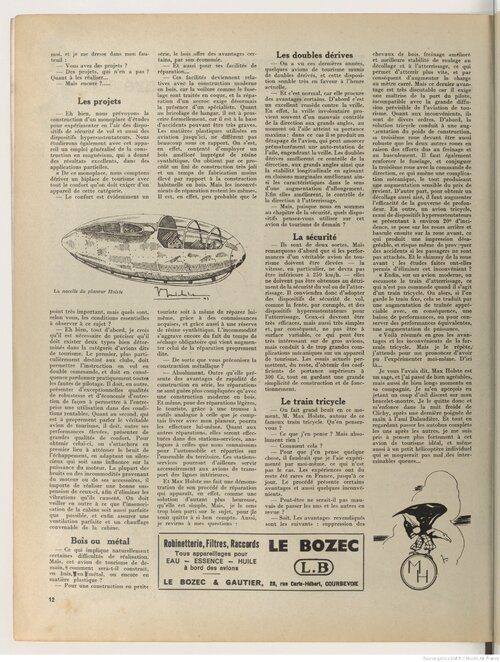

When I wrote the above message yesterday, I did not notice that Trait d'Union no.215 actually contains a drawing of the H.20 PE1.



[PhR]

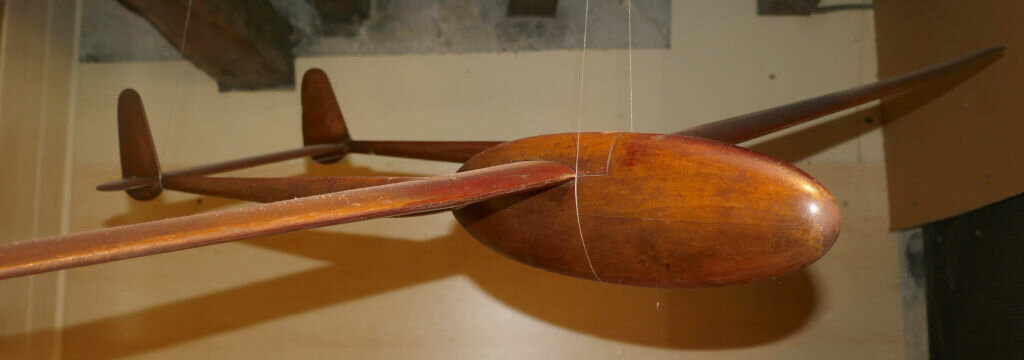

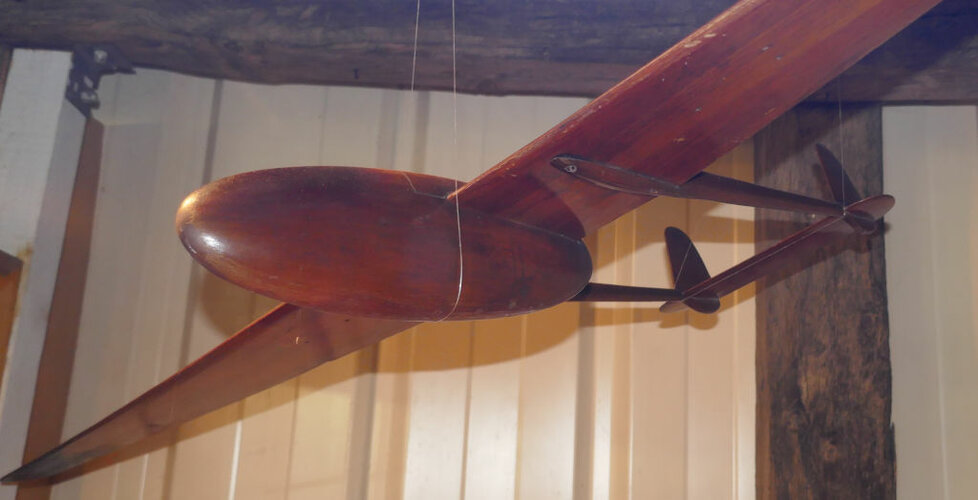

Two views of wind model of MH-20 P1.



[Stargazer]

Allow me to rectify a mistake that has run throughout this topic:

• The training glider project of 1940 with aerobatic capabilities was simply called the Holste PE.1.
  It is possible that this project may have been reallocated as H.10 or MH.10 later on, but it's only a hypothesis.

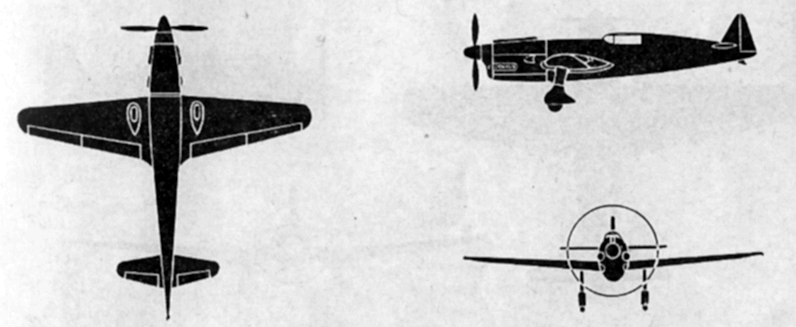

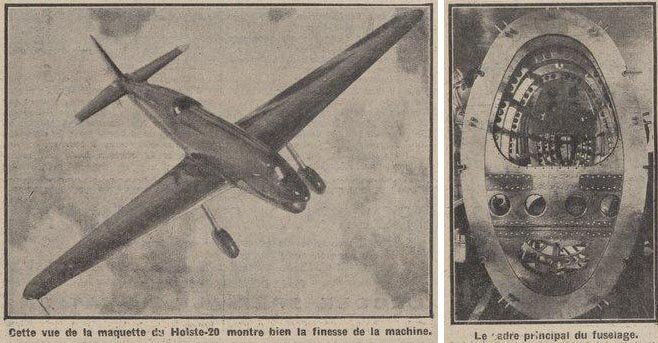

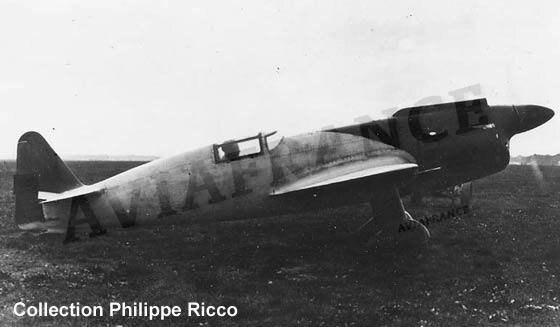

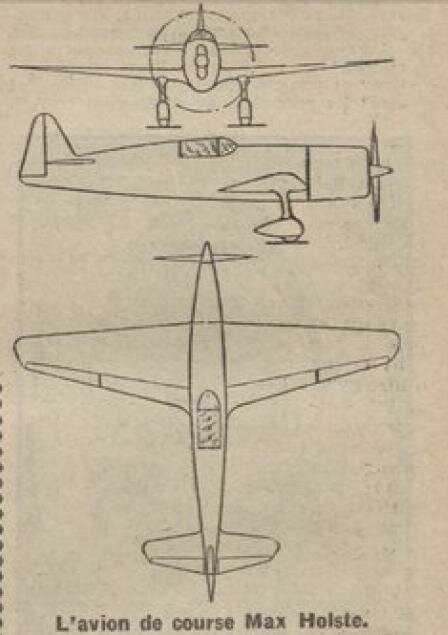

• The sleek racer aircraft prototype of 1941 was called the Holste MH.20.

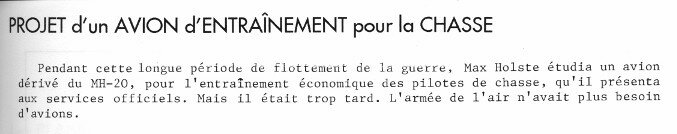

  A fighter derivative was offered as a cheap trainer for fighter pilots, but came in too late.
• The twin-boom glider that was built in 1941-43 but never flown was the Holste H.20 P.1.

Therefore, the title of the topic ought to be changed, as there NEVER was an "H.20 PE.1".



[PhR]

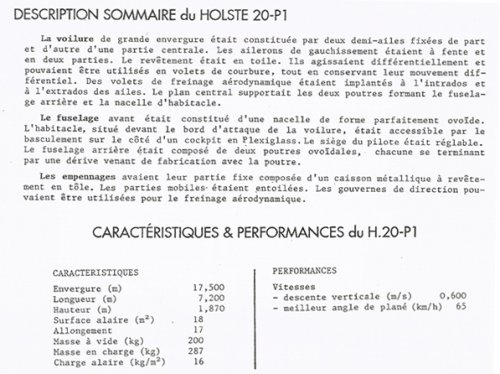

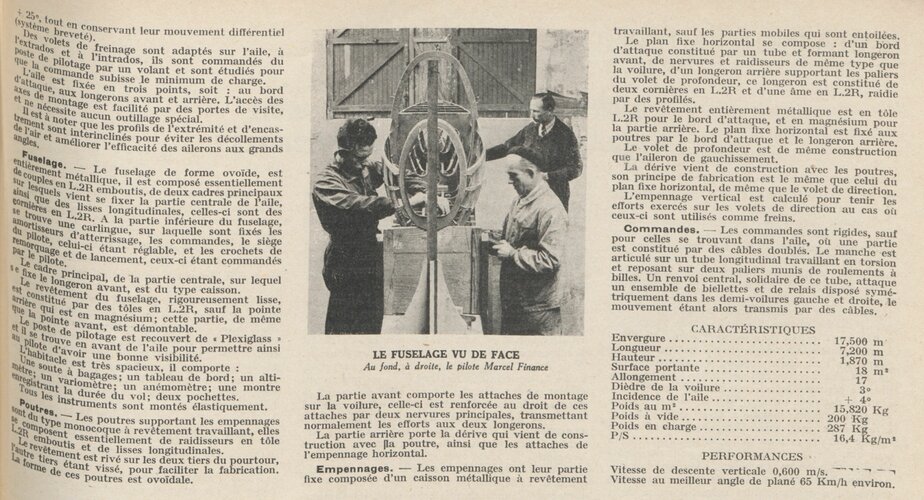

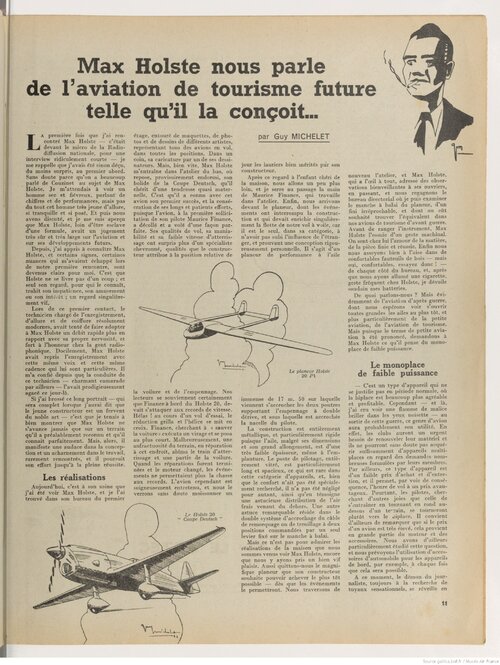

Some more information published about Holste 20 P1 glider.



[Jemiba]

„e“ in „H.20 Pe.1“ deleted
