Martin 202 Military Adaptations

[Mark Nankivil]

Greetings All -

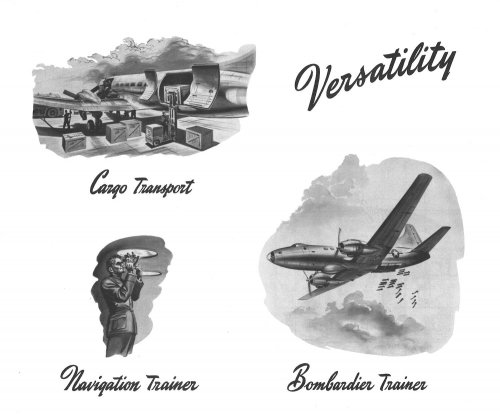

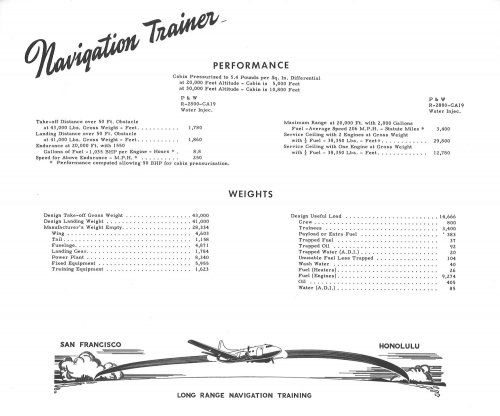

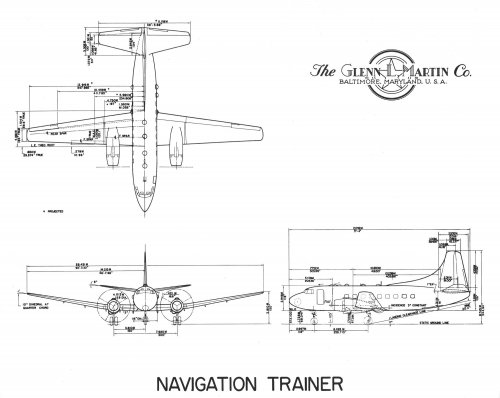

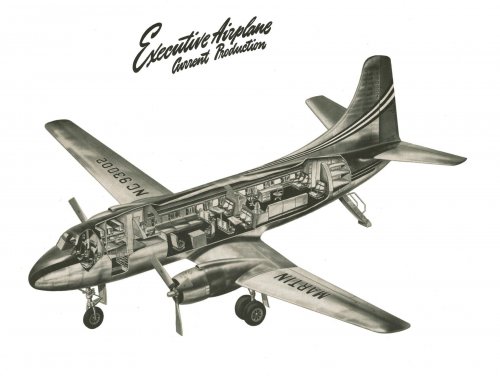

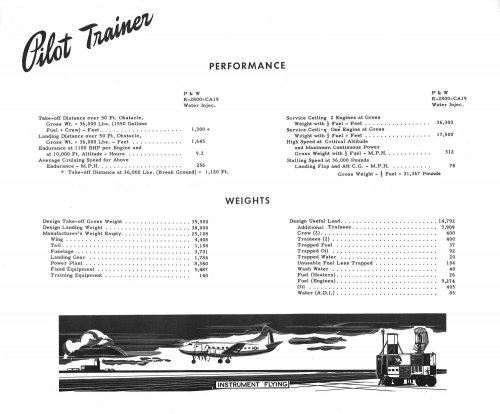

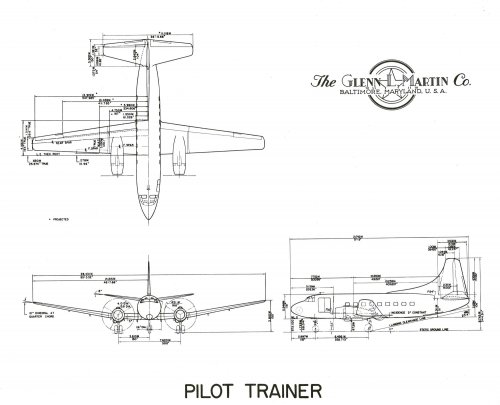

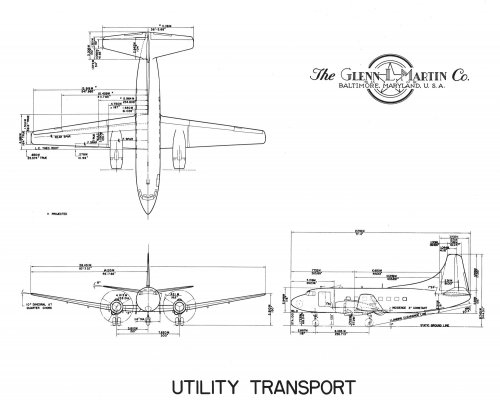

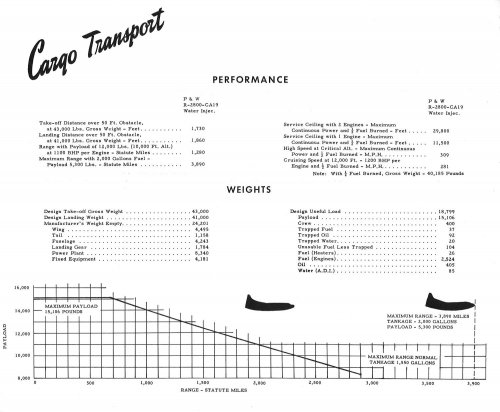

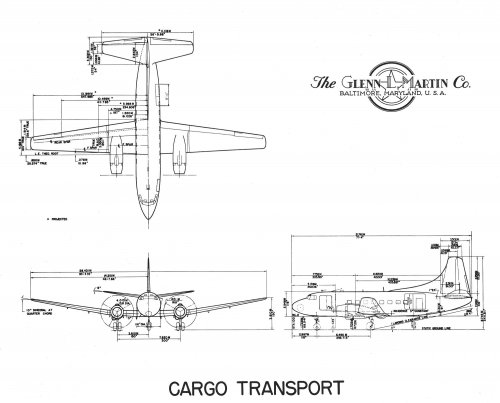

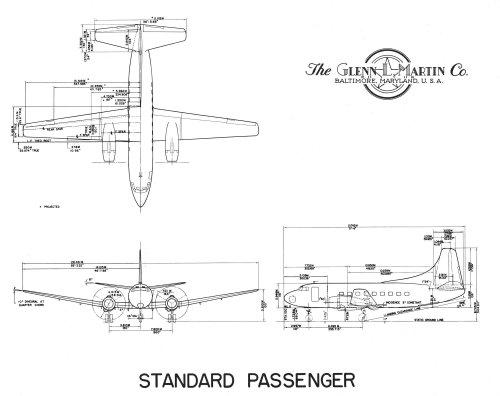

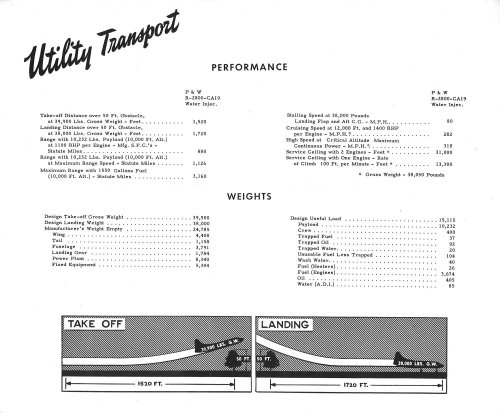

Finally got around to scanning the pages out of a Martin Aircraft presentation to the USAF for military versions of the 202 airliner.

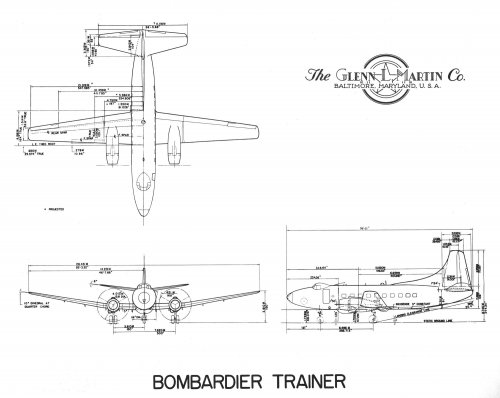

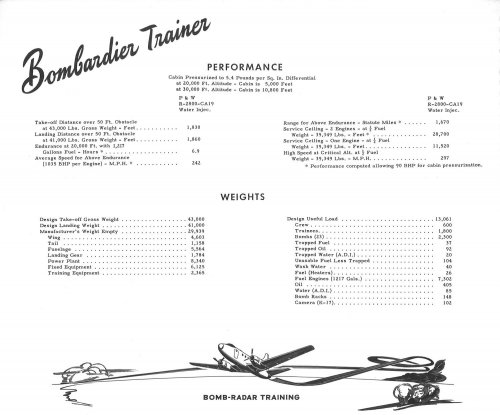

Most of these are straightforward adaptations but the Bombardier Trainer version is an interesting variant.

Enjoy the Day! Mark



[Mark Nankivil]

...and a few more... Mark



[Mark Nankivil]

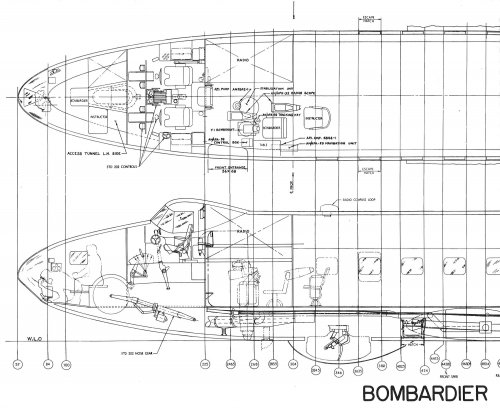

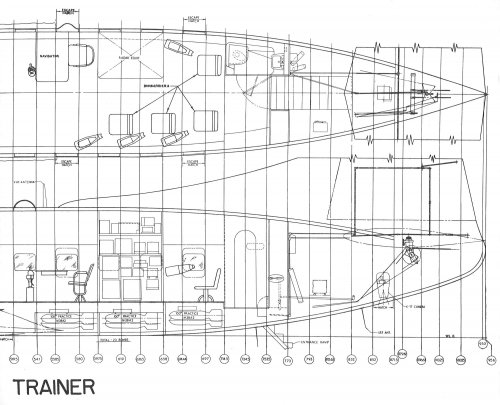

Inboard profile for the Bombardier Trainer...

Enjoy the Day! Mark



[circle-5]

Great documents, Mark -- Thank you!



[blackkite]

Wonderful discovery.
These are precious original drawings.



[Stargazer]

Absolutely splendid. Thanks a lot Mark.


I would be curious how close these came to the winners in their respective competitions (I believe these must have been competitors of the T-29, T-32 and T-36).



[Jos Heyman]

I think the bombardier training version may be the Martin 224, based on information from the Glenn Martin Museum I found some years ago.



[Stargazer]

I think the bombardier training version may be the Martin 224, based on information from the Glenn Martin Museum I found some years ago.

I have the Model 224 as a "Twin engine military transport (modified 2-O-2)". Perhaps that number designated all military variants of the 202?
