M60 tank upgrades (Super M60, M60-2000 etc)

[Pyrrhic victory]

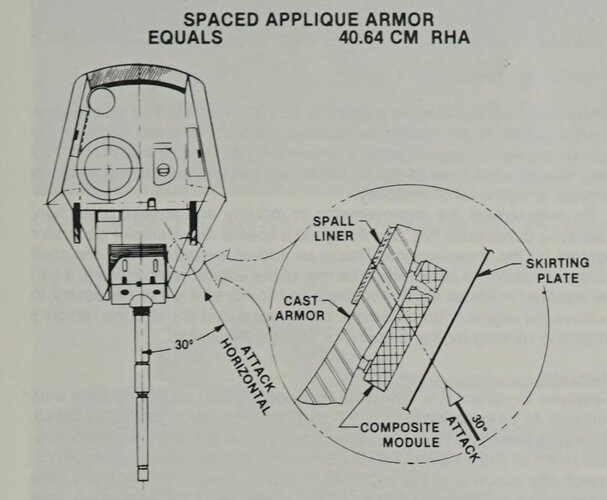

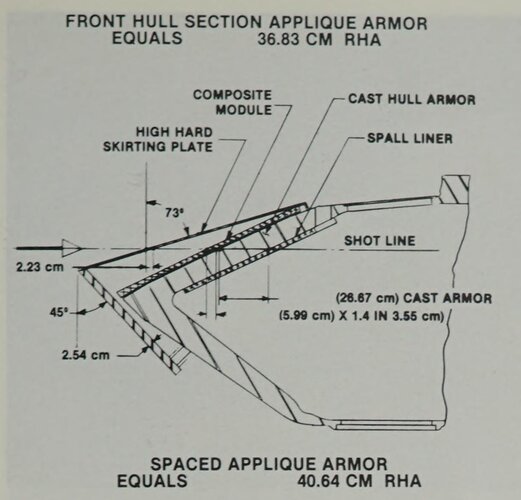

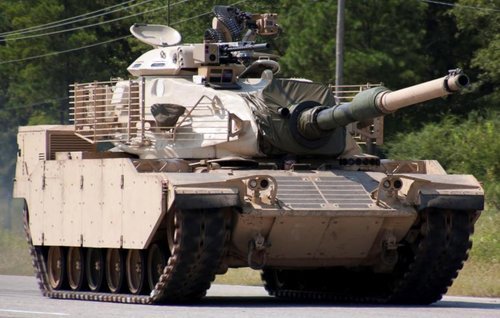

1st three: Teledyne Continental uparmor/powertrain effort from the late 1970s - early 1980s, M1 Abrams supplement.
2nd three: GDLS upgrade for Turkish M60 upgrade tender won by the Sabra II using M1A1 turret, new suspension and powerpack.



[JohnR]

What are thel slots in the turret sides for on the third Teledyne photo?

Has the optical rangefinder been retained?



[CostasTT]

Yes, it has.



[Grey Havoc]

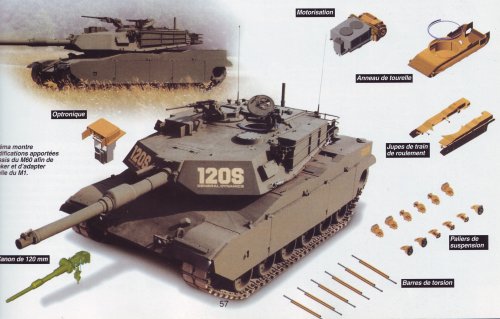

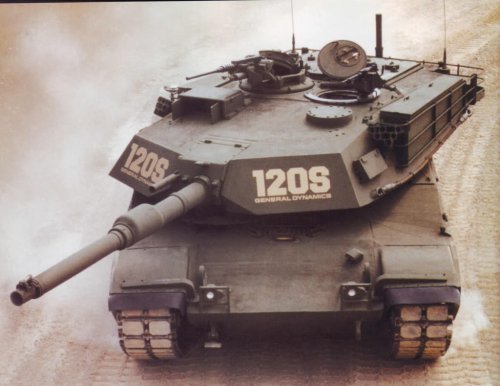

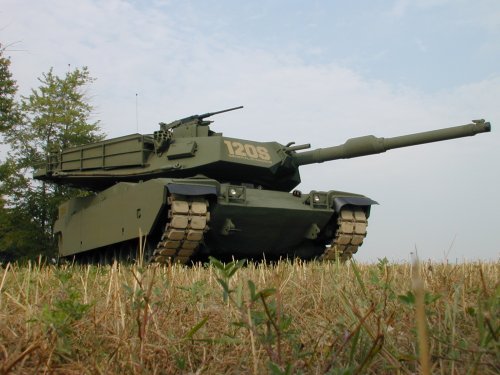

According to this, it seems they finally have a customer, as yet unidentified, for the 120S (M60-2000).



[stimpy75]

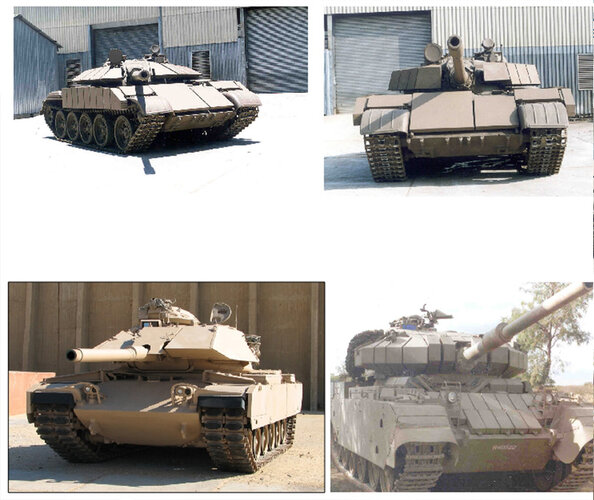

some pics i have on my harddisk
first upgrade http://www.standartbio.com/pdf/M60_Tank_Modernization.pdf

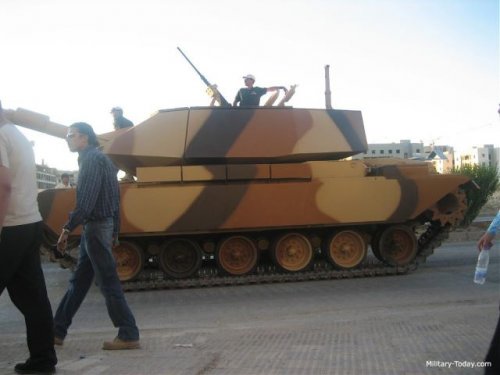

second jordanian upgrade

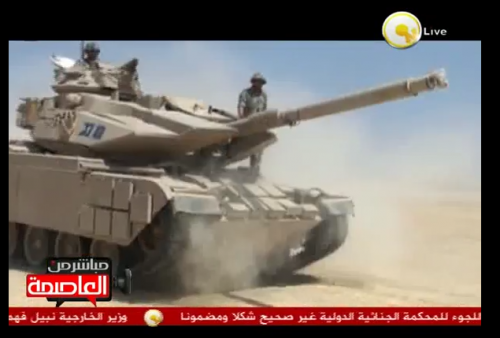

third egyptian upgrade/vismod?
fourth israeli Sabra



[Stormshadow2186]

I do know Taiwan has been talking about ordering the M60-2000 in the last few years with latest proposal to exchange its obsolete M48 tanks to the U.S to offset the cost for the M60-2000 for all of their M60A3 tanks. However, no deal has been passed so far because tanks are considered less important compared to other military equipment.



[stimpy75]

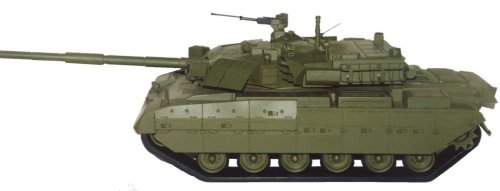

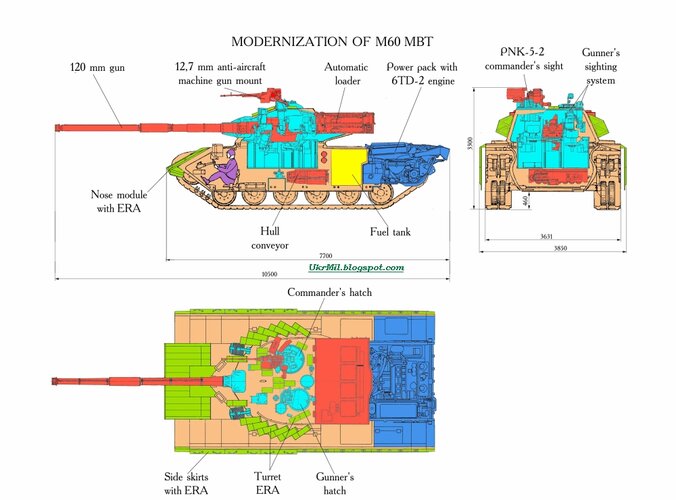

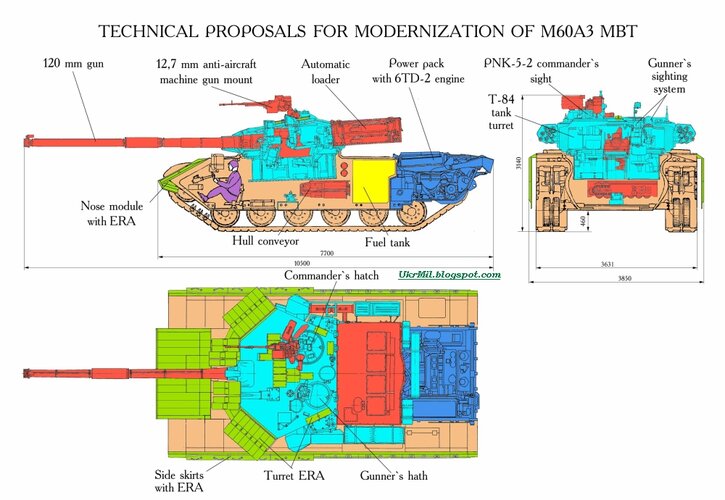

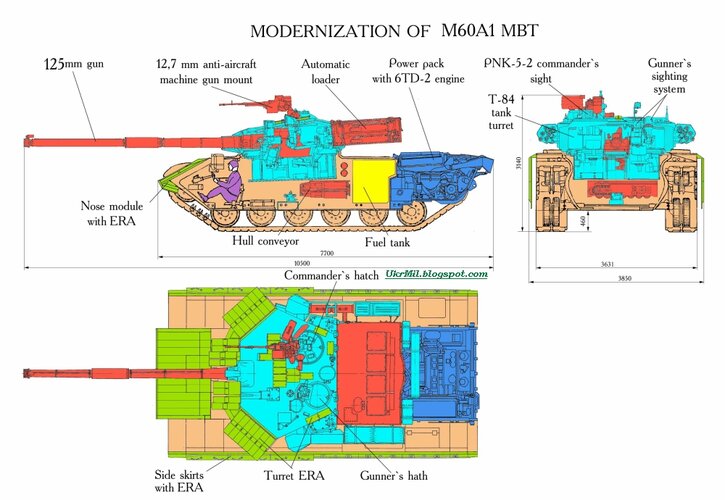

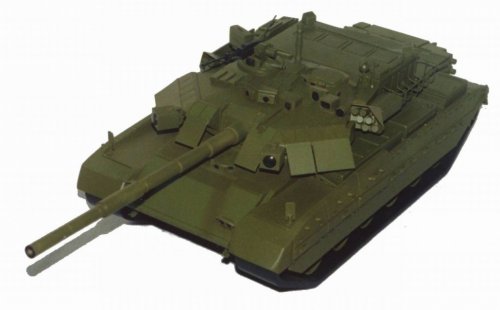

another proposal from Kharkiv Morozov.M-60 hull with Yatagan turret
found it on my old hard disk



[Sirpad]

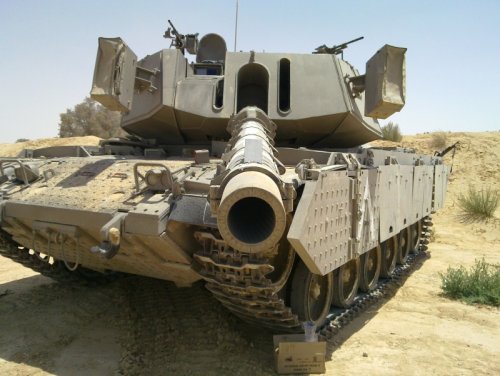

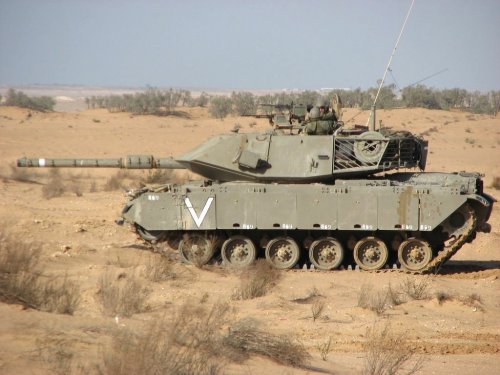

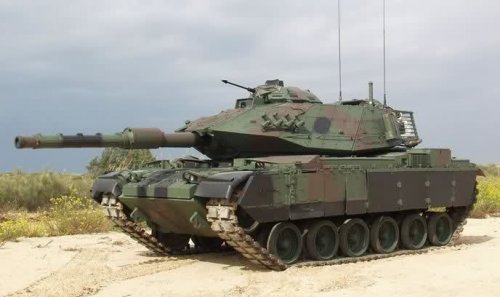

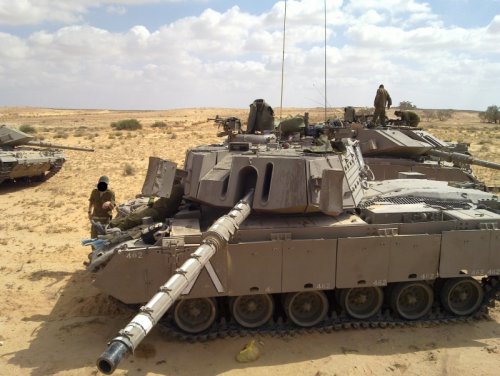

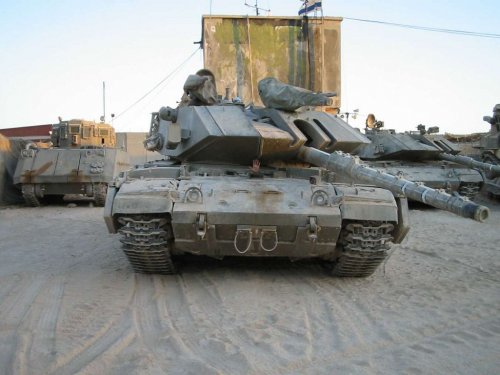

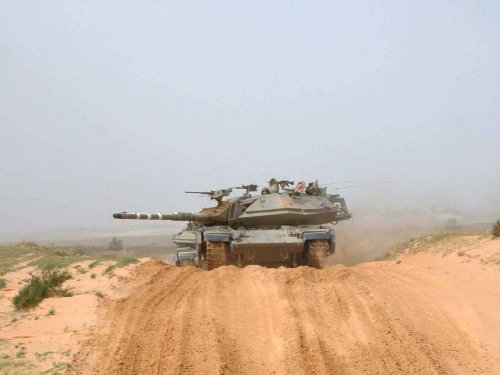

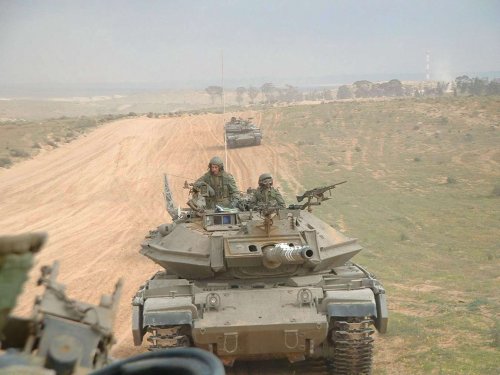

Israel has made significant changes and upgrades to its M60 fleet, localy named Magach (ramming rod). first two photos are Magach 6B with addon applique armour modules. next two are Magach 7A with enlarged turret, and last are Magach 7C with smaller turret.



[snne]



[riggerrob]

Did the cast, boat-shaped hull offer any advantage over hulls with rectangular bulkheads?
Does anyone have photos of M-27, M-48 or M-60 after they detonated land- mines?
How thick are the hull castings on M-60?
Is there a minimum thickness that you can cast armored hulls and still make them impervious to rifle-caliber bullets?
.... main gun projectiles (e.g. 105mm or 120mm)?



[Scott Kenny]

Did the cast, boat-shaped hull offer any advantage over hulls with rectangular bulkheads?
Does anyone have photos of M-27, M-48 or M-60 after they detonated land- mines?

An advantage in protection at the time? Maybe.

But modern composite armor does not like curves.

And while I have seen a picture of what happened to an M48 that hit a mine, it was comparing to what happened to an M551. M48? broken track and road wheel. M551? total loss, with crew fatalities. IIRC it was in the Osprey book about the M551.



[trajan]

1st three: Teledyne Continental uparmor/powertrain effort from the late 1970s - early 1980s, M1 Abrams supplement.
2nd three: GDLS upgrade for Turkish M60 upgrade tender won by the Sabra II using M1A1 turret, new suspension and powerpack.

some old pic of super M60（maybe M48）

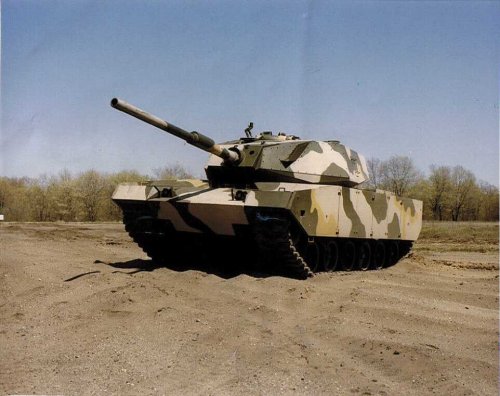

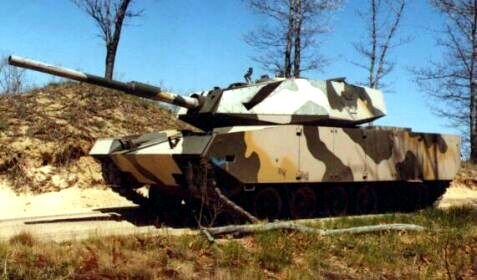

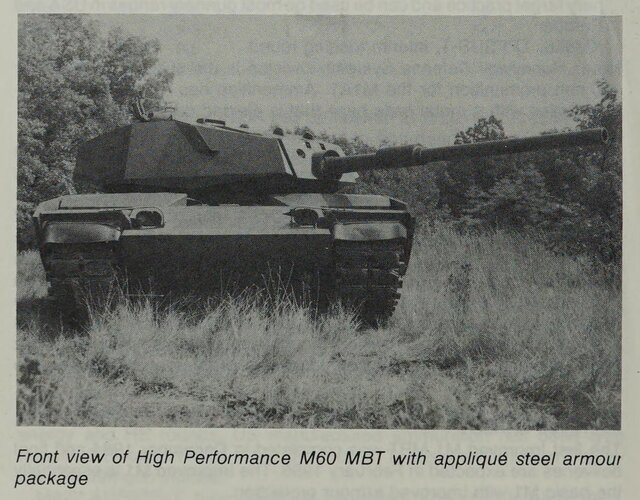

High Performance M60 (aka Super M60) developed by Teledyne Continental in the mid-1980s.

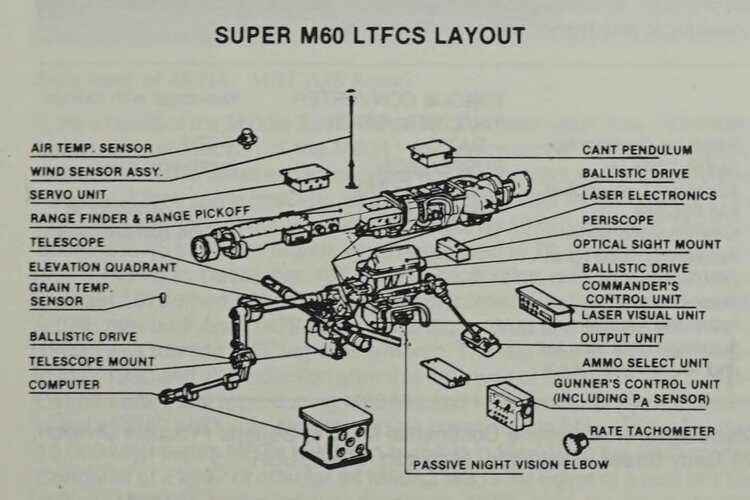

It's an upgraded M60 fitted with 1200hp AVCR-1790-1B engine, Model 2866 hydropneumatic suspension, Laser Tank Fire Control System and add-on armor kit for protection against 125mm weapons.

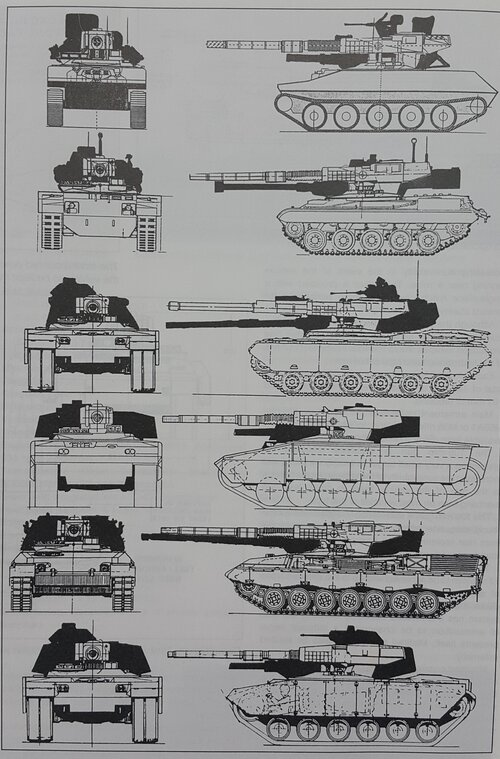

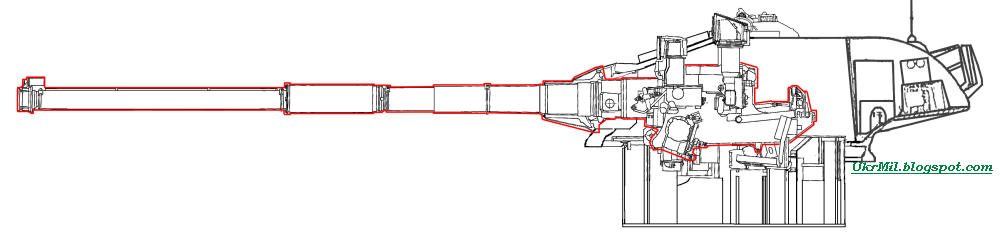

and a series of Low-Profile Turret fitted chassis, from top to bottom, M551, M41, M48, Centurion, Leopard 1 and M60.



[Kat Tsun]

The M41 looks like it's going to tip over.



[icy2527]

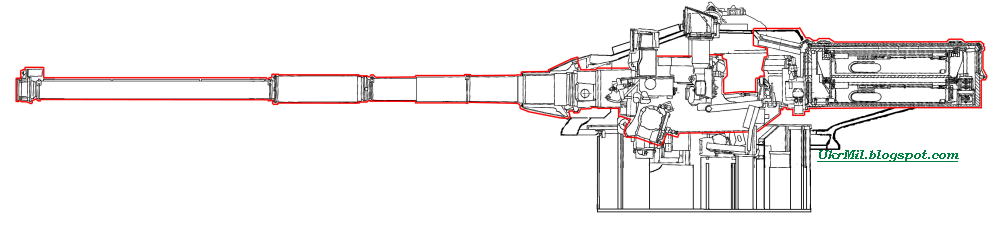

I think I've downloaded them from old KMDB (Morozov Design Bureau) site from a long time ago . The site died since 2014 so I'll put them here just in case someone would like to discuss about them.



[Phantom Fanatic]

I think I've downloaded them from old KMDB (Morozov Design Bureau) site from a long time ago . The site died since 2014 so I'll put them here just in case someone would like to discuss about them.

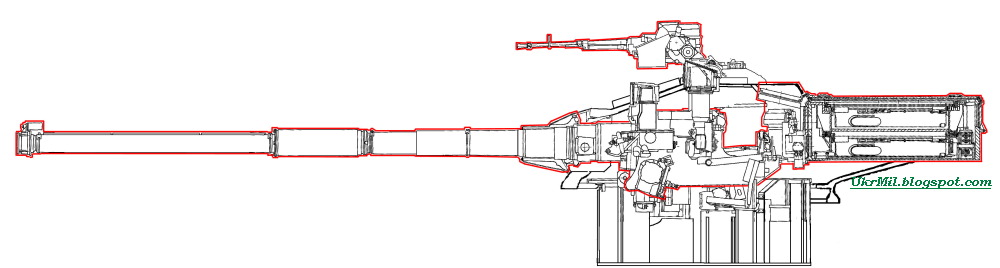

Very interesting. Do you know how many rounds would have been carried in the bustle of the T-84-120 turret?



[jstar]

Did the cast, boat-shaped hull offer any advantage over hulls with rectangular bulkheads?
Does anyone have photos of M-27, M-48 or M-60 after they detonated land- mines?
How thick are the hull castings on M-60?
Is there a minimum thickness that you can cast armored hulls and still make them impervious to rifle-caliber bullets?
.... main gun projectiles (e.g. 105mm or 120mm)?

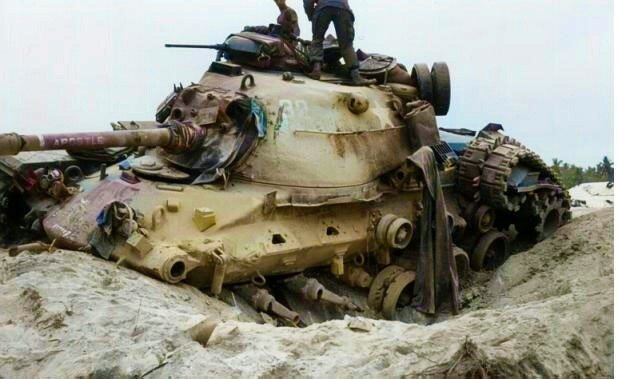

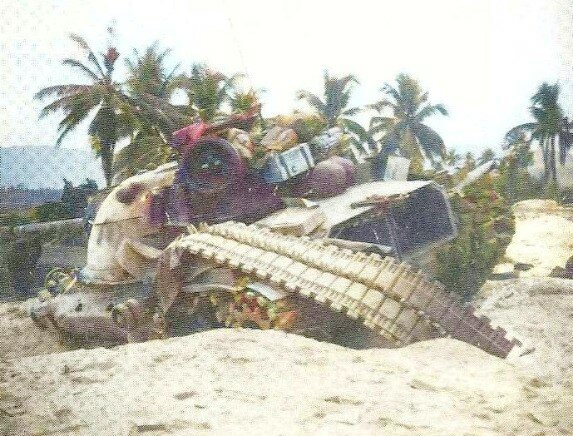

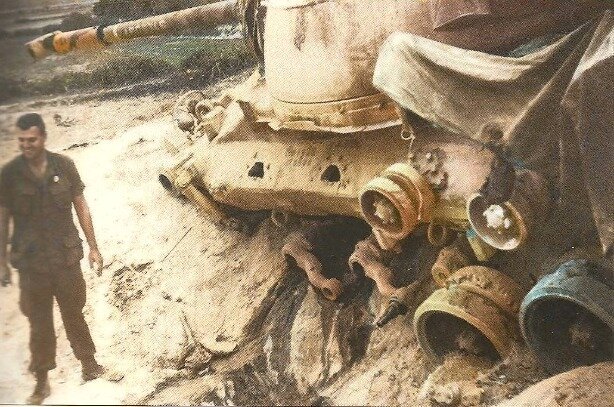

M48A3 from 69th Armor after running over a buried estimated 500lb bomb rigged as a landmine. 31 July, 1967.



[Christopher Wang]

Would the upgraded M60 (M60-2000, SLEP, etc.) be a viable option for Ukraine?



[GTX]

Would the upgraded M60 (M60-2000, SLEP, etc.) be a viable option for Ukraine?

Theoretically anything is an option but let's not start another debate on Ukrainian weapons options please.



[GTX]

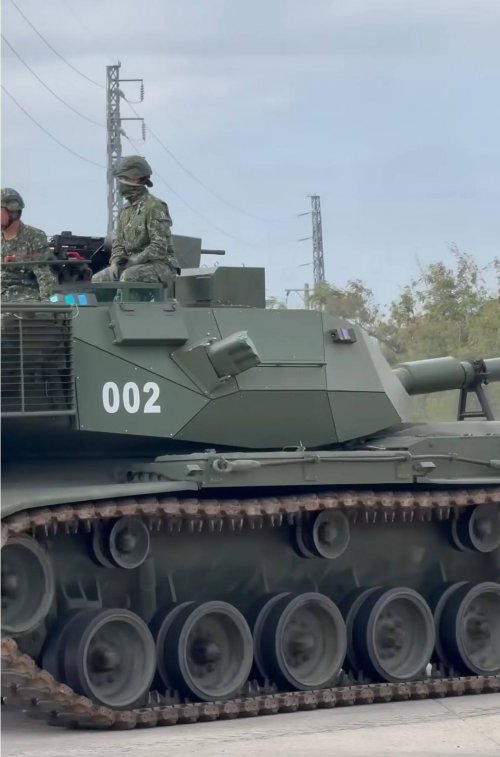

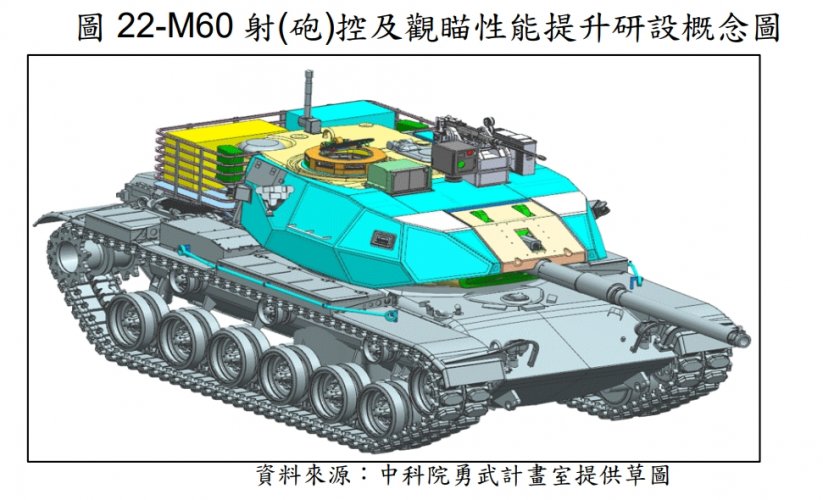

Taiwan launches massive modernisation of its fleet of ageing M60A3 tanks | Defense News November 2023 Global Security army industry | Defense Security global news industry army year 2023 | Archive News year

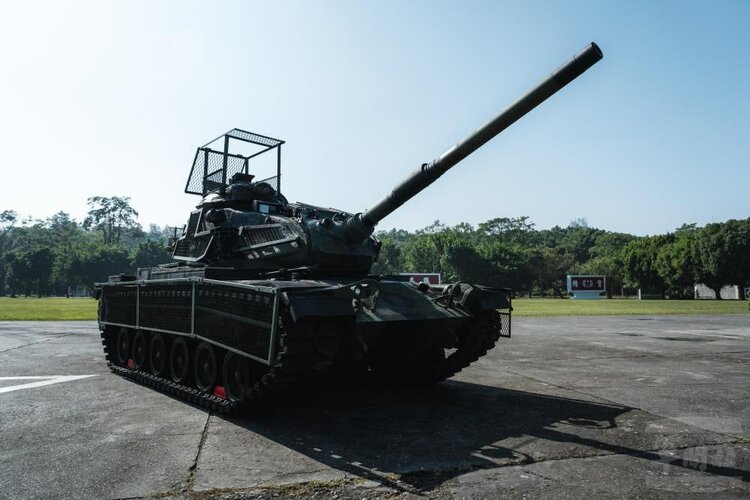

Taiwan launches massive modernisation of its fleet of ageing M60A3 tanks

www.armyrecognition.com



[GTX]

Iran Develops Modernized Version of US-Made M60A1 MBT Main Battle Tank | Defense News March 2024 Global Security army industry | Defense Security global news industry army year 2024 | Archive News year

Iran Develops Modernized Version of American-made M60A1 MBT Main Battle Tank

www.armyrecognition.com



[yahya]

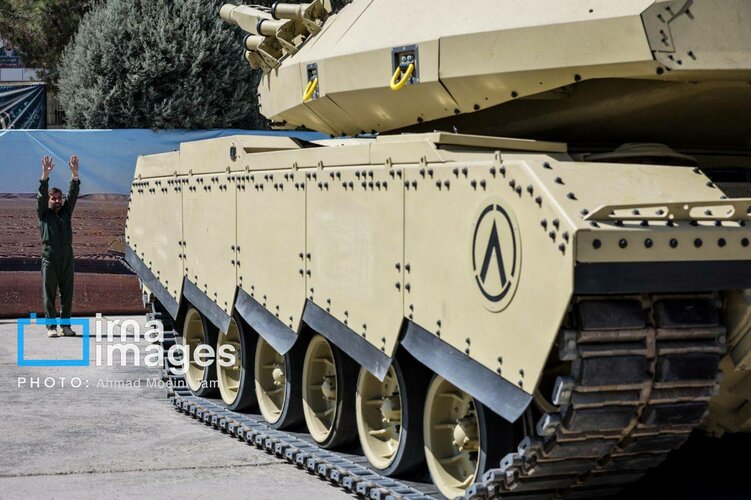

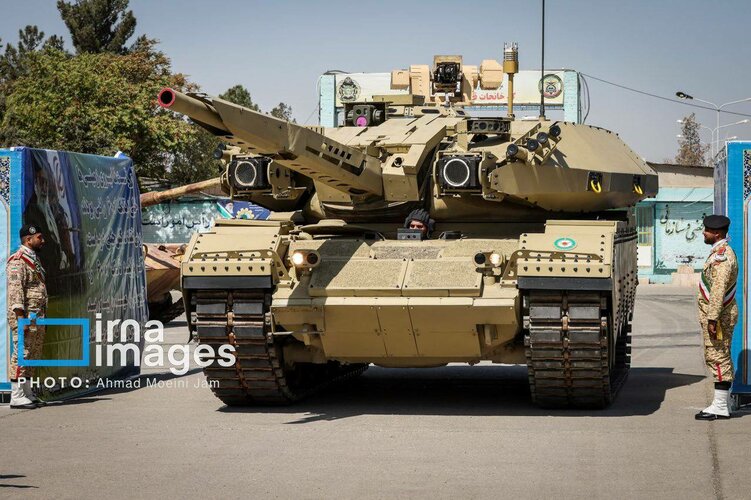

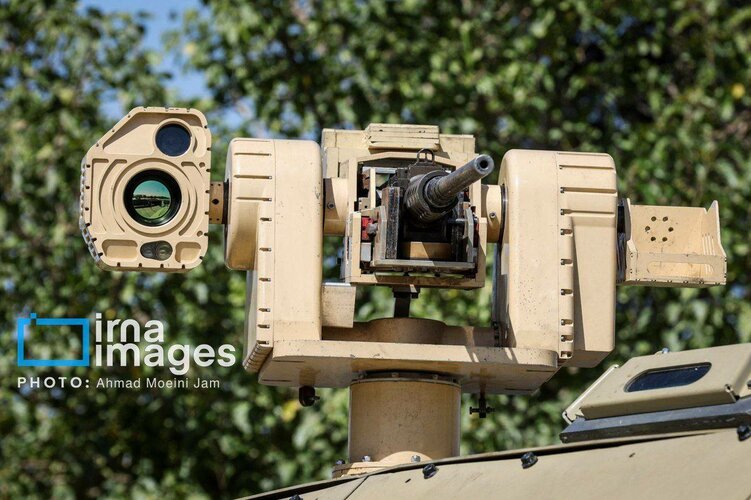

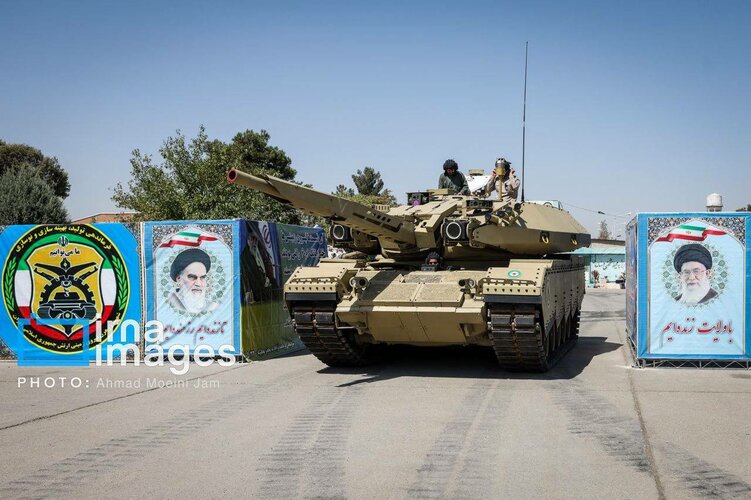

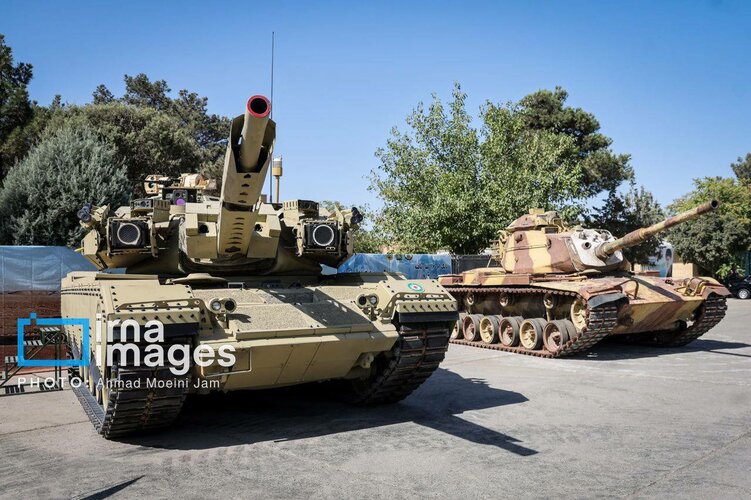

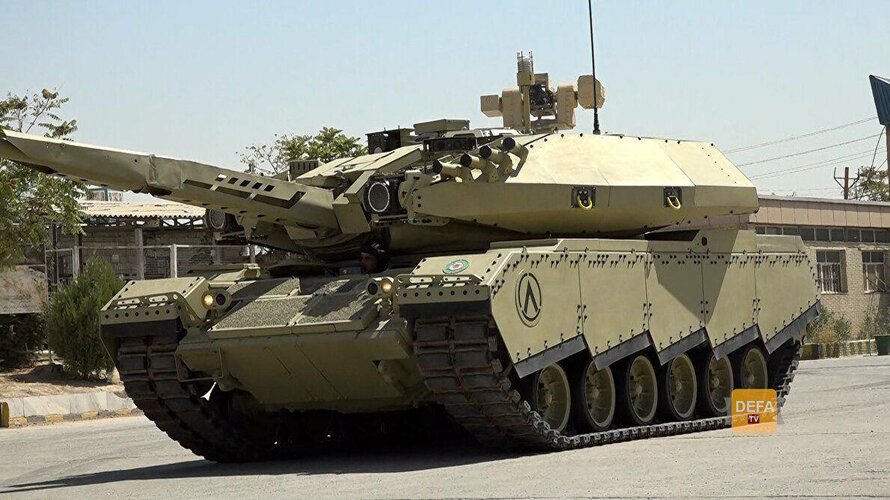

The Soleiman-402 M60 tank upgrade package with a Shtora-alike IR jammers, RCWS, new armor and comms.



[Colonial-Marine]

I understand the concept of that sort of structure around the gun barrel as a way to reduce thermal signature and maybe other benefits, like when it has been implemented properly like on the Rheinmetall Lynx or Panther. But in this example, I think it's just some sheet metal they welded on because they think it looks cool or futuristic. Stuff like that it makes me wonder if there is even anything inside most of those added armor modules.



[alejandrogrossi]

I understand the concept of that sort of structure around the gun barrel as a way to reduce thermal signature and maybe other benefits, like when it has been implemented properly like on the Rheinmetall Lynx or Panther. But in this example, I think it's just some sheet metal they welded on because they think it looks cool or futuristic. Stuff like that it makes me wonder if there is even anything inside most of those added armor modules.

Colonial marine
Thanks for explanitions, becase i didnt understand the structure around the gun barrel.
the only interesting this about that iranian upgrades, is that have IR jammers, RCWS.
I think the other upgrades, didn´t have anothing of that.
It´s somthing rude the product termination in the turret, specialy the IR jammers



[yahya]

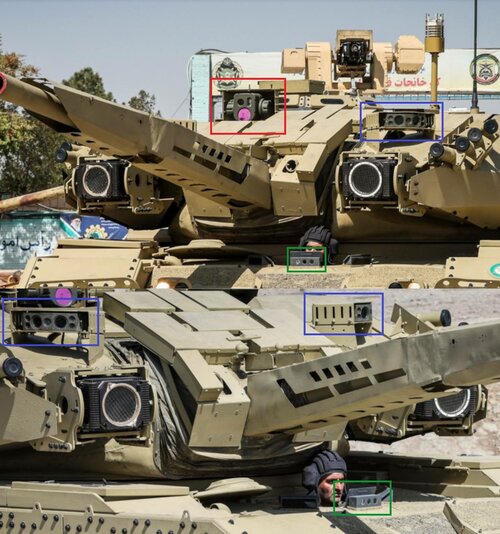

Still, Soleiman-402's sensors look interesting. If I'm not mistaken, there is the laser warner system within in the blue rectangles, and a day/night range finding camera within in the red rectangle. I am confused what is within the green rectangle. A daylight camera and a night vision illuminator for the driver?



[SK2]

The green box should be exactly what you said, the night vision for driver, with one TV channel and two thermal channel. In the original M60 this exact vision block should be able to changed with night vision camera also.



[Scott Kenny]

Still, Soleiman-402's sensors look interesting. If I'm not mistaken, there is the laser warner system within in the blue rectangles, and a day/night range finding camera within in the red rectangle. I am confused what is within the green rectangle. A daylight camera and a night vision illuminator for the driver?

Definitely driver systems.

Could be a triple sensor, daylight TV, near-IR, and thermal. Might only be a daylight TV and night vision with IR illuminator. A quality thermal imager is expensive.



[graywolfbozkurt]

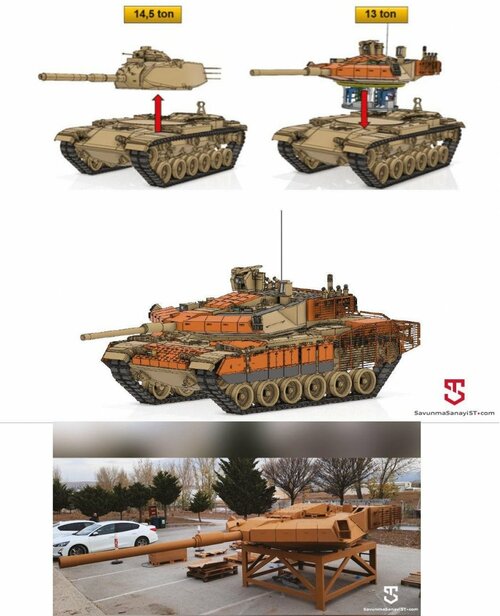

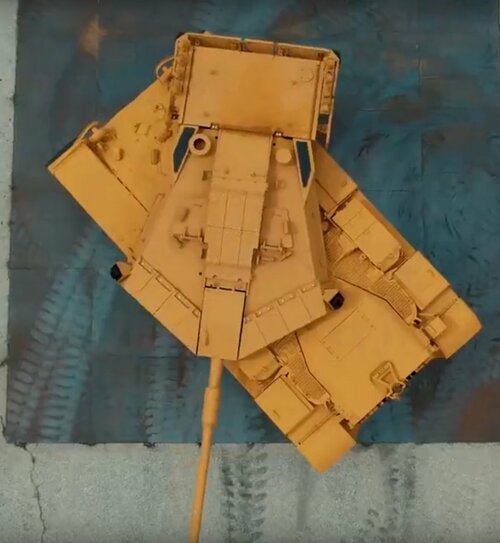

View attachment 701643View attachment 701644View attachment 701645View attachment 701646View attachment 701647

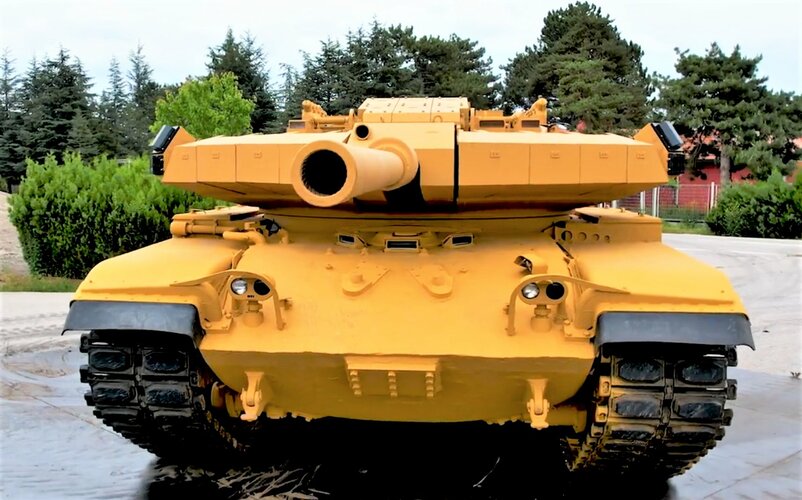

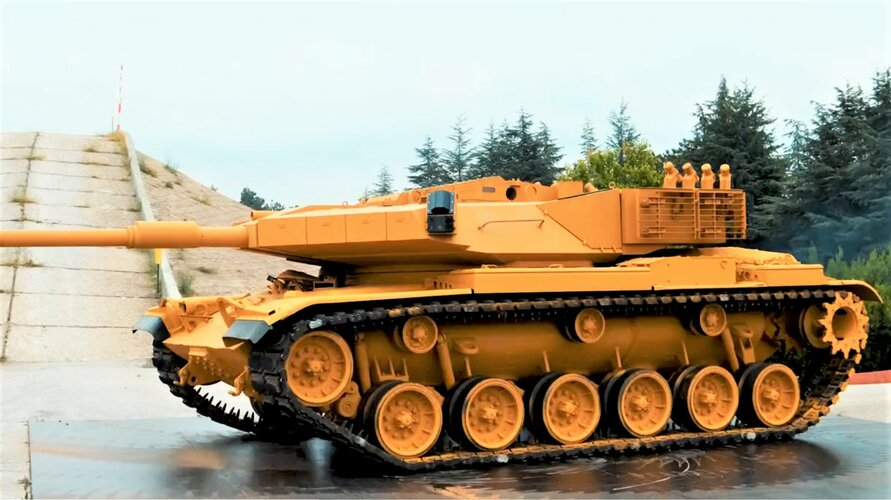

Bu patton lar daki yükseltme lerin temel sorunu önden yüzük( gövde kule) arasındaki boşluğun devasa olarak kalması buna bir çare bulmaları gerekiyor. Bana kalsa tankın burnunu iptal ederdim ön tarafa bir motor bölmesi daha eklerdim. Mzk nın T 72 lere göre yapılmış olduğunu anlamak için dahi olmaya gerek yok. Hadi artık şu patton ları iki motorla donatın. Ve her şeyi değiştirin 3.dünya savaşında görüşelim...



[Antonio]

Bu patton lar daki yükseltme lerin temel sorunu önden yüzük( gövde kule) arasındaki boşluğun devasa olarak kalması buna bir çare bulmaları gerekiyor. Bana kalsa tankın burnunu iptal ederdim ön tarafa bir motor bölmesi daha eklerdim. Mzk nın T 72 lere göre yapılmış olduğunu anlamak için dahi olmaya gerek yok. Hadi artık şu patton ları iki motorla donatın. Ve her şeyi değiştirin 3.dünya savaşında görüşelim...

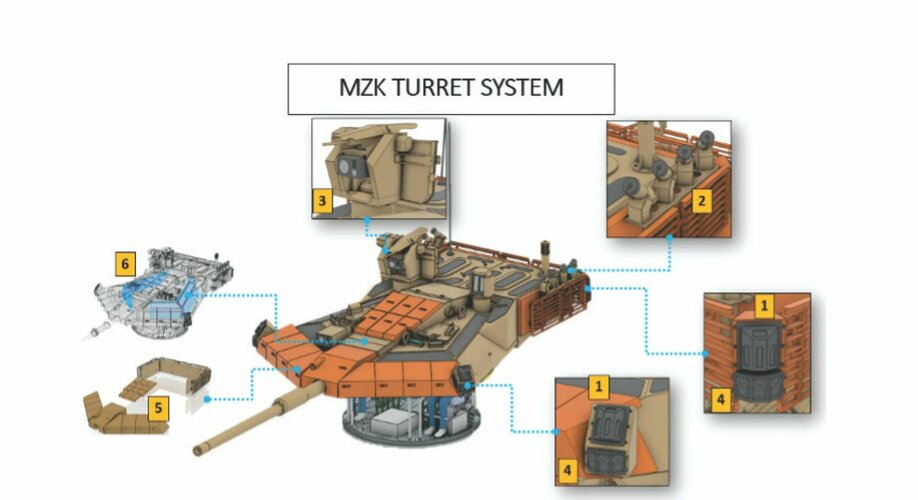

The main problem with the upgrades on these Pattons is that the gap between the front ring (body and turret) is huge, they need to find a solution for this. If it were up to me, I would cancel the nose of the tank and add another engine compartment to the front. It doesn't take a genius to understand that the MZK was made according to the T-72s. Come on, equip these Pattons with two engines. And change everything, let's meet in World War III...

The forum's language is English

If you can't write English, please remember you can use machine translation as I've done by myself.
