M.Gudkov’s projects

[borovik]

Aircraft designer M.I.GUDKOV (one of the triumvirate "LaGG")

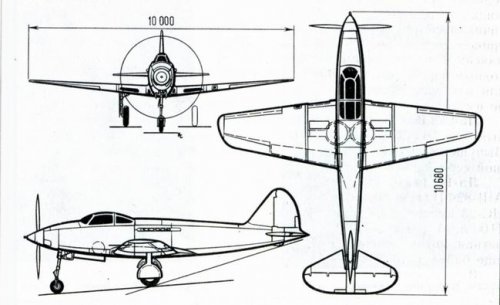

Gu-1 (Gu-37) 1940
On scheme close to American Bell Airacobra
Aerodynamic clear, nearly perfect… but... constructive overloading nearly in all.
engine :AM-37
weights :loaded 4610kg
empty 3742 kg
lenght:10,68 m
span:10,0 m
armament :1x37 Taubin’s gun
6x12,7

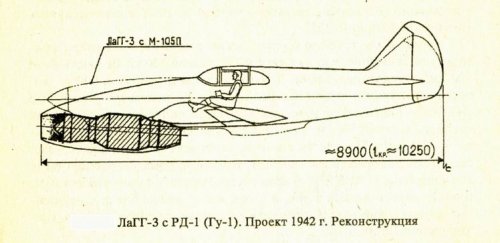

LaGG-3 with RD-1 (Gu-1) 1942 October
Project provided accomodation of the engine on “redan” to scheme
Change were subjected to center section wings, carriage. In connection with than was increased range/span.
engine :RD-1 (Lyul’ka axial turbojet)
lenght:9,00 m
span:10,50 m
max speed :700 km/h

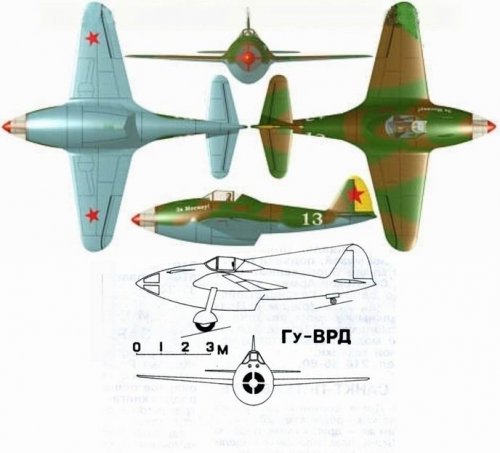

Gu-VRD 1943 April
engine :TKVRD (design by Lyul’ka)
max speed :870 km/h (accounting)
weights : 2250kg
range:700km
armament :1x20 ShVAK
1x12,7 BS
Both these project with original location of the engine for three years have overtaken Yak-15 with Jumo.004 and were wholly regardless of like german projects.

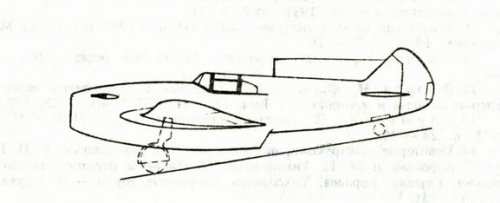

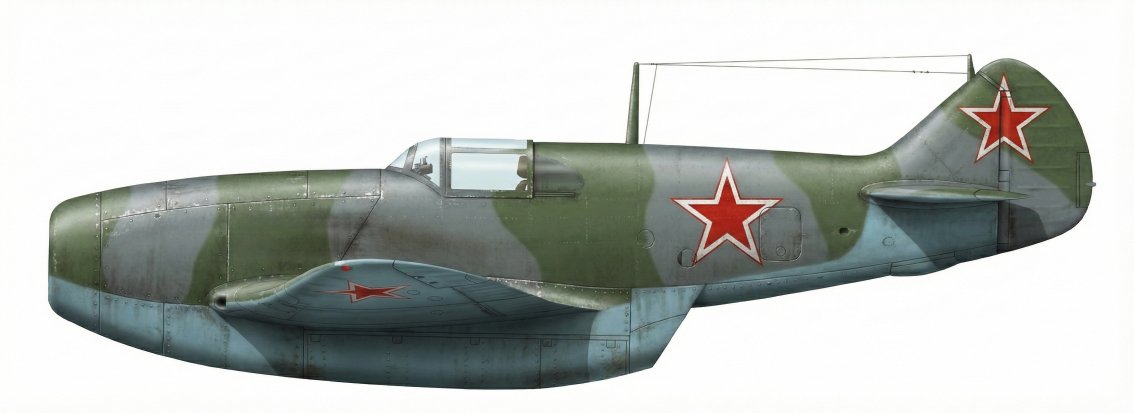

LaGG-3 (VRDK-1) 1943
__________________________________________________________________________________________
Not more interesting (therefor time) was a project of the speed bomber with two turbojet GTVRD designs Lyulka’s each 1500 kg.
Year :1944
weights :6500kg
crew: 3
max speed: on 6000km 780-800km/h
bomb loaded :1200-1500kg
armament :1x20 ; 1x12,7
The Publication of the Images, schemes, drawings was not.
*Enounce thanks for used depiction PlanesPictures & Jozef Gatial
Other sources:”Kryl’ya Rodiny” 3/1996
I.Sultanov “History of the making the first soviet turbojet planes” VUZ book 1998
“Aircraft creation in USSR (1917-1945) Vol. II” Publishing division TsAGI 1994
V.Shavrov "History design planes in USSR" Vol.II (1938-1950)



[lark]

Illustration of the Gu-VRD by Jozef was known, but many thanks
for your explanation.
It was a surprise to see that so many RD or VRD powered designs
were on the drawing boards...



[Zizi6785]

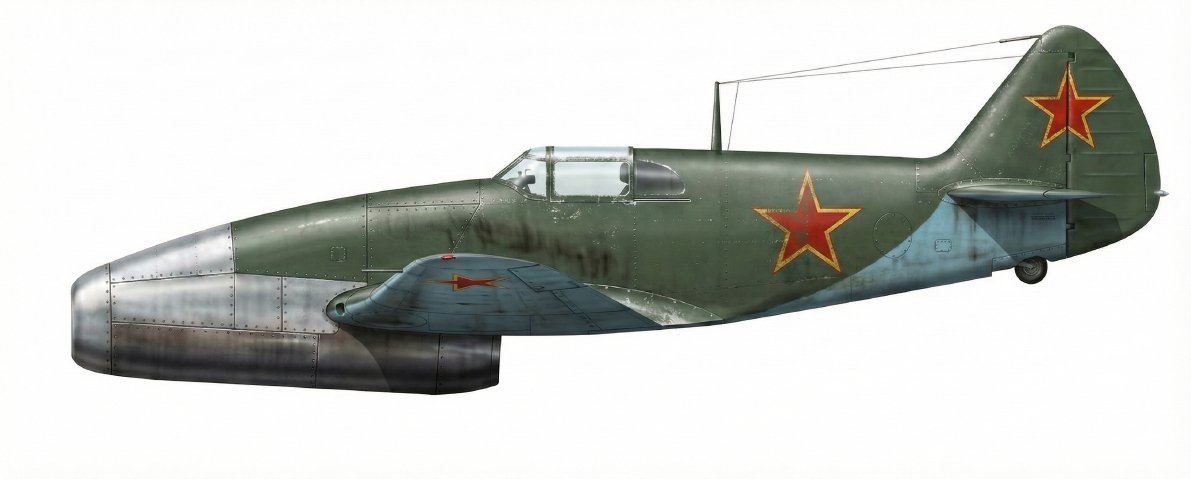

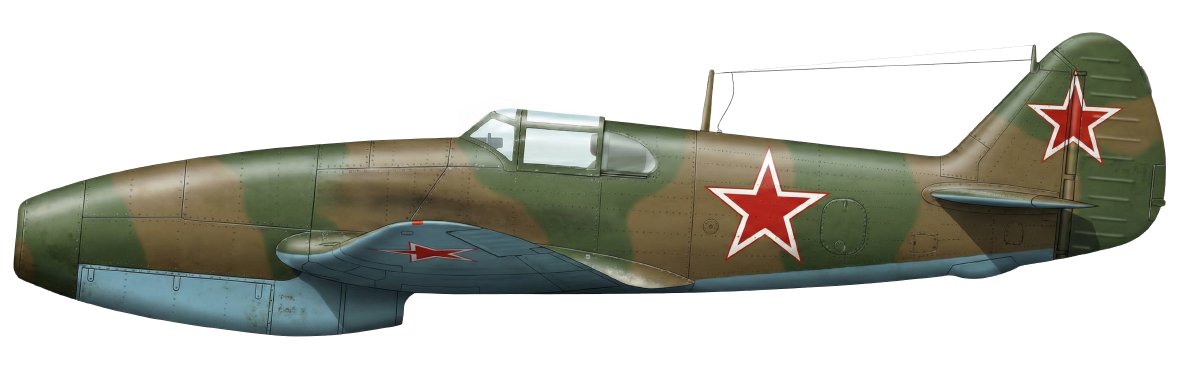

My colour profiles for 3 different drawings:



[Flitzer]

Nice profile work Zizi.

The Gu-1 (Gu-37) 1940 has a look of the Me 509 about it to my eyes at least.

Cheers
Peter



[hesham]

Hi,

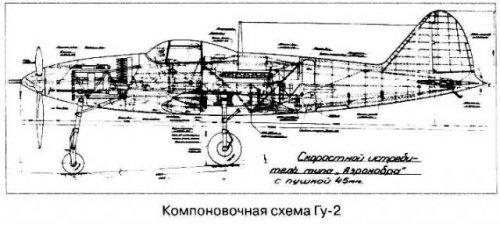

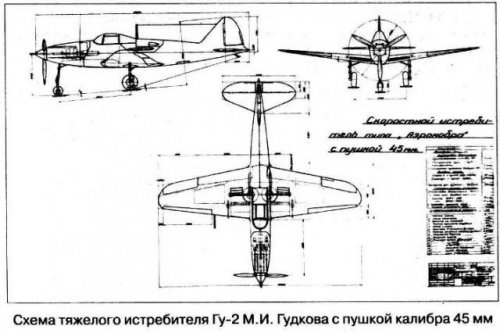

the Gudkov Gu-2 Fighter.


http://alternathistory.org.ua/taxonomy/term/889



[topspeed3]

Nice profile work Zizi.

The Gu-1 (Gu-37) 1940 has a look of the Me 509 about it to my eyes at least.

Cheers
Peter

King Cobra ?



[hesham]

Hi,

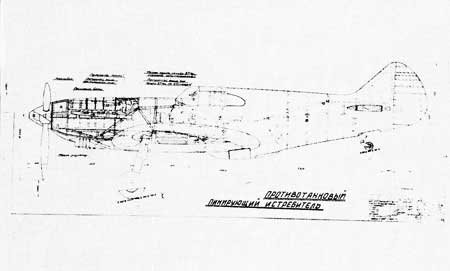

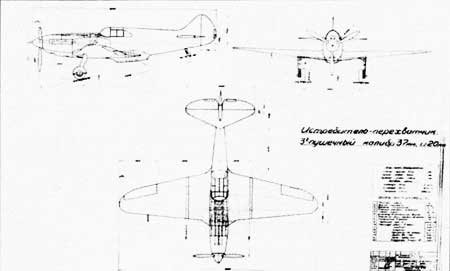

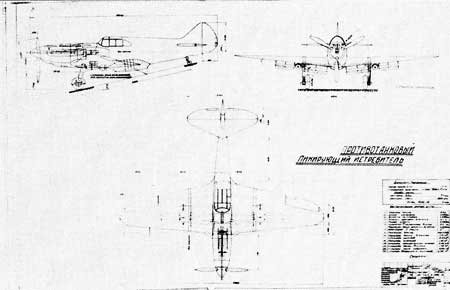

here is two little known Projects for Mr. M.I. Gudkov ,the first was a fighter and the second was a dive bomber;


http://www.xliby.ru/istorija/shturmoviki_krasnoi_armii/p1.php



[hesham]

From; Козырев - Авиация Красной Армии (Москва, 2011)



[blackkite]

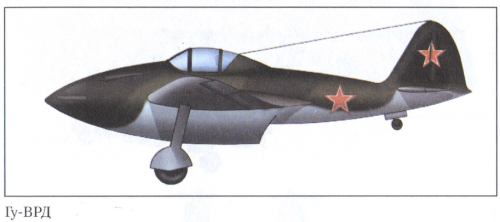

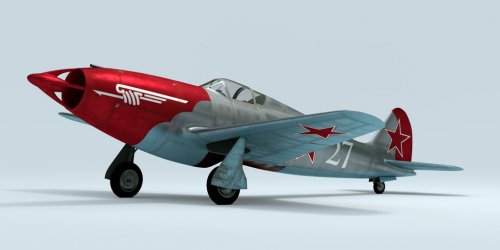

Hi! Gudkov Gu-VRD(Гудков Гу-ВРД). Nose shape is very impressive. An anticollision device against a bird????

http://www.whatifmodellers.com/index.php?topic=38430.0

http://www.moddb.com/groups/aircraft-lovers-group/images/gudkov-gu-vrd1

http://www.secretprojects.co.uk/forum/index.php?topic=17243.0

https://aviaforum.ru/threads/neizvestnye-krylja-pobedy.42078/

http://allaircraftsimulations.com/forum/viewtopic.php?f=20&t=7566&start=15



[blackkite]

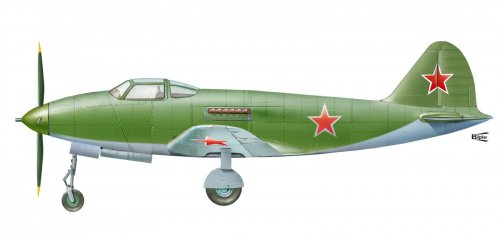

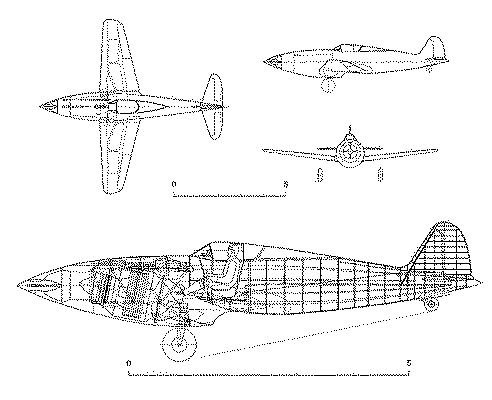

Hi! Gu-1 side view.



[BESTUZHEV]

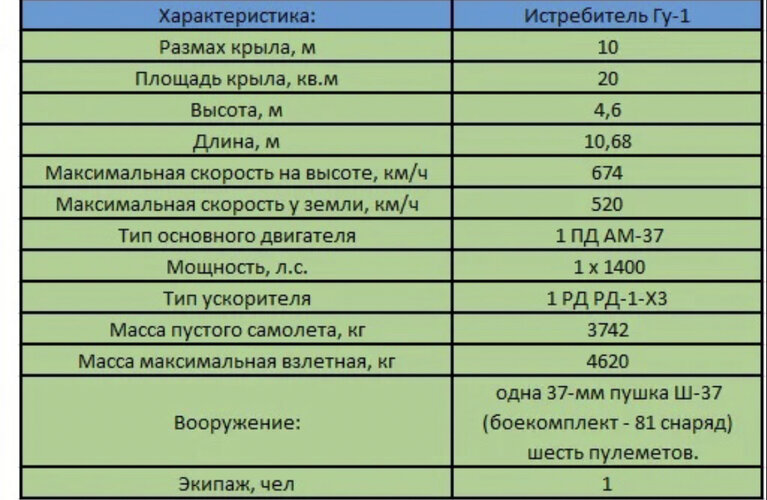

characteristics in russian and picture of gu-1



[dan_inbox]

Nose shape is very impressive. An anticollision device against a bird?

Would be a good place for a radar antenna.



[Justo Miranda]

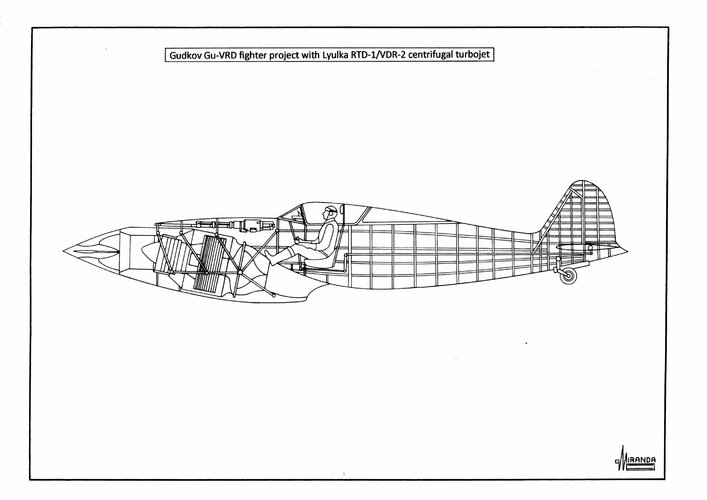

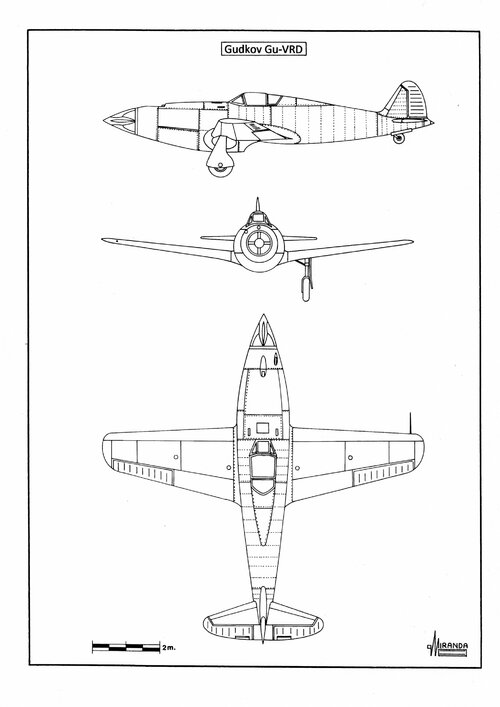

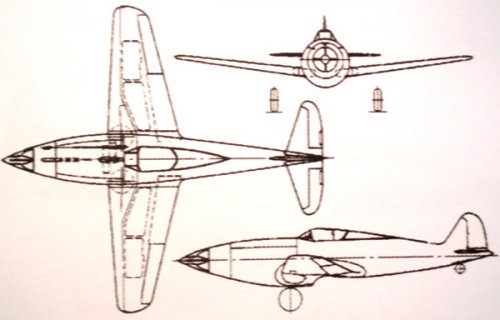

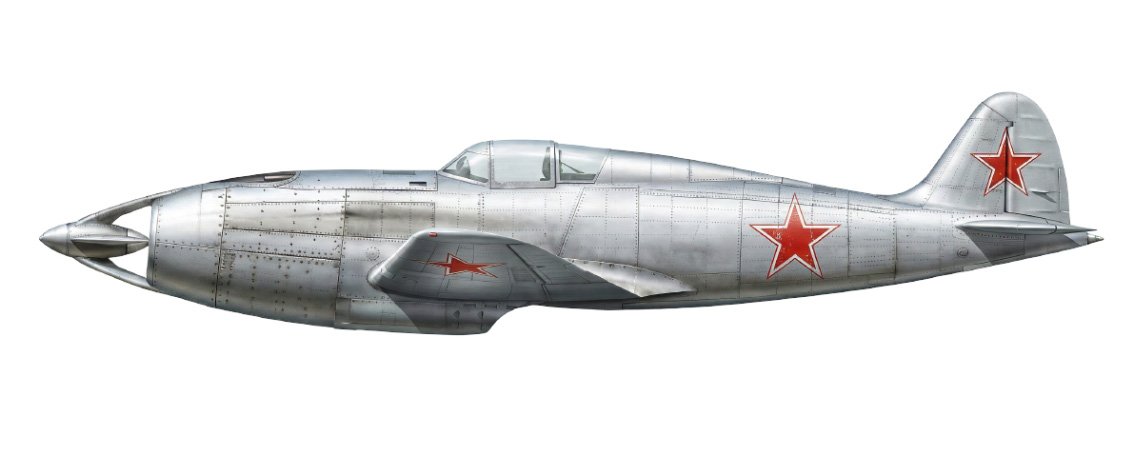

Gudkov Gu-VRD fighter project



[klem]

As far as I know, in the Soviet Union in 1943 no turbojet engine was ready and sure even the RTD-1/VDR-2 of Lyulka, to be mounted on the Gu-VRD or any other aircraft. Lyulka's aspirations for his engine were greater in reality than his design, which was not perfected.



[Justo Miranda]

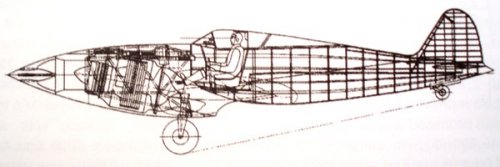

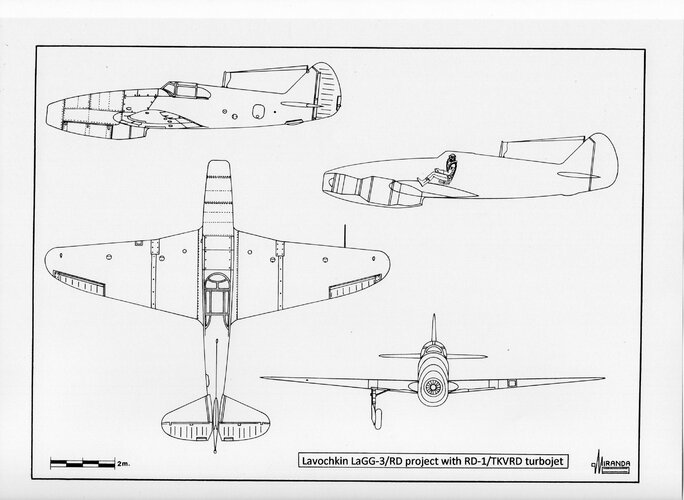

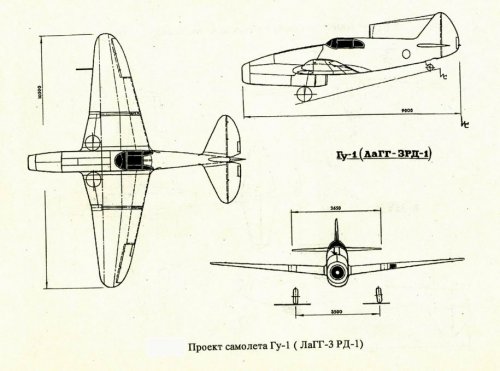

Lavochkin LaGG-3/RD project with RD-1/TKVRD turbojet



[Justo Miranda]

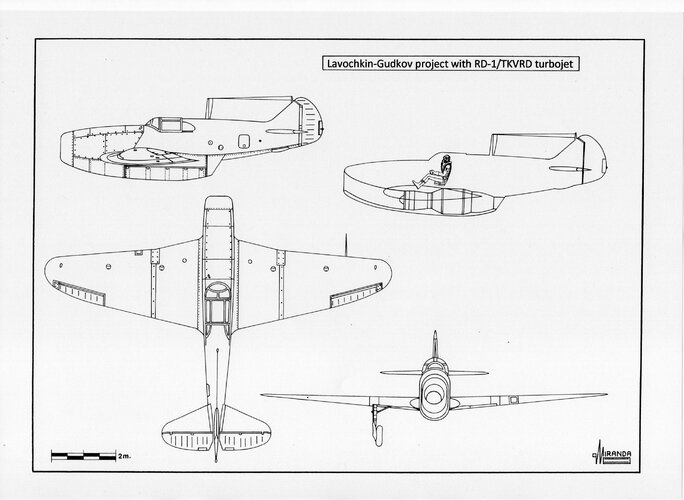

Lavochkin-Gudkov project with RD-1/TKVRD turbojet



[youROKer]

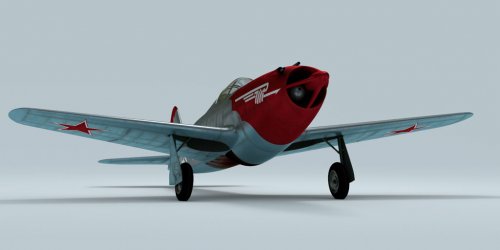

Gu-1



[sienar]

Is that a mockup?



[Stargazer]

Is that a mockup?

Has to be, since the Gu-1 (Gu-37) was never built.

By the way, the Gu-37 designation is confusing, since there was also a Gudkov K-37 (actually the same as the Lavochkin-Gorbunov-Gudkov LaGG-3-37).



[igor-mich]

https://en.namu.wiki/w/%EA%B5%AC%EB%93%9C%EC%BD%94%ED%94%84%20K-37



[Raa]

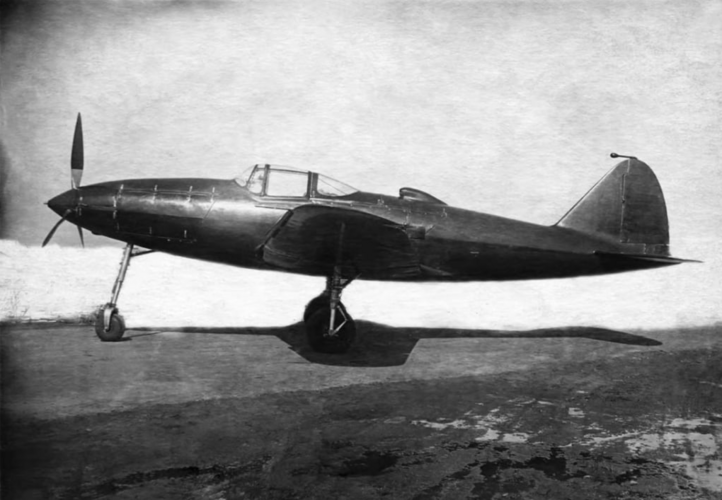

Gu-1

Gu-1 was a completed aircraft. That is crashed in the middle of the flight test.
This photo was probably published by Gennady Serov in a youtube video :

View: https://youtu.be/WostjkqwsSs?list=PL9ybxsKzafo2jZTK-X7ez8znyeLDAmtaJ&t=2351

This is a rare find, as no photographs of the Gudkov Gu-1 had ever been known before.
I would like to ask Mr. Serov about the origins of the photo, but like many historians, I have no way of contacting him



[sienar]

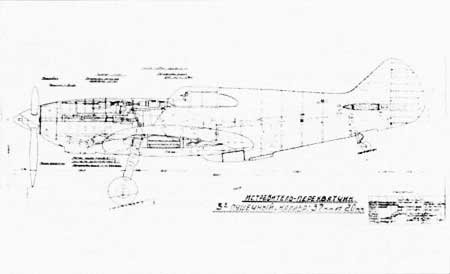

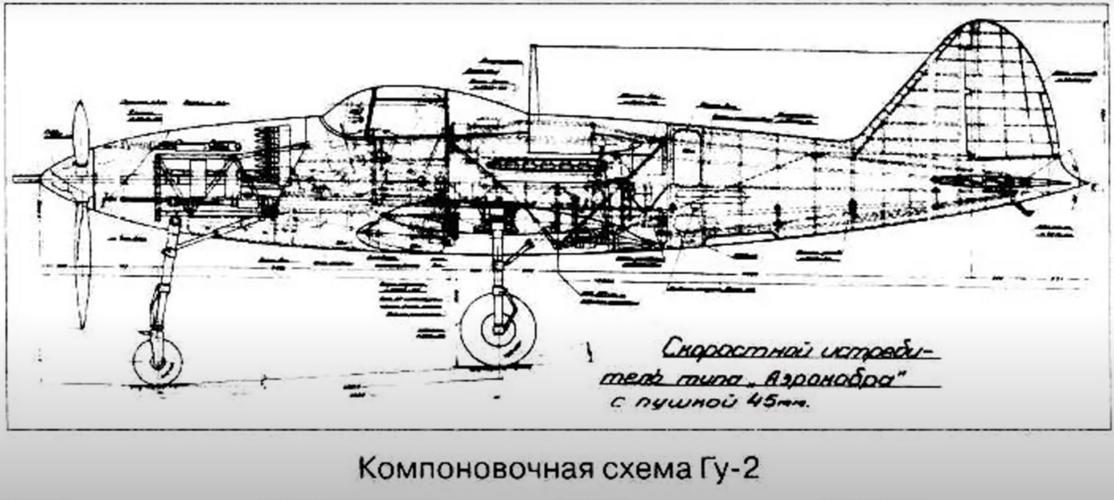

The other drawing from the above video;



[hesham]

The other drawing from the above video;
View attachment 734036

That's the same thing in reply # 5,which I already sent ?!.



[Airborne2001]

I have two questions:
1. Do we know why the LaGG-3RD was inspired by the LaGG-3 and not the La-5/7? IIRC it's because of the timing considering the La-5 was only just entering service at that point. However, I wonder if the engine mount played a role since early jet engines were thinner than radials like inline engines.
2. How was the VDRK supposed to carry its bombs? I see multiple areas with room for a bomb bay, but it looks like it would get in the way of the engine. Were they supposed to be suspended under the wings?
