Looking for pictures of "Big Migs" cockpits

[XB-35]

Hi All,

Despite the numerous Yefim Gordon books I have (including the Red Star book about the heavy Interceptors), I don't have found pictures about "Big Migs" such as Ye-150, Ye 152, Ye 166... cockpits.

I would like to find pictures of these cockpits in order to detail cockpits of Modelsvit kits, with the possibility to build these with open canopies.

I don't know if someone has infos about these cockpits... Maybe I can try to contact Mister Gordon, if I find his email address.

Thanks for the information.

All the Best,



[blackkite]

Hi!
https://www.lesmaquettistes.com/t4296p75-mikoyan-gourevitch-e-152m-modelsvit-72030-1-72eme



[galgot]

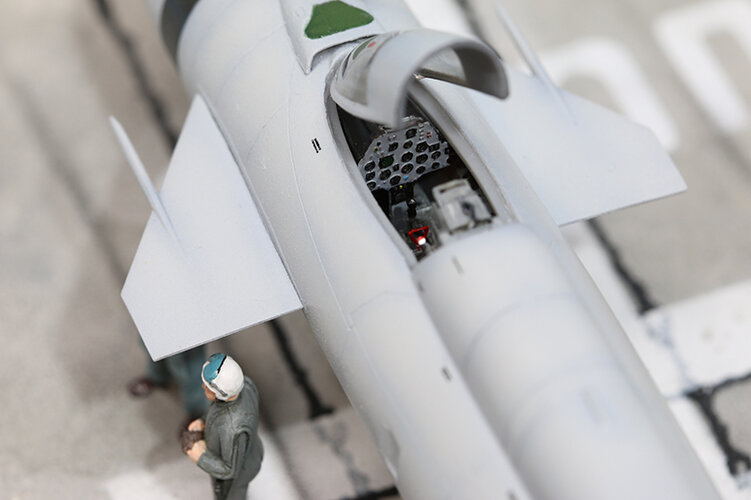

There is an aftermarket detail set with photo etch instrument panel and console :

NH Detail E-152M Detail Set for Modelsvit 1:72 #A72-059

E-152M Detail Set for Modelsvit 1:72: NH Detail A72.059, E-152M Detail Set for Modelsvit 1:72 Photo-etched accessories.

dukmodell.com

But no idea how accurate that is.

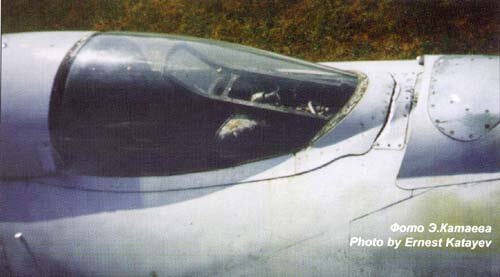

The closest pict of the cockpit I could find, not even inside, is that one :

And here is a walk around of the Monino survivor:

Ôîòîãàëåðåÿ : Ñáîðíûå ìàñøòàáíûå ìîäåëè - ScaleModels.ru

Ñáîðíûå ìàñøòàáíûå ìîäåëè - ScaleModels.ru. Ñàìûå ñâåæèå ìîäåëüíûå íîâîñòè!

scalemodels.ru



[Sarastro]

Hi,

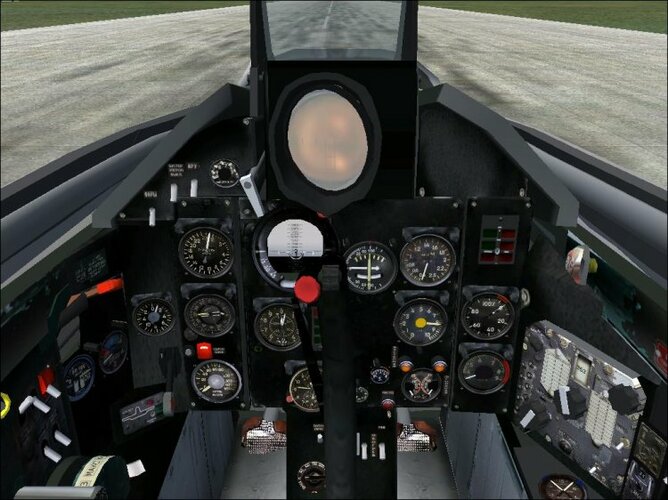

here is a model for FS2004, which also has a virtual cockpit

https://www.flightsim.cz/fsitem.php?act=exe&id=598&menu=



[overscan (PaulMM)]

There's a photo in the new Russian MiG Book (МиГ - полёт сквозь время) of a mockup of an Uragan-5 equipped fighter cockpit circa E-150. It has a display in the center similar to the above but the rest is not terribly close.



[XB-35]

Thank you all for your help ! Does anyone know where I can find the Russian book "Mig - poliot skvozd vremya" ?

Regards,

XB-35
