Lockheed L-182 : Upgraded P2V Neptune project

overscan (PaulMM)

overscan (PaulMM)

Administrator
Staff member
Joined
27 December 2005
Messages
16,677
Reaction score
20,132
Source:


http://home.comcast.net/~wmiipms/NewsLetters/1995/WMIIPMS_04-1995_NL.pdf


Attachments

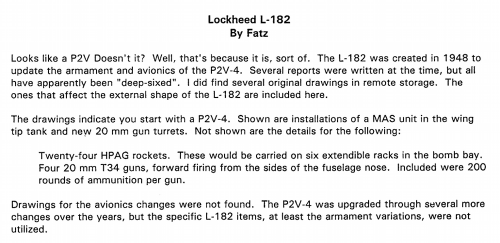

  • L-182-text.png
    123.5 KB · Views: 242

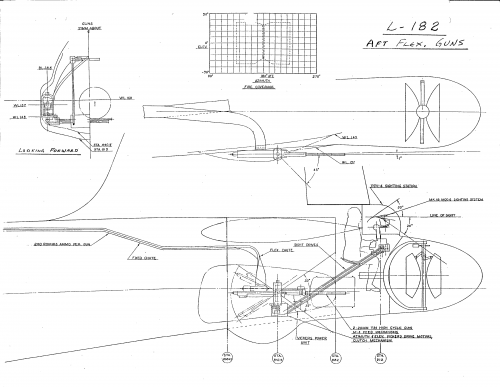

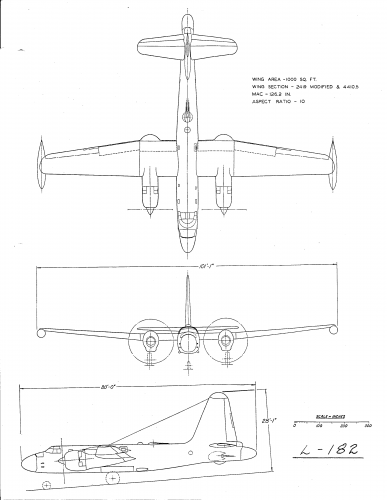

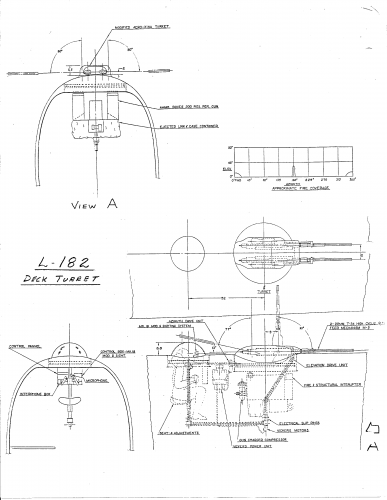

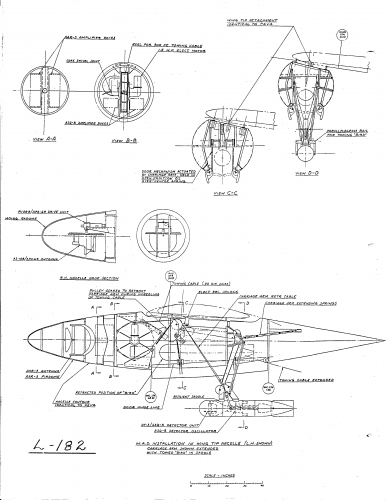

  • L-182-drawing1.png
    67.1 KB · Views: 240
  • L-182-drawing2.png
    143 KB · Views: 215
  • L-182-drawing3.png
    114.5 KB · Views: 187
  • L-182-drawing4.png
    101 KB · Views: 165
