Lockheed CL-1195 project

[hesham]

Hi,

I know the Lockheed CL-1195 was a fighter proposal
for the "Free World Fighter" program circa 1969,has
anyone a drawing to it?,please.



[Stargazer]

GOI will be interested to learn that Congress has approved (but not yet appropriated) $28 million for development of a Free World Fighter to be relatively inexpensive and at least equal to MIG-21. When technical and operational requirements defined, an aircraft will be selected on competitive basis. F-5-21, F-4EF and Lockheed CL-1195-1 have been proposed; P-530 and others may be considered.

Source: http://2001-2009.state.gov/documents/organization/70545.pdf



[overscan (PaulMM)]

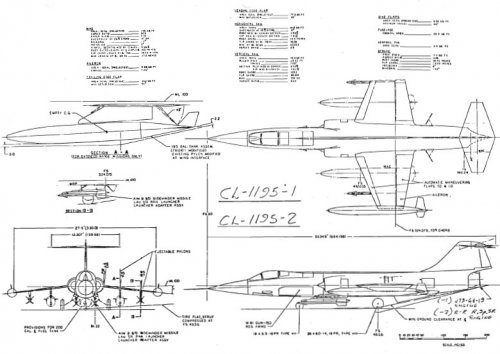

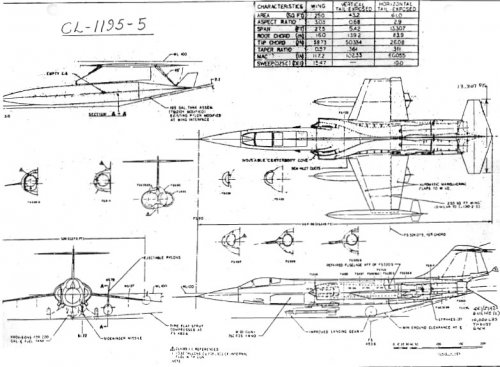

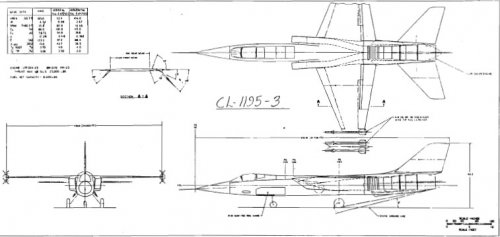

CL-1195 studies were for advanced F-104S derivatives with larger wings and different engines considered in various versions. 1195-1 was the least interesting.



[hesham]

Thank you my dears Skyblazer and Paul,


and my dear Skybolt displayed it before,with its variants;


http://www.secretprojects.co.uk/forum/index.php/topic,966.15.html
