Hi all,

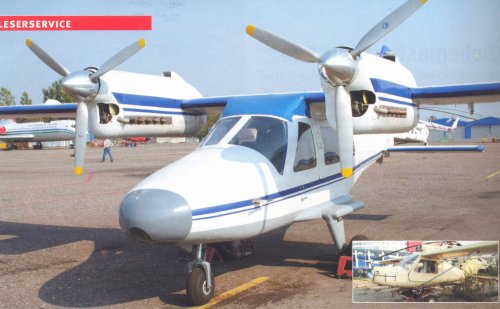

in the big picture you can see a prototyp by an aircraft from Molnija, designer Awtandil Chatschapuridse) powered by two Walter "Minor".

In the little picture is the Raitschenk-Morossow "Mirage" powered by one car-powerplant "Wartburg".

Anybody had better pics and more infos about these rare birds?

Thanks Maveric


Attachments

  • 009--.jpg
    1,000.6 KB · Views: 461

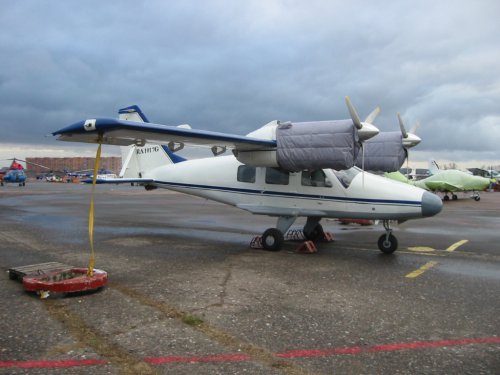

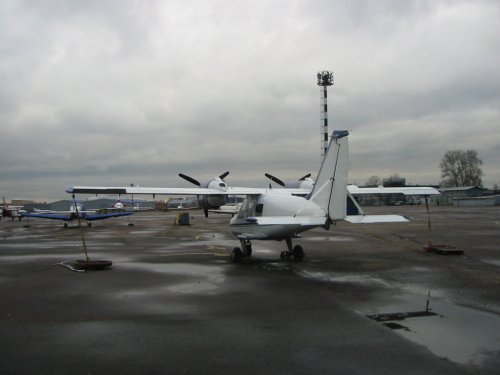

Two photos of the first aircraft mentioned.
Registration "RA1017G". (Perhaps the Russian Federation's civil aircraft registration index can provide the exact designation of this aircraft, but I can't find this index on Google)
Photos also taken at Bykovo Airport, Moscow, (on Nov. the 20th, 2008).

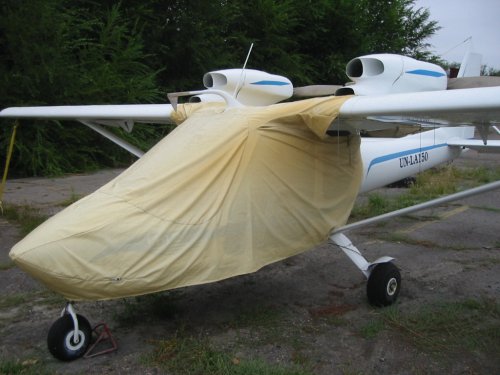

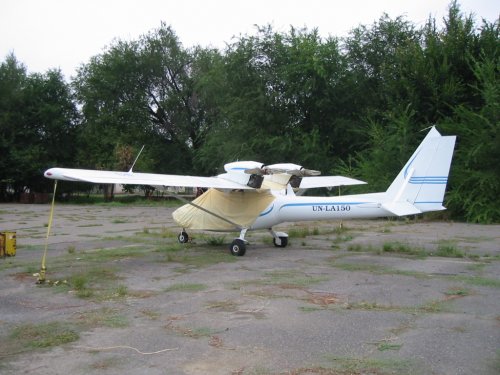

BTW: The 2 other photos concerned another twin engine aircraft (name and country of design?). They were taken at Boraldai Airport, Al Mati, Kazakhstan, on September the 19th 2008. Please somebody can ID this "UN-LA150"?
Thanks.


Attachments

  • IMG_0067.JPG
    352 KB · Views: 333
  • IMG_0066.JPG
    263.8 KB · Views: 293
  • IMG_0335.JPG
    363.5 KB · Views: 277
  • IMG_0333.JPG
    447.9 KB · Views: 277

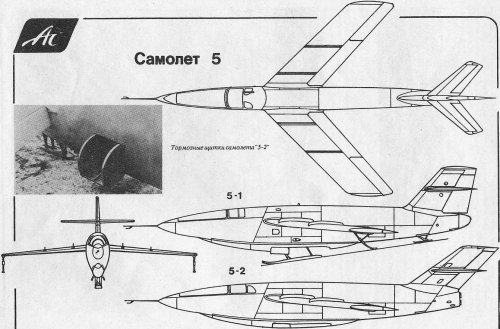

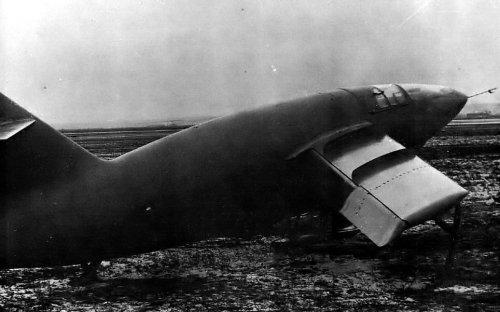

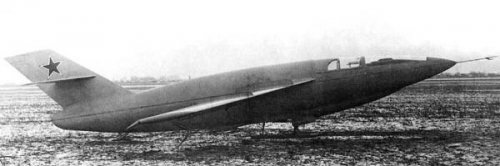

Hi! Experimental aircraft Bisnovat "5".
http://www.airwar.ru/enc/xplane/5.html
http://testpilot.ru/review/shavrov/iii/12/s5.htm
http://xplanes.free.fr/florov/afr-12.html
https://en.wikipedia.org/wiki/Bisnovat_5
"The Bisnovat 5 (Бисноват 5) was a supersonic research aircraft designed in the USSR in the late 1940s, inspired by the German DFS 346 aircraft that was captured by Soviet troops towards the end of World War II.
The Bisnovat 5 was ordered into development to provide an all-Soviet alternative to an aircraft built with foreign technology. Originally intended to take-off from the ground, gliding flights were carried out from a Petlyakov Pe-8 mothership, similar to the way that the Bell X-1 was dropped from a B-29 Superfortress mothership.

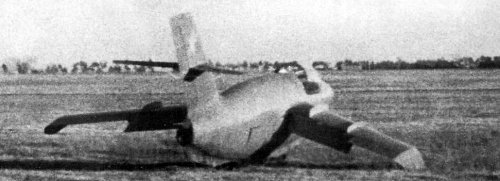

Unpowered flight tests revealed poor stability and dangerous landing characteristics with 5-1,(first prototype), being damaged beyond repair after the third gliding flight. Flight tests with Aircraft 5-2, fitted with a 45 degree swept fin of greater aspect ratio to improve directional stability, resumed on 26 January 1949, but further delays were caused by the pilot landing off the runway causing serious damage. To improve the landing stability 5-2 was modified with wing-tip skids, at the end of downturned wing-tips with 45 degrees anhedral, and a single skid on the centreline, as well as a ventral fin at the rear. Flying and landing qualities were much improved, but progress was slow and the Bisnovat 5 was cancelled without the aircraft making a single powered flight and only sixteen gliding flights, between 14 July 1948 and November 1949, during which a maximum speed of 0.775M was attained."


Attachments

  • 5-1.jpg
    84.1 KB · Views: 42
  • Bisnovat 5-2 final shape.jpg
    Bisnovat 5-2 final shape.jpg
    69.4 KB · Views: 40
  • Bisnovat 5. Supersonic research aircraft with ROCKET ENGINES..jpg
    Bisnovat 5. Supersonic research aircraft with ROCKET ENGINES..jpg
    21.4 KB · Views: 44

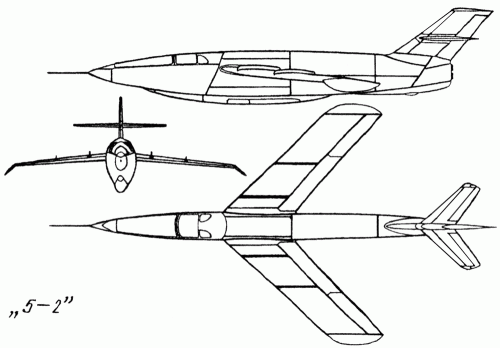

  • 5-2.gif
    89.6 KB · Views: 45
  • 12-1.jpg
    224.2 KB · Views: 51
  • 27-1.jpg
    297.5 KB · Views: 63
