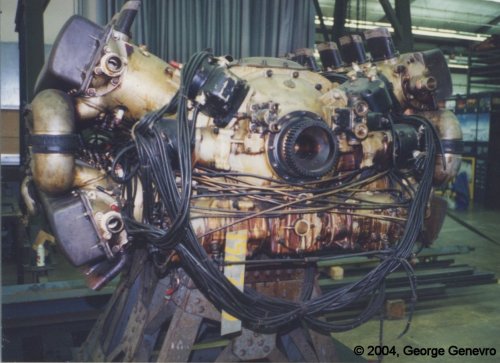

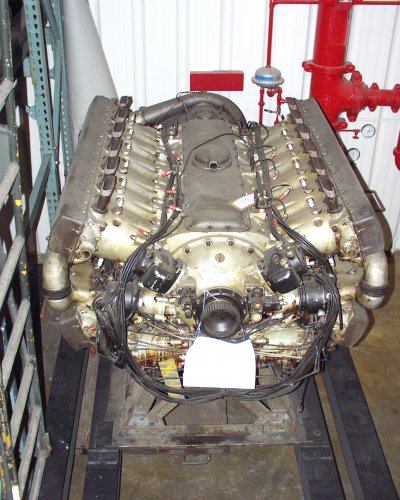

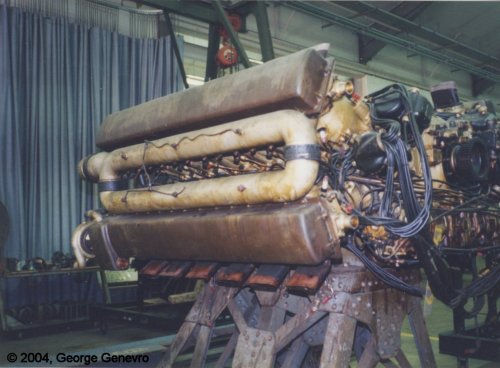

Hi! Kugisho HA-74-11 engine. Liquid cooling X24 shape engine.

Displacement ; 63.4L, Take off power ; 3200hp, 2650hp/1500m, 2200hp/8000m, Length : 1300mm, Bore ; 145mm, Stroke ; 160mm.

http://www.enginehistory.org/Japanese/japanese.shtml


Attachments

  • YE3-1.jpg
    181.2 KB · Views: 189
  • YE3-2.jpg
    173.4 KB · Views: 191
  • ハ74x24、1.JPG
    777.9 KB · Views: 158

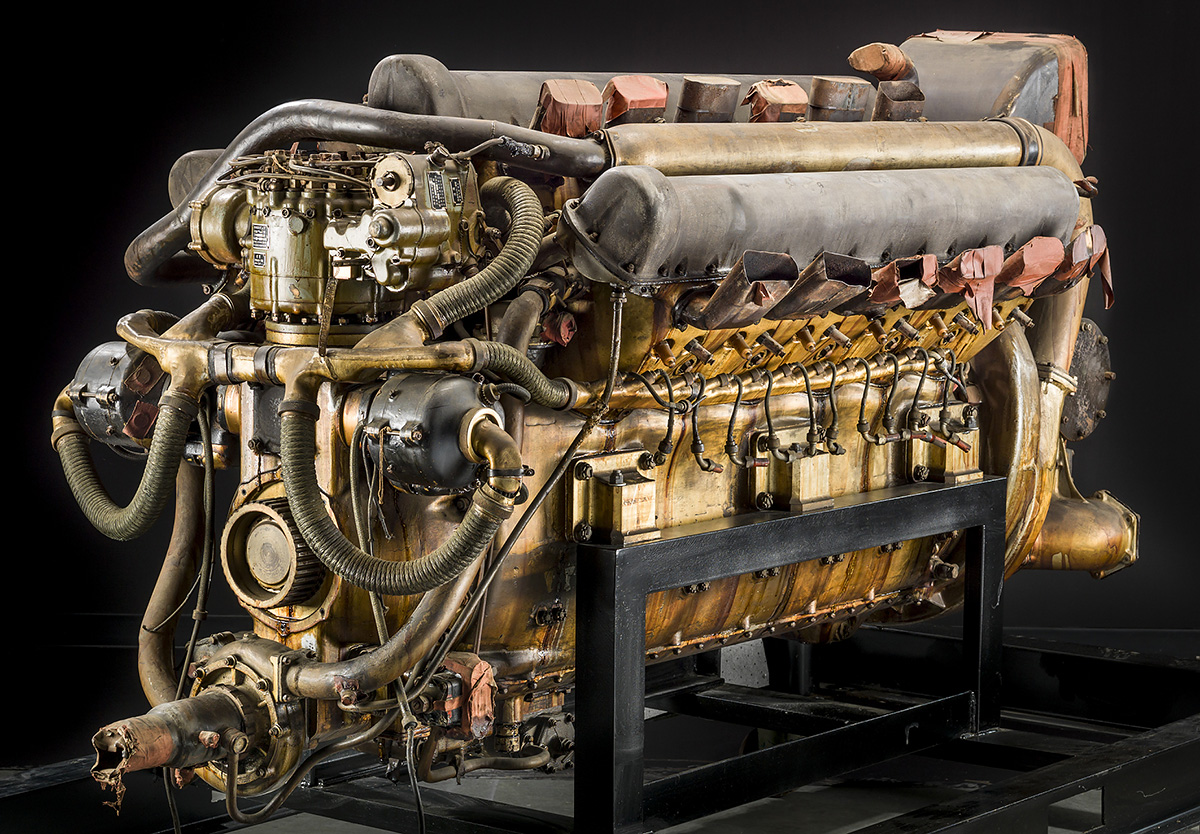

Hi! Please watch last page bottom.
http://www.enginehistory.org/Holdings/NASMHoldings_3.pdf
