Kawasaki KDN-1 naval flying boat

[blackkite]

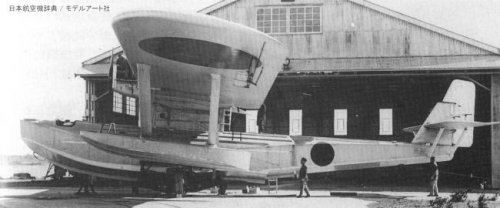

Hi! Kawasaki KDN-1 flying boat.

http://vintageaviation.michikusa.jp/japan.html

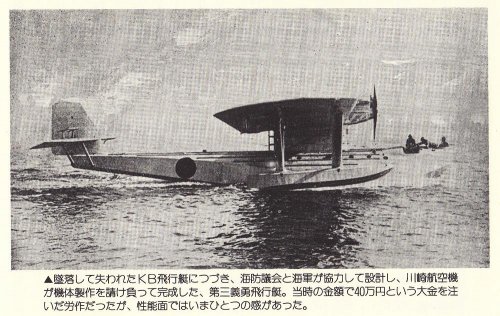

1. Kawasaki KDN-1 flying boat was made as an experiment as a substitute of KB flying boat lost in the accident.
2. The take-off run time of this flying boat is 17 to 35 second.
3. This flying boat had a severe vibration of the circumference of an engine, and became a flight stop.

source ： HANDBOOK OF JAPANESE AIRCRAFT 1910-1945, MODELART, 1989
Imperial Japanese Navy Flying Boat by Shigeru Nohara, Kojinsha, 2007, ISBN978-4-7698-1363-7



[blackkite]

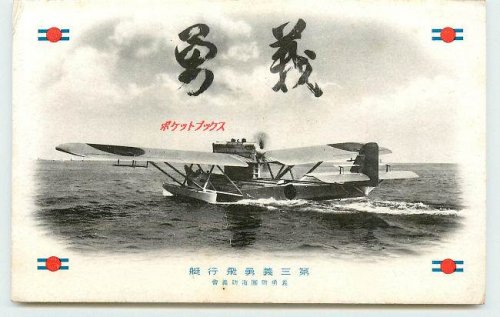

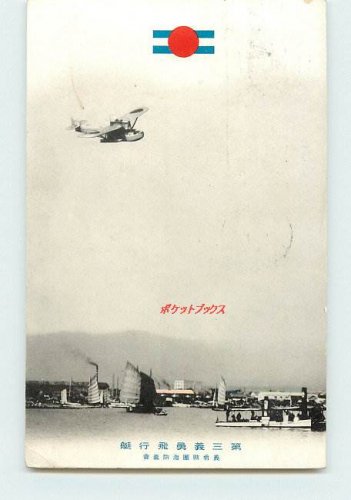

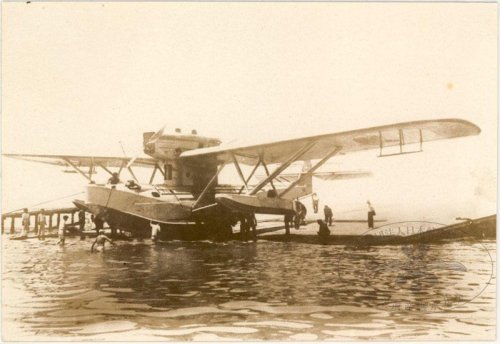

Hi! More KDN-1 pictures from Japanese internert site. Enjoy.

And wonderful Russian site.
http://forum.valka.cz/viewtopic.php/t/50713/start/-1

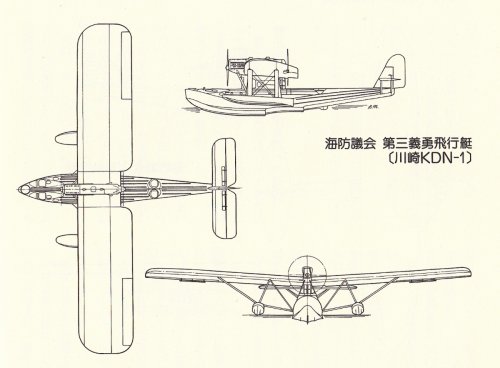

The name of KDN-1 was Navy Giyu-No.3 Flying boat.(第三義勇飛行艇, Dai san Giyu-hikotei)
