Kawanishi H11K1-L "Soku" Transport Flying Boat

[hesham]

Hi,

here is the Kawanishi H11KI-L.



[T-50]

The H11K Soku is a much bigger aircraft than the H8K Emily,it must certainly have two decks because it must carry a lot of soldiers.
I believe it never gets of the drawing Bord,if this type was build it was a good tool to sustain the garrisons abroad



[blackkite]

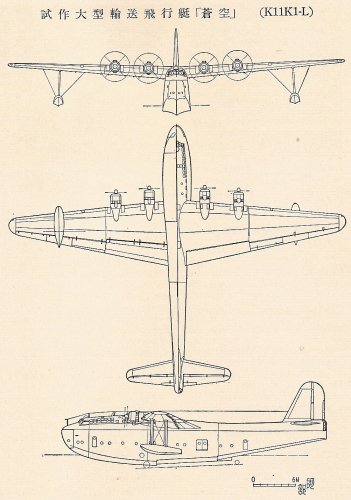

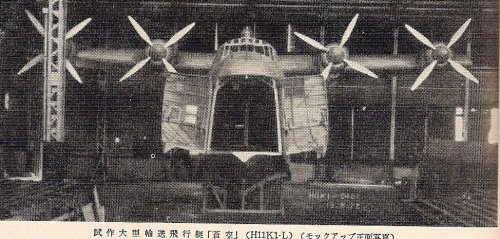

Hi! 1/2 scale Soku mock up and 3-side view. Enjoy.
Wing Span:48.0m, Length:37.73m, Height:12.578m, Wing Area:290.0m, MTOW:45,500kg, Wing Loading:156.8kg/m2, Engine:Mitsubishi Kasei(火星,Mars) air coolind radial 14 cylinder(1,850hp in take off)
Source:My No.2 Bible.



[T-50]

Hi! 1/2 scale Soku mock up and 3-side view. Enjoy.
Wing Span:48.0m, Length:37.73m, Height:12.578m, Wing Area:290.0m, MTOW:45,500kg, Wing Loading:156.8kg/m2, Engine:Mitsubishi Kasei(火星,Mars) air coolind radial 14 cylinder(1,850hp in take off)
Source:My No.2 Bible.

Nice drawing and photo of the Soku you have send Blackkite,It most become enormous!
The Japanese could have used after a little conversion work,this aircraft as a cheap alternative for the Fugaku.



[Johnbr]

All I now about this big Sea plane is the project died when the muck up was lost in a air raid.
Type Transport Flying Boat
Crew: Five
Powerplant: Four Mitsubishi MK4Q Kasei 22 (Ha·32-22) 14-cylinder, air-cooled radial engines developing 1,850hp for take-off, 1,680hp at 6,886ft and 1,550hp al 5,500m/18,044ft: each engine drove a 4.3m (14.lft) diameter, four-bladed, alternating stroke propeller
Dimensions
Span: 47.97m 157.4ft
Length: 37.70m I23.7ft
Height: 12.55m 41.2ft
Wing area: 289.95m2 3,121ft2
Wing loading: 156.72kg/m2 32.1 lb/ft2
Power loading: 6. I2kg/hp 13.51blhp
Weights
Empty: 26,405kg 58,213lb
Loaded: 45,550kg 100,420 Ib
Useful load 19,095kg 42,097lb
Performance
Max speed: 470km/h 292mph at 5,000m at 16,404ft
Cruise speed: 369km/h 229mph
Landing speed: 144km/h 89mph
Range: 3,890km 2,417 miles
Climb: 11 min 30 sec to 3,000m (9,842ft)
Armament: Three 13mm Type 2machine guns with 200 rounds of ammunition per gun



[Jemiba]

Kawanishi H11K1-L "Soku", just see "Japanese Projects before 1945", post 134 (page 9)
And we had it somewhere else, probably even in this thread, but
it took me quite a while to locate just this one post.
This thread really has become hard to handle due to its large number
of different types and very general topic. I think, I'll start splitting off
related posts, at the beginning at least the part about the Fugaku.
Any objections or demands ?



[blackkite]

You are absolutely right. No objection. ;D



[foiling]

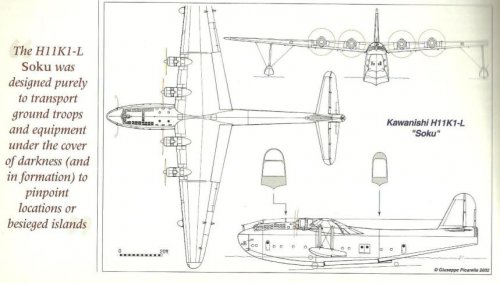

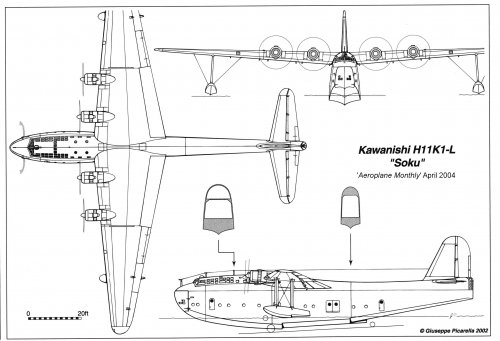

I have this general arrangement,from "Aeroplane Monthly", so I imagine many of you will know of it.



[Justo Miranda]

Hi



[windswords]

Check out this site for info on the H11K:


http://japaneseaircraft.devhub.com/blog/746883-kawanishi-h11k-soku-blue-sky/


Image from same:



[foiling]

Great image Windswords.



[windswords]

Thank you. I just discovered this site a few weeks ago. Not only does it have great images but the writeup on the various aircraft is very thorough.



[Stargazer]

A nice picture of the H11K1-L as it would have looked like when in flight:



[Tzoli]

Is there any info what would be the original armament of this plane if series production started and not as transports?
Same or Similar like the H8K Emily?



[Pelzig]

For as large as the Soku was, defensive armament was light (three 13mm Type 2 machine guns) and I doubt it would have changed had it gone into production. Asides, the Soku was clearly designed from the outset as a transport and not in the role of the H8K.

Is there any info what would be the original armament of this plane if series production started and not as transports?
Same or Similar like the H8K Emily?



[Pelzig]

The image on that site was taken from my book, Japanese Secret Projects. The artist is Kelcey Faulkner. Giving credit where credit is due. ;D

Check out this site for info on the H11K:


http://japaneseaircraft.devhub.com/blog/746883-kawanishi-h11k-soku-blue-sky/


Image from same:



[windswords]

At the time I found the color profile of the H11K on that site I did not yet have your book so I did not know who created it. I have your book now (and I have read it a couple of times). The site where I first saw the profile is gone.



[blackkite]

Hi!
