K.Shulikov (Pelenberg) jet VTOL fighter project (1947-49)

[hesham]

Hi,

The Shulikova project of VTOL fighter of 1946.



[borovik]

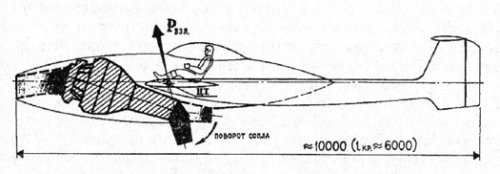

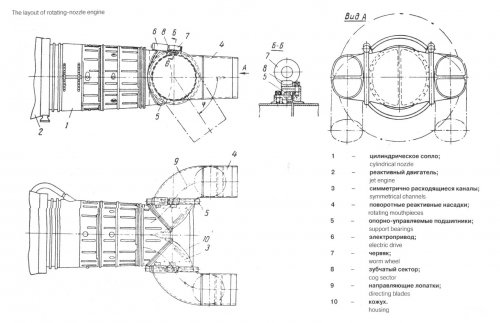

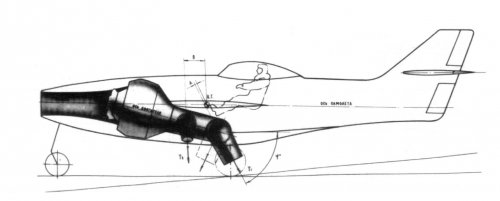

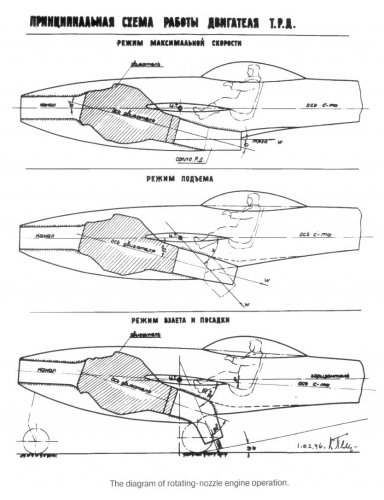

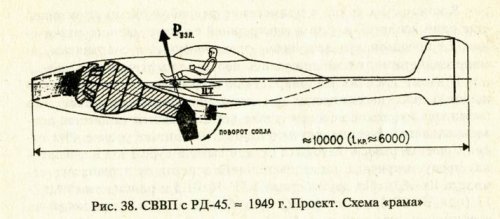

In the second half 40, design engineer K.SHULIKOV (in that years he carried exactly this surname) has developed the original project of the VTOL plane beside which engine of the type Nene , located in nose part of fuselage, had a ramifide output channel with thumb nozzle.
Many VTOL planes are put design arrangement presently exactly since this has done Shulikov in 1950.
1)Shulikov pictures

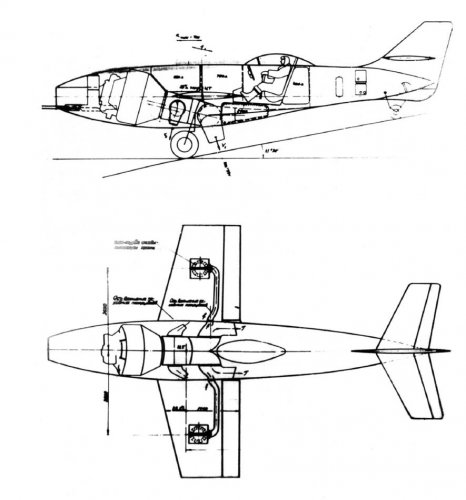

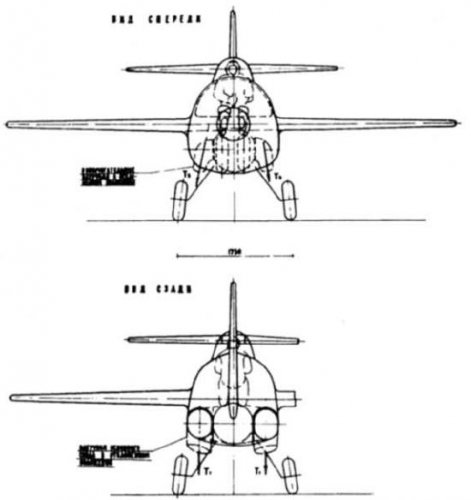

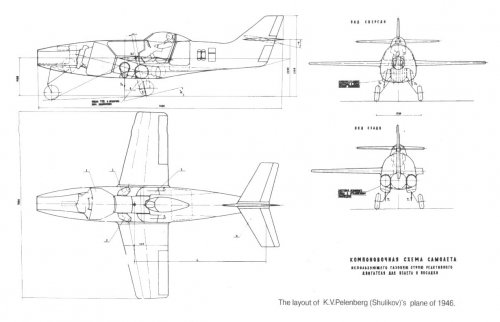

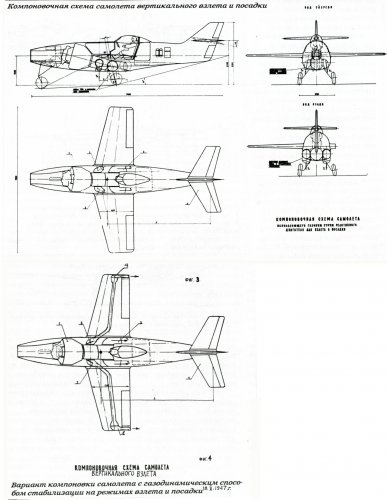

2)3-views

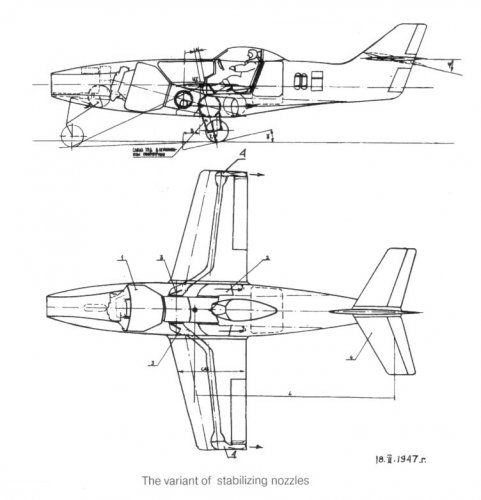

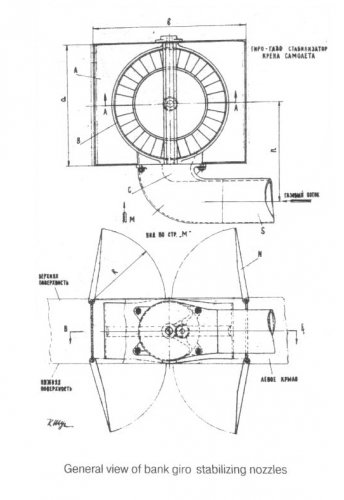

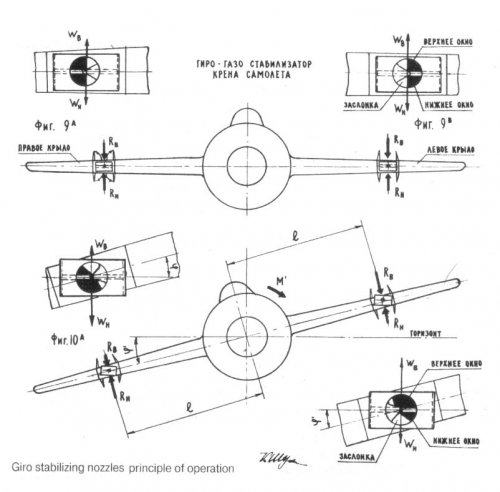

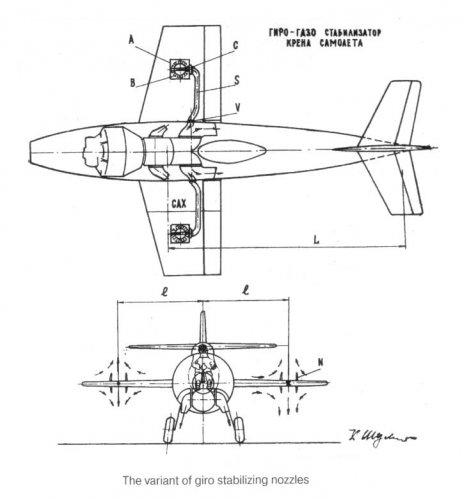

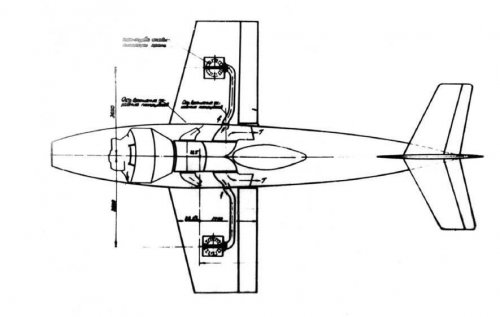

3)Stabilization of the flight in mode take -off / landing
4)Twin-boom fighter with one thumb nozzle
5)With four thumb nozzle

Sources :"Kryl'ya Rodiny" magazine
I.SULTANOV "History of the creation first (Sovetic) turbojet plane" 1998



[hesham]

Hi,


also there is anther Shulikov drawings to same project.



[fightingirish]

Hi,
also there is anther Shulikov drawings to same project.

Source: Anthony Leonard "Tony" Buttler & Yefim Gordon, Soviet Secret Projects: Fighters Since 1945, page 96 & 97
Great book!



[hesham]

Hi,
also there is anther Shulikov drawings to same project.

Source: Anthony Leonard "Tony" Buttler & Yefim Gordon, Soviet Secret Projects: Fighters Since 1945, page 96 & 97
Great book!

Of course I don't mean it,the Tony Buttler's books are very sensitive to post from it,
but I found it here;


http://www.zonamilitar.com.ar/foros/threads/aviones-de-investigaci%C3%B3n-s-vtol-sovi%C3%A9ticos.12928/page-2



[Stargazer]

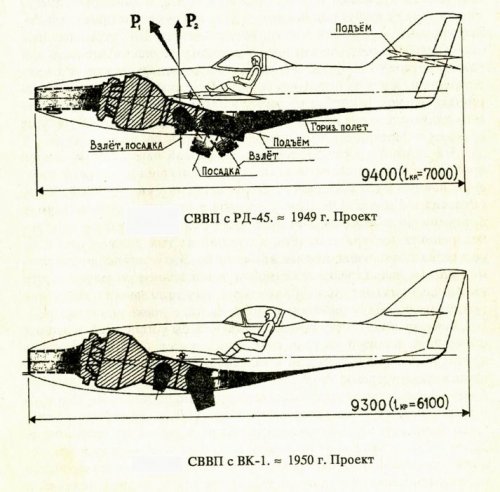

Some plans taken from the Russian Polygon N°5 (2001):



[Stargazer]

More from the same:



[Stargazer]

More about Shulikov's projects can be found here:

Twin-boom pusher VTOL of 1943
http://www.secretprojects.co.uk/forum/index.php/topic,15107.0
http://www.secretprojects.co.uk/forum/index.php/topic,467.msg18295.html#msg18295

More about Pelenberg
http://www.secretprojects.co.uk/forum/index.php/topic,467.msg18305.html#msg18305
