Couldn't see one so why not

On 20th Jan, a new version of the Brahmos missile with enhanced capability, successfully test-fired off Odisha coast. An earlier attempt on 19th July 2021 failed due to a faulty booster that failed to ignite. The current NOTAM was for 750km

Extended-range version of BrahMos missile fails test | Shephard

India is working on a new version of the BrahMos missile that will offer a 500km range.
www.shephardmedia.com


FI0-7F9XsAE5lyp




https://twitter.com/x/status/1484080979073540099
View: https://twitter.com/DRDO_India/status/1484080979073540099

Vertical Launch Short Range Surface to Air Missile (VL-SRSAM)

DRDO tested this for the first time in Jan 2021, with a second test last month. This is based of the Astra Mk-1. It has a 60km range. Indian warships will finally stop being criminally under-armed once this gets inducted. The current Barak-8 + Brahmos setup is simply too expensive for the existing naval budget

>VL-SRSAM's ship launch configuration shows a 16 cell VLU set up. Most current Indian Navy Frigates & Destroyers should be able to house one such VLU set up on their forward decks. The VL-SRSAM will fill the gap in AD capability between AK-630s & Barak-8 LRSAMs on Indian ships.

https://twitter.com/strategic_front/status/1348442019773997060

Astra MK-1

An Indian Air Force Su-30MKI "Indo-Flanker", from No.15 "Flying Lances" squadron, armed with DRDO-BDL Astra Mk.1 Active Radar Homing (ARH) Beyond Visual Range Air-to-Air Missile (BVR-AAM). The official range for this is 110 km at 15,000m altitude



FJ72OltacAEetcR


Photo © Sanjay Simha

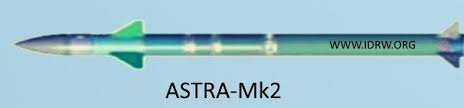

Astra Mk-2 is currently under development and is rumoured to be tested by the end of the year. It features some substantial upgrades over the Mk-1 version, featuring a dual-pulse rocket motor, Indian AESA seeker, 2-way Data Link and a reported range of 160+ km. Quite similar to the AMRAAM 120D


Awesome. Would be impressive to see on the old su-30mki fighters. Wonder what aircraft will be able to carry the missiles. It looks like they followed a similar style missile form as the derby er. Wonder if they can only be used on aircraft with israeli radars. Though they are saying it will be indian made aesa seeker? Very cool.

TMA1 said:
Awesome. Would be impressive to see on the old su-30mki fighters. Wonder what aircraft will be able to carry the missiles. It looks like they followed a similar style missile form as the derby er. Wonder if they can only be used on aircraft with israeli radars. Though they are saying it will be indian made aesa seeker? Very cool.
Click to expand...

The Sukhois and Tejas AFAIK. The FCR of this missile is an ELTA made JV one. It will be upgraded to an indigenous one for the second batch Tejas mk2 since they will be using the Uttam aesa radar instead of the elta one.

Astra Mk 3 is also under development. This one will be using a solid fuelled air-breathing ramjet engine. Some sources say this is being built with Russian assistance but i cant find any information anywhere confirming this. A tech demonstrator Solid fuel ducted ramjet missile (SFDR) has undergone multiple successful tests which means that the Mk3 version should be tested latest by next year. Astra Mk3 will have a reported range of 350+km

EvzRnisVcAAJ6UX

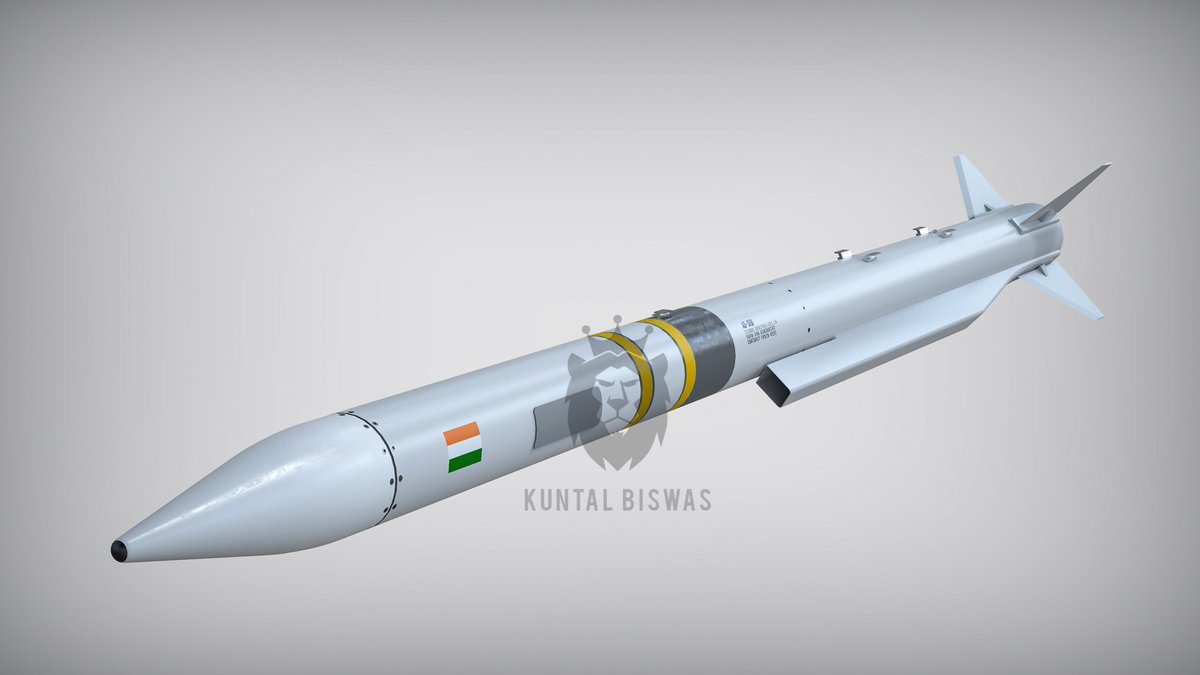

Concept art by Kuntal Biswas

https://twitter.com/x/status/1471382450538356741
View: https://twitter.com/TheHemantRout/status/1471382450538356741

RudraM1 - India's first indigenous air-to-surface anti-radiation missile. It was first tested in 2020 off a Sukhoi Su-30MKI and will allegedly be inducted this year

RudraM-I ( NGARM )

Anti radiation missile
Supersonic
Dual pulse rocket propulsion
<600 kg weight
60 kg warhead
15-200 km range
MMW seeker + PHH + INS-GPS



Ej4OR1MU4AEkKH0


https://twitter.com/x/status/1314503582645800960
View: https://twitter.com/delhidefence/status/1314503582645800960


www.thedrive.com

India’s First Indigenous Air-Launched Radar-Killing Missile Is Headed For Service

The test conducted over the Bay of Bengal saw the long-range Rudram-1 launched from a Su-30MKI fighter jet.
www.thedrive.com www.thedrive.com

There are 2 successor missiles of this series currently under active development. RudraM3 is allegedly going to be tested this year. Specs taken from a Indian defence forum who deduced this from public tenders

RudraM-II/RudraM-IIA ( information as of date )

Air to surface aeroballistic missile
Supersonic
700 kg weight
330 km range
200 kg warhead ( PCB/PF/? )
IIR seeker

RudraM-III ( information as of date )

Air to surface aeroballistic missile
High supersonic
1.6 ton weight
550km range



RUDRAM3



E_-iKjTVkAAx-kI


EeQz6N7U0Agutf3


Preframgented Warheads of Rudram-1( NGARM) & Rudram-2

FHBWxqqUYAABgPX


FG9rpGCVUAAlsVu


FG9rpatVgAECusO

defence_in

FighterJock said:
TomcatViP said:
Scary
www.reuters.com

India says it accidentally fired missile into Pakistan

India said on Friday it accidentally fired a missile into Pakistan because of a "technical malfunction" during routine maintenance.
www.reuters.com www.reuters.com
Click to expand...

Any news as to what type of missile it was?
Click to expand...
This whole account sounds weird. Even ignoring how incompetent you have to be to "accidently" fire a missile, Pakistan's reaction to this is even more weird. They have brought India to the UN for far less before and post balakot shut their entire airspace down for a few days. Here a missile gets gets fired and was heading directly in the path between 2 PAF airbases and they just watched it crash down and make a powerpoint presentation more than a day after it happened? They had no way knowing it was unarmed. And how does a missile conveniently make a 90 degree turn midair (didnt know the brahmos could do that) directly into Pakistan.

stealthflanker said:
FighterJock said:
So what could have caused it to behave that way? Sounds like a dodgy guidance system to me.
Click to expand...

or a training mission but with the console accidentally switched to "war" mode.
Click to expand...

I would have thought that there would have been a training variant of the Brahmos to stop incidents like this from occurring, or a live variant was accidentally loaded instead. I suppose that there will be a full investigation into what went wrong.

bakofbakchods said:

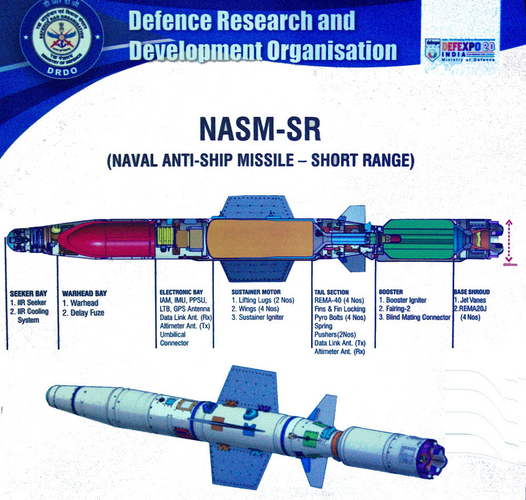

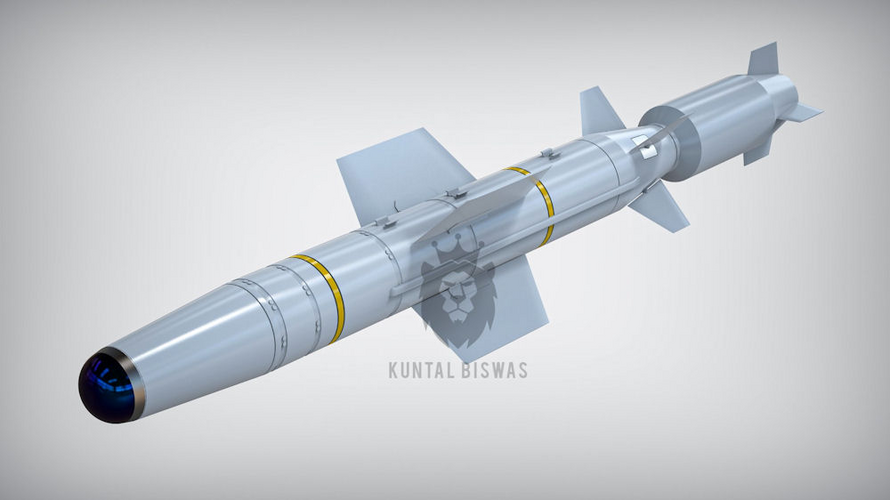

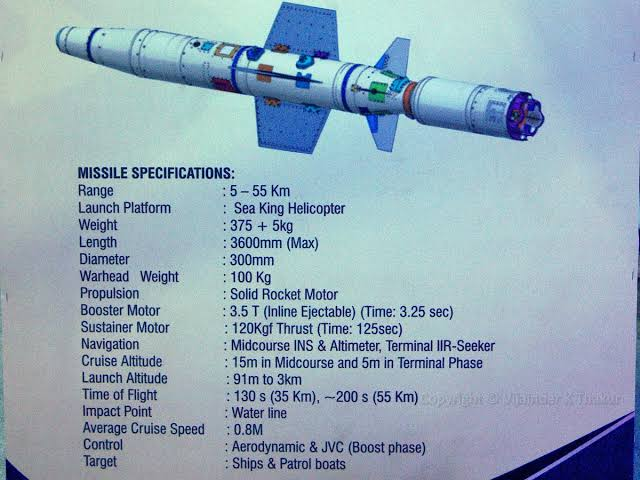

DRDO's Naval Anti-Ship Missile Short Range (NASM-SR)

This was first announced at the DefExpo 2020. According to DRDO, the NASM-SR will be a 380 kg projectile with a maximum range of 55 km and used initially with Indian Navy Sea King helicopters, replacing the earlier Sea Eagle missiles. This has been rumoured to be tested by June this year.

View attachment 675397

View attachment 675398


https://twitter.com/x/status/1494660369175961601
View: https://twitter.com/GODOFPARADOXES/status/1494660369175961601
Click to expand...


https://twitter.com/x/status/1509519867044839430
View: https://twitter.com/alpha_defense/status/1509519867044839430

DRDO conducts 1st successful test flight of VSHORADS (Very short range air defence system) missile

Propelled by a dual thrust solid motor. Project was conceived after the government struck down army's plans to import similar systems

Fdt_-VqXoAEIwdz


https://twitter.com/x/status/1574738510627864577
View: https://twitter.com/DefenceDecode/status/1574738510627864577


DRDO’s successful flight test of indigenous VSHORADS

Following the news that India’s Defence Research and Development Organisation (DRDO) has successfully flight tested the Very Short-Range Air Defense System
www.globaldata.com www.globaldata.com

https://twitter.com/x/status/1574682757438980096
View: https://twitter.com/TheLegateIN/status/1574682757438980096


No idea how reliable this is considering the CEO himself was saying trials are 4 years away at the start of the year according to the same. Even earlier articles from 2018-19 were saying the first prototype would only be ready in 2024. handle. ->
https://twitter.com/x/status/1479670033844699145
View: https://twitter.com/TheLegateIN/status/1479670033844699145


But the news was taken from this TOI news article

timesofindia.indiatimes.com

First made-in-India boosters for BrahMos missile delivered | Nagpur News - Times of India

Economic Explosives Limited (EEL), defence arm of Nagpur’s Solar Group, handed over two units the first indigenous booster to be used in the medium-r
timesofindia.indiatimes.com timesofindia.indiatimes.com

But this will be great news if true. Brahmos New Generation (NG) fixes almost all the flaws of the original missile. It will be ~50% lighter (1.5tn vs 3tn), while having a similar range and speed. 300-450km, Mach 3 - 4.5. It will also see an indigenous seeker and an AESA radar replacing the mechanically scanned radar. This missile can be attached to most IAF jets. For eg, The Su-30 MKI will be able to carry 4 such missiles compared to just 1 currently.


Bharat Dynamics Amogha III ATGM​

This is BDL's 3rd generation ATGM of the Amogha series. It has a reported range of 200–2,500 m and weighs 18 kg (possibly ~16kg for the production model). It will be equipped with a Active Imaging infra-red (IIR) seeker

ESwabGHVAAc4q9e


Fc68EN8aIAEf_KQ


Eubd95aVoAId7ft



This was unveilled in AeroIndia 2020 https://www.janes.com/defence-news/news-detail/bdl-unveils-new-amogha-iii-atgm

There was a test video of its prototype floating around last year but cant find it anymore

Looks like the Astra Mk-2 BVR missile was indeed test fired on the Sukhoi Su-30 MKIs sometime this year. MK-2 comes with nearly identical profile to Mk-1, but features a dual pulse solid motor rocket, an indigenous seeker produced by BEL and a range ~160km. This is also the first look at the ejector launcher, which will unify the launcher for many upcoming missiles. The NEZ is unknown but expected to be decent amount higher than the first missile

FeNsDKfaMAI0yCJ


https://twitter.com/x/status/1577220840503926791
View: https://twitter.com/DefenceDecode/status/1577220840503926791

bakofbakchods said:
There are 2 successor missiles of this series currently under active development. RudraM3 is allegedly going to be tested this year. Specs taken from a Indian defence forum who deduced this from public tenders

RudraM-II/RudraM-IIA ( information as of date )

Air to surface aeroballistic missile
Supersonic
700 kg weight
330 km range
200 kg warhead ( PCB/PF/? )
IIR seeker

RudraM-III ( information as of date )

Air to surface aeroballistic missile
High supersonic
1.6 ton weight
550km range



RUDRAM3



E_-iKjTVkAAx-kI


EeQz6N7U0Agutf3


Preframgented Warheads of Rudram-1( NGARM) & Rudram-2

FHBWxqqUYAABgPX


FG9rpGCVUAAlsVu


FG9rpatVgAECusO

defence_in
Click to expand...

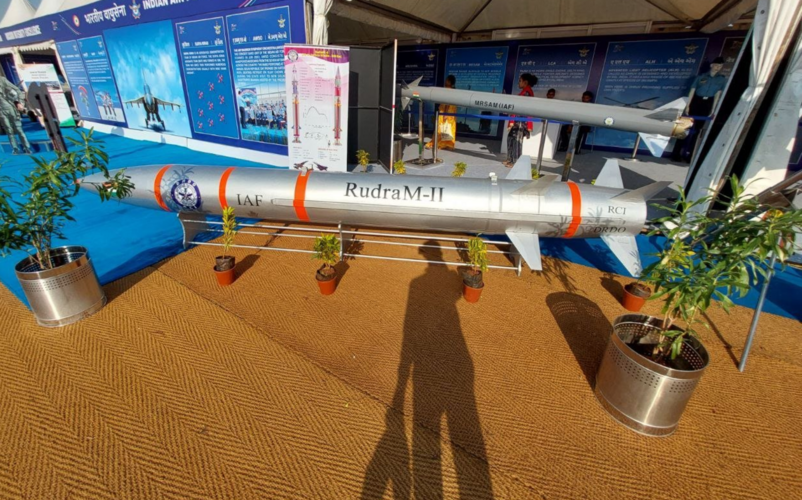

The Rudram2 was showcased at the Defexpo


FfclUmqWYAEmySv


@SoumyadipTweets

Range: 300 km
Seeker for ARM variant:
1. PHH (passive homing head) + IIR
Seeker for Air to Ground variant
2. IIR

Peak velocity is hypersonic (5.5 Mach) & terminal velocity > 1 Mach Navigation: INS + SATNAV


Link

The ADE developed ITCM has failed again. ADE continues to be the worst performing lab of the DRDO. Nothing these jokers have touched in the last 30 years have worked out. It was running on GTRE's 425 kgf small turbofan (STFE) engine. The nirbhay missile which uses the Russian NPO Saturn 36MT engine has allegedly been inducted in decent numbers. It is unclear what was the cause of the failure. It was thought to be an engine issue but some are saying the issue is with the booster itself. This will likely delay a large number of future missile projects since projects such as the LRLACM since they all depend on the success of the STFE engine and booster.


www.newindianexpress.com

Homegrown cruise missile system hit by technical snag

Fresh test of ITCM ‘failed’ on Friday after its engine developed problems
www.newindianexpress.com www.newindianexpress.com

DRDO successfully conducted the maiden flight test of phase-II Ballistic Missile Defence (BMD) interceptor AD-1 missile with a large kill altitude bracket off the Odisha coast. All components of the BMD weapon system that were spread out across a variety of locations participated in the flight test.

AD-1 is a long-range interceptor missile designed for both low exo-atmospheric and endo-atmospheric interception of long-range ballistic missiles and aircraft

20221102_170816-jpg.180042

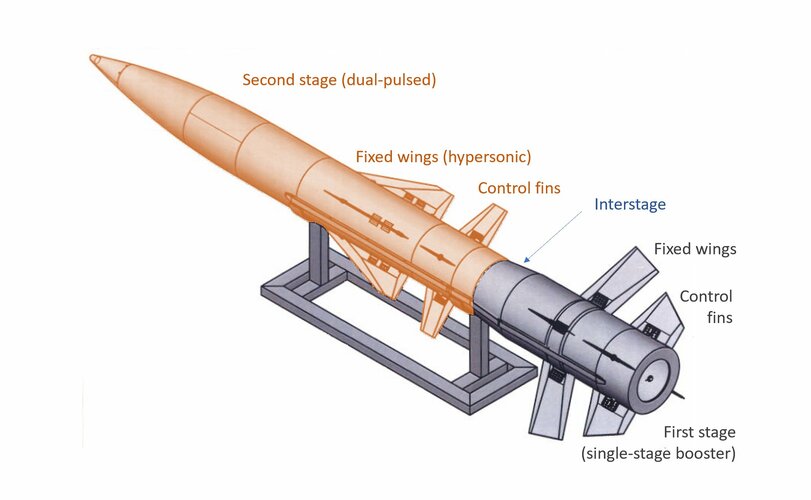

This has been in the works for a very long time. The first appearance of these appeared in powerpoint lectures around 2010

FgjiePvUoAU41T3



FgsM47-VEAMDY0G


FgsQSfxUcAEKsvg


Taken from the forumstrategic forums
pib.gov.in

DRDO conducts successful maiden flight-test of Phase-II Ballistic Missile Defence interceptor off Odisha coast

Defence Research & Development Organisation (DRDO) conducted a successful maiden flight-test of Phas
pib.gov.in

Agni-V night trials.
> India on Thursday successfully carried out the night trials of Agni-V nuclear-capable ballistic missile from Odisha.
> The missile can hit targets beyond 5,000 kilometres, defence sources said.
> The test was carried out to validate new technologies and equipment on the missile which is now lighter than before.
> The trial has proved the capability to enhance the range of the Agni-5 missile, if required.
Click to expand...

- https://m.timesofindia.com/india/in...-capable-missile/amp_articleshow/96257124.cms

Adm_Kenobi said:
Agni-V night trials.
> India on Thursday successfully carried out the night trials of Agni-V nuclear-capable ballistic missile from Odisha.
> The missile can hit targets beyond 5,000 kilometres, defence sources said.
> The test was carried out to validate new technologies and equipment on the missile which is now lighter than before.
> The trial has proved the capability to enhance the range of the Agni-5 missile, if required.
Click to expand...

- https://m.timesofindia.com/india/in...-capable-missile/amp_articleshow/96257124.cms
Click to expand...

Still hasnt been confirmed to be an A5 launch even though the media has been shouting from the rooftops from "sources". But if it indeed is, then the lighter missile is referring to the 1st stage which was earlier made from maraging steel is now replaced with a composite rocket motor. The goal is to cut the production cost of the A5 missile by a significant (~50%) margin.

You could see sightings from all over the northeast and even Myanmar and bangladesh.


မြန်မာနိုင်ငံတွင် ယမန်နေ့ ညပိုင်း မြင်တွေ့ရသည့် အလင်းတန်းမှာ အိန္ဒိယ က စမ်းသပ်ပစ်လွှတ်လိုက် သော Agni-V နူးကလီးယား သယ်ဆောင်နိုင်သည့် တာဝေးပစ် ပဲ့ထိန်းဒုံးကျည်ဖြစ်၊ ဒုံးကျည် စမ်းသပ် မှု အောင်မြင်ဟုဆို - Yangon Khit Thit Media

ရန်ကုန်၊ ဒီဇင်ဘာ ၁၆ မြန်မာနိုင်ငံအနှံ့အပြား ဒီဇင်ဘာလ ၁၅ ရက်နေ့ ည ၇ နာရီဝန်းကျင်တွင် မြင်တွေ့ခဲ့ရသည့် အလင်း တန်းမှာ အိန္ဒိယနိုင်ငံက စမ်းသပ်ပစ်လွှတ်လိုက်သော Agni V နူးကလီးယား သယ်ဆောင်နိုင်သည့် ပဲ့ထိန်းဒုံးကျည်ဖြစ်ပြီး ဒုံးကျည် စမ်းသပ်ပစ်လွှတ်မှု အောင်မြင်ကြောင်း အိန္ဒိယကာကွယ် ရေး ဝန် ကြီးဌာနကို...
yktnews.com yktnews.com

https://twitter.com/x/status/1603387576521744385
View: https://twitter.com/J_Ruata/status/1603387576521744385

ISRO's scramjet engine hot test

>ISRO & JSIIC have jointly conducted Hypersonic vehicle trials. The trials achieved all required parameters & demonstrated Hypersonic vehicle capability. Link

ISRO's Hot Test of Scramjet engine success

Chennai, Dec 10 (UNI) The Indian Space Research Organisation<br />(ISRO) has successfully conduced the Hot Test of Scramjet Engine<br />for 11 seconds.
www.uniindia.com

^ 11s firing. The next step will be for a much longer duration. End goal is for 250s sustained
index.php

index.php



The end goal:

index.php

screenshot_2022-12-09-21-31-18-38_f541918c7893c52dbd1ee5d319333948-jpg.185442

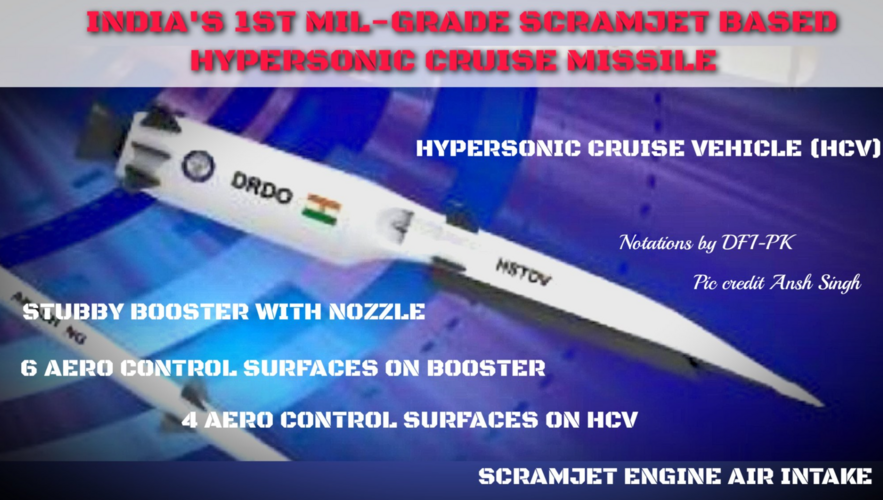

First look at India's first scramjet missile design?


Implying too much from a brouchure? It has been shown for the first time in a public setting.
View attachment 691162

DRDL has shown it along with other missiles it has developed so far. Maybe more details will be unveiled at the seminar itself. There are currently 4 hypersonic missile systems under development, including the Brahmos-2. I wonder which will be the first to be tested. So far only the tests of scramjet engines have been made public



Attachments

  • 1673775951753.png
    1.4 MB · Views: 13
bakofbakchods said:
First look at India's first scramjet missile design?

View attachment 691158

Implying too much from a brouchure? It has been shown for the first time in a public setting.
View attachment 691162

DRDL has shown it along with other missiles it has developed so far. Maybe more details will be unveiled at the seminar itself. There are currently 4 hypersonic missile systems under development, including the Brahmos-2. I wonder which will be the first to be tested. So far only the tests of scramjet engines have been made public

Click to expand...

I think that the Brahmos-2 will be the first hypersonic missile to be flight tested as the scramjet powered missile will take longer to go through tests due to the nature of such missiles.
