Ilyushin Single & Twin Engined Attack Aircraft ProjectS

[hesham]

Hi,


I split this aircraft from Borovik topic; Competition Ivanov,it was a
twin-engined attack aircraft based on Il-6;


http://alternathistory.org.ua/oleg-...-glava-8-vozdushnye-istrebiteli-tankov-okonchhttp://translate.google.com/transla...-glava-8-vozdushnye-istrebiteli-tankov-okonch



[redstar72]

Hi Hesham!

It isn't based on Il-6; it is Il-6 . This project from 1941-42 was the first one which obtained Il-6 designation. But as it was cancelled on project stage, the index was reassigned to another aircraft - the more known prototype of long-range bomber. The two designs are totally different, they have nothing common apart from the author and the designation.



[hesham]

Thank you my dear Redstar72.



[borovik]

Thanks Alexander / redstar 72, additional info -

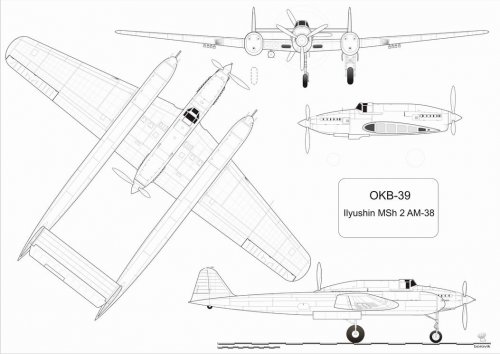

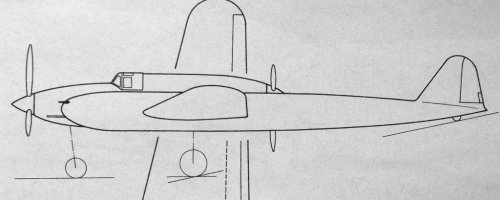

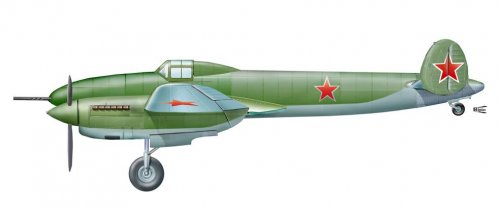

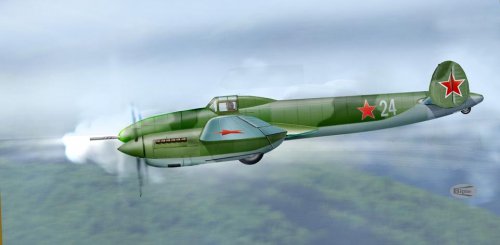

Several months before the outbreak of the war the Ilyushin Design Bureau began development of a heavy armoured attack aircraft with a greater bomb load and longer range than the TsKB-55; 57 / IL-2. Initially the plane had a twin-boom scheme, pulling and pushing the propellers, but soon the exotic variant / also known as MSh-2 - Fig.1)
Reply # 6-7 / http://www.secretprojects.co.uk/forum/index.php/topic,4933.0.html / abandoned in favor of a classic layout.

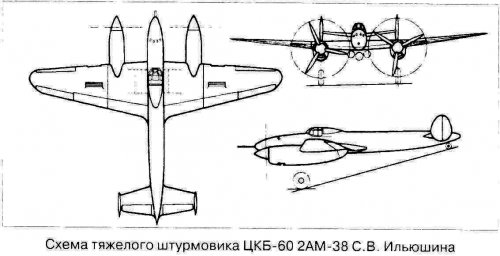

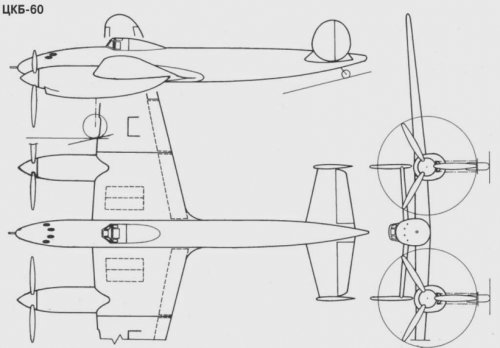

Designated TsKB-60, the original project envisaged an all-metal low-wing twin-tailed monoplane powered by two AM-38 engines.
It was planned to produce it in two versions, a single-seater and a twoseater with defensive armament. The aircraft was to have heavy offensive armament. One of the proposed armament fits comprised a 37-mm nose cannon, two 23-mm cannon and four 12.7-mm or 7.62-mm machineguns.
The aircraft would be able to carry internally a normal bomb load of 600 kg (1,320 Ib), its maximum bomb load reaching 1,000 kg(2,205 Ib).
We also know a few options with different geometry wings and vertical tail fin/washers.The preliminary design was approved on the eve of the war, by which time the aircraft had been redesignated IL-6. A mock-up was completed in the spring of 1941. When the war broke out, however, the OKB and the aircraft factories were too busy increasing output and eliminating the defects of the production IL-2, and the project was shelved (the IL-6 designation was later re-used for a twin-engined bomber powered by diesel engines.
"Planes DB S.V.Ilyushin" Yu.Egorov, "Planes by Ilyushin. Best of the best" N. Yakubovich

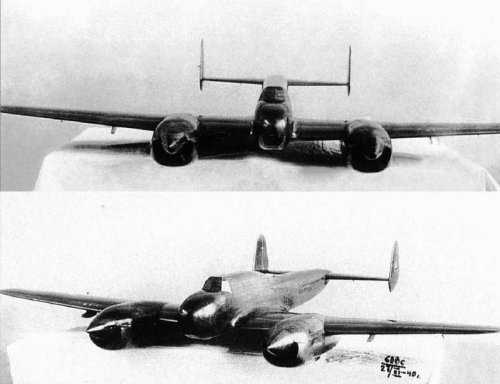

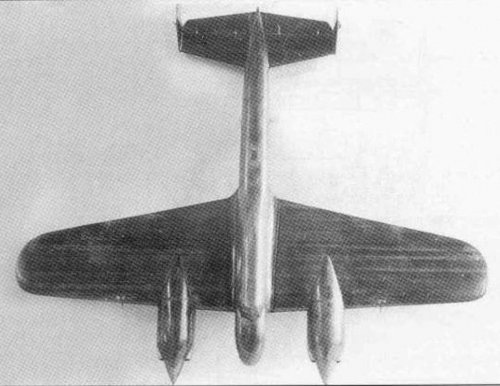

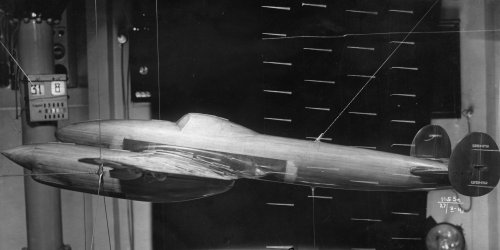

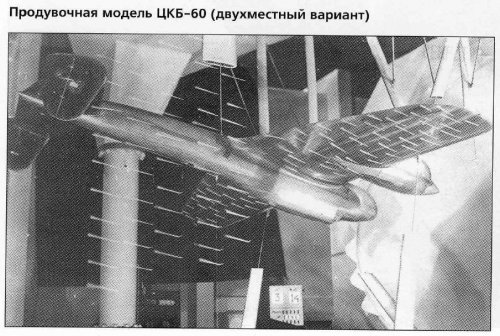

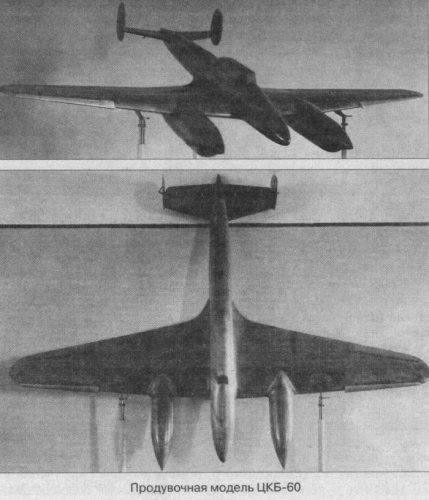

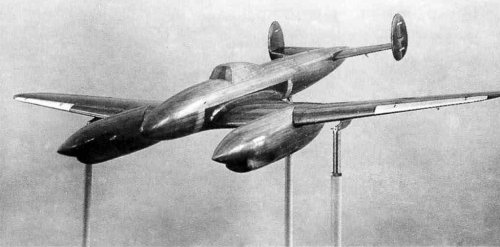

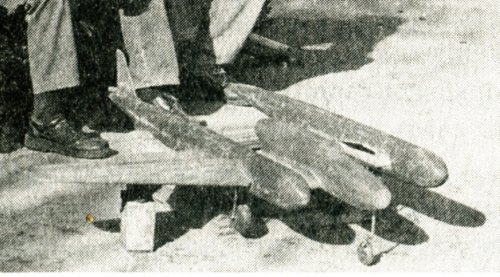

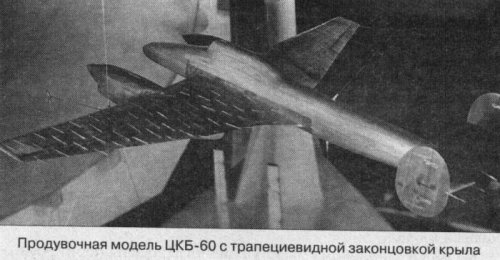

Wind tunnel model:



[borovik]

art by Alexander Arkhipov aka Biplan (first two)



[hesham]

Great info my dear Borovik,


specially the MSh-2.



[hesham]

Hi,

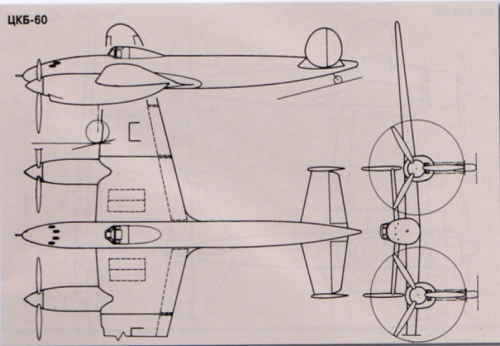

here is some Ilyushin twin engined drawing Projects,the TsKB-60,TVSh (new for me) and

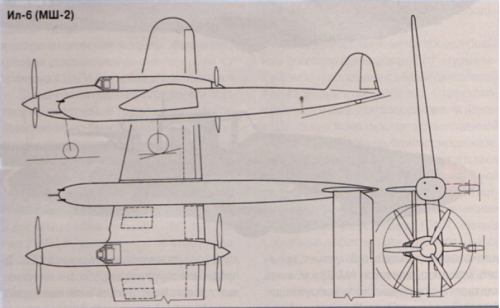

Il-6 MSh.

Авиация и Космонавтика 4/2015



[borovik]

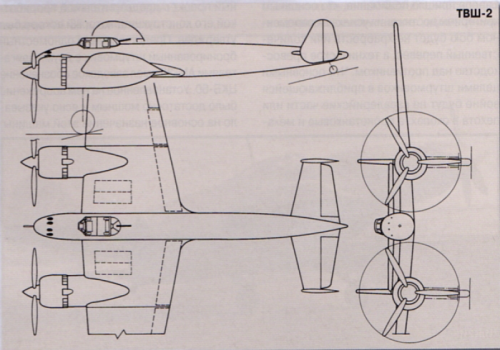

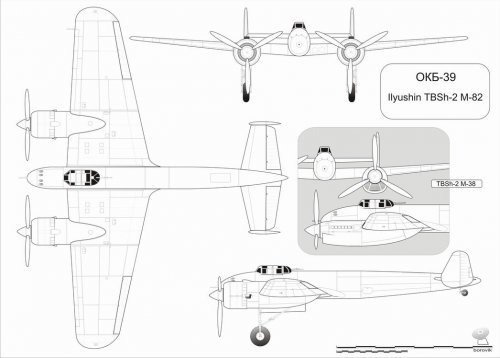

TVSh (probably a typo), better known as TBSh-2 / ТБШ-2 М-82 Тяжелый Бронированный Штурмовик
July 9, 1941, S.V. Ilyushin sent a letter NCAP/state commissariatfor aviation industry/ proposal on the construction of the plant number 156 heavy armored attack TBSh-2, which is a double version of the TsKB-60 attack aircraft with two motors M-82.
The speed of the aircraft near the ground on the project - 480 km / h, range - 700 km. The rear wall of the cab armor - 13 mm, the front wall of the cab armor -15 mm, bottom and sides of the cabin - 10 mm.
As the main option has been adopted as follows: a gun ShFK-37 caliber 37 mm with a margin of 40 shells, two guns VYa-23 caliber 23 mm with a supply of 100 rounds on the barrel, four machine guns ShKAS with a reserve of 750 rounds of ammunition in the gun, 400 kg bombs (in the overload of 1000 kg) or eight rockets RS-132 (instead of bombs).
Despite the fact that the project TBSh-2 was approved by the Air Force and NCAP in war to realize it did not succeed.



[hesham]

Great work my dear Borovik.



[hesham]

Hi,

http://aviahistory.ucoz.ru/index/0-668



[blackkite]

Hi!
http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http%3A%2F%2Falternathistory.com%2Foleg-rastrenin-shturmoviki-velikoi-otechestvennoi-voiny-glava-8-vozdushnye-istrebiteli-tankov-okonch&sandbox=1



[blackkite]

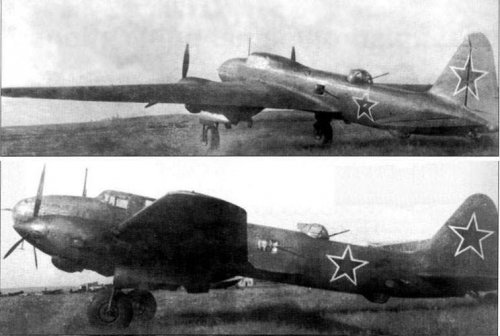

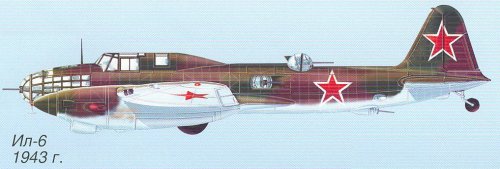

Hi! Il-6.

http://www.airpages.ru/img/il6_2.shtml

http://www.airpages.ru/ru/il6.shtml

Wikipedia
https://en.wikipedia.org/wiki/Ilyushin_Il-6



[blackkite]

Hi!
Ilyushin Il-6 with AM-38 engine.(Ильюшин ЦКБ-60 \ Ил-6АМ-38)

Wikipedia
TsKB-60, also held in the KB Ilyushin as IL-6, is a project of the Soviet heavy stormtrooper on the Ilyushin Il-2. Not out of the layout phase due to progress on improved IL-2: Ilyushin Il-8 and later IL-10

https://www.aviarmor.net/aww2/projects/ussr/ilyushin_ckb60.htm

http://aviadejavu.ru/Site/Crafts/Craft20491.htm

http://waralbum.ru/29164/

http://aviadejavu.ru/Site/Arts/Art7496.htm



[blackkite]

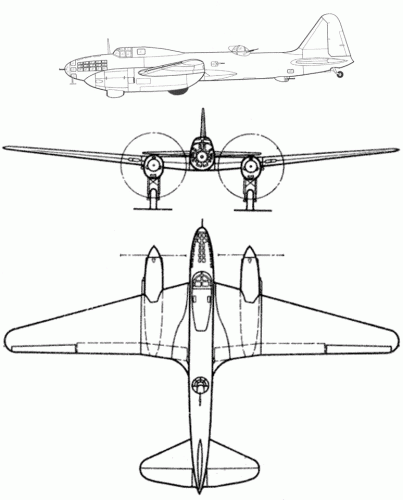

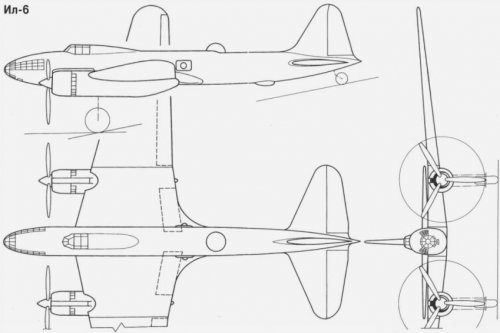

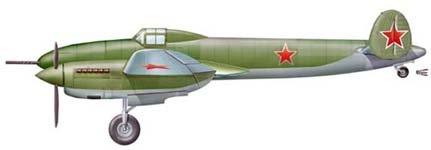

Hi! IL-6 another three side view drawing.

http://aviadejavu.ru/Site/Arts/Art7659.htm



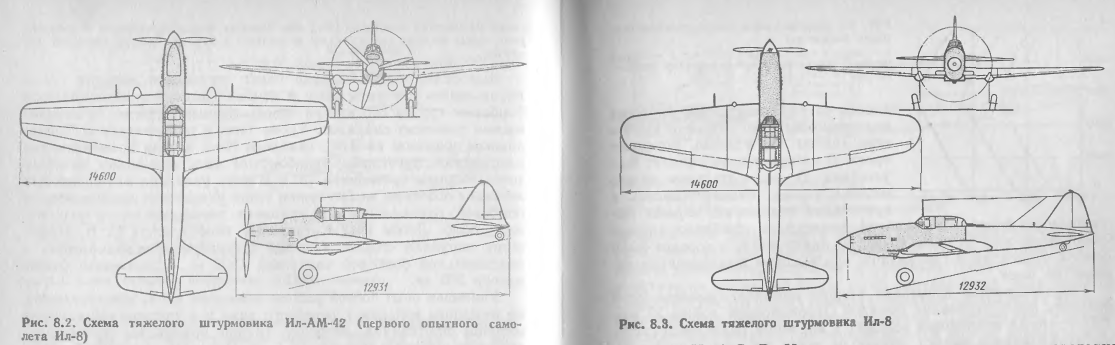

[hesham]

From this book.
