Home-on-GPS jam guidance

[AN/AWW-14(V)]

2014

The U.S. Air Force is developing special versions of two smart munitions that track and attack sources of electronic warfare (EW) jamming directed to throw the weapons off from their intended targets.

Officials of the Air Force Research Laboratory at Eglin Air Force Base, Fla., announced a $9.8 million contract late Wednesday to Scientific Applications & Research Associates Inc. (SARA) in Cypress, Calif., for a Home-on-Jam demonstration of smart weapons already in the Air Force inventory.

The weapons involved in the demonstration are the GPU-31 Joint Direct Attack Munition (JDAM) and the GBU-39 Small-Diameter Bomb (SDB). SARA engineers will integrate the company's Home-on-Jam seeker into the JDAM and SDB-I smart munitions.

Air Force to enable smart weapons to track and kill sources of electronic warfare (EW) jamming

EGLIN AIR FORCE BASE, Fla., 13 Nov. 2014. The U.S. Air Force is developing special versions of two smart munitions that track and attack sources of electronic warfare (EW) jamming...

www.militaryaerospace.com

2015

On the precision-guided munition side, the US Air Force Research Laboratory at Eglin Air Force Base, Florida, is studying a kind of seeker that directs bombs to detect and destroy GPS jammers, called home-on-GPS jam, or HOG-J.

Last year, the lab awarded Scientific Applications & Research Associates of Cypress, California, a $9.8 million contract to integrate the seeker into the JDAM and Small Diameter Bomb Increment I (SDB-I) weapons and demonstrate it in flight tests. The work, at White Sands Missile Range, New Mexico, is expected to be completed by late 2016.

Alan Shaffer, deputy assistant defense secretary for research and engineering, said at a 2014 congressional hearing that, "HOG-J has had some preliminary successful tests and could be ready to enter the inventory in two to three years."

Guided-Bomb Makers Anticipate GPS Jammers

The makers of precision guided munitions no longer take for granted that a simple GPS will guide these bombs and that they will always work on their own. Jammers and spoofing equipment threaten to populate future battlefields; manufacturers have taken notice and answered the threat.

www.defensenews.com

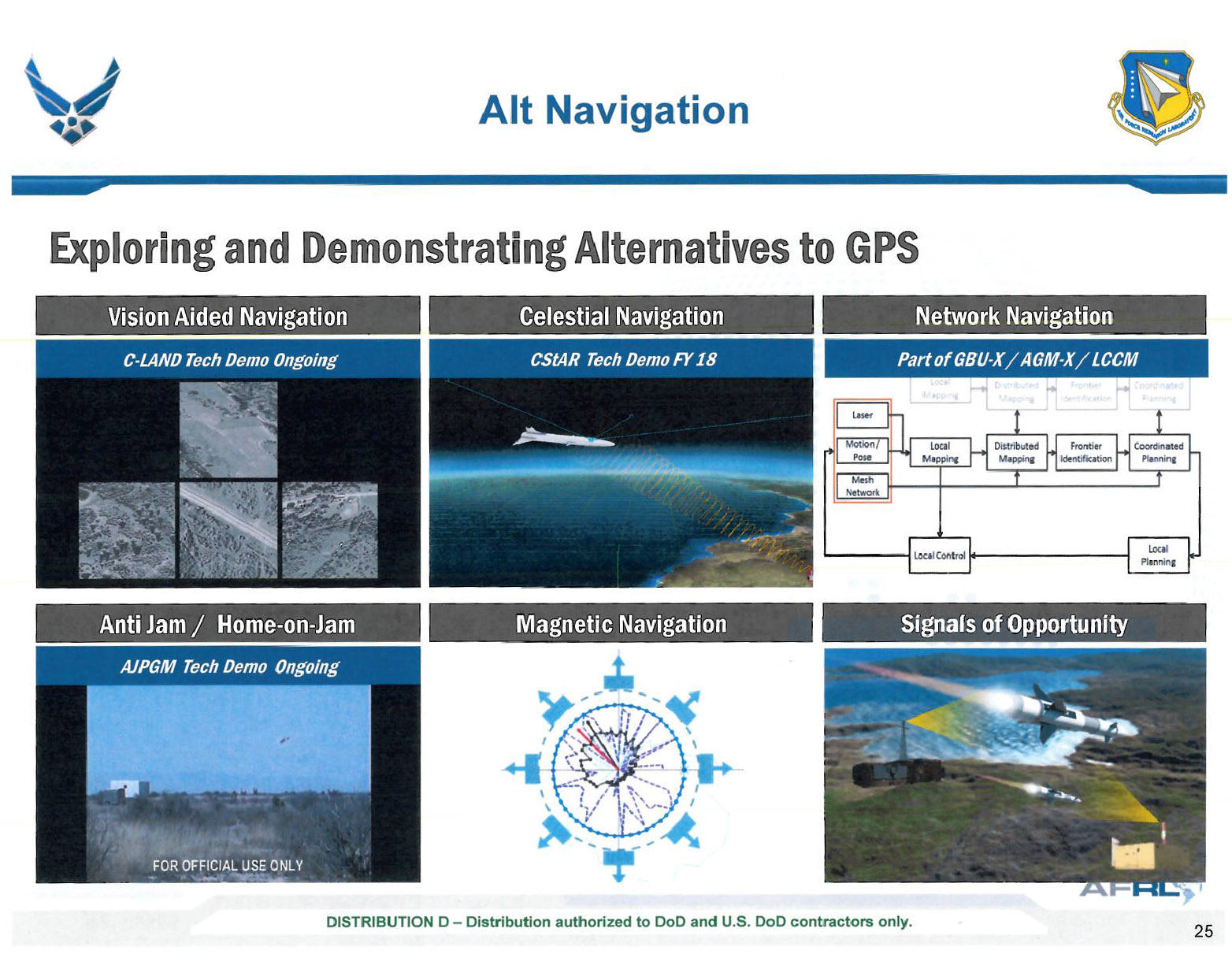

2015, AJPGM Tech Demo

2018

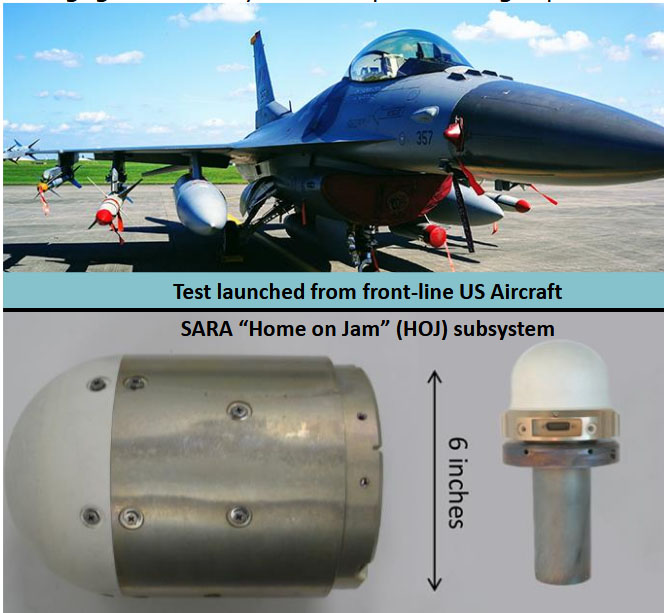

Should an enemy strive to complicate the battlefield by stray or competitive RF energy, SARA’s HOJ subsystems can enable a host guided bomb or missile to engage it as the system or operator might prefer. HOJ is compact and 1/10th the production cost of prior-generation systems. HOJ uses solid state components and a common munition interface which provides rapid, low-cost integration.

https://navystp.com/vtm/open_file?type=brochure&id=N68335-17-C-0522



[AN/AWW-14(V)]

Spoiler

The Air Force Golden Horde Vanguard program completed the first-ever Air Force flight demonstration of collaborative weapons Dec. 15 using technology developed by the Air Force Research Laboratory (AFRL) and Scientific Applications & Research Associates (SARA).

A team from the Air Force Test Center flew an F-16 aircraft and released two Collaborative Small Diameter Bombs (CSDBs), which are Small Diameter Bombs that have been modified with a collaborative autonomy payload. The CSDBs quickly established communication with each other and their seekers detected a GPS jammer.

During the mission, the weapons referred to pre-defined Rules of Engagement (RoEs), a set of constraints preloaded by a mission planner, and determined that the jammer was not the highest priority target. The weapons then collaborated to identify the two highest priority targets. However, due to an improper weapon software load, the collaboration guidance commands were not sent to the weapon navigation system. Without the updated target locations, the weapons impacted a fail-safe target location.

“The Golden Horde demonstration with the Small Diameter Bomb flights is an important step on the path to Networked Collaborative Weapon systems. Completion of this first mission sets the stage for further development and transition to the warfighter,” said Chris Ristich, Director of AFRL’s Transformational Capabilities Office.

This initial demonstration represents a critical first step for the Golden Horde program, an initiative focused on advancing networked, collaborative and autonomous – or NCA – weapon capabilities through live and virtual testing. These new technology areas provide the Air Force with a revolutionary way to engage adversary targets.

NCA weapons observe and react to a dynamic battlespace in real time, thereby increasing mission effectiveness within the enemy’s decision loop. When deployed in mass, NCA weapons effectively share information and collaborate to overwhelm adversary defenses.

The technologies enabling this new capability include a home-on-GPS-jam seeker that gathers information about the battlespace, a software defined radio for communication between weapons and a processor preloaded with collaborative algorithms.

The collaborative algorithms use a dynamic approach called play calling, similar to a quarterback calling a play in football. A “play” is an established behavior that groups of collaborative weapons, or swarms, can enable (or disable) when they meet certain predefined conditions. Weapons that use this technology are semi-autonomous since they abide by pre-defined Rules of Engagement and only execute based on an approved list of plays.

While this demonstration has given the Air Force insight and confidence in networked, collaborative, and autonomous weapons technologies, no intention currently exists to transition this technology to the CSDB. Col. Garry Haase, Director of the AFRL Munitions Directorate explains, “This successful Golden Horde demonstration builds the foundation for integrating this technology into a variety of other weapon systems, which will help the U.S. maintain a technological advantage over our adversaries.”

“I’m very pleased with results of this first test,” stated Steven Stockbridge, the Golden Horde Principal Investigator. “The team saw good performance from the networked collaborative sub-systems and understand the root cause of the weapons not impacting the desired targets. We anticipate readiness for the next flight test.” Two more CSDB flight tests are planned for early 2021, increasing the number of collaborative weapons in each demonstration to four.

AFRL demonstrates first-ever collaborative weapon technologies

EGLIN AIR FORCE BASE, Fla. – The Air Force Golden Horde Vanguard program completed the first-ever Air Force flight demonstration of collaborative weapons Dec. 15 using technology developed by the Air

www.afrl.af.mil



[Nik]

So, would testing such be responsible for the weirdness on US West Coast where anchored ships' transponders appeared to be sailing in ~20 mile circles ??



[Grey Havoc]

Nope, that is likely down to the Russians, or more likely, the Chinese.



[phil gollin]

.

Doesn't this suffer from the same problem that anti-radar missiles suffer from, spoof transmitters ?

.



[Grey Havoc]

.

Doesn't this suffer from the same problem that anti-radar missiles suffer from, spoof transmitters ?

.

That would be one of the drawbacks to this approach, yes. Overall it will be pretty vulnerable against a decent EW effort, including so-called cyberwarfare.



[AN/AWW-14(V)]

Doesn't this suffer from the same problem that anti-radar missiles suffer from, spoof transmitters ?

nobody don't will produce decoy GPS jammers, there is no money saving



[T. A. Gardner]

Doesn't this suffer from the same problem that anti-radar missiles suffer from, spoof transmitters ?

nobody don't will produce decoy GPS jammers, there is no money saving

Instead, if somebody wants to jam GPS they'll just make a cheap disposable jammer that can be distributed widely, plugged into any residential home, etc., and spread them everywhere. Much more effective than using a few powerful jammers to do the job. If the jammers are everywhere, using expensive missiles to eliminate them is a losing proposition.



[AN/AWW-14(V)]

The U.S. Air Force is buying add-on seekers designed to give Joint Direct Attack Munition-Extended Range (JDAM-ER) precision-guided bombs supplied to Ukraine the ability to zero in on GPS jammers.

The Pentagon announced today that the U.S. Air Force Life Cycle Management Center (AFLCMC) had awarded Cypress, California-headquartered Scientific Applications and Research Associates Inc. a contract valued at $23,554,341 for "the acquisition of Home-on GPS Jam seekers" and the "integration of the extended range seekers into existing Joint Direct Attack Munition wing kits."

"This contract involves Foreign Military Sales to Ukraine," the Pentagon's announcement also noted.

JDAM-ER Winged Bombs With Seekers That Home In On GPS Jammers Headed To Ukraine

Plans to give Ukraine JDAM-ERs with new seekers come as Western precision-guided munitions are reportedly suffering from Russian GPS jamming.

www.twz.com



[Scott Kenny]

Instead, if somebody wants to jam GPS they'll just make a cheap disposable jammer that can be distributed widely, plugged into any residential home, etc., and spread them everywhere. Much more effective than using a few powerful jammers to do the job. If the jammers are everywhere, using expensive missiles to eliminate them is a losing proposition.

Agreed, the better option is to make the jammers everywhere so even if a couple get blown up the overall jamming effect isn't particularly reduced.



[xena]

Or you can make separate antennas far away from the electronics. antennas are cheap to replace.



[DWG]

There's historical precedent. During the Battle of the Beams the UK came up with a cheap noise jammer (a modified medical diathermy set) that was distributed to police stations, with orders to turn it on sent by telephone.



[T. A. Gardner]

Or, you make it fit in a shoe box and attach it to a tethered one of these for a total net price in bulk of like $50 each...

Try hitting that with your million-dollar missile...
