HELICOPTER EMERGENCY ESCAPE CONCEPTS

[moin1900]

HELICOPTER EMERGENCY ESCAPE SYSTEMS
- EJECTION SEATS
- CAPSULES
-

Google Books

U.S. NAVY MEDICAL NEWS LETTER
JUNE 1966
VOLUME 47, No.12
PAGE: 25
"HELICOPTER CAPSULAR ESCAPE SYSTEM FEASIBILITY PROGRAM"


U.S. NAVY MEDICAL NEWS LETTER
SEPTEMBER 1969
VOLUME 54, No.3
PAGE: 49 - 55
"HELICOPTER PERSONAL ESCAPE, PROTECTION AND SURVIVAL SYSTEM"


UNITED STATES ARMY AVIATION DIGEST
AUGUST 1971
VOLUME 17
PAGE: 52 - 56
"EMERGENCY ESCAPE SYSTEMS FOR HELICOPTERS"


THE MAC FLYER
June 1972
VOLUME 19, No.6
PAGE: COVER, 3 - 7
"HELICOPTER EGRESS IS POSSIBLE"
- HH-3E vs. MIG-21


THE MARINE CORPS GAZETTE
OCTOBER 1972
Volume 56, No.10
PAGE: 4
"HELICOPTER EJECTION SEAT"
- AH-1 COBRA TEST BED


REPORT TO THE CONGRESS
"IN-FLIGHT ESCAPE SYSTEMS FOR HELICOPTER SHOULD BE DEVELOPED TO PREVENT FATALITIES"
B-177166
JUNE 1973
- CH-46 RECOVERY SEQUENCE
- UH-1E RECOVERY SEQUENCE
- AH-56 EJECTION / EXTRACTION


APPROACH: THE NAVAL AVIATION SAFETY REVIEW
NOVEMBER 1974
PAGE: 12 - 14
"HELO NO EASY WAY OUT"
- AH-56 EJECTION / EXTRACTION
- HH-3E MODULAR RECOVERY SYSTEM
- AH-1 MINIPAC SYSTEM


APPROACH: THE NAVAL AVIATION SAFETY REVIEW
MAY 1987
VOLUME 32, No.7
PAGE: 31
"Helicopter Emergency Recovery System
(HERS)"

DTIC
AH-1 Helicopter In-Flight Escape System: A View from the Seat.
FEBRUARY 1976
ADA093979

DTIC
A Study of the Desirability and Feasibility of In-Flight Escape from Army Helicopters
November 1977
ADA051153

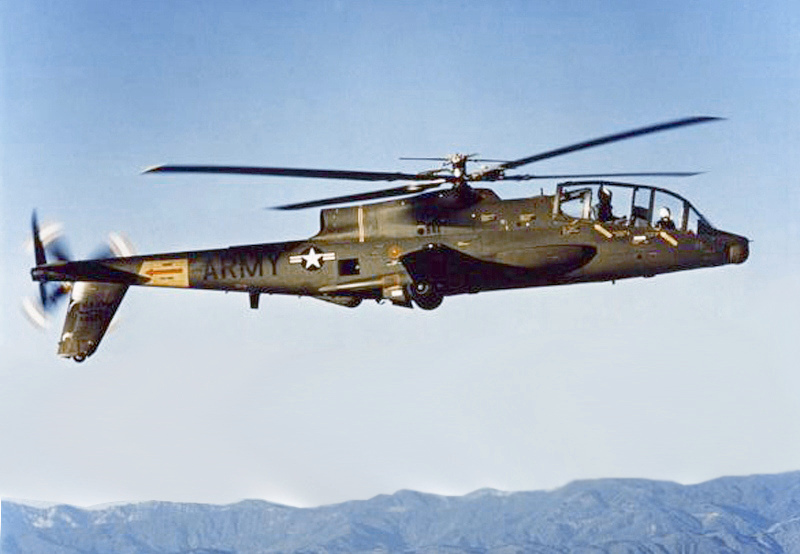

AH-56 with DOWNWARD FIRING EJECTION SEAT

Lockheed AH-56 Cheyenne - Wikipedia

en.wikipedia.org

KAMOV with
ZVEZDA K-37-800 EJECTION SEAT

https://www.secretprojects.co.uk/threads/kamov-projects.2766/



[publiusr]

I have seen radomes atop the rotors--any tiny cockpit designs to go there instead?



[moin1900]

KAMOV V-80 EJECTION SEAT

https://www.secretprojects.co.uk/threads/intermeshing-rotor-projects.40057/post-554395



[moin1900]

https://www.secretprojects.co.uk/threads/interesting-escape-concepts.1893/post-701249

U.S. NAVY HELICOPTER ESCAPE CAPSULE

View: https://youtu.be/q-rs5X81X28?feature=shared



[publiusr]

Shuttle SRBs were released using explosive bolts. Perhaps those could blast the blades clear for normal ejection seats.



[TomcatViP]

@moin1900 : thank you for sharing. Great footage.

The explosive blast assisted chute opening is something I have never seen before. Sounds interesting.

For the rest of the system, I am pretty sure no Marines or Naval aviator were consulted prior to the study (/joke). Imagine their disarray having to fly such system in combat where one single lucky bullet can activate the system, Also the ground crew having to tightly park a dozen of prone to blast helicopters in a ship hangar and seemingly crawl daily around for their maintenance.



[Cthell]

Shuttle SRBs were released using explosive bolts. Perhaps those could blast the blades clear for normal ejection seats.

Isn't that the system used on the Ka-50/52?



[publiusr]

Perhaps…I wonder if it might corrode



[Scott Kenny]

Isn't that the system used on the Ka-50/52?

It is. IIRC they pop the upper rotor first, then the lower rotor as soon as the upper blade roots are past the tips of the lower blades.

I'd hate trying to sync everything up through a rotating connection like a rotor mast. either electronically or mechanically (well, detonation-train, with probably two rings of detcord touching each other)



[publiusr]

No side ejection systems?



[Scott Kenny]

No side ejection systems?

Human bodies don't like sudden g-loads in that direction. Straight up or straight down is much safer, and people still break their backs on ejection.



[Nik]

Wasn't there a system which launched a cable up through blades to cut them close to hub, so they flew clear moments before crew ejected ??



[Arjen]

Yep.
