Heinkel He 162

[gery]

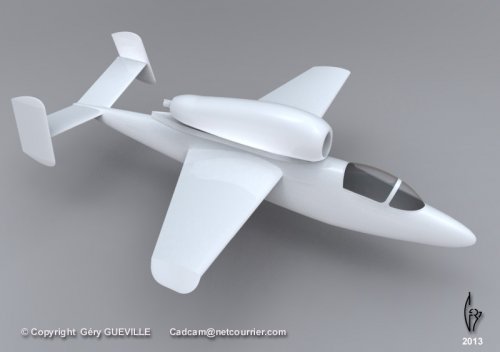

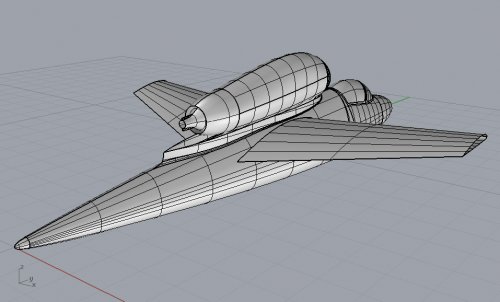

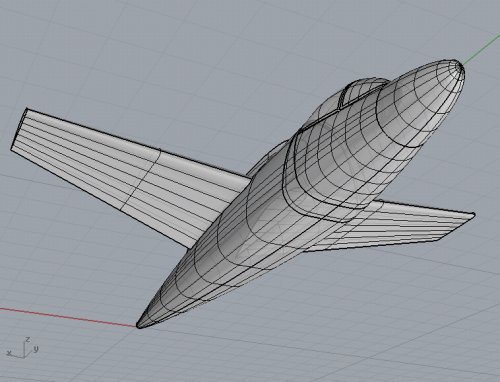

starting of modeling.....may be a 1/5 composite kit for edf.....airfoil is Clark y...



[topspeed3]

Real one did not have clark Y ?



[gery]

clark y is just for flying scale model.....



[gery]

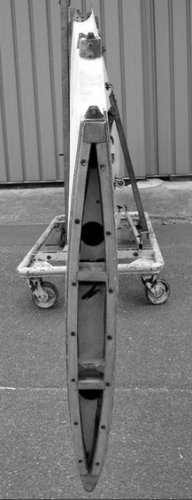

wooden wings original airfoil....



[gery]

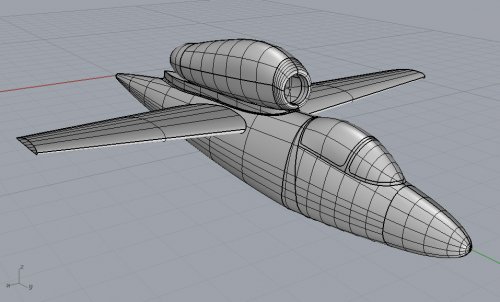

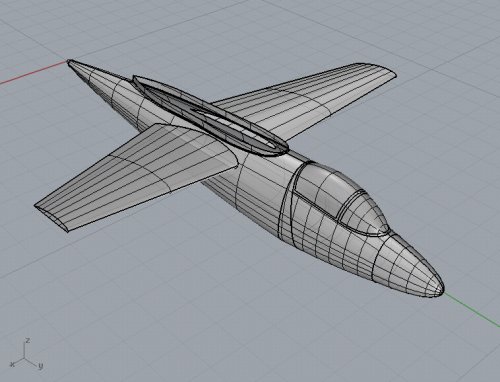

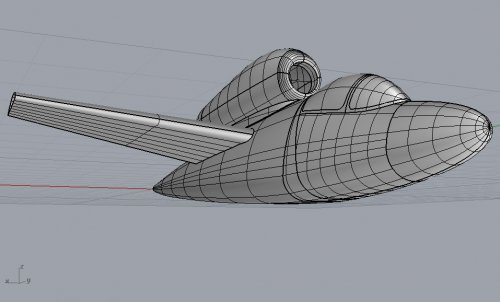

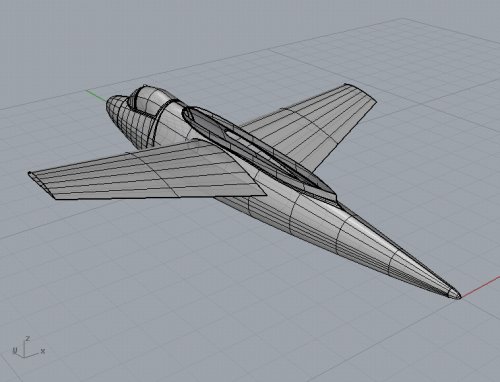

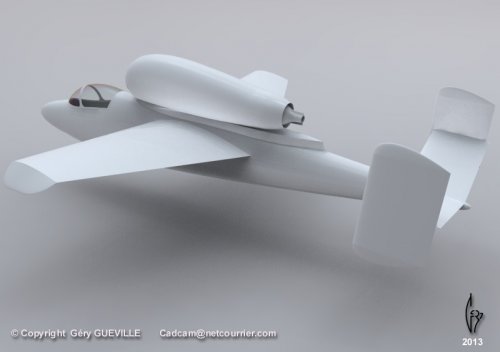

WIP.....



[gery]

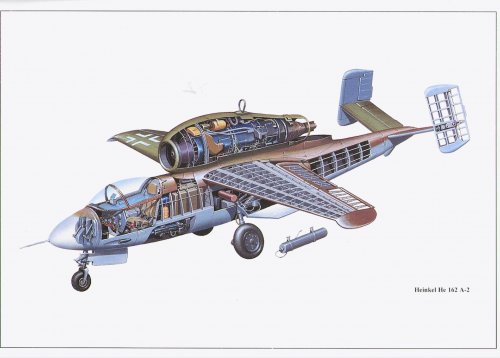

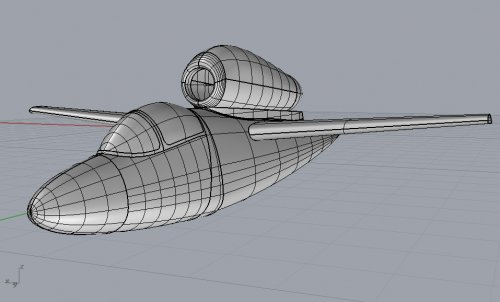

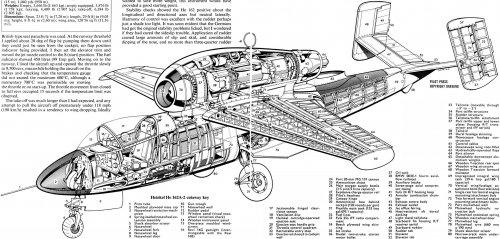

the cutaway...



[topspeed3]

Was entirely Sigfried Günthers design ?



[gery]

Wip.....



[gery]

i imagine all designed by a big team......i think a "low observable" design....



[topspeed3]

i imagine all designed by a big team......i think a "low observable" design....

Robert Lusser who had designed the Me-109 entered the Heinkel office later to do He-219 UHU.
Ernst Heinkel praises the Günther brothers highly. I think he was the talent behind it ...He-162. Ernst for sure too.



[gery]

in color....



[topspeed3]

Nose cone is missing the AN/APG-67 radar ?



[gery]

...........



[gery]

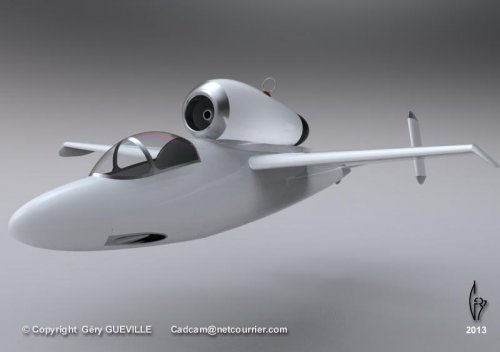

For a "FuG 240 Berlin"......



[gery]

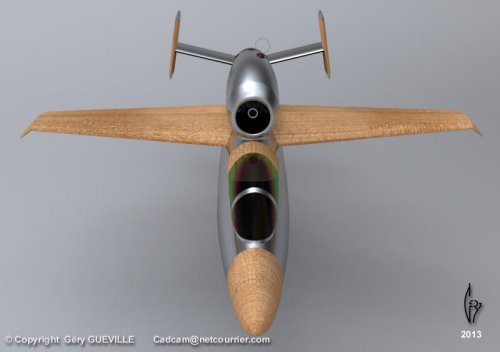

Wooden and metalics parts.......



[theponja]

Fantastic look with the contrast between the wood and metalic parts.



[gery]

Thanks alcides...



[gery]

.........



[gery]

in AFRIKA......



[GTX]

Outstanding work.



[gery]

Thanks GTX ......over the alps



[gery]

.........



[Jemiba]

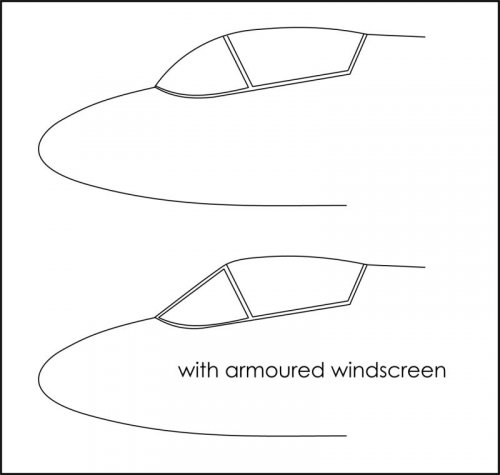

As I just saw your great renderings, it came to my mind, that the He 162 obviously had no
armoured windscreen, as was standard with other fighters. Such a rounded windscreen was
usd on the early examples of the Me 262, too, but then replaced with a framed one incorporating
an armoured glass panel. The Me 163 had no armoured windscreen, too, but here the complete
canopy was a one-piece construction and an armoured glass panel was placed inside. As the He 162
had a two-piece canopy (and we are on the speculative filed either) I think, perhaps the forward part
of the canopy could be changed to what probably would have been the real service type.



[topspeed3]

Such a rounded windscreen was
usd on the early examples of the Me 162, too, but then replaced with a framed one incorporating
an armoured glass panel.

All seemed to have rounded one;

http://www.youtube.com/watch?v=jb9zqbcBf_4

Maybe because the drag was too much and topspeed lovered under 700 km/h ?

Here is Me-162;



[Jemiba]

Beg your pardon for my typo, what was meant was the Me 262, of course.



[gery]

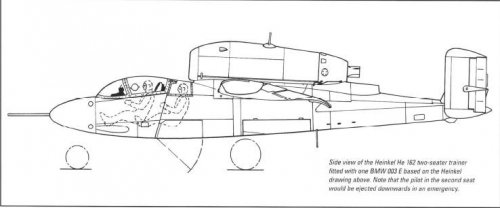

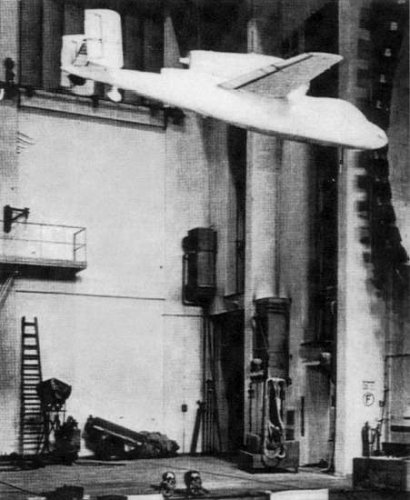

some kool historic picts.....



[gery]

..........



[gery]

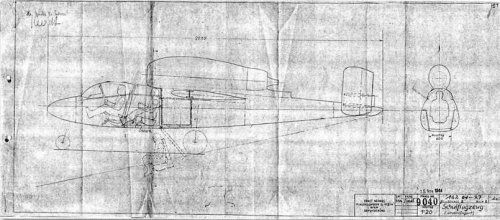

i work about the two seat version..... ;D



[topspeed3]

I bet your model would fly 10 times faster with NACA 23008 foil..thickness is supersonic like but features clearly subsonic; http://www.boelkow-junior.de/pix/N905bbBrochure.pdf

Used also in Boelkow Junior....and in Spitfire and almost all bizjets ( with more thickness ).
