He280 info.

[Flitzer]

Hi again.

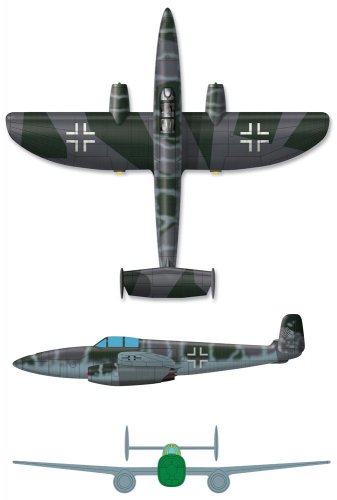

I started this a while ago. I've seen many models of the He280 as it was when tested, but only a couple were it was painted and decalled as it might of been if it had been put into service. This was my thinking when I started the profile.


However having read a little in David Myhra's Book "Secret Aircraft Designs Of The Third Reich" apparently two of the eight prototypes had a butterfly tail and wondered if anyone may shed some light on this?
For example, dimensions and angle of the tailplanes etc?


Any help truly appreciated.
Many thanks.
P



[baja]

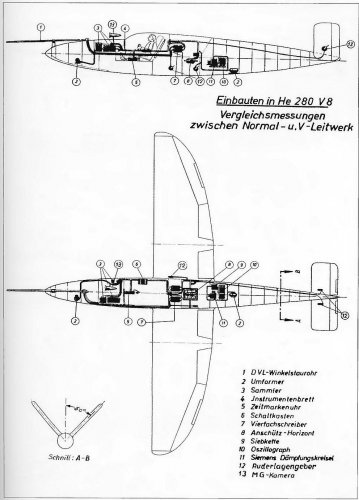

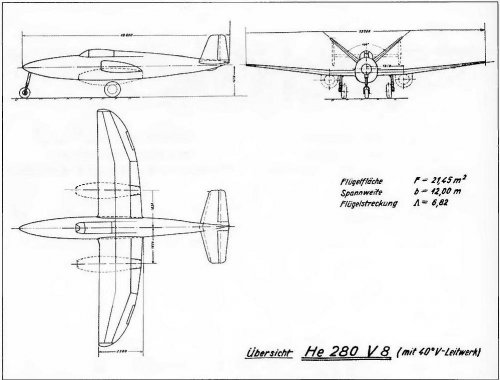

I found this two drawings in the internet. The website i don't remember.
Not much information, but i hope it's a little bit helpful. But the two drawings shown different butterfly tails with angle of 40° and 50°.

greets



[Flitzer]

Thank you very very much baja.


Perfect.


P



[Justo Miranda]



[Flitzer]

Many thanks Justo.
Just the job.


P



[robunos]

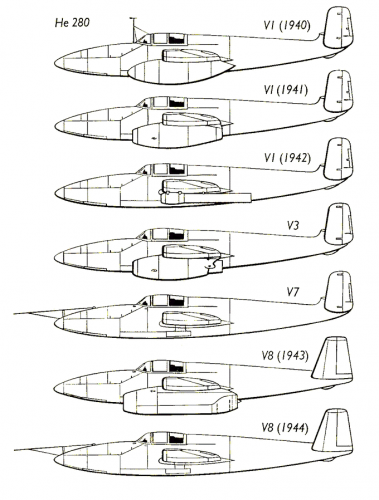

A bit late, but here's the profiles of the He 280 from 'Warplanes of the Third Reich'...


cheers,
Robin.



[airman]

http://en.wikipedia.org/wiki/Heinkel_280


www.google.it/search?hl=it&sugexp=frgbld&gs_nf=1&cp=10&gs_id=1o&xhr=t&q=heinkel+280&bav=on.2,or.r_gc.r_pw.r_qf.,cf.osb&biw=1440&bih=710&um=1&ie=UTF-8&tbm=isch&source=og&sa=N&tab=wi&ei=LpNzT_6OCsrP4QSDnay3Dw

(google images)



[Flitzer]

Many thanks robunos and airman.


New profile in the making...
P



[Flitzer]

Just to run this past you...in progress...

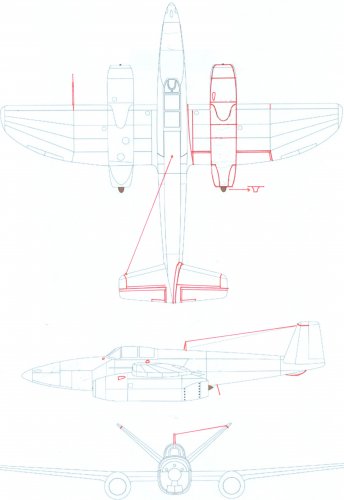

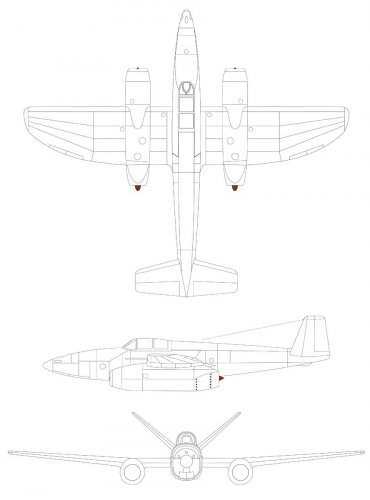

Keyline 3-view of the swallowtail with Jumos.


Advice truly appreciated.
Many thanks
P



[Justo Miranda]



[Flitzer]

Thanks for the expert eye Justo.


What would I do without it?


P



[Johnbr]

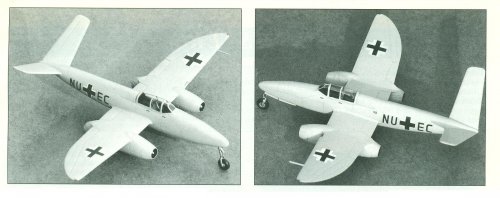

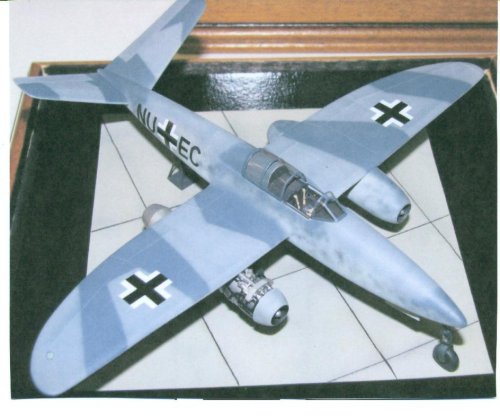

Hope this can help.



[Flitzer]

Thanks John.
Very useful.
P



[Stargazer]

apparently two of the eight prototypes had a butterfly tail

Only one of the nine prototypes, it would seem.

Strangely enough, my Waffen Arsenal #108 devoted to the He 280 doesn't have a single drawing or photo of the vee-tailed prototype.



[Stargazer]

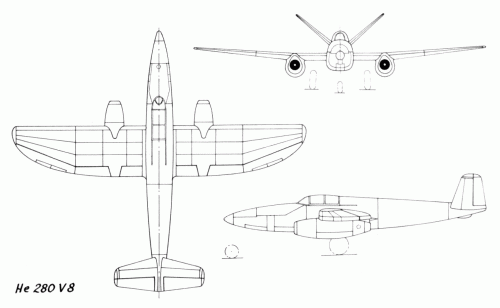

A three-view arrangement of the He 280 V8 and its vee-tail, from German Aircraft of the Second World War (Putnam):



[Stargazer]

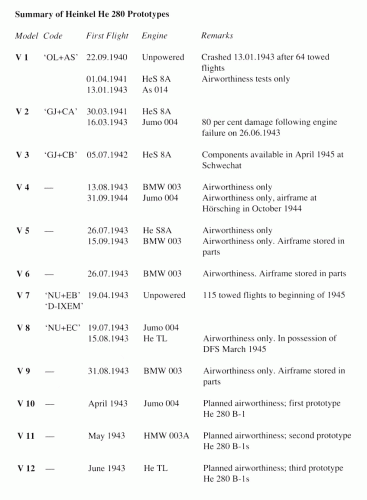

The list of He 280 prototypes from The Luftwaffe Album, Fighters & Bombers Of The German Air Force 1933-1945 (Brockhampton):



[sagallacci]

In "Heinkel Raketen- und Strahlflugzeuge" by Volker Koos, there is only a single small sketch of the He280 V8 with the v tail, indicting the fins were set at that point at 40 degrees up from vertical. fin span was not indicted, but appears to be slightly wider than the original twin tails. The book otherwise has a fair number of photos and drawings of your basic He280, both with HeS08s and unpowered gliders.



[Flitzer]

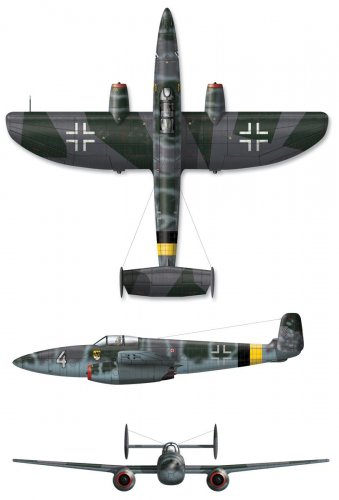

Progress report on both twin fin and swallow tail.


Antena mast needs adding to the twin fin....


Many thanks
P



[Flitzer]

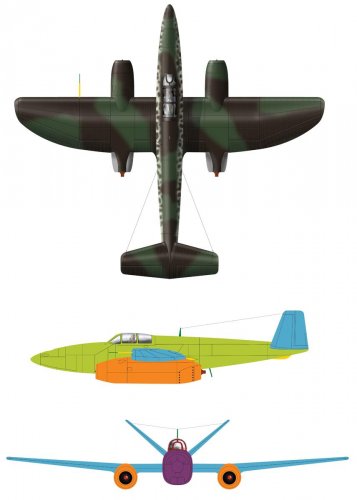

Update on swallow tail.


Many thanks
P



[VictorXL188]

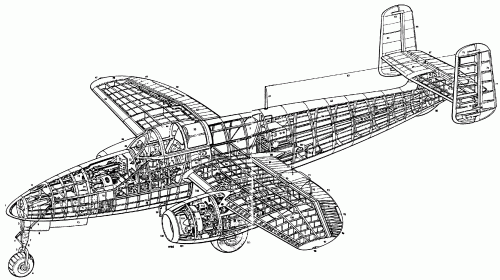

Have to say looking at those profiles and the cutaway brought back many memories as we ramped up for Vol 2 of this book. What was so annoying is this was virtually ready for print just prior to the company going under!



[lucamax]

Agree: I was waiting for the other books Vol. 2 and Vol 3, but I'll just dream...



[Foo Fighter]

I get the feeling that wing would have held it back.



[blackkite]

View: https://www.youtube.com/watch?v=7p8OWhbTRHQ



[Tonton-42]

View: https://www.youtube.com/watch?v=7p8OWhbTRHQ

It seems that landing wasn't a piece of cake ...
