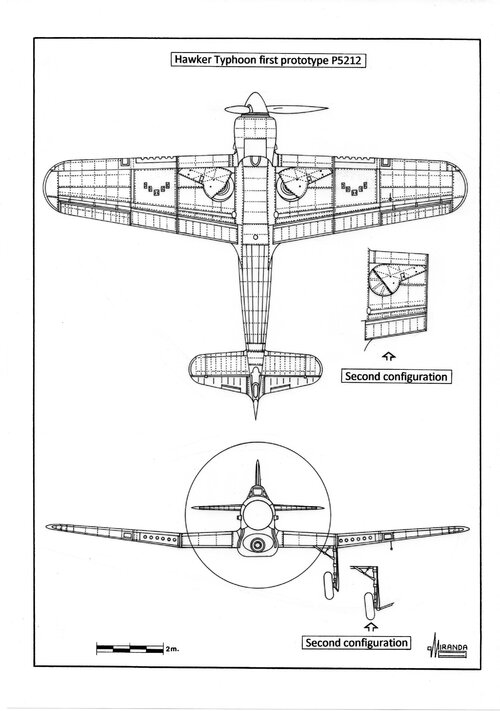

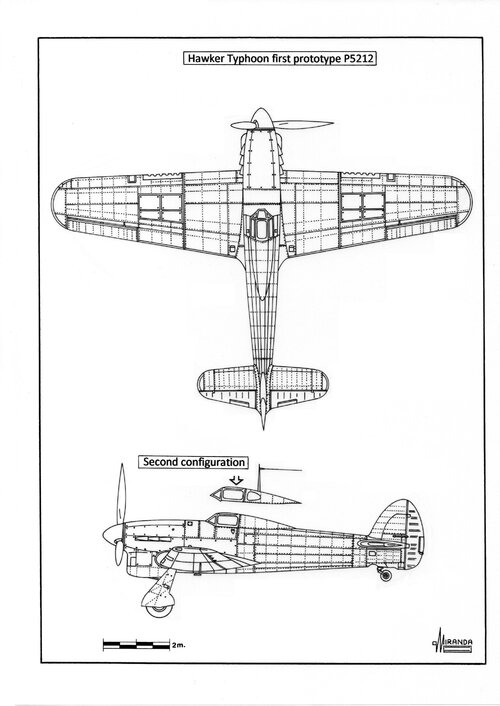

The P5212 was painted overall Medium Blue-Grey uppersurfaces with Black/White Special Recognition Markings undersurfaces.


technical data

Power plant: one 2,000 hp Napier H-24 Sabre Mk.I, 24-cylinder ‘H’, liquid-cooled engine driving a three-bladed de Havilland airscrew, wingspan: 41.6 ft (12.67 m), length: 31.8 ft (9.7 m), height: 16 ft (4.97 m), wing area: 279 sq. ft. (25.10 sq.m), maximum speed: 410 mph at 19,700 ft, maximum weight: 10,550 lbs (4,779 kg), armament: none.
