Hawker-Siddeley /Avro 748 Andover Variants and Projects

hesham

ACCESS: USAP
Senior Member
Joined
26 May 2006
Messages
33,550
Reaction score
13,648
From Avro Archive,

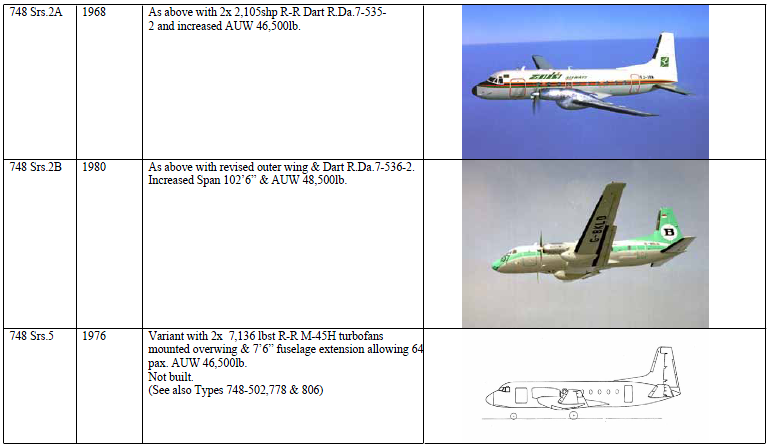

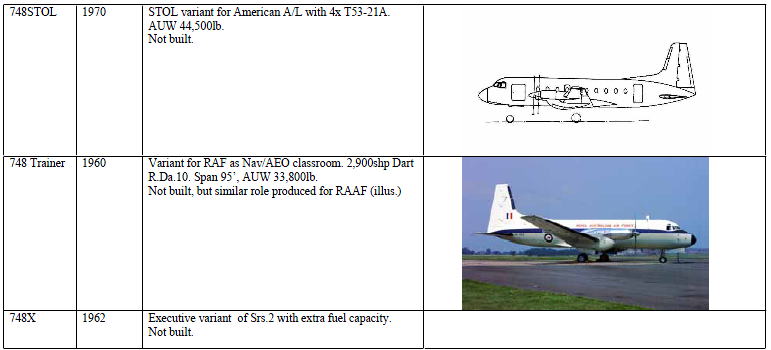

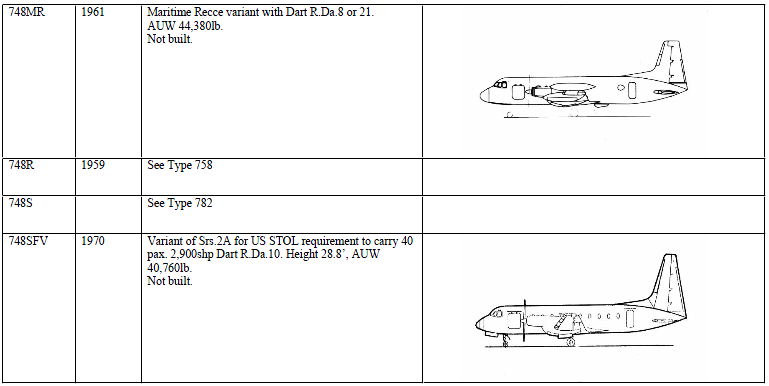

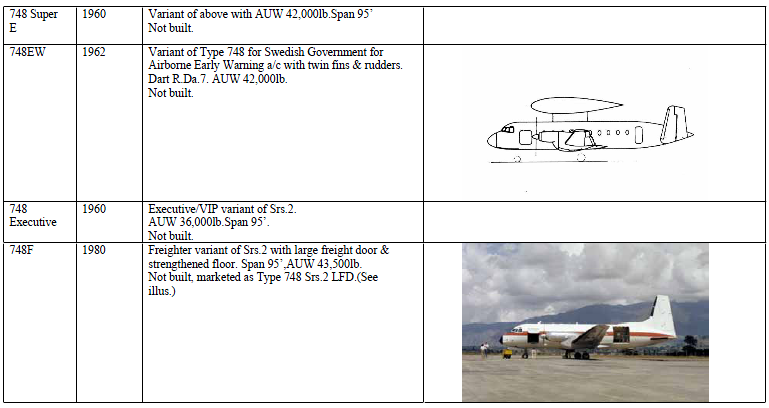

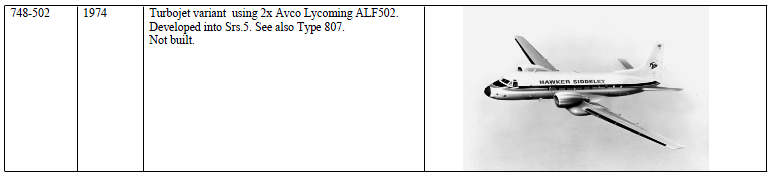

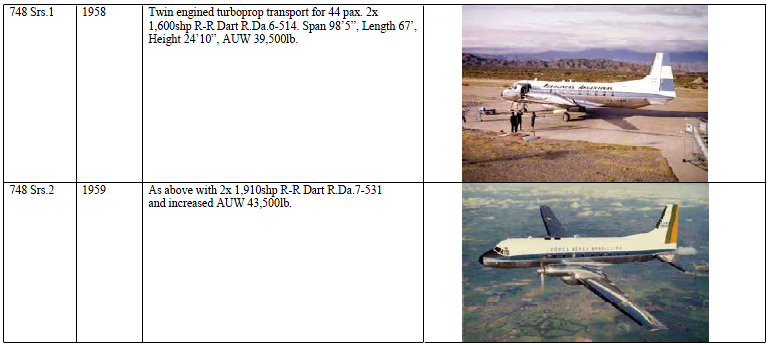

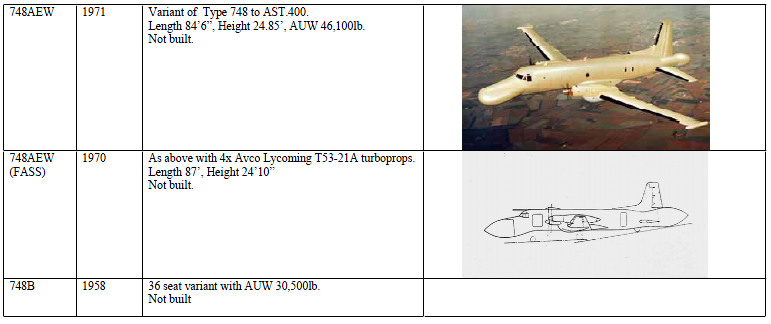

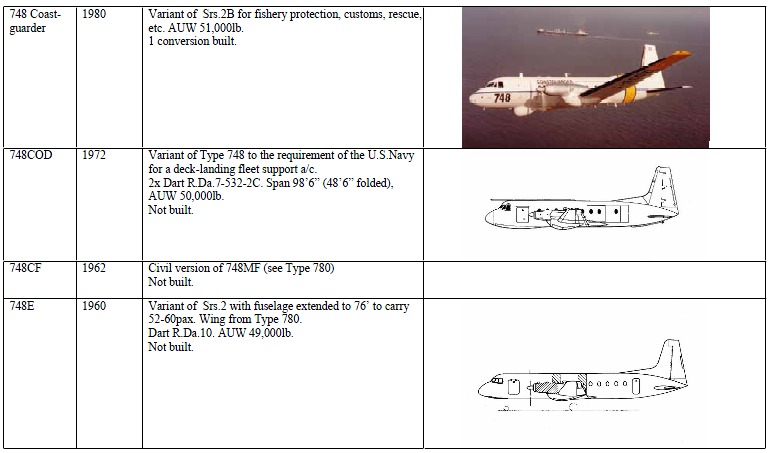

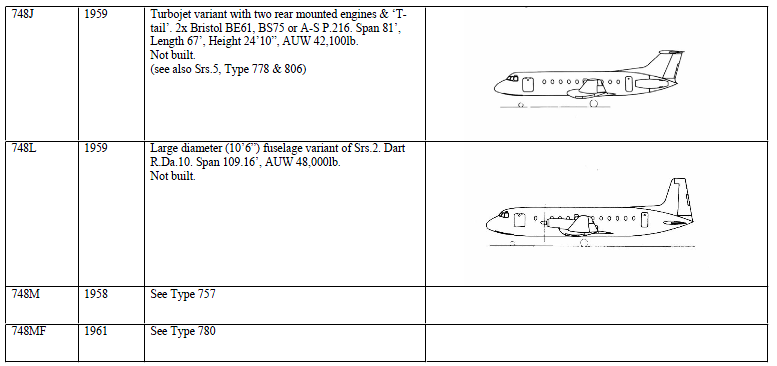

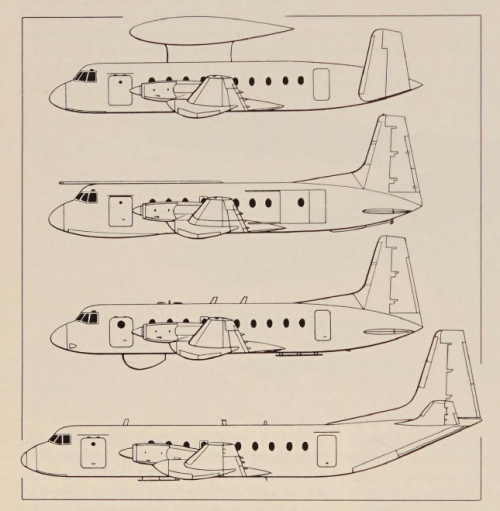

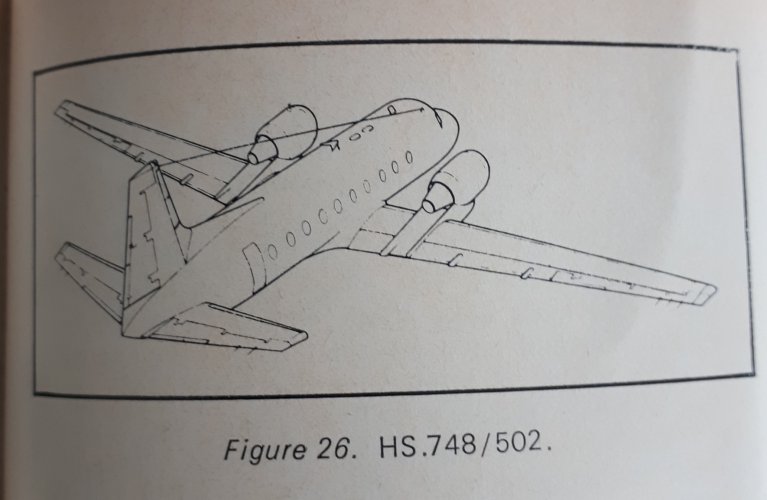

here is most of HS/Avro 748 Andover variants and Projects.


Attachments

  • 1.png
    193.5 KB · Views: 95
  • 2.png
    112 KB · Views: 97
  • 3.png
    101.4 KB · Views: 96
  • 4.png
    83.3 KB · Views: 96
  • 5.png
    96 KB · Views: 91
  • 6.png
    38.8 KB · Views: 86
  • 7.png
    41.2 KB · Views: 88
  • 8.png
    80.3 KB · Views: 81
  • 9.png
    36 KB · Views: 95
Andover was one of the few transports with both a tail ramp and a low wing.
The only others that come to mind were a few Junkers: pre-war 90 along with 252 and 352 tri-motors.
The USAF operated KC-97s and Douglas C0-124 Globemaster II heavy transports.
