The Danish engineer Harald Thyregod designed several home built designs during the '50s/'60s,
his HT-1 was actually built and first flown in 1964, but in a quite different shape, than drawn in 1958.

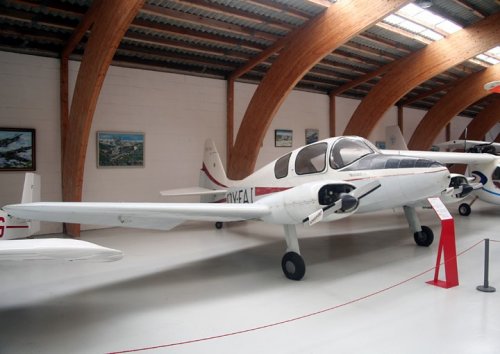

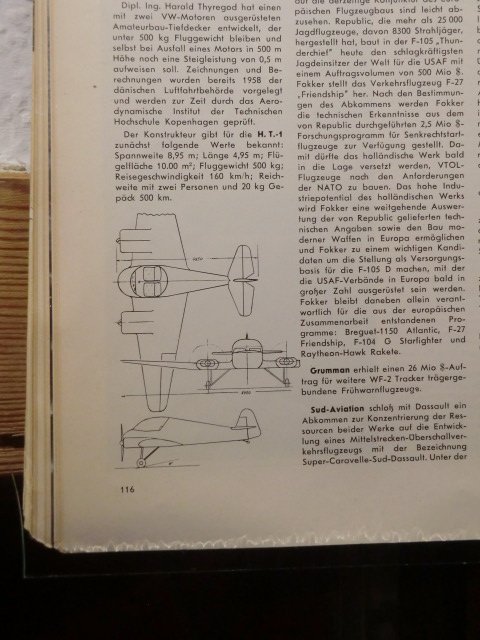

The first layout was shown in Aero February 1960, the aircraft later built by Arne Hollaender and Aksel
Smidt is shown on http://www.planesandchoppers.com/picture/number16730.asp.
Original data given by the constructor were a span of 8.95 m, length of 4.95 m, weight of 500 kg and
powered by two VW engines of 90 hp each.


Attachments

  • HT-1_01.jpg
    24.4 KB · Views: 170
  • HT-1_02.jpg
    76.8 KB · Views: 157
