In April 1914 the American magazine Aircraft reported that the Hamilton Aero Mfg. Co. of Seattle, Washington, were putting the finishing touches on an flying or aero boat with a completely closed cabin. It had a streamlined hull with the bow coming to a point while stern was tapered. The framework was of oak, ash and spruce. The planking was diagonally laid, the bottom being double thickness.

The whole hull was covered with a special watertight fabric and Jeffery's Twentieth Century waterproof glue-cement used. Very severe tests were made before adopting this glue-cement method which held cloth to metal.

The article (below) finished by saying that the 1914 models of the Hamilton Aeroboat's were made in two formats a two-seat and a three-seat versions, both available as open or enclosed cockpit.

The price of the two-seater equipped with a 60-70 hp. Maximotor was $2,150.00, without the cabin. The same boat equipped with a 70-80 hp Maximotor was priced at $2,400.00. The three-seat variant equipped with a 90-100 hp Maximotor was $2,800.00 without cabin and $3,000.00 with the cabin.

Charles Zorn, a former Benoist pilot, joined Hamilton in mid-1914 in order to assist with test flights from Lake Washington (Aircraft magazine June 1914) to assist T.F. Hamilton.

Two were possibly completed.

Details:

Length: 26 ft 9 in
Upper Wing Span: 39 ft 3 in
Lower Wing Span: 27 ft 3 in
Height: 8ft: 1 in
Engine - 2 seat variant: 1 x Maximotor 60-80 hp
Engine - 3 seat variant: 1 x Maximotor 90-100 hp


Attachments

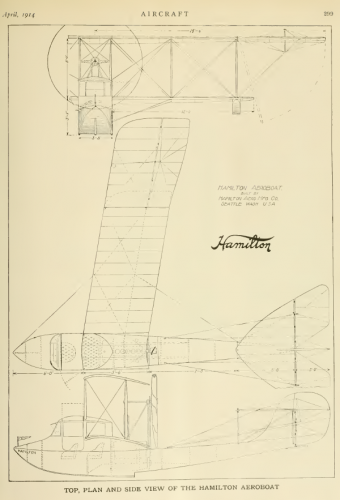

  • Hamilton_Aeroboat_1914_Schematic.png
    314.5 KB · Views: 166

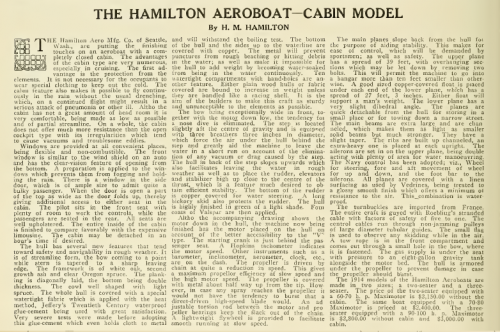

  • Hamilton_Aeroboat_1914_Article.png
    505.1 KB · Views: 159
Great find my dear Cy-27,


specially the Hamilton Aero Mfg. Co. had many unknown projects.

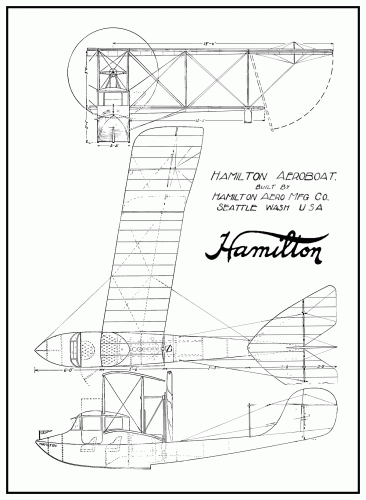

A much clearer view of the Aeroboat:


Attachments

  • Hamilton Aeroboat.gif
    Hamilton Aeroboat.gif
    199.5 KB · Views: 86
