Came across this small note on a seabed rov variant of the BV 206:
Sea Crab
The Sea Crab D500 is an underwater remotely operated vehicle based on the hull, suspension and running gear of the Bv 206. A prototype has been built powered by a 40 kW electro hydraulic power unit with electrical power being delivered by an umbilical cord.
Click to expand...
Source

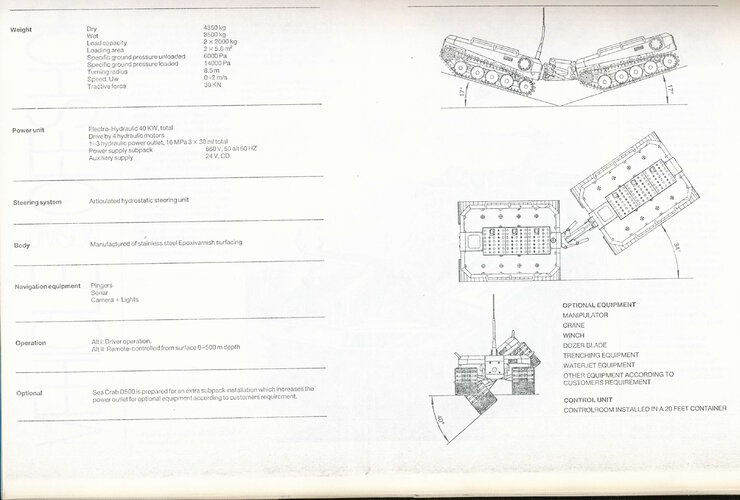

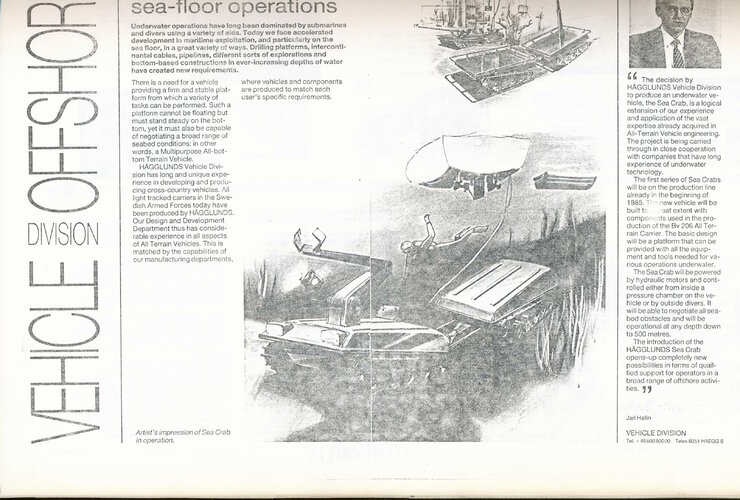

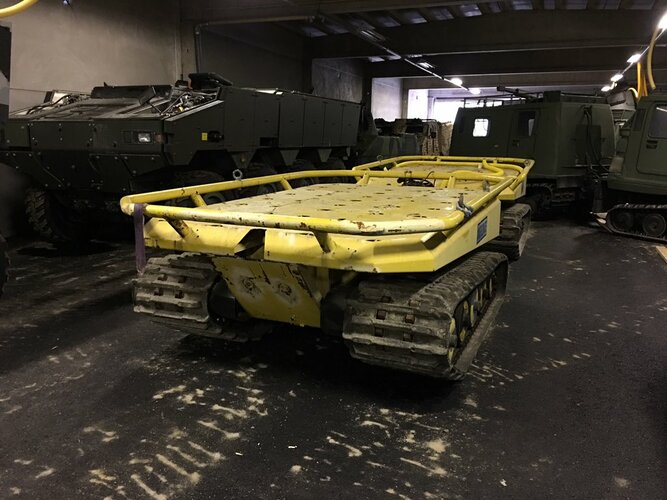

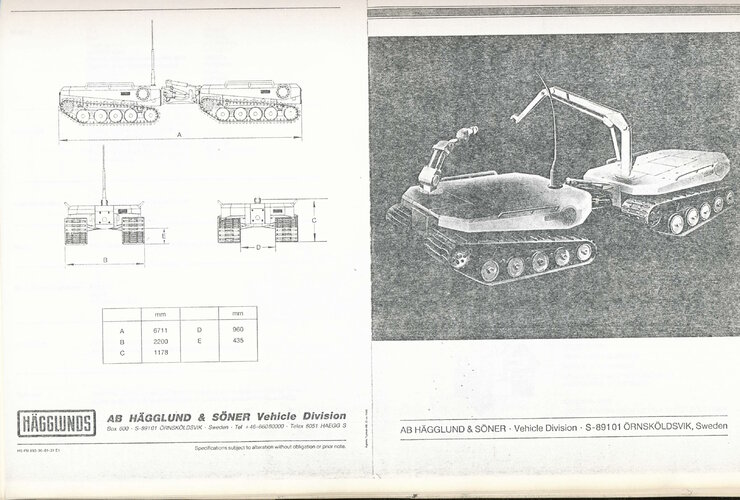

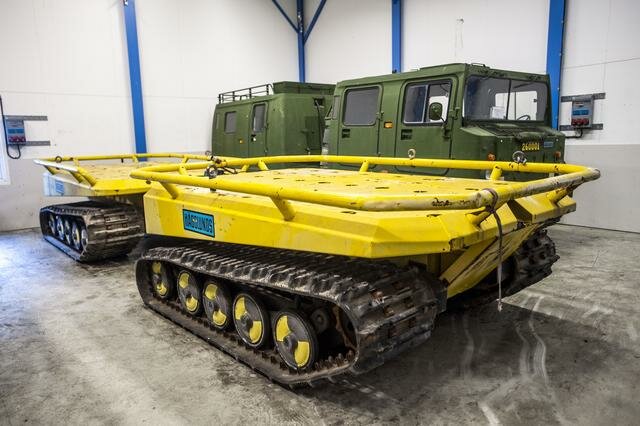

Further research turned up two photographs from the Hägglunds afv collection showing the vehicle and a sales prospect found in a Masters thesis on a diving service vessel


Attachments

  • HägglundsSeaCrab1.jpg
    129.7 KB · Views: 26
  • HägglundsSeaCrab2.jpeg
    47.6 KB · Views: 24
  • SeaCrabBrochure1.jpg
    2.3 MB · Views: 27
  • SeaCrabBrochure2.jpg
    1.3 MB · Views: 27
  • SeaCrabBrochure3.jpg
    2.3 MB · Views: 27
