Giuseppe Rossi's unmanned flying aerial torpedo 1918.

klem

I really should change my personal text
Joined
7 March 2015
Messages
701
Reaction score
1,515

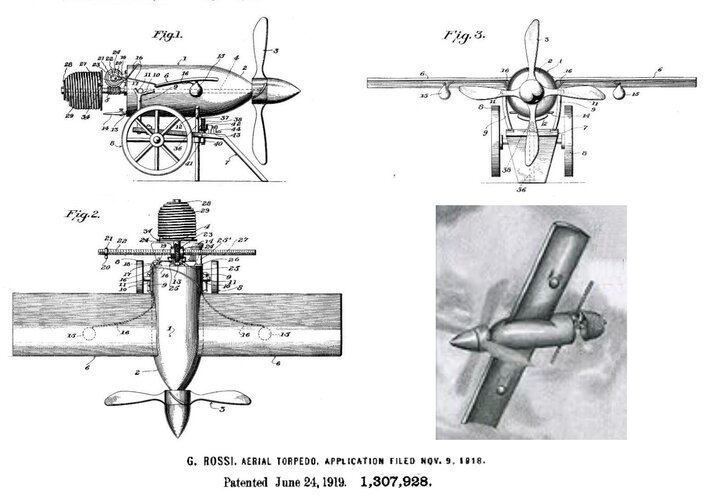

The unmanned flying torpedo designed by Giuseppe Rossi who built and successfully tested this weapon to reach any predetermined distance and at any desired altitude. includes a device for wing destroying bombs which explode after a predetermined travel distance, thus allowing the torpedo to fall quickly on the target.The winged torpedo shell is mounted on a mobile base on casters. Towards the rear is a horizontal rudder which can be adjusted before launching the torpedo, so that any desired altitude can be reached by the whole device. When the torpedo is launched the operator turning a crank can make adjustments to the desired inclinations to the torpedo body, thus adjusting at the same time the thrust angle of the torpedo.


Attachments

  • 01.jpg
    319.4 KB · Views: 10
  • 02-Giuseppe Rossi Aerial Torpedo 1918-US1307928A.pdf
    521.9 KB · Views: 6
  • 03.jpg
    76.9 KB · Views: 10
