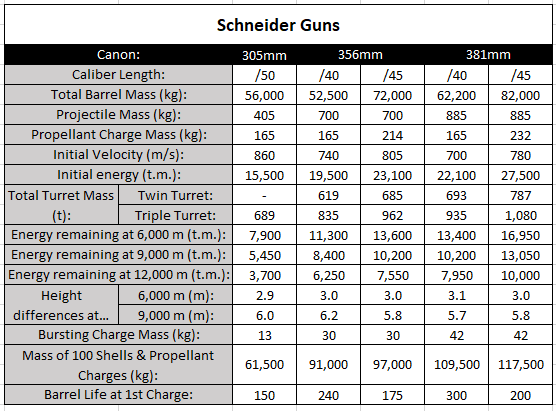

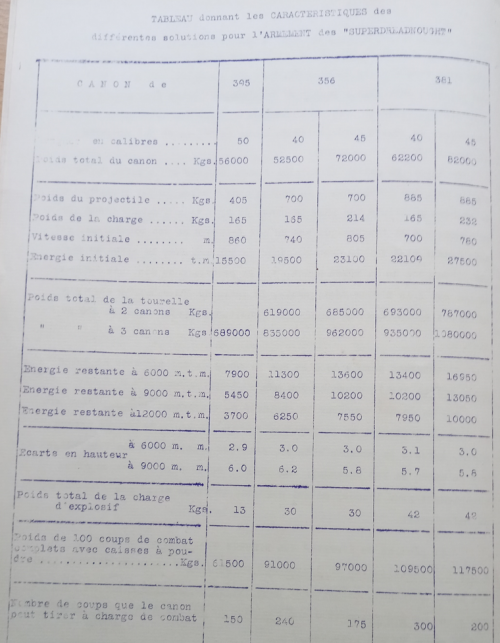

A friend of mine shared me these few images showing Schneider et Cie Gun designs of 305, 351 and 381mm or 12", 14" and 15" calibre from likely the WW1 era.


Attachments

  • image.png
    34.6 KB · Views: 7
  • pag1.png
    903.5 KB · Views: 7
  • pag2.png
    386 KB · Views: 7
  • pag3.png
    907 KB · Views: 6

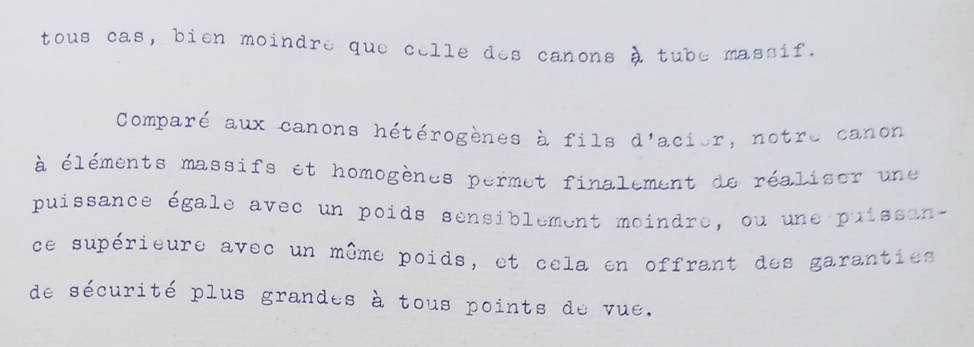

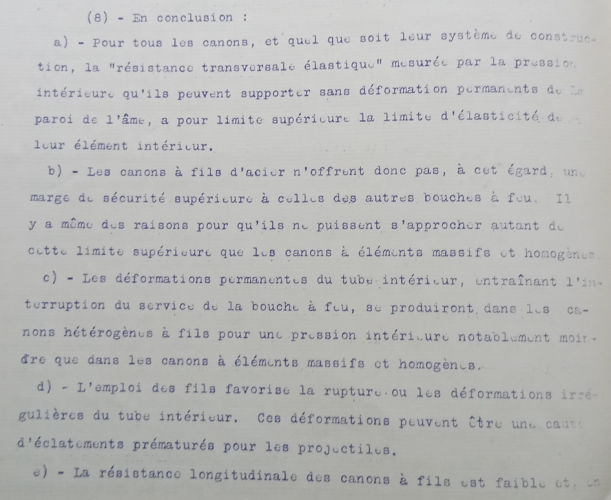

Apparently these are material that Schneider was forwarding to Ansaldo then, just prior to their formal partnership with Ansaldo started (in 1913)
