Hi,

the Fokker S.V was an advanced trainer/recce biplane Project of 1929,powered
by one Wright Whirlwind,has anyone a drawing to it ?.

Hi,

also can we ask about the Fokker S.VI if there was any drawing or more info ?,all I know it was a two-seat trainer
biplane Project of 1933,powered by one 130 hp De Havilland Gipsy Major engine.

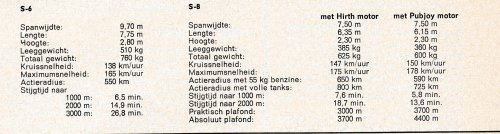

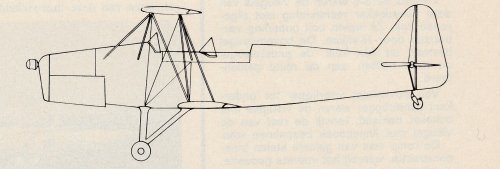

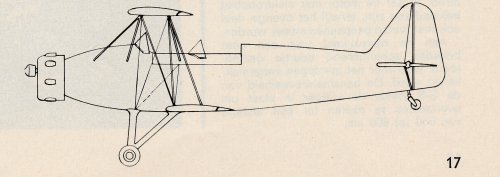

The following information regarding the Fokker S 6 and S 8 projects
source De Vliegende Hollander 1963.1 (The Flying Dutchman 1963.1, Journal of the RDAF


Attachments

  • IMG_20170215_0002.jpg
    511.4 KB · Views: 213
  • IMG_20170215_0003.jpg
    231 KB · Views: 181
  • IMG_20170215_0004.jpg
    226.5 KB · Views: 168
  • IMG_20170215_0001.gif
    503.9 KB · Views: 153
Marvelous Info and Drawings,many thanks to you Promoter.

Hi,

the Fokker S.VII was a two-seat trainer Project of 1933,powered by two 85 hp Pobjoy engine,has anyone
a drawing to it ?.

Hi,

also the Fokker S.X was a two-seat biplane trainer Project of 1939,powered by one Armstrong-
Siddeley Genet Major engine,also if there was a drawing survivor to it ?.
