Florida-Based Bell 206 JetRanger agricultural project

[hesham]

Hi,

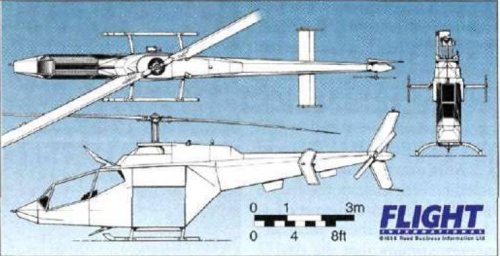

the Florida-Based Load Ranger planned to develope a stripped-down
derivative of the Bell 206 JetRanger as agricultural helicopter.
http://www.flightglobal.com/pdfarchive/view/1998/1998%20-%201056.html?search=iptn%20n%20250%20aircraft



[walter]

A prototype was actually completed (N200LR) and this first flew in April 1997. Further development was halted and the aircraft was sadly lost in a fatal crash in June 2005.



[Apophenia]

Load Ranger 2000

Includes up to 6 passengers for the Load Ranger 2000. Seems improbable given the fuselage hopper size :

Militaryphotos.net

www.militaryphotos.net

(dead link)

"The military version was to have been armed with two pylons (Stub wings?) each having two weapon suspension points."



[Jemiba]

"Seems improbable .."

Why ? ;D

(From IAPR vol.4)



[Apophenia]

Bench seats for those stub wings?



[frank]

Additionally, Jet Rangers are hard pressed to get airborne with 5 people onboard!

http://airwiki.org/enc/uh/lr2000.html

Includes up to 6 passengers for the Load Ranger 2000. Seems improbable given the fuselage hopper size :

http://www.militaryphotos.net/forums/showthread.php?t=102051

"The military version was to have been armed with two pylons (Stub wings?) each having two weapon suspension points."



[NoBarrelRolls]

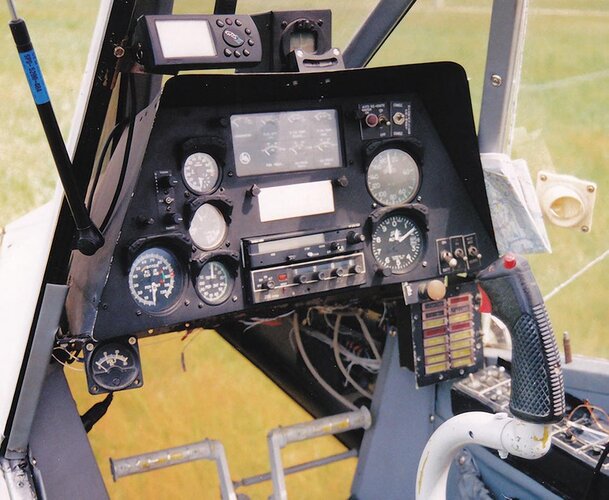

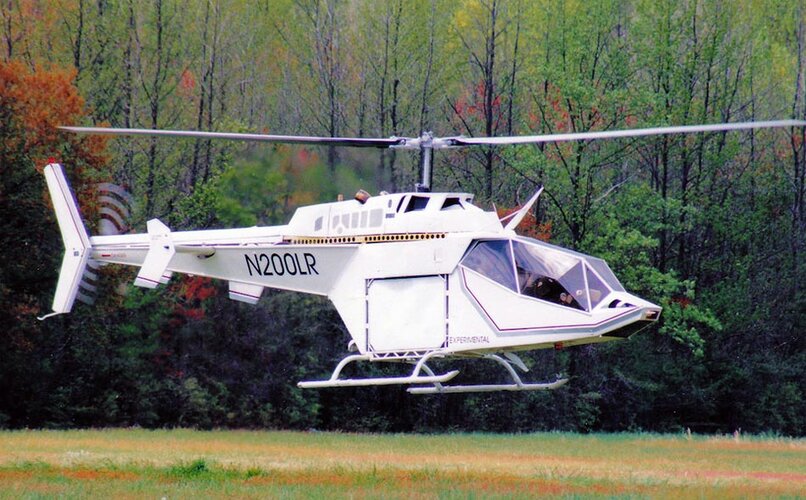

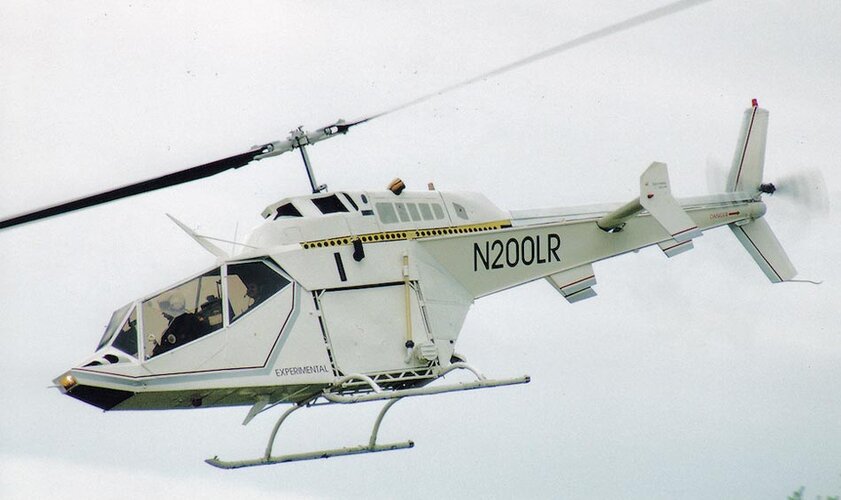

Found some cool photos of the N200LR in the Airwar site: http://www.airwar.ru/enc/uh/lr2000.html.

Photo credits: Paul Kanagie






And here is the NTSB report about the accident were the creator of this aircraft, Tom Navickas, and his nephew perished.

https://app.ntsb.gov/pdfgenerator/R...ID=20050628X00887&AKey=1&RType=Final&IType=LA



[robunos]

Found some cool photos of the N200LR in the Airwar site: http://www.airwar.ru/enc/uh/lr2000.html.

Photo credits: Paul Kanagie

View attachment 649761

View attachment 649762
View attachment 649763

And here is the NTSB report about the accident were the creator of this aircraft, Tom Navickas, and his nephew perished.

https://app.ntsb.gov/pdfgenerator/R...ID=20050628X00887&AKey=1&RType=Final&IType=LA

BlueWolf? Air Thunder?

cheers,
Robin.



[riggerrob]

Iran and Chile (?) built similar-looking light attack helicopters based on Bell Jet Ranger dynamic components, but neither seems to have been manufactured in significant numbers.
In Chile, Cardoen Cb 206L-III, first flight 1989. 2 were converted.
In Iran at least one HESA Shahad 278 prototype was built.



[Scott Kenny]

Aviator game - play for Money online ✈️ Official site

Aviator game - play online for Real Money | Official site Aviator Spribe. Where to play with bonuses and promo codes. Play Aviator Demo game ✈️

airwiki.org

Includes up to 6 passengers for the Load Ranger 2000. Seems improbable given the fuselage hopper size :

You'd be amazed at how heavy some ag chemicals can get... (also, six passengers is 6x175=1050lbs per FAA standards)

There's a reason the big Air Tractors have an 8000lb hopper load!
