Flight Dynamics Lab V/STOL & Aircraft Designs

[hesham]

Hi,

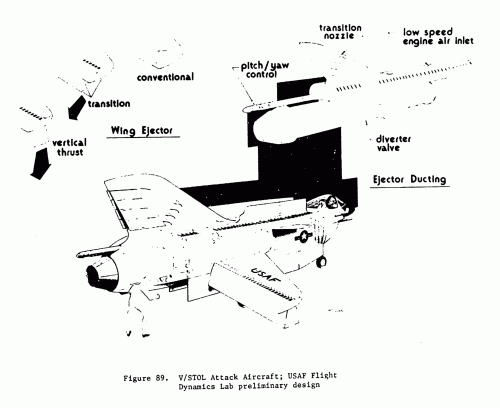

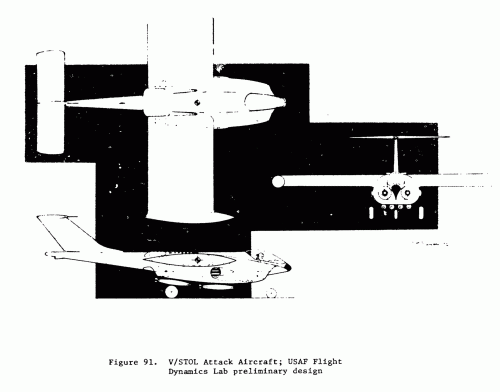

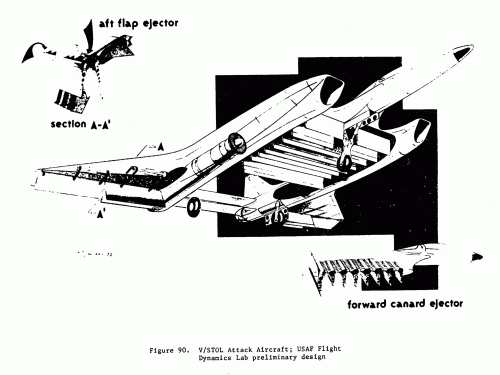

here is three different V/STOL attack aircraft from Flight Dynamics Lab.

Wayback Machine

[NOTE: Images removed and replaced with better quality versions further below]



[Tophe]

Thanks, mostly for the weird twin-boom layout.
The linked document date is June 1975.
I wonder why there is a so long duct in front of the jet, maybe the full text does explain but I have not seen the reason in the first pages.



[hesham]

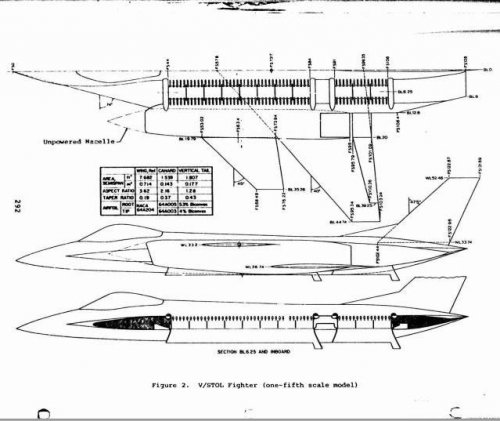

And here is a V/STOL fighter with thrust augmenting ejectors.

Wayback Machine



[Stargazer]

From THRUST AUGMENTING EJECTORS (ARL, June 1975):
archived copy

Wayback Machine



[hesham]

From this magazine of 1978,

a very strange Fighter ?.
