Flettner Fl 282

[hesham]

Hi,

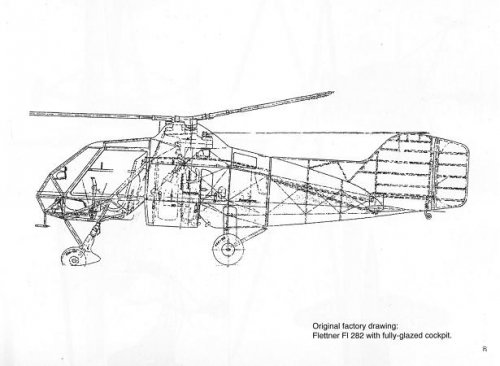

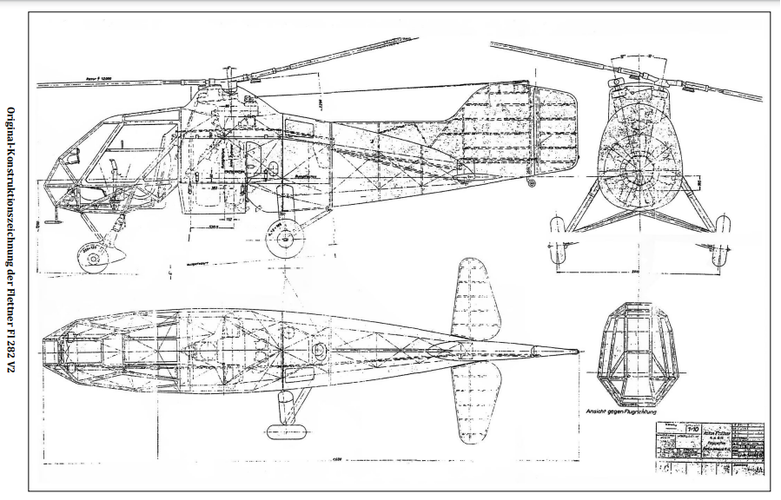

here is the original drawing to Flettner FL 282 helicopter or factory original drawing.



[Wurger]

Thanks for sharing. I hope Steve can comment on this...



[hesham]

Thanks for sharing. I hope Steve can comment on this...

Thank you my dear Wurger,and the book was, Luftwaffe Profile, Flettner Fl 282.



[Cy-27]

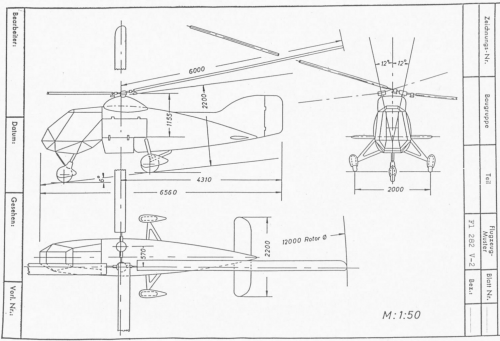

Drawings of Fl 282 V2 as presented to the German Naval Staff (Seekriegsleitung) in December 1940.

Source:
Flugzeug magazine 1988-01



[hesham]

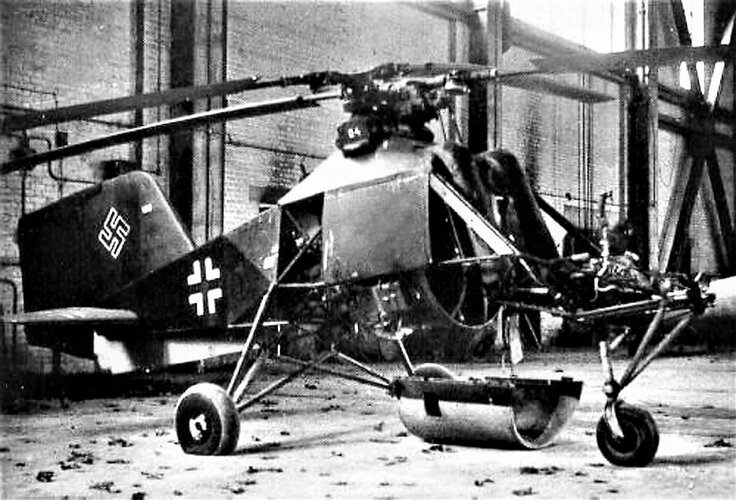

From, flettner-fl-282-kolibri-hubschrauber-luftwaffe-marine



[Steve Coates]

This is based on the 1/10 scale drawing held by the Deutsches Museum.



[abbadur]

Please have a look to this

1/18 scale Flettner Fl-282 V21 Kolibri scratchbuild model - LSM Work In Progress - Large Scale Modeller

Alfons



[Steve Coates]

I've previously had contact with Nick but if anyone hasn't seen this, it's well worth a few minutes of your time. The modelling is just superb.



[nuuumannn]

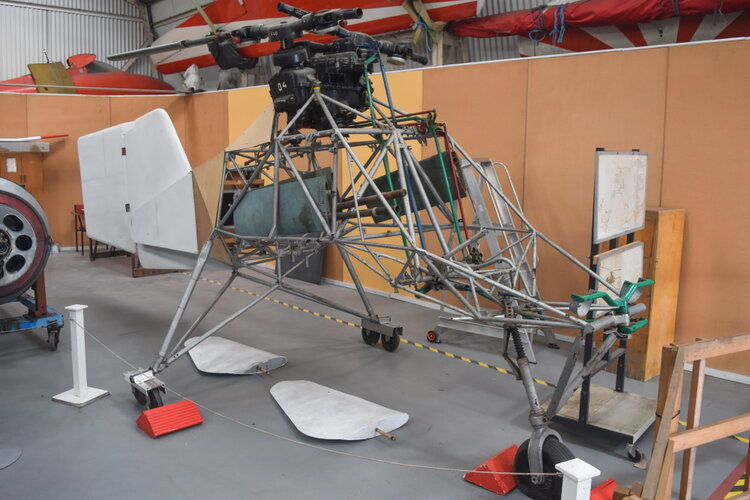

Coming along nicely this is the original Fl 282 on display at the Midland Air Museum at Coventry Airport, taken in 2018 that Nick mentions in his posts above.



[hesham]

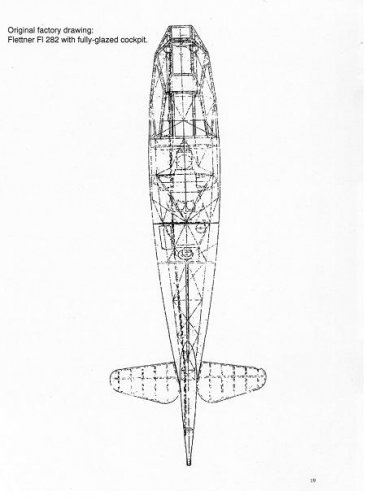

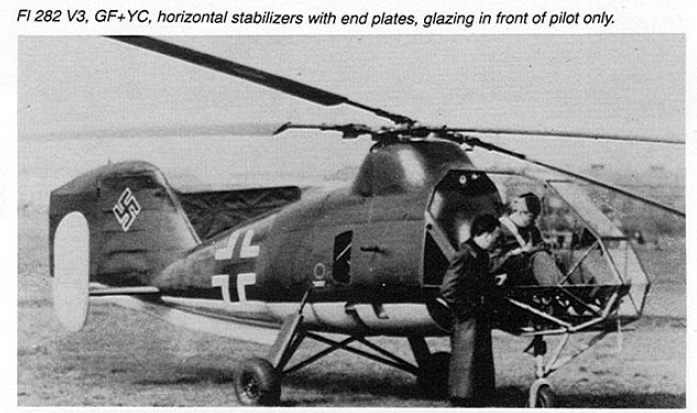

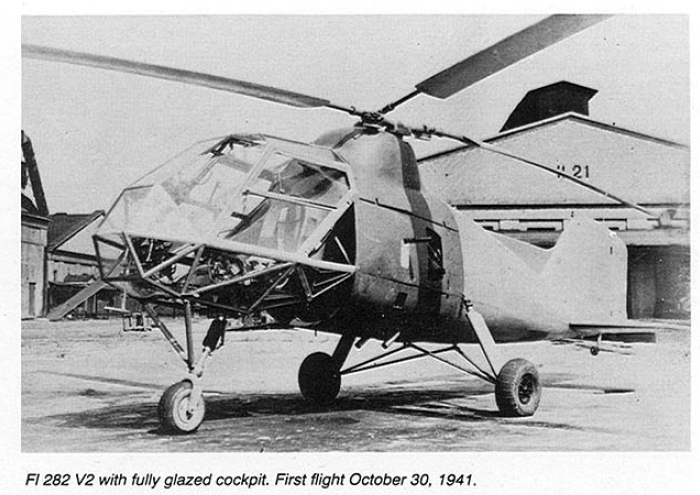

From this Book.



[Johnbr]

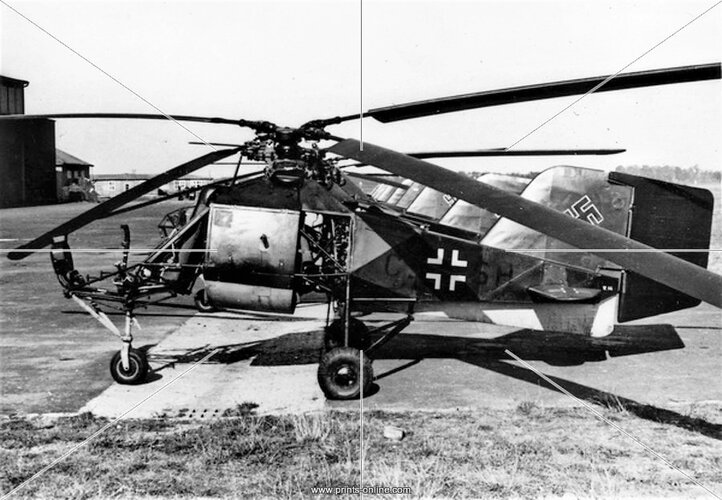

e-bay
Flettner Fl 282 V-23 Kolibri Characteristics

Crew: 1or 2
Length: 6.56 m (21 ft 6 in)

Height: 2.2 m (7 ft 3 in)

Weight (empty): 760 kg (1,676 lb)

Max take-off weight: 1,000 kg (2,205 lb)

Powerplant: 1 × Bramo Sh.14A 7-cyl. air-cooled radial piston engine, 119 kW (160 hp)

Main rotor diameter: 2× 11.96 m (39 ft 3 in)

Main rotor area: 224.69 m2 (2,418.5 sqft)
Flettner Fl 282 V-23 Kolibri Characteristics
Crew: 1or 2

Length: 6.56 m (21 ft 6 in)

Height: 2.2 m (7 ft 3 in)

Weight (empty): 760 kg (1,676 lb)

Max take-off weight: 1,000 kg (2,205 lb)

Powerplant: 1 × Bramo Sh.14A 7-cyl. air-cooled radial piston engine, 119 kW (160 hp)

Main rotor diameter: 2× 11.96 m (39 ft 3 in)

Main rotor area: 224.69 m2 (2,418.5 sqft)

Miniart's Flettner FI 282 V-23 - the captured Hummingbird in five different colour choices.

Scale models, model reviews, tamiya, 1/32, 1/48th , aircraft modelling, model building, tank model, car model, figure model, 1/72nd scale, star wars,

www.themodellingnews.com



[Grey Havoc]

Vertical Rewind: Spoils of War

In the 1930s, Germany was home to a burgeoning and innovative helicopter industry, whose development was further fueled by World War II. As the war drew to a close, the Allies raced to secure the technology for their own purposes.

verticalmag.com



[ChrisP]

Hopefully not too off topic and of some interest. Anton Flettner was born in Eddersheim, Germany. His grave, and also the house in which he was born, is there too. I live about 15 minutes from Eddersheim and, appropriately, fly RC helicopters in a sports hall nearby. The photo was taken 17th November 2023



[ChrisP]

Just as an aside.....I am also only 20 minutes away from Manfred von Richtofen's grave in Wiesbaden.
