Fighters From 1970s to ID ?

[hesham]

From Hearing report,

in first pictures,what are those in left hand ?,and in second,what is the
upper one ?.



[hesham]

For second picture,may it was related to F-18 ?.



[Scott Kenny]

From Hearing report,

in first pictures,what are those in left hand ?,and in second,what is the
upper one ?.

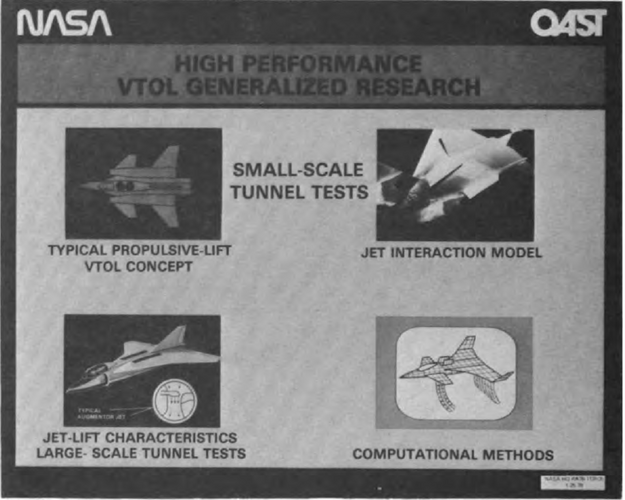

Description of the first pirctures says "jet lift," so likely related to the Harrier replacement that ended up being the AV-8B instead of anything more capable.



[Sundog]

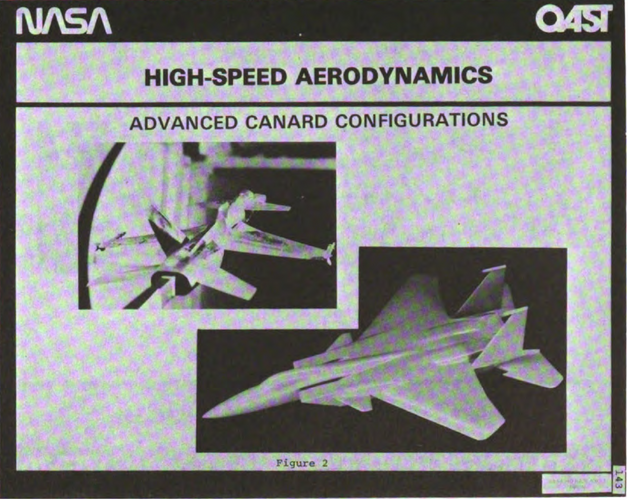

In the first image, the top left design looks like one of the GD design studies. The one below it looks like a variation on the GD E-7. The one on the lower right looks like some sort of generic design based on the XFV-12 with a lift engine behind the cockpit. I can't tell what the wind tunnel model is. The second page is an F/A-18 design with canards and the other is an F-15 with small canards. My guess is those were studies for what became the F-15 STOL/MTD program.



[hesham]

I can't find the report again ?.
