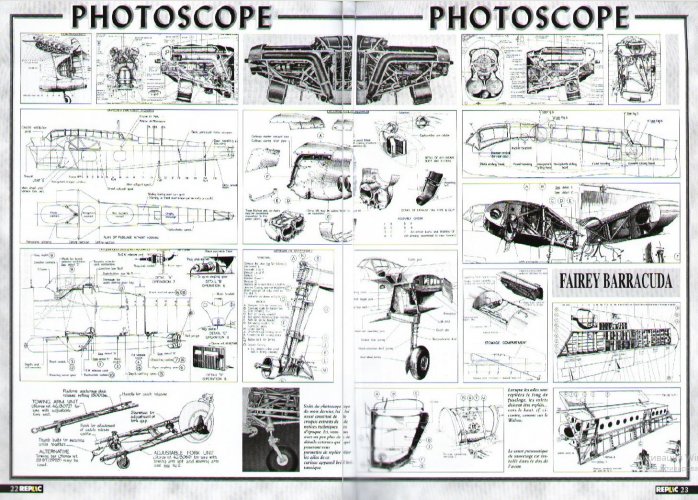

May be someone can help with higher resolution scan of Barracuda reference stuff from Replic backissue (No.151)?


Attachments

  • Replic 151 Barracuda Photoscope.JPG
    Replic 151 Barracuda Photoscope.JPG
    395.1 KB · Views: 27

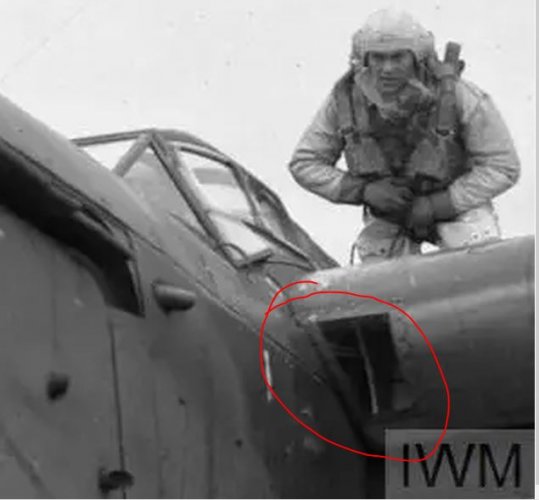

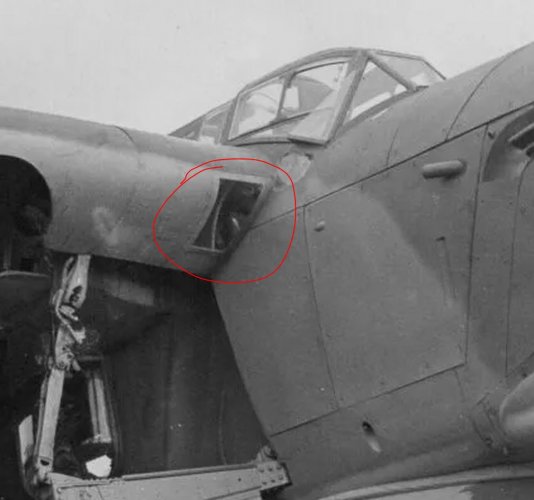

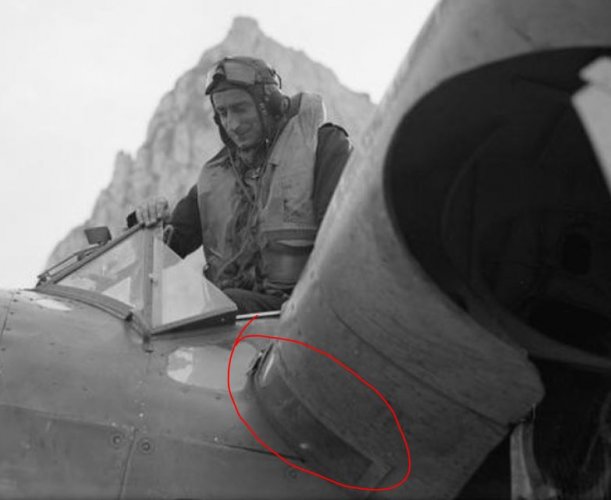

Does anyone knows the purpose of those caverns in wing root seen on Mk.II
(sometimes seems to be covered with plexiglas)?


Attachments

  • 0001.JPG
    40 KB · Views: 25
  • 0002.JPG
    69.1 KB · Views: 16
  • 0003.JPG
    35.8 KB · Views: 24
flateric said:
Does anyone knows the purpose of those caverns in wing root seen on Mk.II
(sometimes seems to be covered with plexiglas)?
Click to expand...
It would appear to be an inspection panel of some kind, I'm unsure if it's meant for the landing gear or the wing locking mechanism.

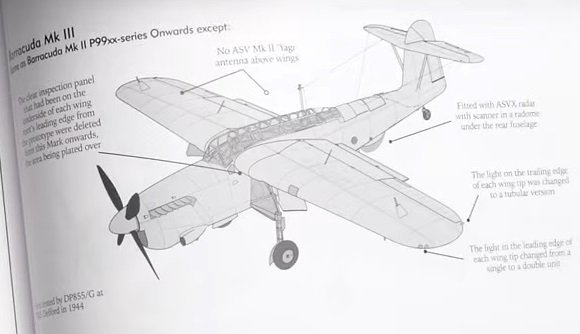

The only place I could find a reference from, is this video review of the Valiant Wings Fairey Barracuda Airframe Album by Richard A. Franks.
Seen at the 4:31 timestamp.
