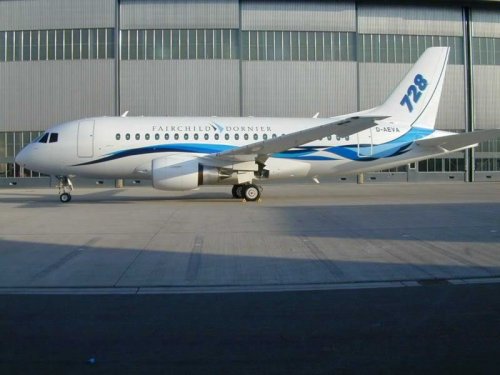

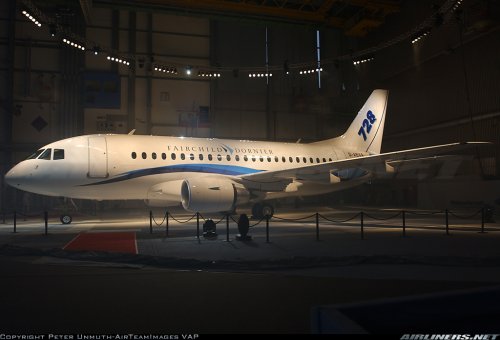

Fairchild Dornier 728 family

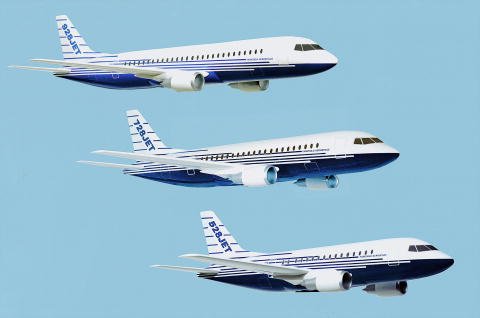

Type: Family of 55/110-passenger short/medium range transports.

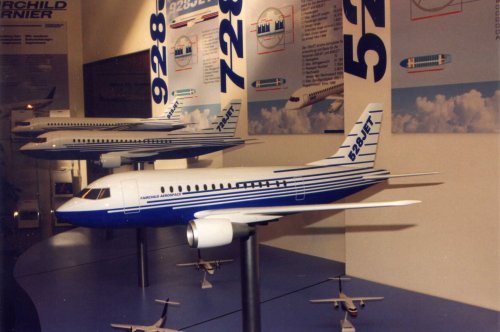

Program: The Fairchild Dornier 728JET family was launched during the International Aviation and Space Flight Exhibition in Berlin in May 1998. The regional jet family was later renamed the 728. In March 2002, Fairchild Dornier was taken into administration and the future of aircraft looked uncertain. In July 2003, it was announced that the D'Long International Strategic Investment Group of Xinjiang, China had bought the 728 program. D'Long was planning to relaunch the 70-seat regional jet as a joint German/Chinese development. The new company was named Fairchild Dornier Aeroindustries and it was planned to deliver the first relaunched 728 in 2006. This attempt to resurrect the program has also failed as the new company filed for insolvency in 2004.

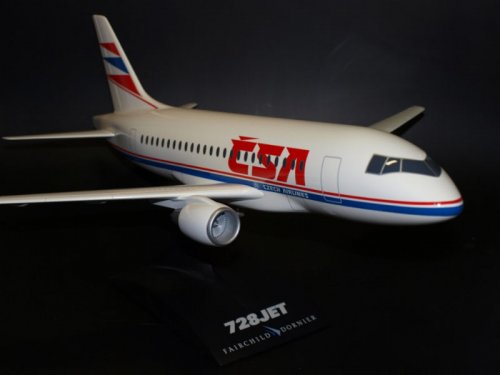

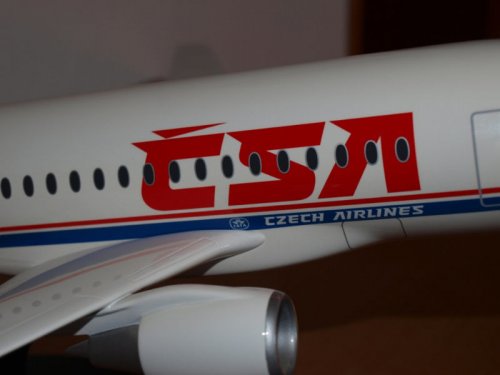

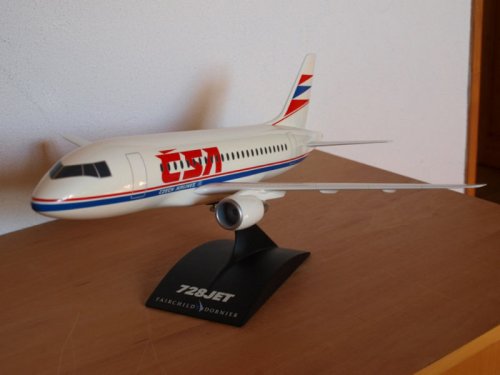

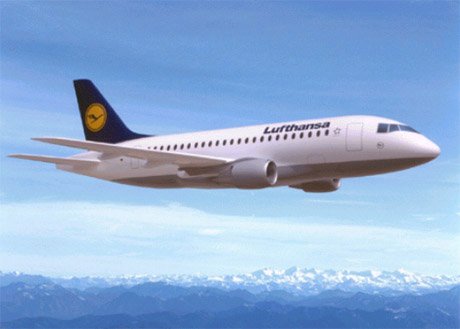

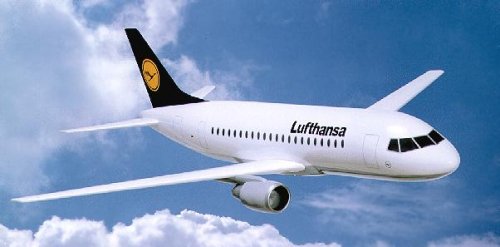

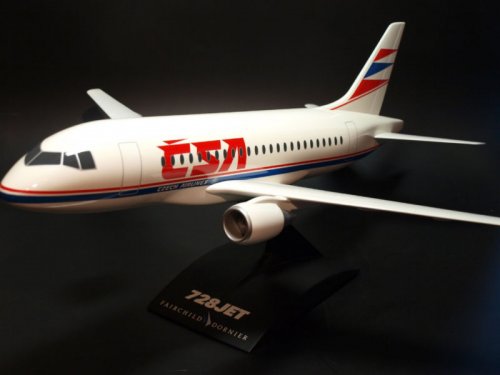

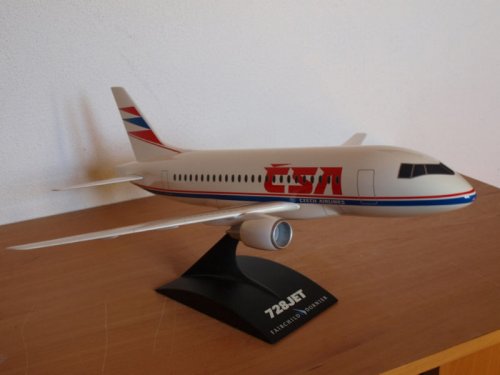

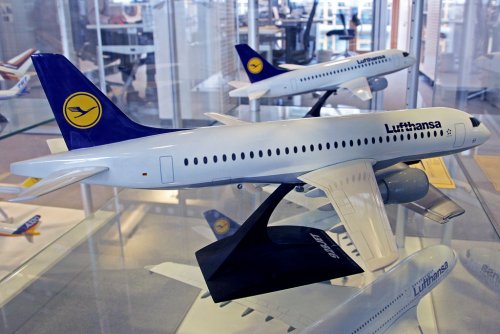

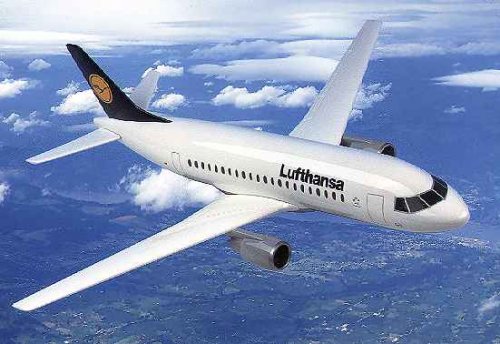

Customers: Lufthansa cancelled an order for 60 728 jets plus options on a further 60 aircraft in July 2002. GE Capital Aviation Services, Inc. (GECAS) placed an order for up to 150 728 regional jets but cancelled the order (50 firm and up to 100 options) in April 2002. Other customers included Bavaria Leasing, CSA Czech Airlines and SolAir.
Design: The 728 was designed using SAP R/3 software for material management, 3D CAD/CATIA design software from Dassault Systeme and eM-Plant simulation program from Tecnomatix to optimise the complete manufacturing process. A laser alignment system is used for precision assembly.

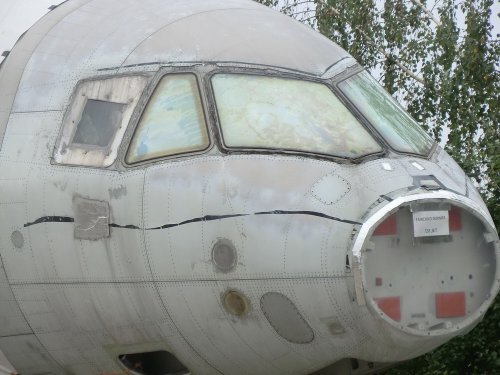

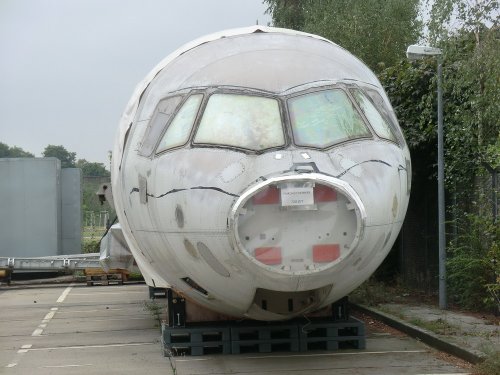

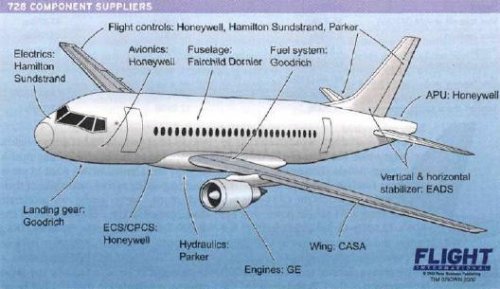

Original suppliers included: Fairchild Dornier to manufacture the fuselage; EADS Casa of Spain for manufacture of the aircraft's wing/wing box assembly and empennage, including control surfaces and engine pylons; SABCA of Belgium for the cockpit and rear fuselage sections; and EADS for the vertical and horizontal stabilisers. The windscreen frame was produced by SABCA from a three-piece aluminium forging for a stronger yet less complex structure.
Parker Aerospace provided the aircraft's hydraulic system, which includes two fully redundant and segregated systems plus a separate backup system. Hamilton Sundstrand Aerospace provided the electrical systems.

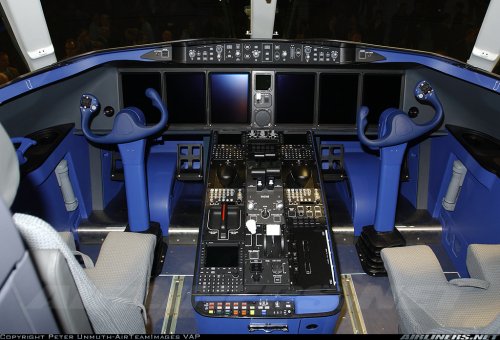

Flying controls: The avionics suite is the Honeywell Primus EPIC system with six 8in x 10in LCD flight situational displays and multi-function displays. As well as Honeywell, Hamilton Sundstrand and Parker are providing flight control systems.
Landing gear: Tricycle retractable. The main landing gear is produced by Goodrich as well as the wheels, tires, brakes, hydraulic system, brake control system and nose wheel steering system, used throughout the 728 family.

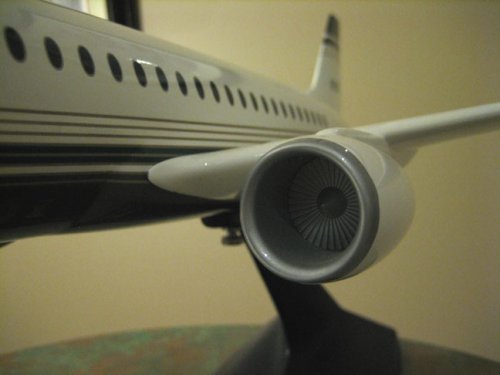

Powerplant: The 728-100 is powered by two General Electric CF34-8D turbofan engines fitted with FADEC (full authority digital engine control). The engines provide a take off thrust of 55.6kN (12,500lb), which gives the aircraft a maximum cruise speed of 0.82 Mach. The engines incorporate a number of noise reduction features including: advanced liners, optimized blade spacing, tailored fan outlet guide vanes, advanced chevron core nozzle and reduced jet exhaust velocity.
The Honeywell RE 220 auxiliary power unit offers high reliability, low noise signature and easy maintenance.

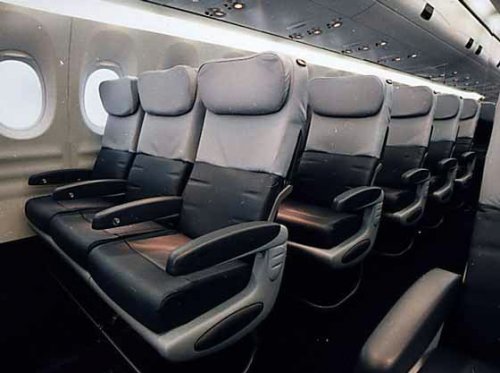

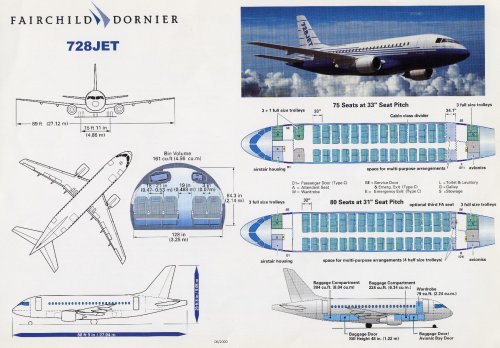

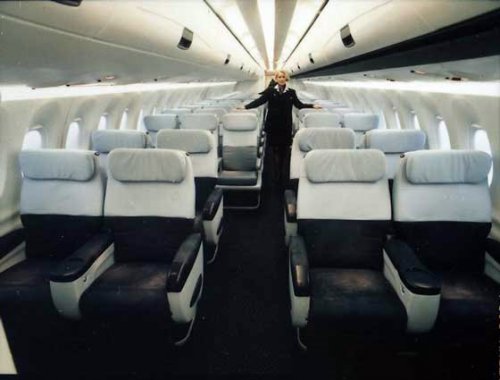

Accommodation:

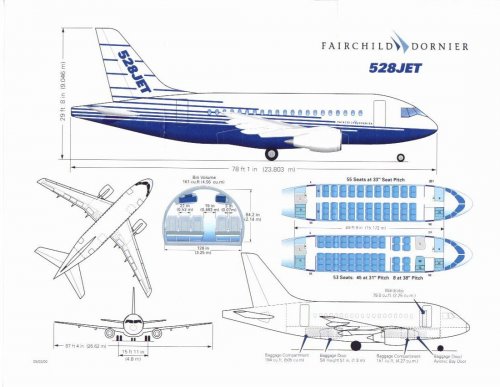

528
Dimensions external
Wing span: 26.26 m (86 ft 2 in)
Wing sweep: ?
Length overall: 23.10 m (76 ft 8 in)
Height overall: 9.05 m (29 ft 8 in)
Dimensions internal
Cabin width: 3.25 m (10 ft 8 in)
Weights and loadings
Performance (estimated)
Range: 1,600 nm (2,963 km; 1,800 miles)
Service ceiling: 11,280 m (37,000 ft)

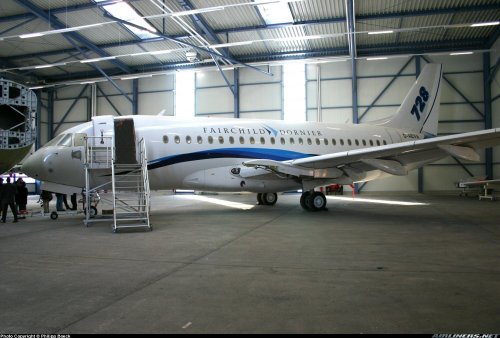

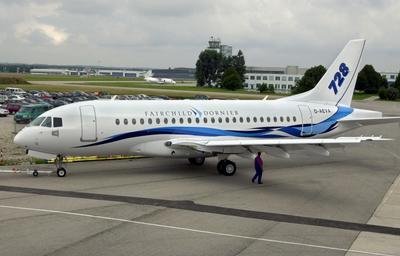

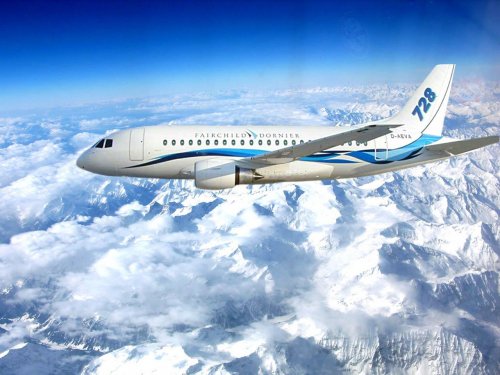

728
Dimensions external
Wing span: 27.12 m (87 ft 4 in)
Wing sweep: 23.5°
Length overall: 27.40 m (89 ft 9 in)
Height overall: 9.05 m (29 ft 8 in)
Dimensions internal
Cabin width: 3.25 m (10 ft 8 in)
Weights and loadings
Empty weight: 20,435 kg (44,957 lb)
Performance (estimated)
Maximum cruise speed: Mach 0.82
Typical cruise speed: Mach 0.81 (320 knots; 593 km/h; 368 mph)
Range: 1,781 nm (3,300 km; 2,050 miles)
Service ceiling: 11,280 m (37,000 ft)

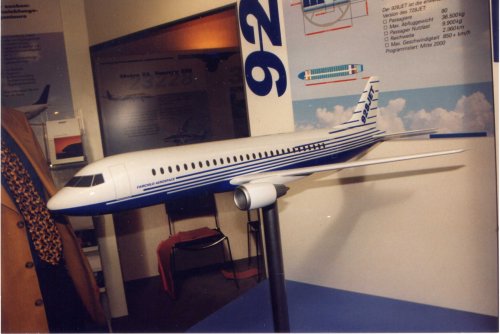

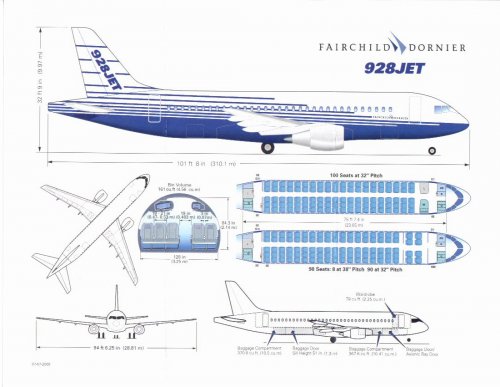

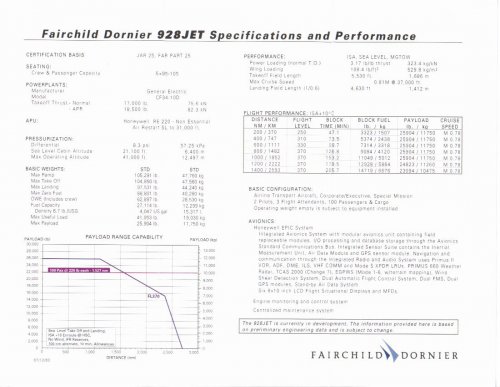

928
Dimensions external
Wing span: 28.81 m (94 ft 6 in)
Wing sweep: 23.7°
Length overall: 31.01 m (101 ft 8 in)
Height overall: 9.97 m (32 ft 8 in)
Dimensions internal
Cabin width: 3.25 m (10 ft 8 in)
Weights and loadings
Empty weight: 28,530 kg (62,766 lb)
Performance (estimated)
Maximum cruise speed:
Typical cruise speed: Mach 0.8
Range: 1,781 nm (3,300 km; 2,050 miles)
Service ceiling: 11,280 m (37,000 ft)
Sources:
http://www.aerospace-technology.com/projects/728jet/
http://en.wikipedia.org/wiki/Fairchild_Dornier_728

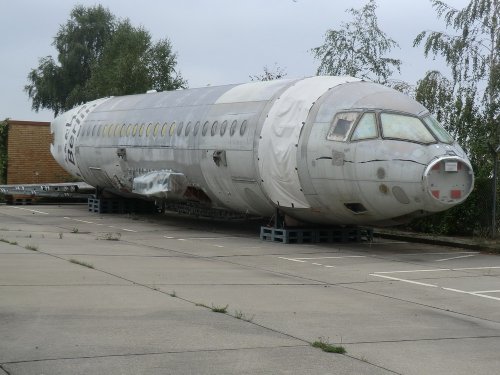

At least it has survived at all.
