Extended tactical cruise missiles effective range
First at all ,let us introduce two weapons of Russian army.
Caliber cruise missile and kilo class submarine
The caliber cruise missile has a length of 8.2 meters, a diameter of 0.5 meters, and an overall weight of 2.3 tons,Its warhead is filled with 200 kilograms of high-energy explosives,
The power device adopts a solid rocket booster, combined with a solid rocket engine and a turbojet engine, The maximum flight speed can reach an 2.9 Mach, and ordinary radar defense systems are unable to make effective responses.The maximum range of a caliber cruise missile is 2500 kilometers.
Its guidance method is composed of three sections. They are inertial guidance in the early stage, terrain matching guidance in the middle stage, and optical imaging guidance when locking the final target at the end. With support of three guidance methods, almost no target can escape its tracking range.
Launch a Caliber cruise missile
Kilo class submarine parameter
underwater drainage capacity 3000 tons
Main dimensions: 73.8 meters long, 9.9 meters wide, maximum diving depth: 300 meters
Main engine: 2 diesel generators, 1 propulsion motor, and 1 navigation motor.
Speed: The surface speed is 11 knots, the underwater speed is 18 knots, and the maximum speed reach 20 knots.
Weapon: The bow of the boat is equipped with 6 torpedo launch tubes, which can carry an additional 12 spare torpedoes, and also be equipped with caliber cruise missiles. Additionally, it can carry 24 naval mines.
Radar: MPK-503 radar, MPM-253M search and early warning radar
Sonar: M г K-400 active/passive search and intermediate frequency sonar
Picture of kilo class submarine
===============================================================
Hawaii island distance Los Angeles city 4097 kilometers (about 2500 miles away) , The maximum range of a caliber cruise missile is 2500 kilometers.
Let us make a hypothetical situation , if kilo class submarines launch caliber cruise missiles near the sea areas of Hawaii, attack the city Los Angeles. Would these missiles arrival the targets?
The caliber cruise missile equip with a turbojet engine.Generally, small turbojet engines have small volume, low cost, and high reliability,Using aviation kerosene as fuel， suitable for cruise missiles.
turbojet engine
aviation kerosene

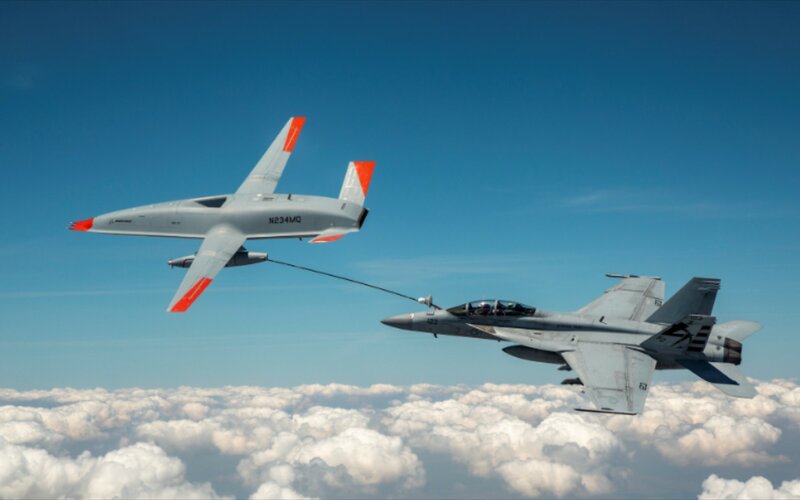

Another new technology drone, MQ25A unmanned refuel aircraft of USA
In October 2017, U.S. Navy bid for the MQ-25A unmanned refuel aircraft, They want the drone to be able to carry 15,000 pounds of fuel eject from the carrier, while saving as much fuel as possible in flight, at 700 kilometers from the carrier, where the F-35 fighter is nearing the limit of its combat radius, to refuel the F-35 fighter to extend its combat radius, or to help it smoothly return.
We presume two Russian kilo-class submarines near sea areas of Hawaii, they launch 20 caliber cruise missiles strike Los Angeles in June 2026.

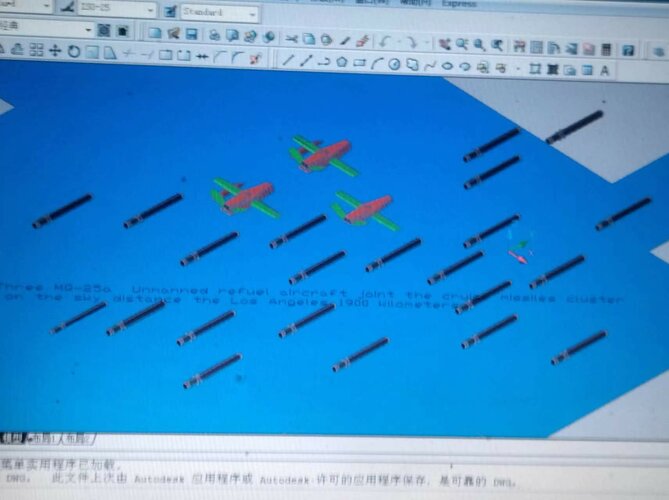

In the ocean distance to Los Angeles 1900 kilometers three MQ25A Unmanned refuel aircraft join these cruise missiles clusters.

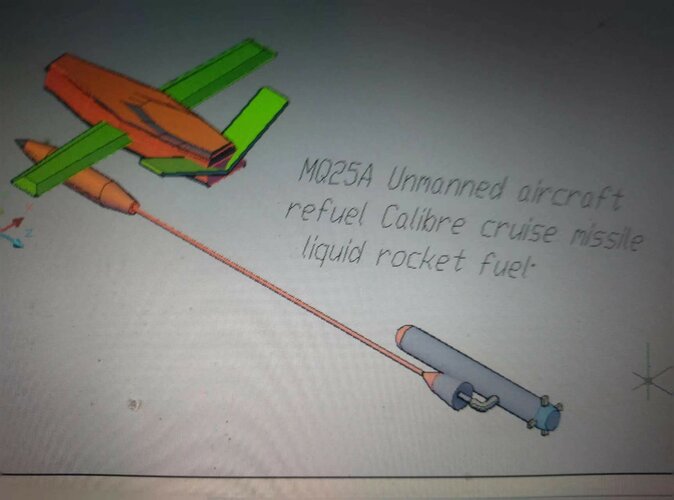

MQ25A aircraft refuel these caliber cruise missiles in the air

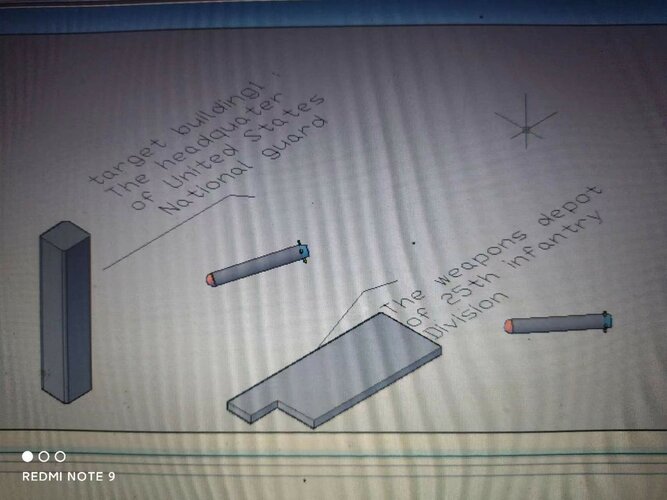

calibre cruise missiles cluster arrival the Los angeles, cruise missiles fly irreglar maneuver dodge the air -defense missiles

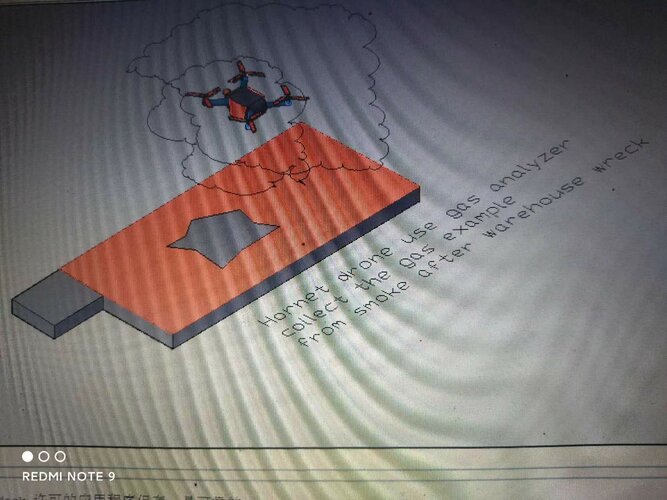

The first arrival cruise missile release a scout drone from it warhead . For observe the damage effects as missiles hit the buildings.
Hornet scout drone weigh 10 kilograms and equip with high speed camera and gas analyzer
