Evolution of HMS Bristol

[uk 75]

There are various threads covering the Type 82 but none (nor in books and online) trace the evolution of the design through the images published in the 60s by the MOD and any subsequent reference.
There is an excellent drawing in Brown/Moore's Rebuilding the Royal Navy


I wonder if anyone with access to the 1966 Janes onwards could add copies of the photos of the paintings and models of the Type 82 as they evolve into the final version. They would be very helpful to me in a modelmaking project I might be commissioning, but also serve to show how the design of a ship evolves. I think also they point to stages at which the design might have what-iffed.



[uk 75]

Artwork of the early Type 82

A later version from Rebuilding the RN



[uk 75]

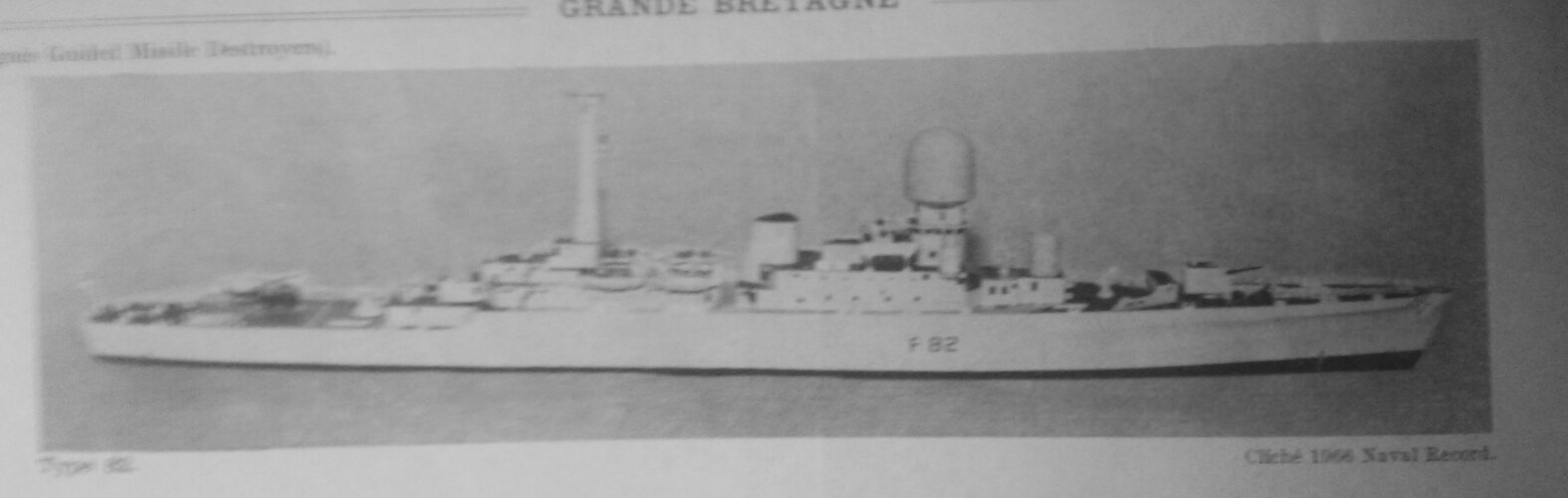

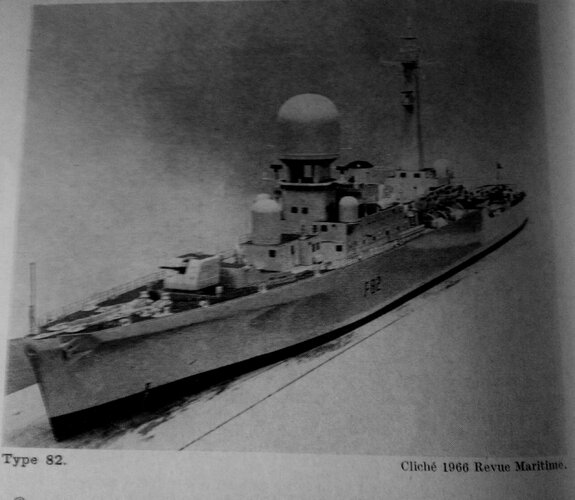

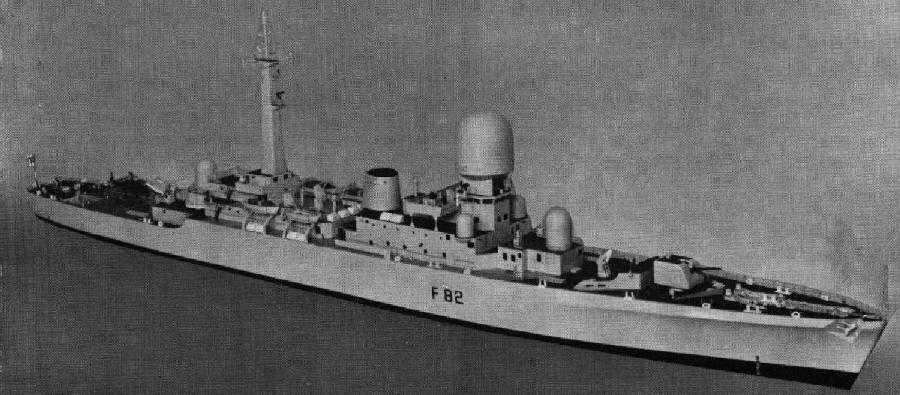

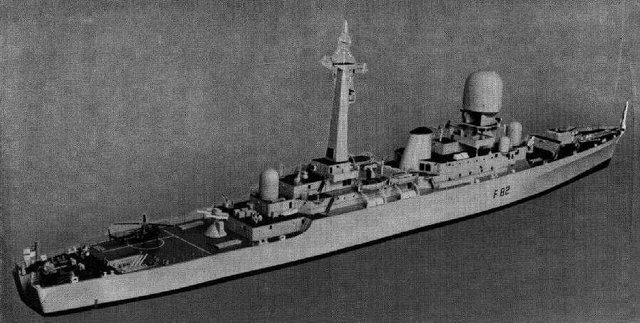

An original model of F82 showing its original enlarged Leander roots.



[uk 75]

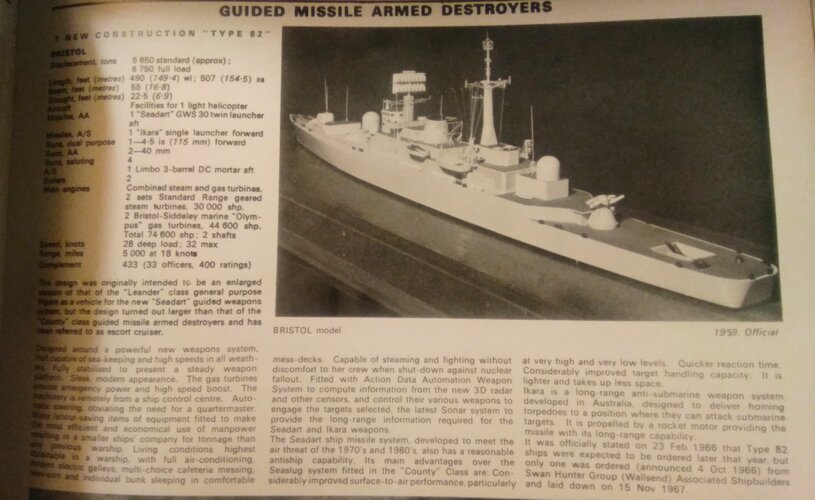

I managed to buy the 1968/69 and 69/70 Jane's Fighting Ships and can now add some interesting material about the Type 82 in its early phase design.

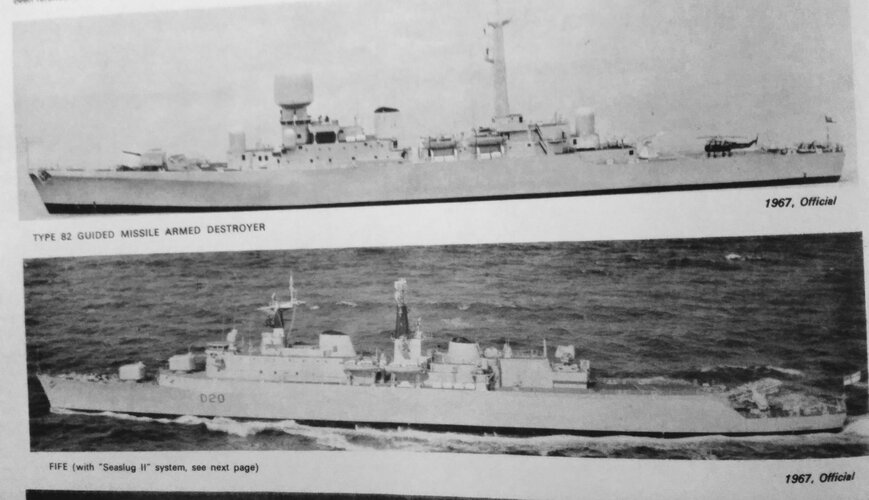

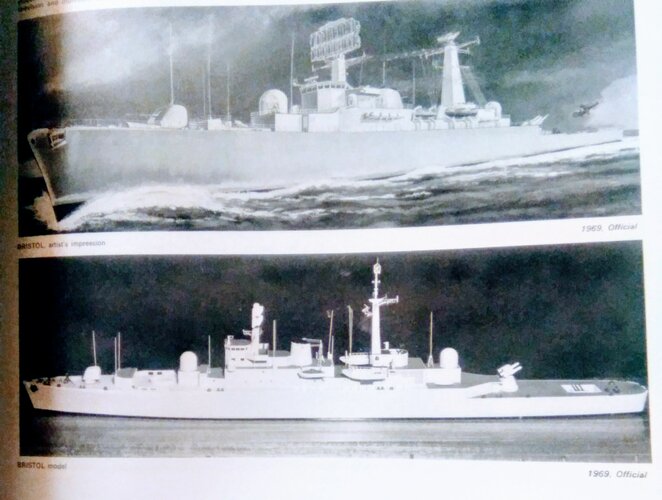

The 68/69 edition shows the Type 82 with the Broomstick radar and looking very like the Dutch Tromp with its Kojak radar. It also shows the fact that it may look like a big Leander but it is now a destroyer leader/ llight cruiser.



[uk 75]

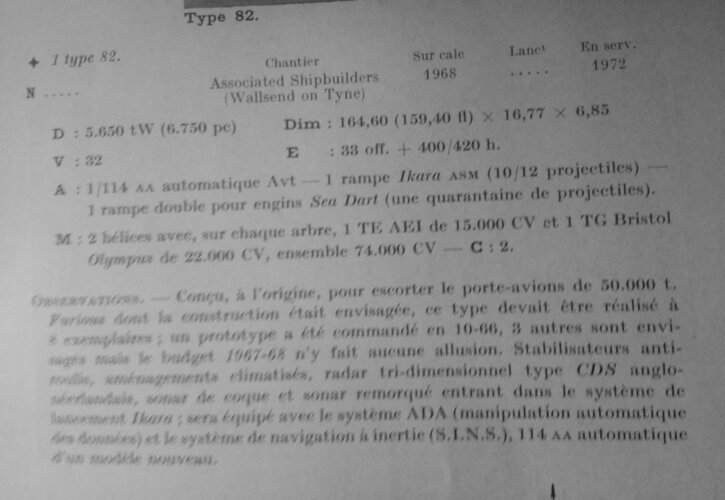

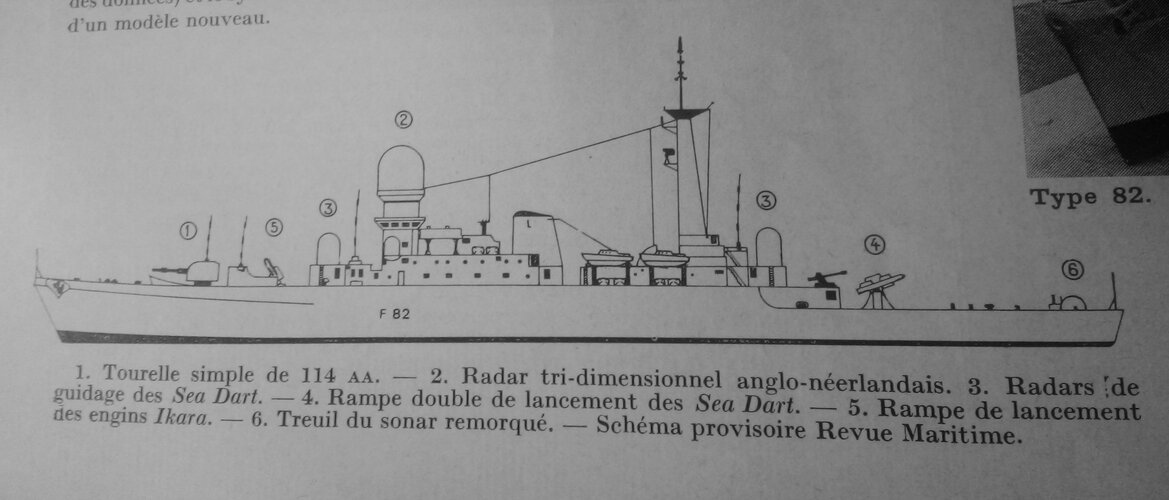

Entry for the Type 82 in the French volume Flottes de Combat of 1968. My phonecam sorry.
