Entwicklungsring Süd GmbH (EWR) Designations

hesham

hesham

ACCESS: USAP
Senior Member
Joined
26 May 2006
Messages
33,027
Reaction score
12,606
Hi,

Entwicklungsring Süd GmbH was formed by a Bolkow, Heinkel and Messerschmitt design consortium on February 23, 1959 at the suggestion of the Federal German Defense Ministry.

The strange thing is that there were two or more series,later I will talk about its sequences.

We can say,and about "EK" or the main series;

EK-1 was an experimental VTOL aircraft project,powered by two lift/cruise engines
plus two lift engines
EWR-2 to EWR-6 ------?
EK-7 was a single seat twin jets experimental fighter,had a V/STOL capability

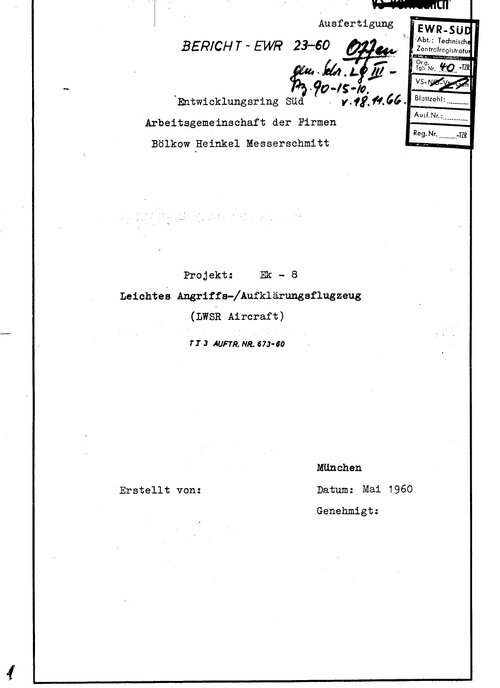

EK-8 was a various V/STOL single seat experimental fighter designs
EWR-9 & EWR-10 ------?
EK-11 was an experimental VTOL aircraft project,powered by one cruise engine plus eight lift engines
EWR-12 to EWR-17 ------?
EK-18 was an experimental VTOL aircraft project,powered by two lift-cruise engines plus three lift engines
EWR-19 to EWR-28 ------?
EK-29 was an experimental VTOL aircraft project,based on EK-18,powered by one
lift/cruise engine plus two lift engines
EWR-30 ------?
EWR-301 & EWR-302 ------?
EWR-303,EWR-304,EWR-305,EWR-306 & EWR-307 were a developed versions of VJ.101
EWR-310 was also a developed version of VJ.101
EWR-320 was a single seat VTOL aircraft project,had a five lift engines,mounted
in the fuselage in the middle
EK-33 was single seat low altitude close support STOL aircraft project,powered by one Lycoming LTC-4C turboprop engine
EK-340 was the same as VAK 191C ?
EWR-350 ------?
EWR-360 was a low-mid-wing VG fighter project,associated with Boeing as US/FRG VSTOL aircraft,powered by two jet engines plus four lift engines,with vectoring thrust and a crew of two
EWR-370 ? was unknown,but may it was developed from EWR-360,had a dorsal inlets,but it differs in having a rear thin fuselage drawn upwards,mid-wing,cone nose and a tail fin looks like MiG-23,also it has a VG in both main and stabilizer wings
EWR 380 & EWR-390 ------?
EWR-400 ? was unknown,but may it was the same as A-400,as two-seat VSTOL
AVS fighter project,in associated with Fairchild-Hiller

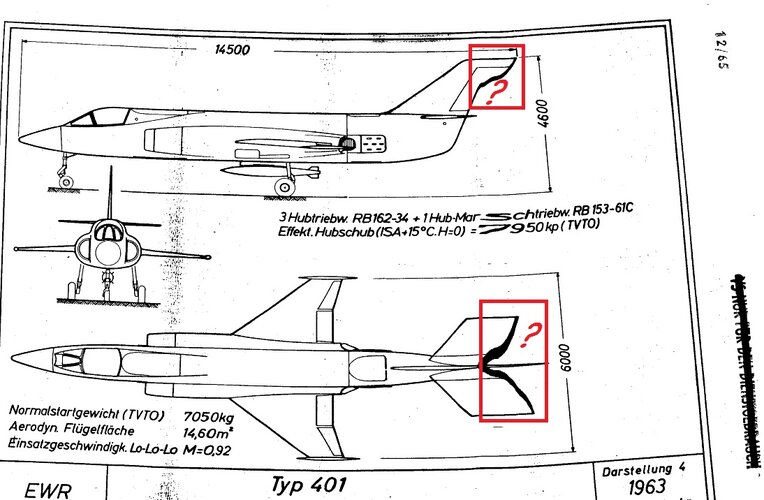

EWR-401 was a single seat three engined experimental V/STOL aircraft project,
with one lift engine,mounted in the fuselage just aft the cockpit
EWR-410 ------?
EWR-420 was a single seat VTOL aircraft project,had a four lift engines,mounted
in the fuselage
EWR-420/II was a tandem two seat VTOL experimental fighter project
EK-420 ? was unknown,but may it was VAK-191B
EK-421 was the same as VAK-191C ?
EWR-430 to EWR-450 ------?
EK-460/1 & EK-460/2 the concept was for a low-wing two-seat light attack and
COIN aircraftr project,powered by two Daimler Benz DB720/PLT 6 turboprop engines
EK-460/3 & EK-460/4 the concept was for two-seat low-wing attack and COIN aicraft project,but powered by one Lycoming LTC4G-3 turboprop engine
EWR-470 ----- ?,speculated designation

- To be continued,and additions or corrections are welcome

Last edited:
Before I start,I want to know the relationship between ERNO and EWR ?.

hesham said:
I reach to EK-421
Click to expand...

So, you are suggesting that 'EK-410' may have been an EWR re-designation of the original Fw 1262? Or was this 'EK-410' designation applied to the VAK 191 after Focke Wulf's cruciform tail was dropped?

Likewise, if 'EK-420' was the Messerschmitt-designed VAK 191B, did the 'EK' system in any way accommodate the six or more 'Marks' under that VAK 191B designation?

Also curious about 'EK' connections with other VAK designs. For example, where is EWR Süd's VAK 191A? And, if Hawker Siddeley's VAK 191C was assigned an 'EK' designation (your 'EK-421'), how did Fiat's VAK 191D fit into this 'EK' sequence?

I think a lot of these designations are speculative.

EK-360 was a low-mid-wing VG fighter project,associated with Boeing as US/FRG VSTOL aircraft,powered by two jet engines plus four lift engines,with vectoring thrust and a crew of two

I think that's EWR 360, not sure I've seen it specifically called EK-360. It seems to fit numerically.

We also need citations for the different designations. I can do that tonight.

According to Hans-Jurgen Becker, EK stands for Erdkämpfer or "Ground Attack".

As far as I can see, this was a specific set of design studies leading to the VAK-191. Not sure it was a "manufacturer" system.

Other drawings refer to e.g. "Typ 310" not EK-310, and the Boeing/EWR "Type 360".

Last edited:
Something like
  • EK 1 was an experimental VTOL aircraft project, powered by two lift/cruise engines plus two lift engines
    • Source:
  • EK 11 was an experimental VTOL aircraft project, powered by one cruise engine plus eight lift engines
    • Source:
  • EK 18 was an experimental VTOL aircraft project, powered by two lift-cruise engines plus three lift engines
    • Source:
  • EK 29 was an experimental VTOL aircraft project, based on EK-18, powered by one
    • Source:
  • EK 33 was a single seat low altitude close support STOL aircraft project, powered by one Lycoming LTC-4C turboprop engine
  • EK 421 EWR VTOL study to VAK-191
    • Source:

Typ 303, 304, 305, 306, 307, 310-1, 310-2, 310-3 were VJ-101C developments

Typ 360 was a low-mid-wing VG fighter project, associated with Boeing as US/FRG VSTOL aircraft, powered by two jet engines plus four lift engines,with vectoring thrust and a crew of two

Typ 400? US/FRG /AVS two-seat VSTOL AVS fighter project, in associated with Fairchild-Hiller known as "A400" - possible connection?

Typ 460/1 & 460/2 the concept was for a low-wing two-seat light attack and COIN aircraft project, powered by two Daimler Benz DB720 / PLT 6 turboprop engines
Typ 460/3 & 460/4 the concept was for two-seat low-wing attack and COIN aircraft project but powered by one Lycoming LTC4G-3 turboprop engine

Last edited:
overscan (PaulMM) said:
Something like
  • EK 1 was an experimental VTOL aircraft project, powered by two lift/cruise engines plus two lift engines
    • Source:
  • EK 11 was an experimental VTOL aircraft project, powered by one cruise engine plus eight lift engines
    • Source:
  • EK 18 was an experimental VTOL aircraft project, powered by two lift-cruise engines plus three lift engines
    • Source:
  • EK 29 was an experimental VTOL aircraft project, based on EK-18, powered by one
    • Source:
  • EK 33 was a single seat low altitude close support STOL aircraft project, powered by one Lycoming LTC-4C turboprop engine
  • EK 421 EWR VTOL study to VAK-191
    • Source:

Type 303, 304, 305, 306, 307, 310-1, 310-2, Type 310-3 were VJ-101C developments

Type 360 was a low-mid-wing VG fighter project, associated with Boeing as US/FRG VSTOL aircraft, powered by two jet engines plus four lift engines,with vectoring thrust and a crew of two

Type 400? US/FRG /AVS two-seat VSTOL AVS fighter project, in associated with Fairchild-Hiller known as "A400" - possible connection?

Type 460/1 & 460/2 the concept was for a low-wing two-seat light attack and COIN aircraft project, powered by two Daimler Benz DB720 / PLT 6 turboprop engines
Type 460/3 & 460/4 the concept was for two-seat low-wing attack and COIN aircraft project but powered by one Lycoming LTC4G-3 turboprop engine
Click to expand...

OK my dear PaulMM,

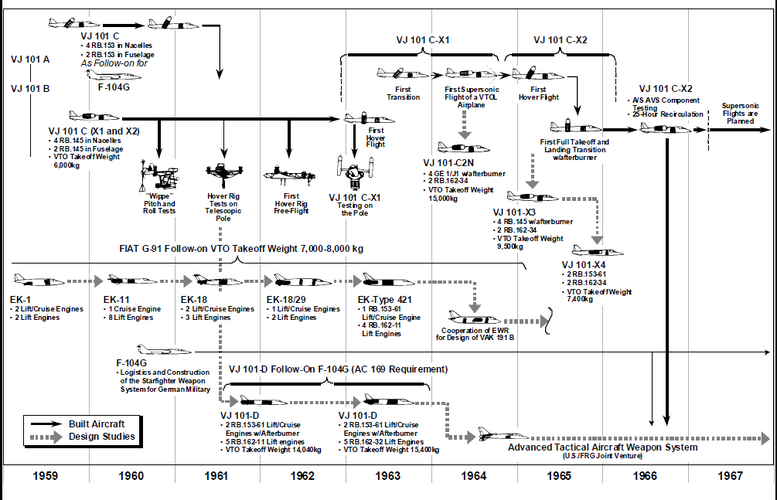

and here is the source.


Attachments

  • 20.png
    85.3 KB · Views: 39
  • 21.png
    121.3 KB · Views: 31

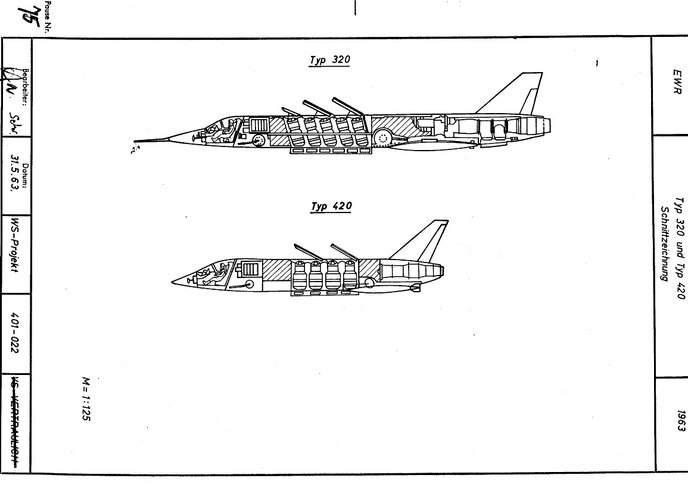

Sectional drawing of EWR-Süd Typ 320 and Typ 420 (not Type)

Typ 320 und Typ 420.jpg
Source: EADS Archive Ottobrunn (scanned there in 2001)

To the moderators: please move to another topic if this drawing (and the following ones) do not belong here in the designation list.

Last edited:
Amazing drawings my dear Boxkite,

many great thanks, and I will add them to the list.

... and the 'curved' frame around the drawing :( . Unfortunately, after the visit to Ottobrunn, the possibilities of using the archive there have rapidly deteriorated, so that I currently see no chance of copying or scanning the drawing again. Are there any image editing programmes that could be used to "rectify" the graphic?

Oh my God,

my dear Boxkite,you made my day,all great thanks.

My dear Boxkite,

can I ask you about EWR/Boeing designations,what were them ?,and thanks.

hesham said:
My dear Boxkite,

can I ask you about EWR/Boeing designations,what were them ?,and thanks.
Click to expand...

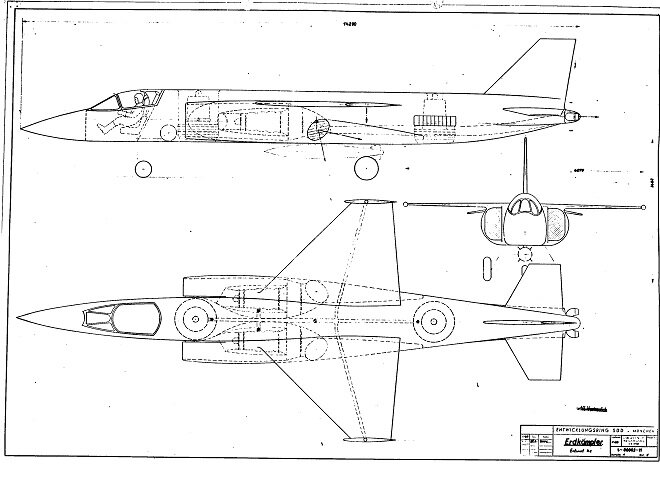

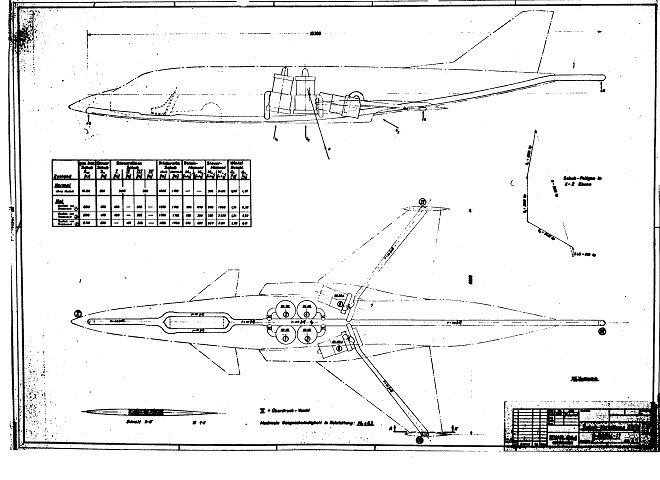

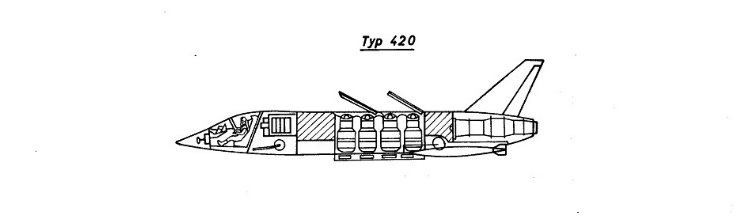

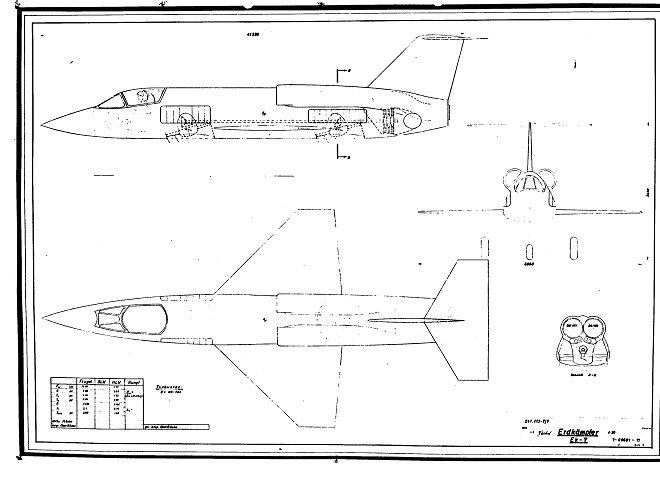

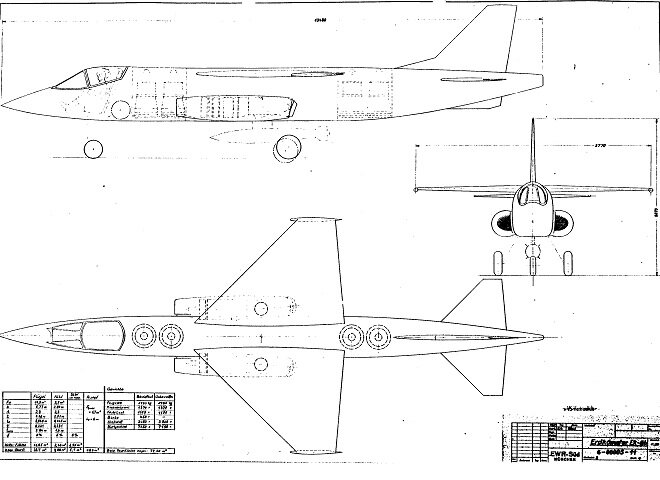

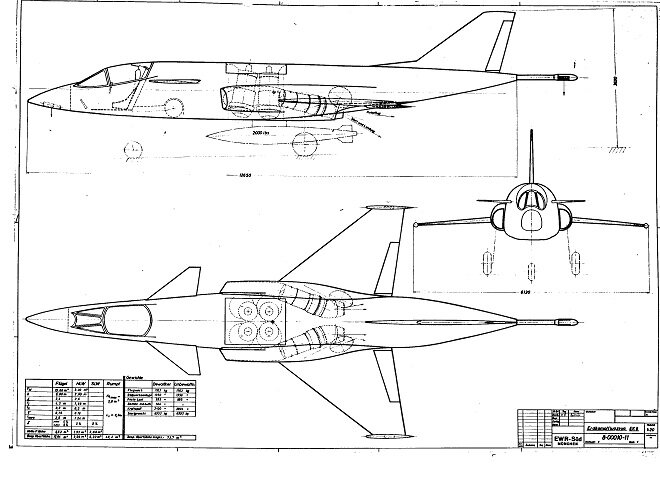

Also what is the different between these two Typ 420 ?,a single seat
and two seat ?.


Attachments

  • 17.png
    35 KB · Views: 13
  • 18.png
    174.2 KB · Views: 15
hesham said:
My dear Boxkite,

can I ask you about EWR/Boeing designations,what were them ?,and thanks.
Click to expand...

hesham said:
Also what is the different between these two Typ 420 ?,a single seat
and two seat ?.
Click to expand...

Unfortunately, we were not able to check the folders on the shelves. @vstol, who spoke to the archivist, Mr Wolfgang Mühlbauer, told me that there are still many folders marked as "CLASSIFIED" - the status has not been lifted to date.
I don't know what has happened to all the material in the meantime. I would like to see the entire development history of the AVS published from start to finish, but we have not been given a second chance to visit the archive. The current bosses are not interested in it because it doesn't promise any profit, was the conclusion. Who is interested in old drawings and other documents ... except a few weirdos out there.
I would like Tony B. to step into the breach and use his reputation to achieve something on the ground. But the decision makers have probably never heard of him, let alone read one of his books.

Last edited:
boxkite said:
Unfortunately, we were not able to check the folders on the shelves. @vstol, who spoke to the archivist, Mr Wolfgang Mühlbauer, told me that there are still many folders marked as "CLASSIFIED" - the status has not been lifted to date.
I don't know what has happened to all the material in the meantime. I would like to see the entire development history of the AVS published from start to finish, but we have not been given a second chance to visit the archive. The current bosses are not interested in it because it doesn't promise any profit, was the conclusion. Who is interested in old drawings and other documents ... except a few weirdos
out there.
I would like Tony B. to step into the breach and use his reputation to achieve something on the ground. But the decision makers have probably never heard of him, let alone read one of his books.
Click to expand...

Thank you my dear Boxkite.

This book was published in Germany many years ago



Attachments

  • IMG_20240712_000027.jpg
    38.4 KB · Views: 2
